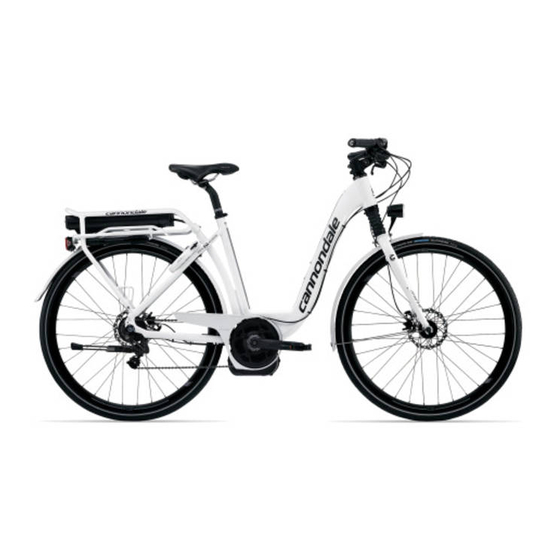

- Page 1 127534 CANNONDALE E-SERIES. CANNONDALE E-SERIES. CANNONDALE E-SERIES. CANNONDALE E-SERIES. OWNER’S MANUAL SUPPLEMENT. OWNER’S MANUAL SUPPLEMENT. OWNER’S MANUAL SUPPLEMENT.
-
Page 2: Table Of Contents
Contents About this supplement Cannondale Owner’s Manual Supplements provide important model specific safety, maintenance, and technical information. They are not replacements for your Cannondale safety Information ........2 Bicycle Owner’s Manual. Intended Use ............... 2 This supplement may be one of several for your bike. Be sure Battery &... -
Page 3: Safety Information
This bike is not for mountain biking use, jumping, or racing. Your E-Series bike has an electric pedal assist drive system. It is not a moped or motorcycle. In EU contries, it is known YoU MUst FoLLoW ALL LoCAL LAWs: It is your legally as an “EPAC”... -
Page 4: Battery & Charger
BosCH InstRUCtIons - In addition to this supplement, you must read and follow the BOSCH battery and charger. Disconnect the battery from the charger unit when fully instructions. Go to : http://www.cannondale.com/ charged. Do not leave a fully charged battery connected support-ebike to the charger. -
Page 5: Parts Of The E-Series Bike
PARts oF tHe e-seRIes BIKe Frame Figure 1. 1. BOSCH Drive Unit 9. Headshok Stem 17. Pedal 2. BOSCH Battery 10. Lockout Lever 18. BOSCH Speed Sensor 3. BOSCH HMI Unit 11. Bell 19. Rear Cassette 4. Headshok Fork 12. Kickstand 20. -
Page 6: Bosch Drive Unit
Other components of the eBike drive (e.g. drive chain, front chain ring, rear cassette, rear derailleur, crankarm) must be serviced by your Cannondale Dealer. Replacement parts must be identical to the original Cannondale specification for the bike. see specifications. Failure to replace components with original specification can result in serious overload or other damage to the drive unit. -
Page 7: Bosch Handlebar Mounted Interface (Hmi)
The HMI unit attaches to the handlebar mounting base (2). The base unit should be positioned on the handlebar for convenient use without interference with other bicycle controls. The handlebar position can be changed, however, to avoid damage, this is somethingyour Cannondale Dealer should do for you. to remove the computer: When the bicycle is not in use, remove the computer unit (1) from the base (2) to prevent theft. - Page 8 Tour, Sport, Speed) 12. Multi-Function Display a. Sensor Gap 5. Lighting On/OFF Button 13. Battery Charge Level 6. Support Level Decrease Button 14. Bosch Speed Sensor 15. Chainstay 7. Support Level Increase Button see also BosCH Instructions 0 275 007 X00 http://www.cannondale.com/support-ebike...
-
Page 9: Bosch Battery Pack
(8) and base connector (9) in the rack. Slide the battery into the rack until it clicks into the base connector. Turn the key counter- clockwise (toward the front) until the battery is locked. Remove the key from the lock. see also BosCH Instructions 0 275 007 40X http://www.cannondale.com/support-ebike... -
Page 10: Bosch Charger
During charging, make sure the charger ventilation openings (8) are clear. Do not cover the battery or charger. When the battery is fully charged, remove the charging connector and unplug the charger from the wall outlet. Reinstall and lock the battery into the bicycle rack. see also BosCH Instructions 0 275 007 900 http://www.cannondale.com/support-ebike... -
Page 11: Operation Instructions
oPeRAtInG InstRUCtIons to turn the drive assist system on / oFF: see Figure 7. Press the battery ON/OFF button (1) . When you do this, the battery charge level LEDs (2) will illuminate indicating current battery charge level and the HMI computer display will turn on. When all LEDs are lit, the battery level is 100%. -
Page 12: Selecting Assistance Mode/Support Level
127534.PDF selecting Assistance Mode and support Level see Figure 9. The bicycle has four assistance modes and four levels of support within each mode. The table below describes the performance charateristic of each mode/level. to select an assistance mode: Press the ON/OFF button at the battery to turn the system ON at the battery pack. -
Page 13: Factors Affect Assistance Range
. see Figure 4, item 11. Depending on the type of error, the drive system may be switched off automatically. This happens to prevent further damage. If it happens, the bike can be pedaled normally. Contact your Cannondale Dealer with the error code information encountered. see also BosCH Instructions 0 275 007 X00 http://www.cannondale.com/support-ebike... -
Page 14: Keys
Keys see Figure 11. Your E-Series bike comes with a main key (1) and spare key (2). The keys are identified by the serial number (3). The keys work in both the rear wheel frame lock and the BOSCH battery lock. Please record the key serial number for future use and key replacement. -
Page 15: Headshok Suspension Fork
HeADsHoK sUsPensIon FoRK Fatty w/DL50 Your E-Series bicycle is equipped with a Cannondale Headshok Fatty suspension fork. The fork features the DL50 damping cartridge. The internal spring size can be changed to accomodate various rider weights to tune performance. This fork is designed for a 700c wheel. - Page 16 127534.PDF KF258/ QSMSEAL/ 6 Nm Loctite 242 HD169/ QHDST/EBO KF241/ KF239/XL HD191/BLK KF242/ KF243/ 17-18 Nm Loctite 242 HD170/ QC850/ = 105mm QC851/ = 120mm 6 Nm 6 Nm Loctite 242 Loctite 242 Figure 13. 1. Headtube 9. Upper Boot Clamp (49mm) 17.
-
Page 17: Maintenance
Be PeRFoRMeD BY CAnnonDALe DeALeR : Recommended after the first 150 km, bring your bike to your Cannondale Dealer for an initial check-up. It should include checks of the drive assist system, drive chain condition, proper shifting, accessories, wheels and tire condition, brakes, etc. -
Page 18: Cleaning
127534.PDF Cleaning When cleaning your bike, use a damp sponge or a soft brush with only a mild soap and water solution. Rinse the sponge often. Do not spray water. notICe Do not use a pressure washer or dry with compressed air. This will force contaminants into sealed areas, electrical connections/components promoting corrosion, immediately damaging, or result in accelerated wear. -
Page 19: Geometry
Bottom Bracket Drop Bottom Bracket Height Fork Rake Trail 72.92 69.66 66.41 72.92 Figure 14. Please note that the specifications and information in this manual are subject to change for product improvement. For the latest product information, go to http://www.cannondale.com/... -
Page 20: Specifications
127534.PDF sPeCIFICAtIons Frame Aluminium 6061-T6 Headtube OnePointFive, Cannondale Headshok Fork Headshok Fatty DL50 Drive Chain 9-speed, 114 Links Front Chain Ring 42T 4-Bolt 104 BCD Rear Cassette 11-32, 9 speed Use a seat post with a 31.6 mm diameter. only. Only use a metal adapter of accurate fit when using a smaller diameter seatpost. -
Page 21: Replacement Parts
RePLACeMent PARts The following replacement part kits are available through a Cannondale Dealer: DesCRIPtIon see Figure QC850/ KIT,HEADSHOK STEM ADJ 105mmBBQ QC851/ KIT,HEADSHOK STEM ADJ 120mmBBQ KA026/ KICKSTAND STYLO SI C’DALE BLK QC842/BBQ KIT,SEATBINDER,MTN,34.9,BLK QC843/BBQ KIT,SEATBINDER,MTN QR,34.9,BLK KF096/ KIT,DER HANGER,SINGLE SIDED RD... - Page 22 READ THIS SUPPLEMENT AND YOUR CANNONDALE BICYCLE OWNER’S MANUAL. WARNING Both contain important safety information. Keep both for future reference. CANNONDALE USA CANNONDALE EUROPE CANNONDALE UK Cycling Sports Group, Inc. Cycling Sports Group Europe, B.V. Cycling Sports Group 172 Friendship Road,...
