Page 1: Room Air Conditioner

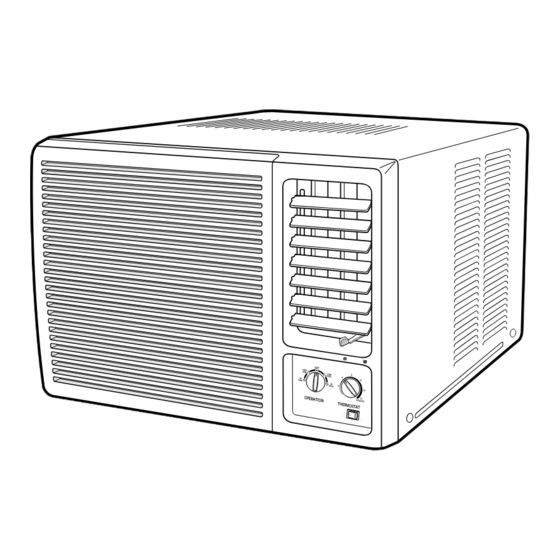

ROOM AIR CONDITIONER AW07A0SE/AW07A1SE AW09A0SE/AW09A1SE SERVICE Manual AIR CONDITIONER CONTENTS 1. Precautions 2. Product Specifications 3. Operating Instructions and Installation 4. Disassembly and Reassembly 5. Troubleshooting 6. Exploded Views and Parts List 7. Block Diagram 8. Wiring Diagram... -
Page 2: Precautions
Relocate the unit if necessary. 9. Keep children away from the unit while it is being repaired. 10. Be sure to clean the unit and its surrounding area. Fig. 1-3 No Kids Nearby! Fig. 1-4 Clean the Unit Samsung Electronics... -
Page 3: Product Specifications
2. Product Specifications 2-1 Table Item Unit of Measure AW07A0SE AW07A1SE AW09A0SE AW09A1SE Remarks Type Window Dimensions: 485 (20.5 13.6 19.1) mm (inch) (Width Height Depth) Packing Size mm (inch) 546 (22.5 17.7 21.5) (Width Height Depth) Volt Voltage: 220 - 240... - Page 4 2-2 Dimensions 2-2-1 Main Unit Unit : mm Front view Side view COOL COOL COOLEST OPERATION THERMOSTAT Samsung Electronics...
- Page 5 (at least 1 meter clearance). Caution: Do not use the air conditioner in the following environments : greasy areas (including areas near machines), or marine areas. Contact your local dealer for advice. Samsung Electronics...
-
Page 6: Controls And Components
3-2 Controls and Components <AW07A0SE/AW09A0SE> COOL COOL Operating mode Temperature selection dial control dial COOLEST OPERATION THERMOSTAT <AW07A1SE/AW09A1SE> COOL COOL Operating mode Temperature selection dial control dial COOLEST OPERATION THERMOSTAT Air flow blade swing switch 3-2-1 Thermostat OFF : Control Operation :... - Page 7 ) : Automatic oscillation distributes the air flow throughout the room (controls left and right wave fins) ¥ OFF( ) : Maintains a fixed direction of air flow, Set the Air Swing switch to OFF at the instant the wave fins come to the desired position. Samsung Electronics...
-
Page 8: Disassembly And Reassembly
Perform soldering function Problem? Fill system with nitrogen gas Check for leakage Leakage? Corrective action Check refrigerant oil level Release nitrogen gas? Low oil level? Evacuate system Add oil as necessary Recharge system Pinch and braze filling tube Samsung Electronics... - Page 9 5. After vacuum is completed, the oil is filled through the high pressure side. 6. In the event of a refrigerant leak, generally it is not necessary to add oil. (unless the oil has leaked significantly). 4-3 Refrigerant Oil Specifications Model Oil Charge Oil specification AW07A0SE 280cc AW07A1SE SONTEX 200LT AW09A0SE 360cc AW09A1SE...
- Page 10 2. Pull the front both side, and remove the unit from the cabinet. Ass'y Control 1. Remove the blade V and arm blade 2. Remove 2 screws, and earth wire screw. 3. Remove two lead wire assemblies. 4. Take out the control box forward. Samsung Electronics...
- Page 11 1. Remove two screws on the bottom side, Propeller Fan and 4 screws on the case cond. 2. Pull up the case cond and separate the cond case from the cond. 3. Remove the nut flange, and remove the propeller fan Samsung Electronics...
- Page 12 Disassembly and Reassembly Part name Procedures Remarks Cond Casing 1. Remove the cond casing Blower & Motor 1. Move the motor & blower toward the evap, and lift up the motor & blower from the frame low. Samsung Electronics...
-
Page 13: Troubleshooting
2. the hex. nut is loose ( not loose or broken ). 3. the parts are broken 3. check bearing noise of the motor 4. motor is faulty 4. check the compressor noise against 5. compressor is faulty that of other compressors. Samsung Electronics... -
Page 14: Exploded Views And Parts List
6. Exploded View and Parts List 6-1 Main unit Samsung Electronics... - Page 15 Part List Q'TY Remarks Code No. Description Specification AW07A0SE AW07A1SE AW09A0SE AW09A1SE HIPS INLET - GRILL DB64 - 10158B DB64 - 00014A INLET - GRILL HIPS GUARD AIR FILTER DB63 - 30158A HIPS DB64 - 70093A PANEL FRONT DB66 - 30191A...
- Page 16 6-2 Ass’y Control Part List Q'TY Remarks Code No. Description Specification AW07A0SE AW07A1SE AW09A0SE AW09A1SE DB93 - 00139A ASS’Y CONTROL M AW07A0SE DB93 00139E ASS’Y CONTROL M AW07A1SE DB93 - 00139D ASS’Y CONTROL M AW09A0SE DB93 00139G ASS’Y CONTROL M...
-
Page 17: Block Diagram
7. Block Diagram 7-1 Refrigerating Cycle Block Diagram PINCH PIPE (SERVICE VALVE) SUCTION LINE DISCHARGE LINE ACCUMULATOR/COMPRESSOR EVAPORATOR CONDENSER CAPILLARY TUBE PINCH PIPE (SERVICE VALVE) Samsung Electronics Samsung Electronics... -
Page 18: Wiring Diagram
8. Wiring Diagram O.L.P THERMOSTAT COMP GRN/YEL PLUG SELECTOR - S/W AW07A0SE CAPACITOR : 2.5/25 uF x 370VAC DIAGRAM-ELECTRIC AW09A0SE CAPACITOR : 3/30 uF x 370VAC O.L.P THERMOSTAT COMP GRN/YEL PLUG SELECTOR - S/W AW07A1SE CAPACITOR : 2.5/25 uF x370VAC...
