USER GUIDE
NI USB-5132/5133 OEM
USB Digitizers
There are no product safety, electromagnetic compatibility (EMC), or
Caution
CE marking compliance claims made for the USB-5132/5133 OEM devices. Conformity
to any and all compliance requirements rests with the end product supplier.
Caution
Exercise caution when placing USB-5132/5133 OEM devices inside an
enclosure. Auxiliary cooling may be necessary to keep the device under the maximum
ambient temperature rating of 55 °C, as specified in the NI 5132/5133 Specifications.
This document provides dimensions and information about the connectors,
LEDs, and chassis ground of the National Instruments USB-5132/5133
OEM devices. It also explains how to modify the USB device name in
Microsoft Windows.

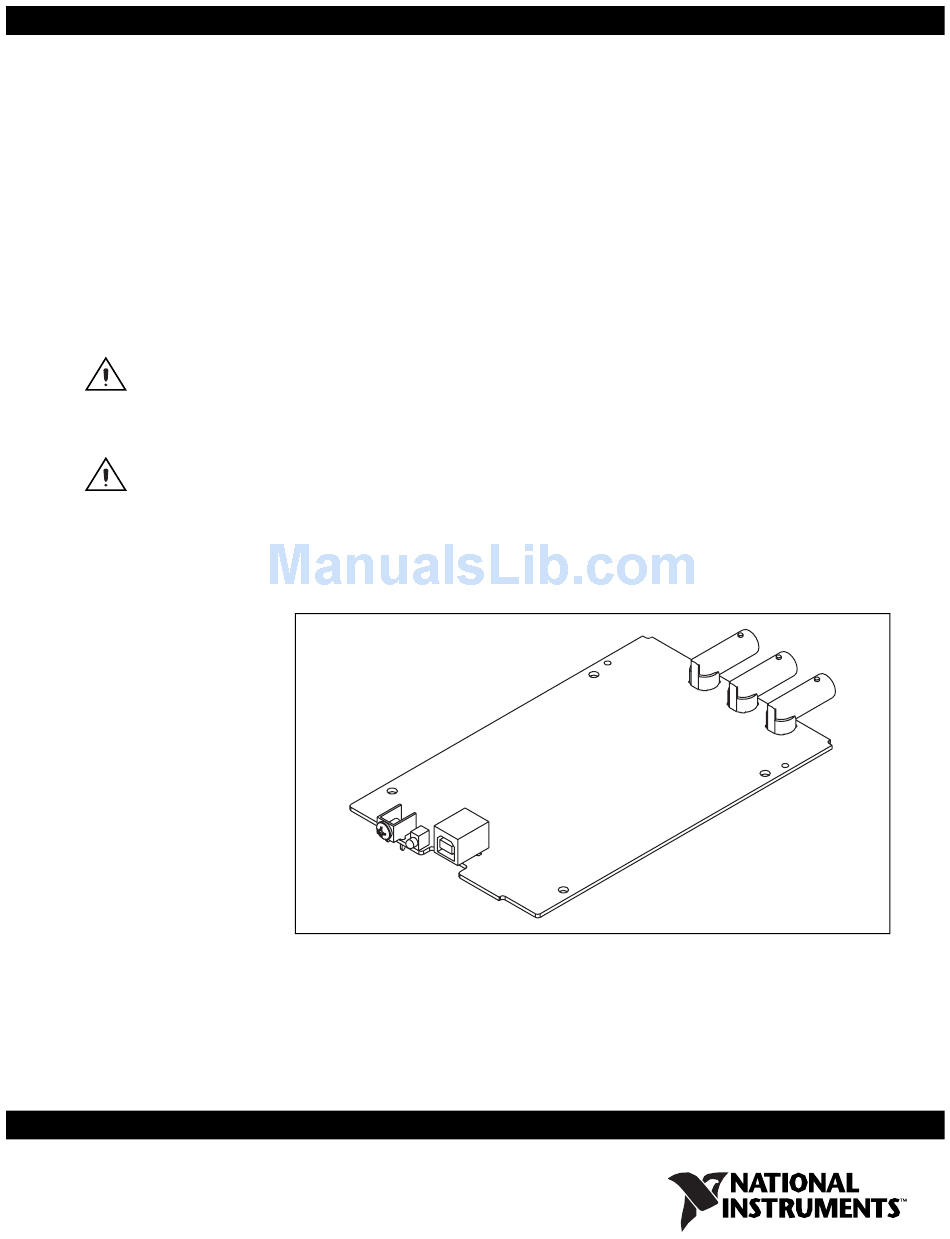

Figure 1 shows the USB-5132/5133 OEM device.
Figure 1. USB-5132/5133 OEM Device
Refer to the NI 5132/5133 Specifications document for device
specifications. Refer to the NI High-Speed Digitizers Help for more
Advertisement
Related Manuals for National Instruments USB Digitizers NI USB-5132
Summary of Contents for National Instruments USB Digitizers NI USB-5132
-
Page 1: User Guide
NI USB-5132/5133 OEM USB Digitizers This document provides dimensions and information about the connectors, LEDs, and chassis ground of the National Instruments USB-5132/5133 OEM devices. It also explains how to modify the USB device name in Microsoft Windows. There are no product safety, electromagnetic compatibility (EMC), or Caution CE marking compliance claims made for the USB-5132/5133 OEM devices. - Page 2 information about USB-5132/5133 devices. You can find all documentation at Dimensions Figure 2 shows the dimensions of the USB-5132/5133 OEM device. 6.602 (167.69) 5.959 (151.35) 2X 4.726 (120.04) 2X .694 (17.63) .000 .225 (5.72) .310 (7.87) .062 (1.58) .000 NI USB-5132/5133 OEM User Guide ni.com/manuals 4X Ø...
- Page 3 Figure 3. Caution Do not use the holes labeled A in Figure 3 as mounting holes. © National Instruments Corporation Mounting Hole Connected to Chassis Ground Figure 3. USB-5132/5133 OEM Customer Mounting Holes...
-
Page 4: Device Components
Device Components Table 1 contains information about the components used for interfacing and interacting with the USB-5132/5133 OEM device. Component Reference Designator(s) on PCB LEDs USB connector J1, J3, J5 Modifying the USB Device Name in Microsoft Windows You can change how the USB-5132/5133 OEM device name appears when users install the device in both the Found New Hardware Wizard that appears when the device is initially installed and in the Windows Device Manager. - Page 5 To modify the device name in the Found New Hardware Wizard and Windows Device Manager in Microsoft Windows Vista/XP, complete the following steps. You must have NI-SCOPE 3.4 or later installed on your PC. Note © National Instruments Corporation Locate the file in the NIHSD2k.inf where is the root directory where Windows is installed.
- Page 6 When you reconnect and power on the device, it appears as the Found New Hardware Wizard and Windows Device Manager, as shown in Figure 6. When the device is initially installed, the Windows alert message may display the Note following: Found New Hardware: USB 513x until the custom name appears and the Found New Hardware Wizard is launched.
-
Page 7: Windows 2000 Users
Windows Device Manager in Windows 2000, complete the following steps. You must have NI-SCOPE 3.4 or later installed on your PC. Note © National Instruments Corporation Figure 7. USB-5133 OEM Device in the Found New Hardware Wizard and Device Manager (Windows 2000) - Page 8 NI USB-5132/5133 OEM User Guide Edit the device INF file by opening At the bottom of this file are the descriptors where Windows looks to identify the device. Locate the four lines of text that contain in quotes the descriptors for the device name you are modifying. Change the descriptor on all lines to the new device name, as shown in Figure 8.
- Page 9 Modifying the INF file will not change the USB-5132/5133 OEM device name in Measurement & Automation Explorer (MAX). National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks.
