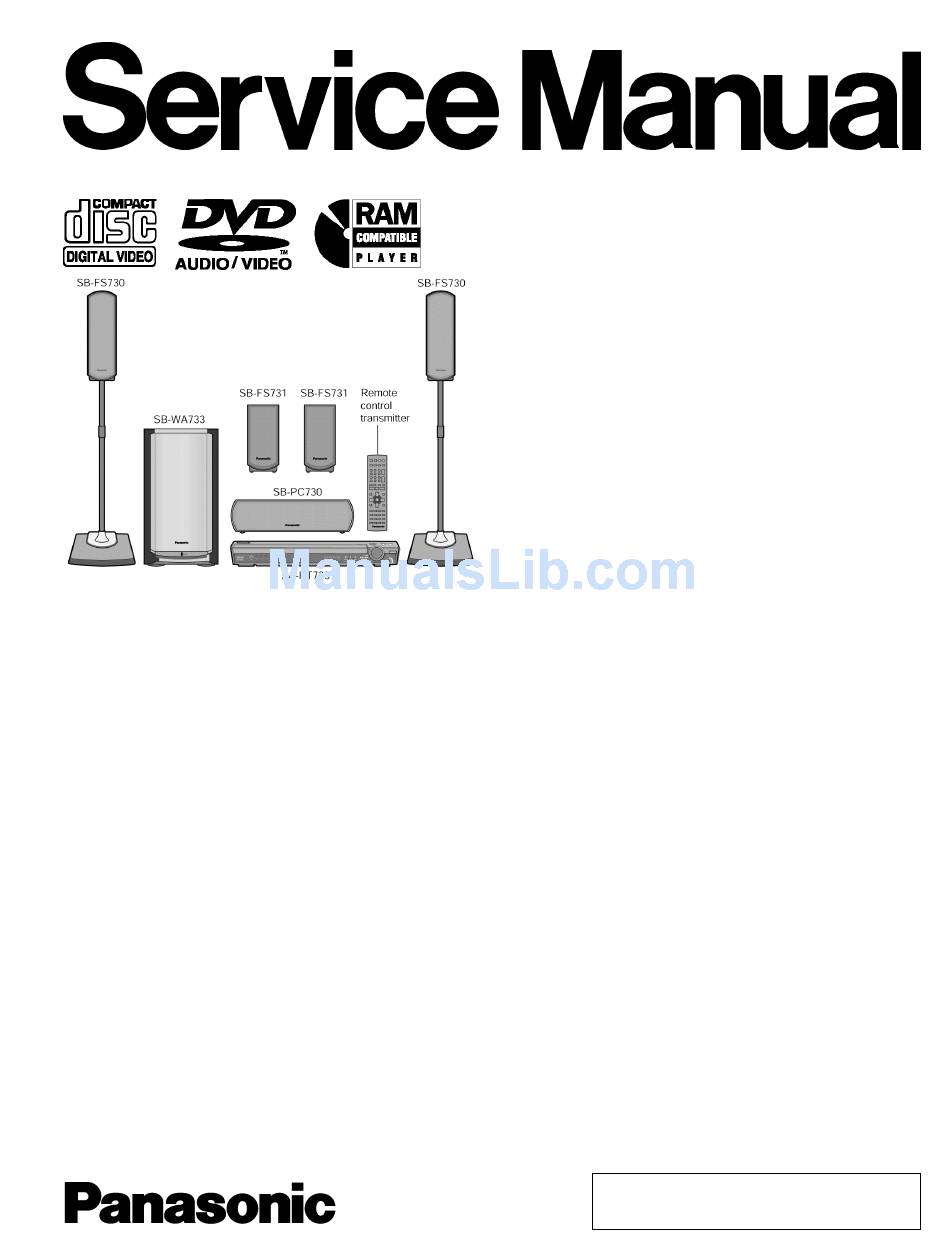

Panasonic SA-HT733P Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Home Theater System
  5. SA-HT733P
  6. Service manual
Panasonic SA-HT733P Service Manual

Panasonic SA-HT733P Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Specifications

lGeneral
Power Source:
Power consumption:
Dimensions (W×H×D):
Mass:
lAmplifier section
RMS Output Power: Dolby Digital Mode
lTotal RMS Dolby Digital
mode Power:
At 1kHz and total harmonic of 10%
lFront:
lCenter:
lSurround:
At 100Hz and total harmonic of 10%
lActive subwoofers:
FTC Output Power: Dolby Digital Mode:
lTotal FTC Dolby Digital mode Power:
At 120Hz-20kHz and total harmonic of 1%
lFront:
AC 120V, 60Hz
25 W
430×68×423 mm
(16-15/16"×2-11/16"×16-10/16")
4 kg (8.9Ibs)
750 W
65 W/ Channel (4Ω)
250 W/ Channel (4Ω)
60 W/ Channel (4Ω)
250 W/ Channel (4Ω)
430 W
40 W/ Channel (4Ω)
DVD Home Theater Sound System
SA-HT733P
Colour
(S).......................Silver Type
lCenter:
lSurround:
At 45Hz-120Hz and total harmonic of 1%
lSubwoofer:
lFM tuner section
Frequency Range:
Sensitivity:
S/N 26dB
Antenna Terminal:
lAM tuner section
Frequency Range:
AM Sensitivity S/N 20dB at
1000kHz:
lPhone Jack:
Terminal:
lDisc section
Discs played [8 cm (3") or 12 cm (5")]:
(1) DVD-RAM (DVD-VR compatible, JPEG formatted discs)
(2) DVD-Audio
© 2005 Panasonic AVC Networks Singapore Pte.
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER NO. MD0502030C1
A6
130 W/ Channel (4Ω)
40 W/ Channel (4Ω)
140 W/ Channel (4Ω)
87.9-107.9MHz
(200kHz in step)
87.5-108.0MHz
(100kHz in step)
2.5µV (IHF)
2.2µV
75Ω (non balance)
520-1710kHz (10kHz in step)
560µV/m
Stereo 3.5 mm (1/8") jack

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SA-HT733P

Summary of Contents for Panasonic SA-HT733P

  • Page 1: Specifications

    At 120Hz-20kHz and total harmonic of 1% (1) DVD-RAM (DVD-VR compatible, JPEG formatted discs) lFront: 40 W/ Channel (4Ω) (2) DVD-Audio © 2005 Panasonic AVC Networks Singapore Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    SA-HT733P (3) DVD-Video Component video output (480P/480I): (4) DVD-R, DVD-RW (DVD-Video compatible) Y output level: 1 Vp-p (75 Ω) +R, +RW (Video compatible) output level: 0.7 Vp-p (75 Ω) 0.7 Vp-p (75 Ω) (5) CD-Audio (CD-DA) output level: (6) Video CD...
  • Page 3 SA-HT733P 5 Protection Circuitry 13 Optical Pick-up Self-Diagnosis and Replacement Procedure 6 Precaution of Laser Diode 7 About Lead Free Solder (PbF) 13.1. Optical Pickup Breakdown Diagnosis 8 General Description 13.2. Service Mode Table 1 8.1. Operating instructions 13.3. DVD Self Diagnostic Function-Error Code 8.2.

  • Page 4: Use Of Active Subwoofer

    SA-HT733P 1 Use of Active Subwoofer 1.1. Checking Player when Active Subwoofer is not used 1. This unit uses the active subwoofer to supply the power of the component, and the active subwoofer should be connected to the component to check operational conditions of the component.

  • Page 5: Safety Precautions

    SA-HT733P 2 Safety Precautions 2.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 6: Before Repair And Adjustment (Using Active Subwoofer)

    SA-HT733P Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

  • Page 7: Precaution Of Laser Diode

    SA-HT733P 6 Precaution of Laser Diode CAUTION: This unit utilizes a class 1 laser. Invisible laser radiation is emitted from the optical pickup lens. Wavelength: 662nm(DVD)/785nm(VCD/CD). Maximum output radiation power from pickup: 100µW/VDE When the unit is turned on: 1. Do not look directly into the pick up lens.

  • Page 8: General Description

    SA-HT733P 8 General Description 8.1. Operating instructions TUNING H.BASS OPEN/CLOSE Standby/on indicator PROGRESSIVE DISC EXCHANGE CD MODE DISC SKIP INPUT SELECTOR Remote control Direct select button/indicators signal sensor TUNE MODE FM MODE PHONES VOLUME MEMORY SYSTEM TUNER/BAND TV/VIDEO DVD/CD DISC...

  • Page 9: Disc Information

    SA-HT733P 8.2. Disc information Discs that can be played Indication in Disc Logo Remarks these operating instructions Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard), such as DVD video recorders, DVD video cameras, personal computers, etc.

  • Page 10: About Highmat

    SA-HT733P 8.3. About HighMAT 8.3.1. What’s HighMAT? Consumers worldwide are using PCs to create their own collections of music, photos and even video by burning them onto CDs. But how these collections can be experienced across different devices can be confusing to navigate, time consuming to access for a DVD player, and be incomplete in terms of music information available to the customer.

  • Page 11: Benefits Of Highmat

    SA-HT733P 8.3.2. Why take advantage of HighMAT? A Problem Defined:Today, when consumers create their own digital audio, video or photo collections on CD-R or other physical formats, there are numerous, inconsistent ways that devices read the data. For the consumer, the playback experience can be...
  • Page 12 SA-HT733P Conventional HighMAT Even though DVD player is CD-R/RW compatible, the inconsistent ways HighMAT compatible products play content back with consistent that various DVD players can read the music or photos files often leads interface. This includes products which are JPEG compatible products to a confusing and inconsistant playback experince.
  • Page 13 SA-HT733P HighMAT is now available for CD Burning and in Leading DVD Players HighMAT is a new technology that is now available in leading software and consumer electronic devices to dramatically improve the digital media experience when you create homemade CDs HighMAT delivers a simple, standardized way for PC software and consumer electronics devices to talk to each other and work better together.
  • Page 14 SA-HT733P When you create your homemade CDs with software that supports HighMAT CD burning, and then play them back on a DVD player that supports HighMAT, you get better, easier navigation. You get folders you can access with a single click of your DVD player´s remote control.

  • Page 15: Accessories

    SA-HT733P 9 Accessories Video Cable Remote control AC cord AM loop antenna System cable FM indoor antenna...

  • Page 16: Handling Precautions For Optical Pickup Unit

    SA-HT733P 10 Handling Precautions for Optical Pickup Unit The laser diode in the optical pickup unit may brake down due to static electricity of clothes or human body. Special care must be taken avoid to electrostatic breakdown when servicing and handling the laser diode.
  • Page 17 SA-HT733P 10.3.2. Human body grounding 1. Use the anti-static wrist strap to discharge the static electricity form your body.

  • Page 18: Disassembly And Main Component Replacement Procedure

    SA-HT733P 11 Disassembly and Main Component Replacement Procedure “ATTENTION SERVICER” Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components.

  • Page 19: Main Components And P.c.b. Locations

    SA-HT733P 11.2. Main Components and P.C.B. Locations...

  • Page 20: Disassembling The Top Cabinet

    SA-HT733P 11.3. Disassembling the Top Cabinet Step 1 Remove 7 screws. Step 2 Remove the top cabinet in the direction of arrow. Step 6 Remove the front panel ass’y in the direction of arrow. 11.4. Disassembling the Front Panel Step 7 Remove panel angle.

  • Page 21: Disassembling The Mechanism Base Block

    SA-HT733P 11.7. Disassembling the Main P.C.Board 11.6. Disassembling the Mechanism · Follow the (Step 1) - (Step 2) of Item 11.3. Base Block · Follow the (Step 1) - (Step 6) of Item 11.4. · Follow the (Step 1) - (Step 2) of Item 11.5.

  • Page 22: Removal Of The Tray Base Guide (L) And Tray Base Guide

    SA-HT733P 11.8. Removal of the Tray Base Guide (L) and Tray Base Guide · Follow the (Step 1) - (Step 2) of Item 11.3. · Follow the (Step 1) - (Step 6) of Item 11.4. · Follow the (Step 1) - (Step 2) of Item 11.5.

  • Page 23: Removal Of The Tray Motor P.c.b. And Sensor

    SA-HT733P Step 3 Rotate close lock gear to direction of arrow, press claw (b) and pull out close lock gear. 11.12. Removal of the Tray Motor Step 2 Flip the base mecha unit in vertical position. P.C.B. and Sensor P.C.B.

  • Page 24: Removal Of The Loading Motor

    SA-HT733P · Follow the (Step 1) - (Step 2) of Item 11.6. Step 1 Release the claw in the direction of arrow (1), and then push drive gear shaft up. Step 3 Release the 2 claws in the direction of arrow (1), and Step 2 Remove Drive Gear (A) and Drive Gear (B).

  • Page 25: Removal Of The Cam Gear & Support Piece

    SA-HT733P 11.18. Removal of the Cam Gear & 11.19. Removal of the Slide Plate (L) Support Piece & (R) and Change Lever · Follow the (Step 1) - (Step 2) of Item 11.3. · Follow the (Step 1) - (Step 2) of Item 11.3.

  • Page 26: Assembly Of Tray Base

    SA-HT733P 11.20. Assembly of Tray Base · Follow the (Step 1) - (Step 2) of Item 11.3. · Follow the (Step 1) - (Step 6) of Item 11.4. · Follow the (Step 1) - (Step 2) of Item 11.5. Step 1 Rotate cam gear anti-clockwise. Align at position (C) as marking on gear with arrow.

  • Page 27: Service Position

    SA-HT733P 12 Service Position Prepare service tools before proccess service position. Service Tools Loading Motor P.C.B - Main REEX0465 (11 pin) P.C.B 12.1. Checking & Repair Tray Motor P.C.B and Sensor P.C.B · Follow the (Step 1) - (Step 2) of Item 11.3.

  • Page 28: Optical Pick-Up Self-Diagnosis And Replacement Procedure

    SA-HT733P 13 Optical Pick-up Self-Diagnosis and Replacement Procedure 13.1. Optical Pickup Breakdown Diagnosis The optical pickup self-diagnosis function and tilt adjustment check function have been included in this unit. When repairing, use the following procedure for effective Self-diagnosis and tilt adjustment.Be sure to use the self-diagnosis function before replacing the optical pickup when "NO DISC"...

  • Page 29: Service Mode Table

    SA-HT733P 13.2. Service Mode Table 1 The service modes can be activated by pressing various button combination on the player and remote control unit. Player buttons Remote control unit buttons Application Note STOP Error code display (Refer to the item, “13.3.
  • Page 30 SA-HT733P Error Code Error Content Additional error explanation F890 Sending message when message is Sending message to AV task being sent to AV task F891 Message couldn’t be sent to AV task Begin sending message to AV task F893 FROM falsification...

  • Page 31: Service Mode Table

    SA-HT733P 13.4. Service mode table 2 Pressing various button combinations on the player and remote control unit can activate the service modes.
  • Page 32 SA-HT733P...

  • Page 33: Sales Demonstration Lock Function

    SA-HT733P 13.5. Sales demonstration lock function This function prevents discs from being lost when the unit is used for sales demonstrations by disabling the disc eject function. "LOCKED" is displayed on the unit, and ordinary operation is disabled. 13.5.1. Setting ·...

  • Page 34: Self-Diagnosis Function

    SA-HT733P 14 Self-Diagnosis Function 14.2. Memorized Error Codes 14.2.1. Activating Self-Diagnosis Function 14.1. Automatic Displayed Error and Displaying Method Codes 1. Turn on the power. 14.1.1. Automatic Display Function 2. Select DVD/CD function. With no DVD/CD inserted in the player, press and hold down the F_SKIP button For a power unit error, the code is automatically displayed.

  • Page 35: Service Precautions

    SA-HT733P 15 Service Precautions 15.1. Recovery after the DVD player is repaired · When FLASH ROM IC or DVD module P.C.B. is replaced, carry out the recovery processing to optimize the drive. Playback the recovery disk to process the recovery automatically.

  • Page 36: Adjustment Procedure

    SA-HT733P 16 Adjustment Procedure 16.1. Service Tools and Equipment Application Name Number Tilt adjustment DVD test disc DVDT-S20 TORX screw driver (T6) Available on sales route. (T6) or RFKZ0185 Others Grease RFKXPG641 Confirmation CD test disc PVCD-K06 or any other commercially...

  • Page 37: Optical Adjustment

    SA-HT733P 16.4. Optical adjustment 16.4.1. Optical pickup tilt adjustment Measurement point Adjustment point Mode Disc Tangential adjustment screw T01 (inner periphery) play DVDT-S20 Tilt adjustment screw T30 (center periphery) T43 (outer periphery) play Measuring equipment Adjustment value None (Main unit display for servicing is used.) Adjust to the minimum jitter value.

  • Page 38: Abbreviations

    SA-HT733P 17 Abbreviations INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS A0~UP ADDRESS ERROR TORQUE CONTROL ACLK AUDIO CLOCK ERROR TORQUE CONTROL AD0~UP ADDRESS BUS REFERENCE ADATA AUDIO PES PACKET DATA ENCSEL ENCODER SELECT ADDRESS LATCH ENABLE ETMCLK EXTERNAL M CLOCK (81MHz/40.5MHz) AMUTE AUDIO MUTE...
  • Page 39 SA-HT733P INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS READ ENABLE VBLANK V BLANKING RFENV RF ENVELOPE COLLECTOR POWER SUPPLY RF PHASE DIFFERENCE OUTPUT VOLTAGE (CD-ROM) REGISTER SELECT VCDCONT VIDEO CD CONTROL (TRACKING RSEL RF POLARITY SELECT BALANCE) RESET DRAIN POWER SUPPLY VOLTAGE RESERVE...

  • Page 40: Voltage Chart

    SA-HT733P 18 Voltage Chart 18.1. DVD Module P.C.B. Re f No. IC8001 MODE CD P LAY IC8001 Re f No. MODE CD P LAY IC8001 Re f No. MODE CD P LAY IC8001 Re f No. MODE CD P LAY IC8001 Re f No.

  • Page 41: Main P.c.b

    SA-HT733P 18.2. Main P.C.B. IC2006 Re f No. MODE CD P LAY S TANDBY IC2007 Re f No. MODE CD P LAY S TANDBY Re f No. IC2008 MODE CD P LAY S TANDBY IC2010 Re f No. MODE CD P LAY -6.7...

  • Page 42: Fl P.c.b

    SA-HT733P Q2000 Q2001 Q2002 Q2004 Q2028 Re f No. MODE CD P LAY S TANDBY Q2029 Q2102 Q2103 Re f No. MODE CD P LAY -4.5 -4.5 S TANDBY Q2104 Q2105 Q2200 Re f No. MODE CD P LAY -4.3 -4.3...

  • Page 43: Wave Form Chart

    SA-HT733P 19 Wave Form Chart WF No. IC2006-2 (PLAY) WF No. IC2006-4 (PLAY) WF No. IC2006-6 (PLAY) WF No. IC2006-8 (PLAY) 0.8Vp-p(20usec/div) 1.1Vp-p(20usec/div) 1.1Vp-p(20usec/div) 0.6Vp-p(20usec/div) WF No. IC2006-9 (PLAY) WF No. IC2006-11 (PLAY) WF No. IC2006-12 (PLAY) WF No. IC2006-13 (PLAY) 1.0Vp-p(20usec/div)

  • Page 44: Schematic Diagram Notes

    SA-HT733P 20 Schematic Diagram Notes · This schematic diagram may be modified at any time Caution! with the development of new technology. IC and LSI are sensitive to static electricity. Notes: Secondary trouble can be prevented by taking care during...

  • Page 45: Block Diagram

    MUTE12,4 MUTE12 CH1,2 LEVEL VOL2- DRV8 MUTE SHIFT MUTE4 MUTE QR8571 IC8606 DRV3 BUFFER C0EBA0000031 RESET TRAVERSE SW DRV6 IC8601 C0EBE0000384 VOLTAGE DETECTING Q8606, Q8550, IC8611 8607 8560 C3EBGZ000001 NRESET BUFFER BUFFER EE PROM NRST (Not supplied) SA-HT733P BLOCK DIAGRAM...
  • Page 46 DAC3 OUT DQ15 EXADR17 EXADR18 ADDRESS EXADR19 EXADR20 IC8691 C0JBAA000346 AND GATE DVD CLK OP CPU CLK NEXOE NEXWE NEXCE OP CPU CMD DVD CMD MDQ16 IC8695 C0JBAA000346 AND GATE DVD STAT OP CPU STAT DATA MDQ31 SA-HT733P BLOCK DIAGRAM...
  • Page 47 SHIFT REGISTER LATCH POWER ON RESET DVD CLK DVD CLK DVD CMD DVD CMD DVD STAT DVD STAT ST/DO IC2018 TUN DO TUN DI MN101C49GHB TUN SD SYSTEM CONTROL TUN FMDET TUN CLK POWER SUPPLY (FM:ON) (FM) SA-HT733P BLOCK DIAGRAM...
  • Page 48 (HARMONIC GENERATOR) D6901 D6902 D6903 D6904 D6905 Z6900 (REMOTE SENSOR) Q6900 Q6901 Q6902 Q6903 Q6904 Q2605 Q2604 VR6800 Q2000 MUTING VREF+ (VOLUME) CONTROL DRIVE DRIVE DRIVE DRIVE DRIVE RESET Q2603 SWITCH X2000 LEVEL CONTROL IC2018 MN101C49GHB SYSTEM CONTROL SA-HT733P BLOCK DIAGRAM...
  • Page 49 FP2000 IC2019 Q2809,D2818 D2812,2813 C3EBEG000072 EEPROM REGULATOR KEY SWITCH (Not Supplied) (S6900-6907, KEY SWITCH S6909,6910) (S6801-6808) IC6901 X OUT C0HBB0000044 Q2807,2808 DISPLAY DRIVER D2851 REGULATOR X IN Q2818 DC IN DET. D2850 IC2018 MN101C49GHB SYSTEM CONTROL AVSS SA-HT733P BLOCK DIAGRAM...
  • Page 50 SA-HT733P...

  • Page 51: Schematic Diagram

    Q8550 LB8502 J0JHC0000045 56X2 2SB1219AHL C8426 SUB2 Switch SUB1 CL8424 R8505 2200 R8560 PIN(CD) CL8425 C8424 0.1 SUBSEL CL8426 GND(VRCD) R8501 0 C8503 C8504 C8505 Q8560 220P 2SD1819A0L Switch R8569 D8550 R8570 MA2J11100L C8428 0.1 100K SA-HT733P DVD MODULE CIRCUIT...
  • Page 52 RX8021 TL8201 10KX2 C8228 1 R8201 CL8241 2200 L8201 C8233 C8201 G1C100K00020 CL8233 4700P C8012 C8013 C8203 C8204 C8217 C8205 6V100 CL8243 C8218 C8307 0.1 C8207 0.1 C8031 R8233 C8208 0.1 CL8201 CL8033 CL8032 CL8031 CL8202 SA-HT733P DVD MODULE CIRCUIT...
  • Page 53 6V47 C8051 C8052 C8055 C8561 CL8551 R8554 Q8551 Q8552 2SD1819A0L 2SB09700RL R8551 LD Drive LD Drive R8558 R8555 R8552 TL8512 C8651 C8652 R8559 C8554 C8552 R8553 C8553 R8556 R8557 16V10 6V47 C8551 IC8651 RFKWMH82H160 16M Flash SA-HT733P DVD MODULE CIRCUIT...
  • Page 54 DETECT IC2010 R2170 2.7K RF LINK C0ABBB000118 LINK Buffer Amp R2301 2.2K PGND RF +5V R2401 2.2K C2225 R2212 R2213 C2224 R2215 100P DVDFR C2126 C2053 0.01 0.01 C2221 150P C2226 0.01 C2222 390P C2223 R2214 50V10 SA-HT733P MAIN CIRCUIT...
  • Page 55 Muting Switch R2148 R2150 R2266 R2340 C2151 C2152 C2153 R2147 R2149 R2252 1.8K K2027 2.2K 100P 150P 16V100 2.7K C2254 0.01 R2441 C2155 R2151 C2150 R2145 R2146 R2153 100K 1000P 4.7K K2026 50V1 6.8K HP L R2863 1.8K SA-HT733P MAIN CIRCUIT...
  • Page 56 R2881 1 100P 100P 100P 100P 100P 100P R2882 1 C2138 C2238 C2139 C2239 220P 220P 100P 100P C2237 0.1 R2883 1 C2131 C2232 3300P 3300P C2140 680P R2884 1 R2885 1 SS R AV JACK JK2001 K2HZ921B0002 SA-HT733P MAIN CIRCUIT...
  • Page 57 Q2801 B1ADCF000001 SUBAC1 Q2029 PCONT C2848 Stabilizer B1GBCFJN0033 D2851 C2853 16V100 C2841 LED Drive B0ADCJ000020 50V4.7 C2847 R2842 R2808 R2806 R2805 R2905 R2801 Q2814 25V4700 SUBAC2 0.01 1.8K C2845 0.1 2SD21370PA R2841 D2827 CASE GND Regulator B0ECKM000016 SA-HT733P MAIN CIRCUIT...
  • Page 58 R6931 1.2K 1.8K 2.2K 2.7K 4.7K 6.8K S6900 S6901 S6902 S6903 S6904 S6905 S6906 S6907 S6909 S6910 EVQ21405R EVQ21405R EVQ21405R EVQ21405R EVQ21405R EVQ21405R EVQ21405R EVQ21405R EVQ21405R EVQ21405R POWER SELECTOR DISC1 DISC2 DISC3 DISC4 DISC5 HARMONIC BASS PROGRESS SA-HT733P FL/HEADPHONE CIRCUIT...
  • Page 59 PHOTO INTERRUPTOR Q9102 B3NAA0000011 PHOTO INTERRUPTOR LOADING MOTOR CIRCUIT DGND LOADINGMOTOR+ Q9001 M9001 LOADING MOTOR B3NAA0000068 DGND PHOTO INTERRUPTOR LOADINGMOTOR- MAIN DGND CIRCUIT Q9001 CAM_SENSOR (CN2011) ON DGND SCHEMATIC PHOTO_DRV/C DIAGRAM-4 DGND S9001 LOADING_SW DGND CN9003 SA-HT733P LOADING MOTOR/TRAY MOTOR/SENSOR CIRCUIT...
  • Page 60 SA-HT733P...

  • Page 61: Printed Circuit Board Diagram

    CKB6 CKB2 LB8002 CKB8 CKB4 C8421 CL8430 CKB3 C8422 CL8034 C8051 C8052 C8053 C8054 CKA1 CKA5 CKA3 CKA7 CKA6 CKF5 CKF3 CKF1 CKA2 IC8421 C8424 C8428 CKF6 CKF4 CKF2 CKA4 CL8426 CL8424 CL8421 C8426 CL8425 FP8201 SA-HT733P DVD MODULE P.C.B.
  • Page 62 Q2803 D2810 R2850 C2835 R2837 C2866 C2865 W2252 W2230 R2832 D2808 D2832 W2034 Q2806 C2811 C2824 R2860 1 2 3 W2246 W2524 Q2821 W2024 W2235 C2839 R2833 L2801 C2815 W2244 C2802 W2134 W2236 R2829 C2817 D2803 W2216 SA-HT733P MAIN P.C.B.
  • Page 63 SENSOR VOLUME DISC SKIP OPEN / CLOSE DISC EXCHANGE W2100 R6801 S6806 S6807 S6805 Z6900 VR6800 C6918 L6101 C6101 L6801 C6806 C6201 L6201 C6805 JK6801 CN6801 R6803 R6804 R6805 R6812 R6802 S6803 S6802 S6801 S6804 S6808 PHONES SA-HT733P FL/HEADPHONE P.C.B.
  • Page 64 SA-HT733P A A A A TRAY MOTOR P.C.B. LOADING MOTOR P.C.B. (REP3466A) (REP3465A) M9101 Q9102 M9001 SENSOR P.C.B. (REPX3466A) Q9103 CN9102 SA-HT733P LOADING MOTOR/TRAY MOTOR/SENSOR P.C.B.

  • Page 65: Wiring Connection Diagram

    CN2009 M9101 SENSOR P.C.B. TRAY MOTOR CN9102 P.C.B. CN2010 MAIN P.C.B. CN2004 47 50 SPINDLE MOTOR ASS'Y FP8201 LOADING MOTOR P.C.B. CN2012 M9001 TUNER PACK UNIT DVD MODULE P.C.B. (SIDE:B) WIRELESS JK2001 JK2000 AV JACK ACTIVE SUBWOOFER SA-HT733P WIRING CONNECTION...
  • Page 66 SA-HT733P...

  • Page 67: Illustration Of Ic 痴, Transistors And Diodes

    SA-HT733P 25 Illustration of IC’s, Transistors and Diodes C0ABBB000118 (8p) B1ABCE000016 (8p) C0HBB0000044 (40p) RFKWMH82H160 C0ABCB000052 (14p) C3EBGC000044 (8p) C1BB00000845 (80p) C0CBCBD00018 (8p) MN101C49GHB (100p) C3EBEG000072 (8p) C0FBBK000050 (28p) MN2DS0003APH (256p) No.1 C1BB00000979 (20p) C3ABPG000133 (54p) No.1 C9ZB00000466 (16p) C0CBADG00023...

  • Page 68: Terminal Function Of Ics

    SA-HT733P 26 Terminal Function of ICs 26.1. IC2018 (MN101C49GHB): Terminal Function Name Operation CPU MUTE HP Mute signal output for Headphone Not used Terminal Function TU SD Tuner signal detect input Name TU ST/DO Stereo indicator from Tuner/ DO output...

  • Page 69: Parts Location And Replacement Parts List

    SA-HT733P 27 Parts Location and Replacement Parts List Notes: *Important safety notice: Components identified by mark have special characteristics important for safety purpose. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used.

  • Page 70: Loading Mechanism, Traverse Unit & Cabinet

    SA-HT733P 27.1. Loading Mechanism, Traverse Unit & Cabinet 27.1.1. Loading Mechanism, Traverse Unit & Cabinet Parts Location...
  • Page 71 SA-HT733P...
  • Page 72 SA-HT733P...
  • Page 73 SA-HT733P 27.1.2. Traverse and Cabinet Parts List Ref. Part No. Part Name & Description Remarks RMR1596-X2 MIDDLE CHASSIS Ref. Part No. Part Name & Description Remarks RMR1507-X SUPPORT PIECE RMS0789 FIXED PIN RMS0802-J DRIVE GEAR SHAFT CABINET AND CHASSIS XTN26+14JFJK...

  • Page 74: Component Parts List

    SA-HT733P 27.2. Component Parts List Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Q2811 B1BCCG000023 TRANSISTOR PRINTED CIRCUIT BOARDS Q2812 B1ABCE000016 TRANSISTOR Q2813 B1AAKD000014 TRANSISTOR REP3867A DVD MODULE P.C.B Q2814 2SD21370PA TRANSISTOR...
  • Page 75 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D2832 B0ACCK000005 DIODE S6909 EVQ21405R SW PROGRESS D2850 B0ADCJ000020 DIODE S6910 EVQ21405R SW CD D2851 B0ADCJ000020 DIODE S9001 K0L1BA000086 SW OPEN D2852 B0ACCK000005...
  • Page 76 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks W2052 ERJ6GEY0R00V CHIP RESISTOR FP2000 K5G202AA0002 FUSE PROTECTOR W2053 ERJ6GEY0R00V CHIP RESISTOR W2055 ERJ6GEY0R00V CHIP RESISTOR JACKS W2056 ERJ6GEY0R00V CHIP RESISTOR W2057 ERJ6GEY0R00V...
  • Page 77 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2022 ERJ3GEYJ221V 220 1/16W R2146 ERJ3GEYJ333V 33K 1/16W R2023 ERJ3GEYJ223V 22K 1/16W R2147 ERJ3GEYJ220V 22 1/16W R2024 ERJ3GEYJ103V 10K 1/16W R2148 ERJ3GEYJ220V 22 1/16W...
  • Page 78 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2308 ERJ3GEYJ182V 1.8K 1/16W R2644 ERJ3GEYJ273V 27K 1/16W R2309 ERJ3GEYJ563V 56K 1/16W R2645 ERJ3GEYJ563V 56K 1/16W R2310 ERJ3GEYJ273V 27K 1/16W R2646 ERJ3GEYJ182V 1.8K 1/16W...
  • Page 79 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2882 ERJ3GEYJ1R0V 1 1/16W R8011 ERJ2GEJ220X 22 2W R2883 ERJ3GEYJ1R0V 1 1/16W R8021 ERJ2GEJ103X 10K 2W R2884 ERJ3GEYJ1R0V 1 1/16W R8022 ERJ2GEJ103X 10K 2W...
  • Page 80 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks K8421 ERJ3GEY0R00V CHIP JUMPER C2140 ECJ1VB1H681K 680P 50V C2149 ECJ1VB1A105K 1 10V RX8011 D1H88204A024 CHIP RESISTOR C2150 ECEA1HKA010I 1 50V RX8012 D1H88204A024 CHIP RESISTOR...
  • Page 81 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C2403 ECJ1VB1A105K 1 10V C2831 ECEA1CKA470B 47 16V C2404 ECEA1HKA3R3B 3.3 50V C2832 F2A1E1020065 1000P 25V C2405 F1K1A4750013 4.7 10V C2833 ECEA1CKA470B 47 16V...
  • Page 82 SA-HT733P Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C8025 ECJ0EF1C104Z 0.1 16V C8501 ECJ3YB1A106M 10 10V C8026 ECJ0EB1E222K 2200P 25V C8502 ECJ0EF1C104Z 0.1 16V C8027 ECJ0EF1C104Z 0.1 16V C8503 ECJ0EF1C104Z 0.1 16V...

  • Page 83: Packing Materials & Accessories Parts List

    SA-HT733P 27.3. Packing Materials & Accessories Parts List Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks EUR7722XB0 REMOTE CONTROLLER PACKING MATERIALS A1-1 UR76EC3103A R/C BATTERY COVER K2CB2CB00018 AC CORD RPGX1498 PACKING CASE...

Table of Contents
