STR-K740P/K840P

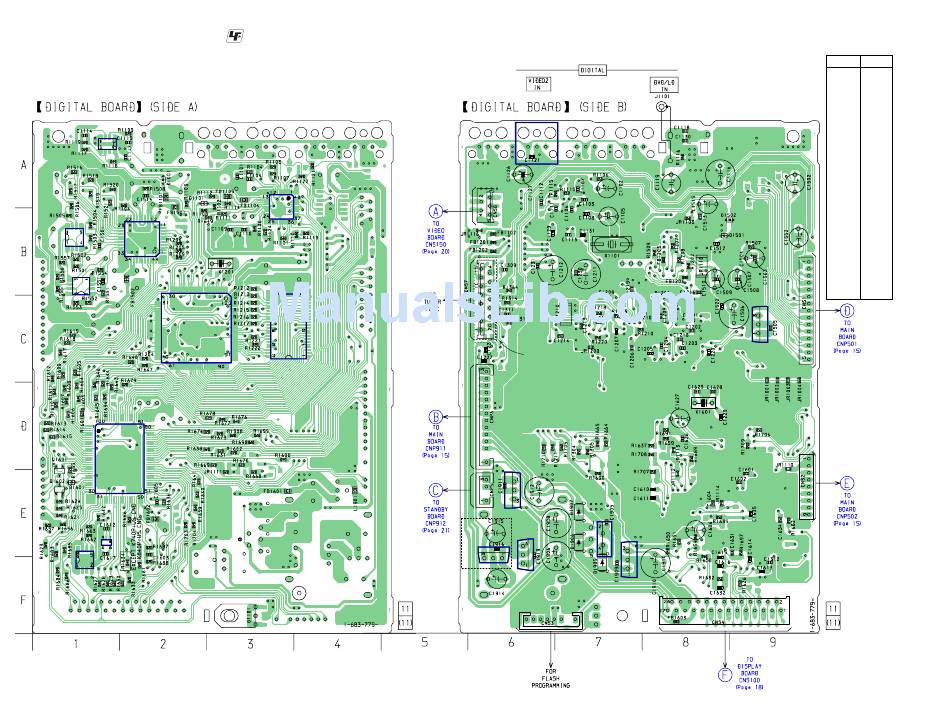

3-3. Printed Wiring Board – DIGITAL Section –
IC1102
IC1502
IC1501
IC1552
IC1201
IC1601
IC1602
IC1604
• See page 8 for Circuit Boards Location.
•
: Uses unleaded solder.
IC1101
IC1202
IC1105
11P:EXCEPT K740P:AEP,UK/K840P:AEP,UK
15P:K740P:AEP,UK/K840P:AEP,UK
IC1904
K740P:AEP,UK/K840P:AEP,UK
IC1902
IC1905
12
12
IC1503
IC1901
IC1903
• Semiconductor
Location
Ref. No. Location
D1001
A-2
D1101
A-3
D1501
B-8
D1502
B-8
D1601
E-1
D1905
F-7
D1906
E-7
D1907
E-7
IC1101
A-3
IC1102
A-1
IC1105
A-6
IC1201
C-2
IC1202
C-3
IC1501
B-2
IC1502
B-1
IC1503
C-9
IC1552
B-1
IC1601
D-1
IC1602
E-1
IC1604
F-1
IC1901
E-7
IC1902
E-6
IC1903
F-7
IC1904
E-6
Q1601
D-1
Q1602
E-1
