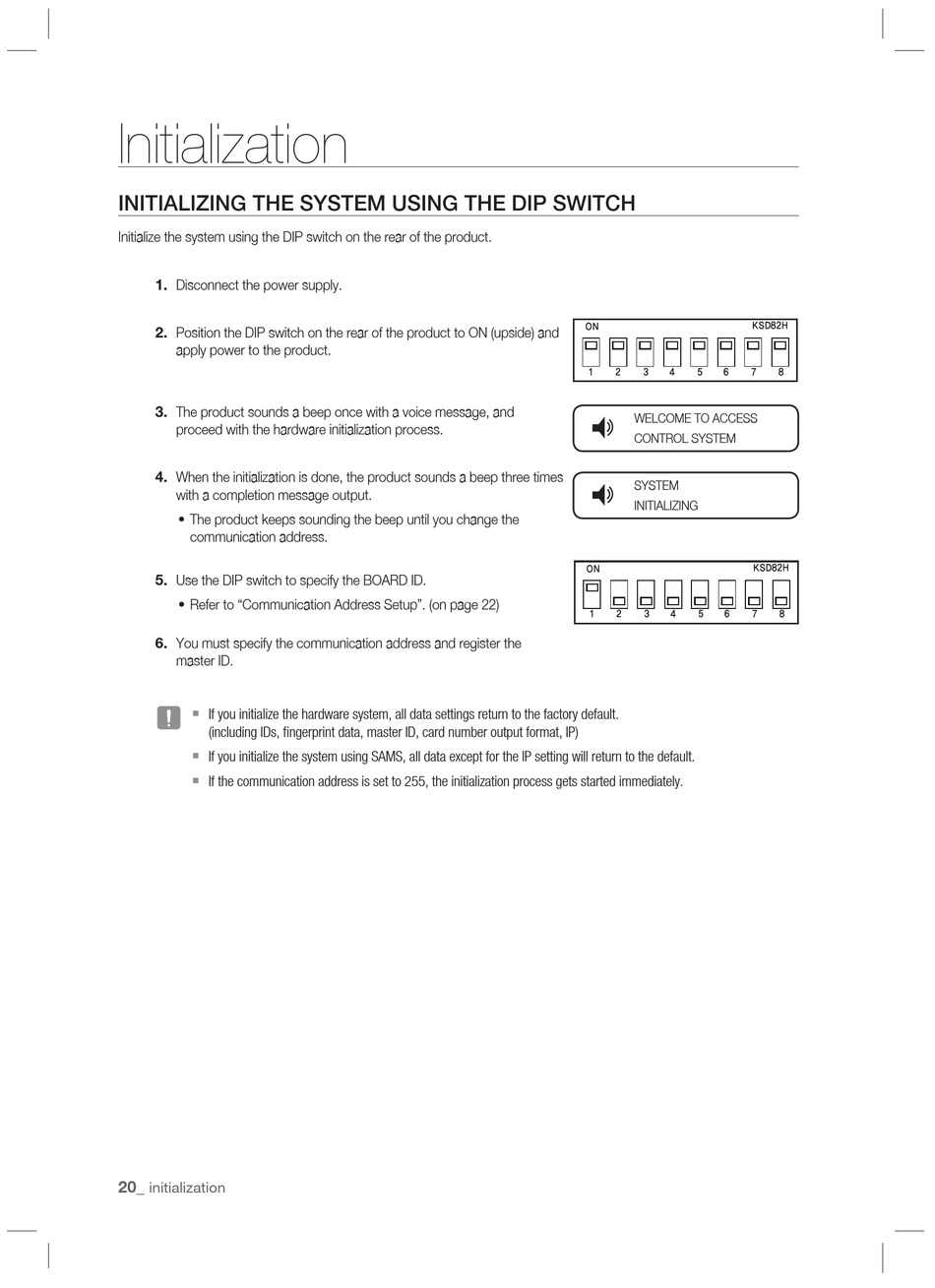

Initialization

INITIALIZING THE SYSTEM USING THE DIP SWITCH

Initialize the system using the DIP switch on the rear of the product.
1. Disconnect the power supply.
2. Position the DIP switch on the rear of the product to ON (upside) and
apply power to the product.
3. The product sounds a beep once with a voice message, and
proceed with the hardware initialization process.
4. When the initialization is done, the product sounds a beep three times
with a completion message output.
•
The product keeps sounding the beep until you change the
communication address.
5. Use the DIP switch to specify the BOARD ID.
•
Refer to "Communication Address Setup". (on page 22)
6. You must specify the communication address and register the
master ID.

J
If you initialize the hardware system, all data settings return to the factory default.
(including IDs, fi ngerprint data, master ID, card number output format, IP)

If you initialize the system using SAMS, all data except for the IP setting will return to the default.

If the communication address is set to 255, the initialization process gets started immediately.
