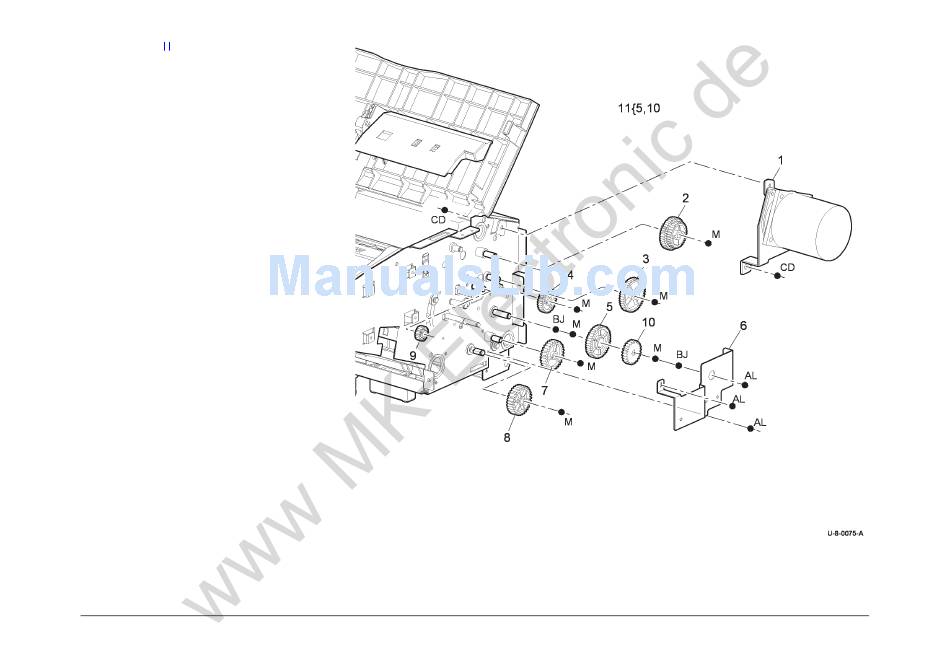

PL 12.315 Inserter Main Drives (3 of 3)
Item
Part
Description
1
127K61990
Inserter motor (MOT12-261) (REP
12.84-171)
2
–
Idler (Not spared)
3
–
Driver gear (Not spared)
4
–
Idler (Not spared)
5
–
Tray down gear (Not spared)
6
–
Gear cover bracket (Not spared)
7
–
Idler (Not spared)
8
–
Bottom shaft drive (Not spared)
9
–
Feed roller drive gear (Not spared)
10
–
Tray down clutch (Not spared)
11
–
Tray down clutch assembly (Not
spared)
Xerox® ColorQube® 9303 Family
November 2015
5-59
Parts Lists
PL 12.315
