Hyundai HY2160 User Manual

230v 250w
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
230V 250W SANDER
Model HY2160
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for Hyundai HY2160

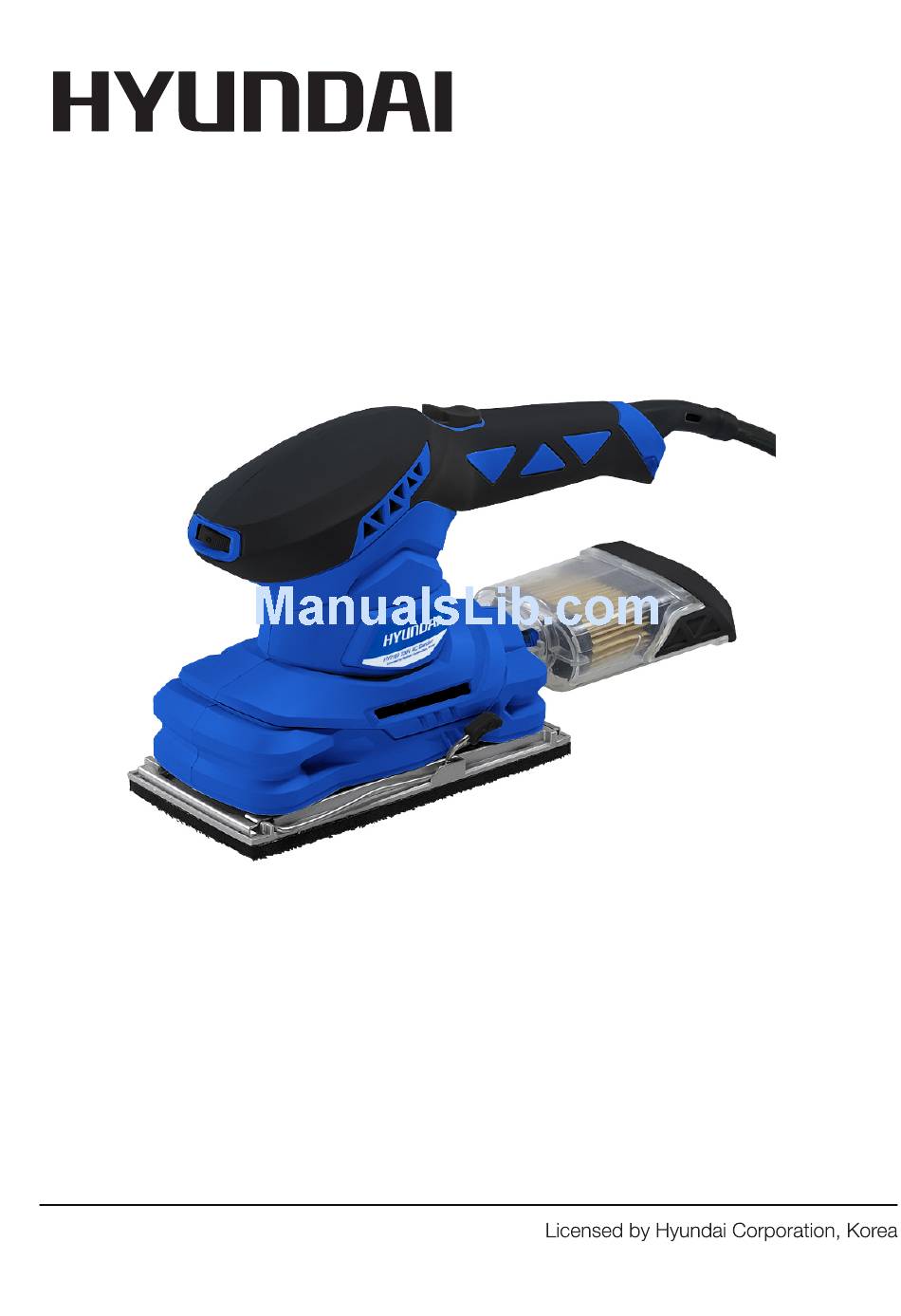

  • Page 1 230V 250W SANDER Model HY2160 User Manual...

  • Page 2: Table Of Contents

    CONTENTS o’s Section Description Page N 1. OWNER’S MANUAL & SAFETY INSTRUCTIONS 2. SPECIFIC SAFETY INSTRUCTIONS 3. GENERAL SAFETY 4 – 5 4. QUICK REFERENCE GUIDE AND USE 5. UNPACKING & ASSEMBLY 6 – 8 6. OPERATION 9 – 10 7.

  • Page 3: Owner's Manual & Safety Instructions

    1. OWNER’S MANUAL & SAFETY INSTRUCTIONS 1.1. How to read the manual. 1.1.1. Keep this manual for the safety warnings and precautions, assembly, operation, inspection, maintenance and cleaning procedures. 1.1.2. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number).

  • Page 4: General Safety

    3. GENERAL SAFETY Non-observance Non- observance Indicates a hazard NOTE or Read Manual will result in the will result in the which, if not IMPORTANT These risk of serious risk of injury to avoided, might give details or injury or death to oneself or others.
  • Page 5 3.3. Personal Safety. 3.3.1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 6: Quick Reference Guide And Use

    4. QUICK REFERENCE GUIDE and USE PARTS 3 LED Power Light 1 On/Off Switch. 2 Handle. 4 Variable Speed Dial. 6 Sandpaper Punch 5 Vibrating Plate. 7 Sandpaper. 8 Dust Collector. Plate. 10 Dust Extraction 9 Dust Collector Filter. 11 Clamping Lever Outlet.
  • Page 7 5.2. Assembly Before carrying out any assembly or disassembly of the unit please ensure that the unit is not connected to the electrical supply. 5.3. Fitting the Dust collector box. Always use machine with Dust collector box fitted or dust extraction system. 5.3.1.

  • Page 8: Operation

    5.5.1. Select an abrasive paper with the correct grit corresponding to the work to be carried out. 5.5.2. Inspect the sandpaper before use and do not use if broken or defective. 5.5.3. Align the holes in the hook and loop sandpaper/pad with the holes in the base and carefully press the fuzzy side of the sandpaper/pad against the base as firmly as possible.
  • Page 9 Before connecting the sander to a power supply, make sure it is not in turned on. Failure to do so could result in accidental starting of the sander resulting in possible serious injury. 6.1. Turning the sander ON and OFF. 6.1.1.

  • Page 10: General Maintenance

    6.4. Emptying the Dust Collection Box 6.4.1. We recommend the dust collection box should be emptied when it is no more than half full. 6.4.2. Empty and clean the dust collection box thoroughly upon completion of a sanding operation and before storage of the sander. 6.4.3.

  • Page 11: Genpower Contact Details

    Email contact; Technical service@genpower.co.uk 10.4. Web site; www.hyundaipowerequipment.co.uk 11. DECLARATIONS OF CONFORMITY 11.1. Genpower Ltd confirms that this Hyundai product conform to the following CE Directives; 11.1.1. 2006/42/EC Machinery Directive 11.1.2. 2004/108/EC EMC Directive 11.1.3. 2006/95/EC Low Voltage Directive Page 11...
  • Page 12 Page 12...
