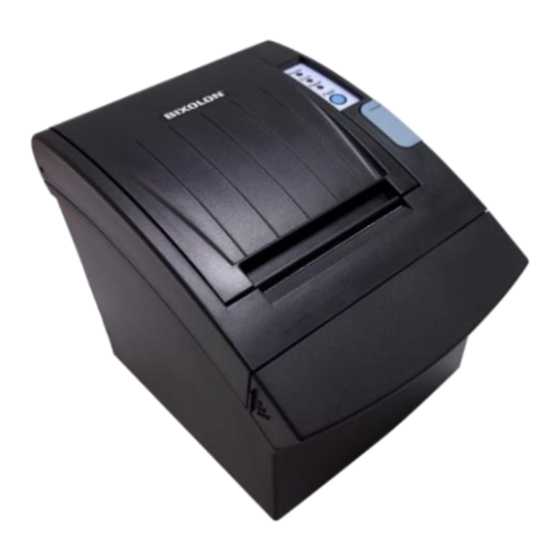

BIXOLON SRP-350 Installation Manual

KN04-00089A (Rev.1.0)
◈ Information
This installation guide contains only simple information required for the installation of the
product. Refer to the User's Manual in the CD that is shipped with the product for detailed
instructions for installation. The contents contained in the CD are as follows.
1. Manual: User's Manual, Code Table, Control Commands
2. Driver: Windows Driver, OPOS Driver
3. Utility: Logo Download Tool
We at Bixolon Co., Ltd. constantly strive to improve product functions and quality. To do
this, the specifications of our product and the contents of the manual may change without
prior notice.
◈ Components
Cable Cover
SRP-350/352plusIII
AC/DC Adaptor

◈ Cable Connection

1. Turn off the printer and ECR (host computer).
2. Connect the power cord to adaptor, and connect the adapter to the power connector of the
printer.
3. Check the type interface located at the back of the printer (Serial, Parallel, Ethernet, USB,
Powered USB, Wireless LAN, Bluetooth) and connect proper cable.
4. Connect the drawer kick-out cable to the drawer kick-out connector located on the
underside of the printer.
Interface Connector
Interface Cable
(Serial/Parallel/Powered USB/
Wireless LAN/Bluetooth)

◈ Installing Paper Roll

※ Note: Adjusting the near end sensor setting
Adjustment Tab

◈ Paper Jam

1. Turn the printer off and on, open the cover, and remove the paper.
2. If the cover cannot be opened, turn off the printer, separate the cover-cutter, and try to turn
the auto cutter knob to open the cover.
THERMAL PRINTER
Procuct Installation CD Procuct Installation CD Procuct Installation CD
Roll Paper
Power Cord Installation Guide
Drawer Kick-out
connector
Power
Connector
Drawer Kick-out
Cable
Adaptor
USB
Ethernet
Cable
Cable
Power Cord
1. Press the Cover-Open button to open the cover.
2. Insert new roll paper in the correct direction.
3. Pull the paper out slightly and close the cover.
※ Note
Hold down the center of the cover firmly when
closing the cover so that the paper maintains close
contact with the roller.
SRP-350/352plusIII printer includes a near end
sensor that provides an alarm signal just before the
paper runs out. In that case, the paper lamp in the
operation panel will turn on (red).
If the lamp is on while there is enough paper, push
the adjustment tab in an upward direction (toward
No.1) slightly.
(Refer to 1-6 in User Manual)
Printer Installation Guide

◈ Using Control Panel

◈ Setting DIP Switches

CD
DIP switch settings should be changed when the printer power is turned off. Any changes made
while printer power is on are not recognized.
1. Serial Interface Settings
• DIP Switch 1
Switch
1-1 Auto Line Feed
1-2 Flow Control
1-3
1-4 Parity Check
1-5 Parity Selection
1-6
1-7 Baud Rate Selection (bps)
1-8
• DIP Switch 2
Switch
2-1
2-2
2-3 Internal Bell Control
2-4 Auto Cutter Selection
2-5
Printing Density
2-6
2-7 Near End Sensor Control
2-8 Auto External Buzz
2. Parallel / USB / Ethernet / Wireless LAN / Powered USB interface settings
• DIP Switch 1
Switch
1-1 Auto Line Feed
1-2
1-3
1-4
1-5
1-6
1-7
1-8
• DIP Switch 2
Switch
2-1
2-2
2-3 Internal Bell Control
2-4 Auto Cutter Selection
2-5
Printing Density
2-6
2-7 Near End Sensor Control
2-8 Auto External Buzz
3. Bluetooth Interface settings
• DIP Switch 1
Switch
1-1 Auto Line Feed
1-2
1-3
1-4
1-5 Bluetooth mode
1-6
1-7
1-8
• DIP Switch 2
Switch
2-1
2-2
2-3 Internal Bell Control
2-4 Auto Cutter Selection
2-5
Printing Density
2-6
2-7 Near End Sensor Control
2-8 Auto External Buzz
SRP-350/352plusIII
• Power (Indicator Lamp)
Green light will be on when power is supplied to printer.
• Error (Indicator Lamp)
Red light will be on in various error conditions such as out of paper,
cover open, etc.
• Paper (Indicator Lamp)
Red light will be on when there is no paper or paper almost runs out. If
this light keeps blinking, it means that the printer is in self-test standby
state or waiting for macro execution.
• Feed (Button)
Press this button to feed the paper out. Hold down this button to feed
out the paper continuously.
Function ON
Enabled
XON/XOFF
Data Length 7-bit
Yes
EVEN
Refer to the following Table 1
Function ON
Reserved -
Reserved -
Disabled
Disabled
Refer to the following Table 2
Disabled
Enabled
Function ON
Enabled
Reserved -
Reserved -
Reserved -
Reserved -
Reserved -
Reserved -
Reserved -
Function ON
Reserved -
Reserved -
Disabled
Disabled
Refer to the following Table 2
Disabled
Enabled
Function ON
Enabled
Reserved -
Reserved -
Reserved -
iOS
Reserved -
Reserved -
Reserved -
Function ON
Reserved -
Reserved -
Disabled
Disabled
Refer to the following Table 2
Disabled
Enabled
OFF Default
Disabled OFF
DTR/DSR OFF
8-bit OFF
No OFF
ODD OFF
OFF
ON
OFF
OFF Default
- OFF
- OFF
Enabled OFF
Enabled OFF
OFF
OFF
Enabled OFF
Disabled OFF
OFF Default
Disabled OFF
- OFF
- OFF
- OFF
- OFF
- OFF
- ON
- OFF
OFF Default
- OFF
- OFF
Enabled OFF
Enabled OFF
OFF
OFF
Enabled OFF
Disabled OFF
OFF Default
Disabled OFF
- OFF
- OFF
- OFF
Normal OFF
- OFF
- ON
- OFF
OFF Default
- OFF
- OFF
Enabled OFF
Enabled OFF
OFF
OFF
Enabled OFF
Disabled OFF
