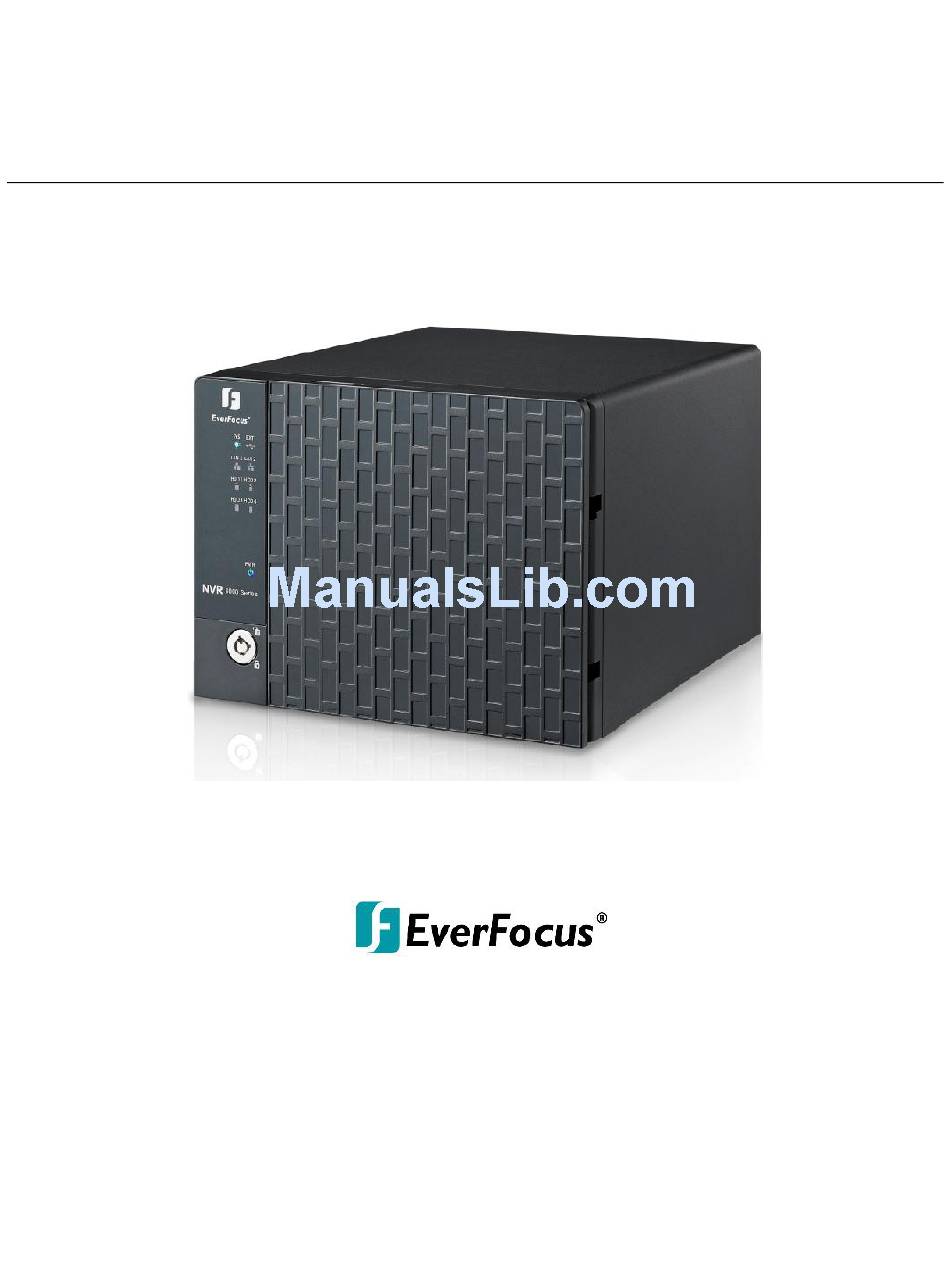

Page 1: Quick Installation Guide
Elite 2- NVR8004X – 20 Ch. NVR 4-Bay, Up to 20-Channel Megapixel Recording, RAID Storage Quick Installation Guide Copyright © EverFocus Electronics Corp, Release Date:December, 2014 Notice: This content is subject to be changed without notice. -
Page 2: Safety Precautions
Warranty Based on the RMA policy, EverFocus Electronics Corporation ("EverFocus") will repair or replace, at no charge to the purchaser, any merchandise found to be defective in material or workmanship. The NVR hardware is covered with a 2-year limited hardware warranty. - Page 3 Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use theNVR at temperatures within 0°C~40°C / 32°F~104°F (Storage). The input power source is 19 VDC / 90W.
- Page 4 This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and WEEE components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed ofseparately from your household waste.
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................1 ........................2 VERVIEW ..............2 UPPORTING PERATING YSTEMS AND ROWSERS .......................... 2 EATURES ........................3 ACKING ......................3 PTIONAL CCESSORY ........................4 RONT ANEL ........................5 ANEL INSTALLATION ....................... 6 ................... 6 RIVE NSTALLATION Hard Disk Compatibility List ......................6 2.1.1 ...................... -
Page 6: Introduction
NVR8004Xprovides a storage capacity of up to 16 TB (2TB or 4 TB per drive). Additionally, the NVR is compatible with all EverFocus devices such as IP cameras, DVR, NVR, access control systems and EverFocus CMS software, Genie XMS. The ONVIF-conformant 3 -party cameras can also be connected to the NVR. -
Page 7: Overview
Router / Switch Internal HDDs (Optional) Network Mouse / USB Memory Stick IP Camera EverFocus Genie XMS CMS 1.2 Supporting Operating Systems and Browsers Operating System: Microsoft Windows XP (32-bit) / 7 (32/64-bit) / 8 (32/64-bit) Preferred Web Browser: Google Chrome 1.3 Features... -
Page 8: Packing List
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 9: Front Panel
Elite 2-NVR8004X-20Ch. NVR 1.6 Front Panel No. Name Description SYS:Indicates the system is working. EXT:Indicates the NVR is connected to the external storage device. LAN1 / LAN2:Indicates the NVR is connected to the network. HDD1~4:Indicates the internal HDD is activating, but the LED Status LED indicators will lightup only if you install the HDDs before turning on the NVR. -
Page 10: Rear Panel
Elite 2-NVR8004X-20Ch. NVR 1.7 Rear Panel No. Name Description Reset Insert atool into the reset hole to reset the NVR. VGA Port For configuration purpose only, not for live viewing. The USB3.0 ports for connecting to a mouse or external USB3.0 Port storage device. -
Page 11: Installation
Elite 2-NVR8004X-20Ch. NVR Chapter 2. Installation 2.1 Hard Disk Drive Installation 1. Your HDD should be preinstalled when you receive the NVR. Note: To replace new hard disks: 1. If RAID function is configured, assign this RAID disk to a single group first ( see To create a new group in 4.3.2 Storage Device Management of the Genie XMS software manual in the CD) , and then replace the new hard disk. - Page 12 Elite 2-NVR8004X-20Ch. NVR CE-Video SATA3 / ST3000VM002 CE-Video SATA3 / ST4000VM000 ST4000VX000 WD40PURX-64GVNYO WD30PURX-64P6ZY0 WD20PURX-64P6ZY0 WD10PURX-64D85Y0 WD10EVDS SATA2 WD10EURS SATA2 WD10EURX SATA3 WD20EVDS SATA2 WD20EURS SATA2 Western Digital WD30EURS SATA2 WD10EVVS SATA WD20EFRX WD30EFRX WD4001FAEX WD1600AVVS SATA 160GB WD3200AVVS SATA 320GB WD5000AVVS SATA 500GB...
-
Page 13: Basic Connection
Elite 2-NVR8004X-20Ch. NVR 2.2 Basic Connection The instructions below describe theconnection for the Elite 2. 1. Optionally connect a Mouse and USB Memory Stick to the NVR. 2. To manage the NVR over network, it’srecommended to connect the supplied standard RJ-45 cable from your network to LAN2 port. -
Page 14: Connecting The Nvr To The Network
Elite 2-NVR8004X-20Ch. NVR 2.4 Connecting the NVR to the Network The instructions below describe the basic connection for NVR8008X. Before powering on the NVR, make sure the internal HDDs have been installed properly. When you have completed the basic cable connections, you are ready to turn on the NVR. This NVR has dual network ports. - Page 15 Elite 2-NVR8004X-20Ch. NVR Once NVR and IP camera configuration is complete, the DHCP Server/Router and PC-1 can be removed from the Camera Network.
-
Page 16: Checking The Dynamic Ip Address
Elite 2-NVR8004X-20Ch. NVR 2.5 Checking the Dynamic IP Address You can look up the IP address and access the Web interface of the NVR using the IP Utility (IPU) program. Please connect the NVR in the same LAN of your computer. 1. - Page 17 Elite 2-NVR8004X-20Ch. NVR b. Type the Username and Password. Click the OK button, the status of the selected camera will display Login. Note: 1. The default user ID is admin and the default password is 11111111. 2. If you select more than one NVRs that have the same user ID / password, you will be able to log in several NVRs at once.
- Page 18 Elite 2-NVR8004X-20Ch. NVR 4. After reloading the webpage, the login window pops up. Type the user ID and password to log in. By default, the user ID is adminand the password is 11111111. 5. Click the Login button, the Live View window appears.
-
Page 19: Specifications
Elite 2-NVR8004X-20Ch. NVR Chapter 3. Specifications Model Elite 2 - NVR8004X System Channels Embedded Linux Continuous record, record by schedule, event trigger record, digital Recording Modes input trigger record Recording Resolution Up to full camera resolution Compression Supported H.264 Bi-directional transmission, 1 audio channel per video channel Audio (depending on specification of IP device) Max Stream Limit... - Page 20 Elite 2-NVR8004X-20Ch. NVR Live view: Max 32 cameras (up to 2 windows with up to 16views on each monitor at 1 PC) Remote Video Access Playback view: up to 16 cameras (replaces one Live Viewscreen viaFree Client Software during playback at PC) Mobile phone/PDA/tablet: free app with live multi views (Nolimit for number of installations for all remote applications) Internet Explorer 9 and later, Firefox 4.0-9.0, Chrome (Windows...
- Page 21 TEL: +91 22 67264500 FAX: +91 22 67264518 www.everfocus.in sales@everfocus.in Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
