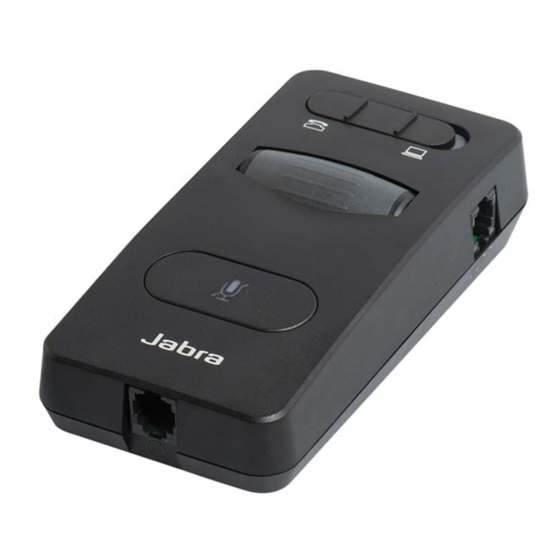

Summary of Contents for Jabra LINK 860

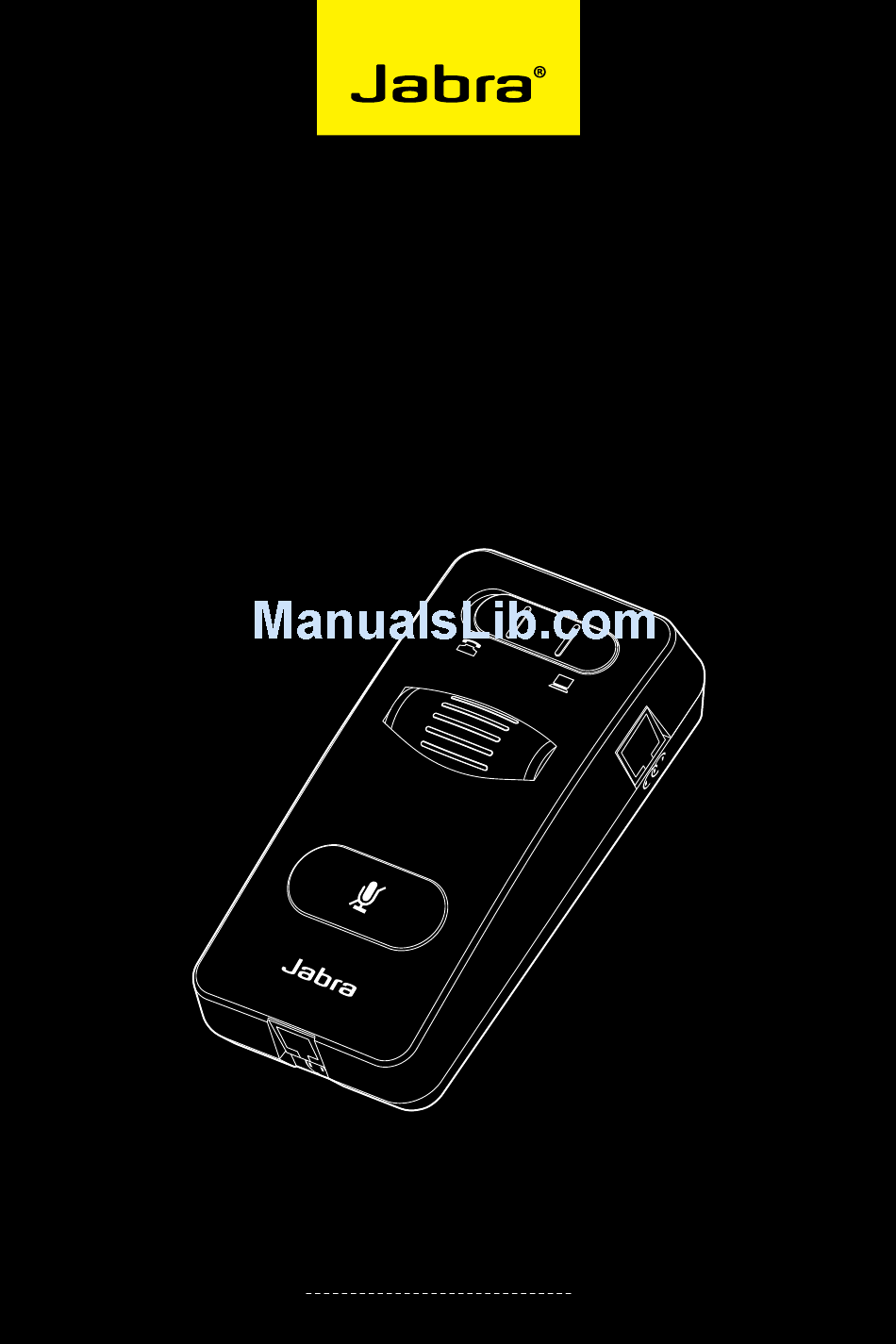

- Page 1 Jabra Link ™ User manual www.jabra.com...
-
Page 2: Table Of Contents
(sOftphOne) ..........9 cOnnect an additiOnaL headset (Guest headset) ........10 cOnnect a busy-LiGht indicatOr ..................10 mOunt the Jabra Link 860 tO the desk ..............10 advanCed settinGs ............... 11 remOvinG the remOvabLe cOver ..................11 audiO streaminG switch .......................11 nOise at wOrk switch .......................12... -
Page 3: Product Overview
Handset port usb port Guest headset port Mounting bracket Microphone volume control Clear dial tone switch audio streaming switch voice clarity switch noise at work switch Qd port removable cover Jabra link™ 860 User manUal... -
Page 4: Optional Accessories
OptiOnaL accessOries the following Jabra Link 860 accessories are available separately: busy-light indicator aC power adapter Mute button for supervisor cable Jabra link™ 860 User manUal... -
Page 5: Connecting The Jabra Link 860
(sold seperately). to connect to power, plug the usb cable into the usb port on the Jabra Link 860, and connect the other end of the usb cable into any available usb port on your PC. the mute indicator will flash red three times to indicate the Jabra Link 860 is now connected to power. -
Page 6: Connect To A Pc (Softphone)
2. ensure the telephone cable is plugged into the telephone port on the Jabra Link 860, and then connect the other end of the telephone cable into the handset port on the desk phone. the Jabra Link 860 is now con- nected to the desk phone. -
Page 7: Connect To A Headset
Connect a headset to the Qd cable, and plug the Qd cable into the Qd port on the Jabra Link 860 Jabra link™ 860 User manUal... -
Page 8: Configuring The Desk Phone Audio
Jabra Link 860. setting the clear dial tone will enable the Jabra Link 860 to function correctly with your specific desk phone. -
Page 9: Using The Jabra Link 860
Jabra Link 860. the mute indicator will light up red to indicate the microphone has been muted. to un-mute the headset microphone, tap the mute button again. the mute indicator will turn off. -
Page 10: Connect An Additional Headset (Guest Headset)
(Guest headset) an additional headset can be connected to the guest port on the Jabra Link 860 to allow another person to join the conversation. when connected, the additional headset has the same functions as the primary headset. -
Page 11: Advanced Settings
Jabra direct software on your PC (www.jabra.com/ direct). note: if you intend to use the Jabra Link 860 with a softphone on your PC (e.g. Lync), it is recommended to disable audio streaming. -
Page 12: Noise At Work Switch
Jabra Link 860 enables you to turn audio protection on or off. turning audio protection on will prevent potential risks, such as acoustic shock and noise exposure. -
Page 13: Faqs And Troubleshooting
• ensure the target phone switch on the base of the Jabra Link 860 is set to the correct telephone type (desk phone, or softphone). • ensure the clear dial tone switch on the base of the Jabra Link 860 is set to the correct position. refer to ‘3 Configuring the desk phone audio’ . - Page 14 © 2015 Gn netcom A/S. All rights reserved. Jabra is a registered trademark ® of Gn netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth word mark and logos are owned ® by the Bluetooth SiG, inc. and any use of such marks by Gn netcom A/S is under license.
