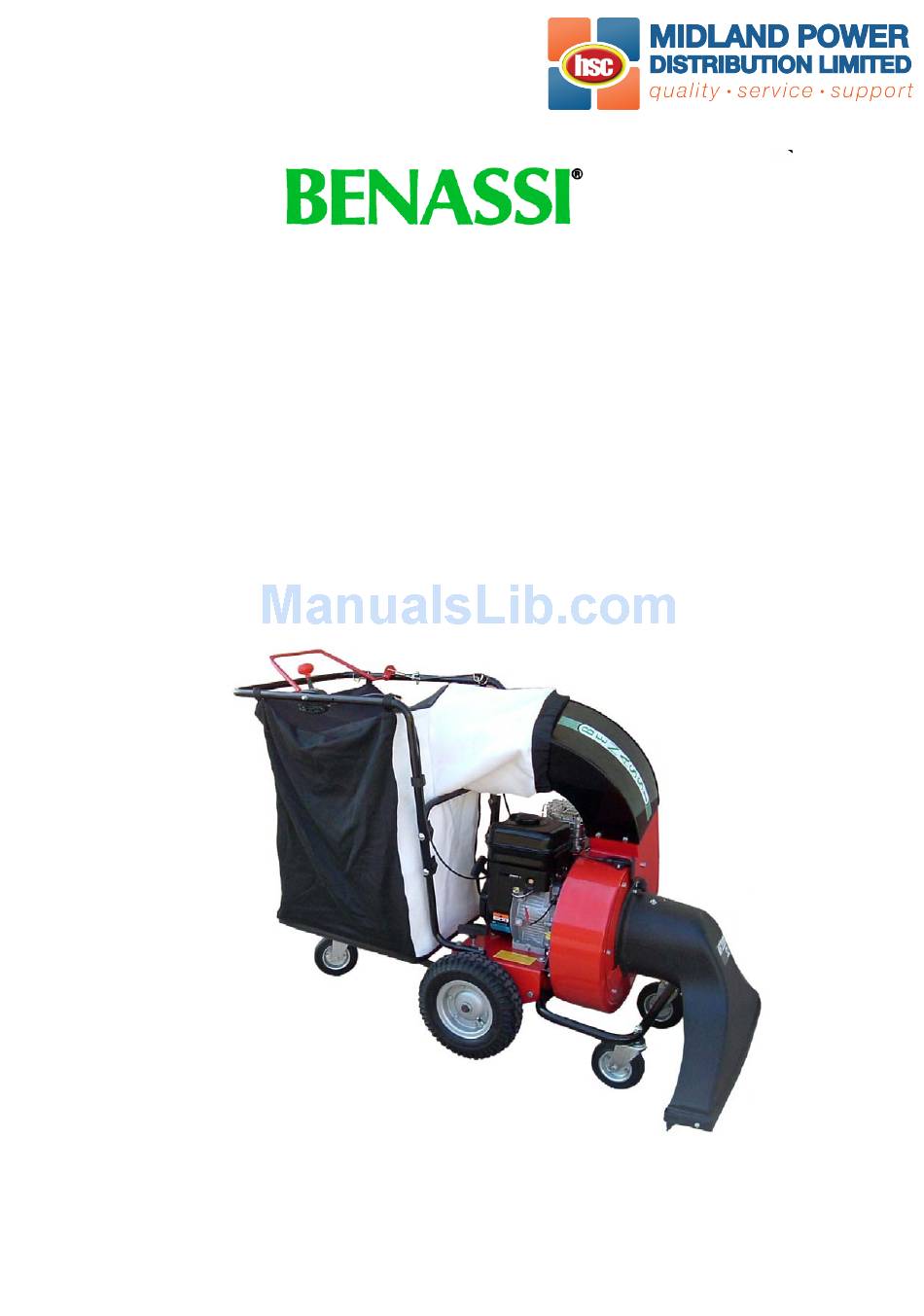

- Page 1 S.p.A. OPERATION AND MAINTENANCE MANUAL LEAF SUCKER AF200SL 29/02/2008 www.midlandpower.co.uk...
- Page 2 AF 200 S.p.A. CONTENTS ◊ ◊ INTRODUCTION OPERATING AND REGULATING THE MACHINE ◊ ◊ LIST OF MACHINE PARTS MAINTENANCE ◊ ◊ IDENTIFICATION AND TECHNICAL CHARACTERISTICS WARRANTY ◊ ◊ PACKING AND TRANSPORT CERTIFICATION ◊ ◊ SAFETY RULES AND LIMITS ON USE TESTS FOR SAFETY ◊...
- Page 3 AF 200 S.p.A. IDENTIFICATION AND TECHNICAL CHARACTERISTICS FOR THE ENGINE FEATURES SEE THE ENGINE INSTRUCTION BOOKLET DELIVERED WITH THE MACHINE. All engines installed on this leaf-suckers are equipped with : • Muffler protection (Pic.1 Ref. “5”) • Pull start with self-winding cord •...
- Page 4 AF 200 S.p.A. -Pic. n°4- -Pic. n°5- Length 150 cm Width 77 cm PACKING AND TRANSPORT Dimensions of the packing: ◊ WIDTH: 76 m ◊ LENGHT: 80,5 cm ◊ HEIGHT: 71 cm ⇒ Remove the leaf-sucker from its packing. ⇒ Fix the handles to the handlebar support using the screws and knobs pre-mounted on the handle. Make sure to position the control cables correctly.
-
Page 5: Safety Rules
AF 200 S.p.A. SAFETY RULES IMPORTANT: Before using the machine read carefully this operation and maintenance manual; It will allow you to get from your machine the best performance of use and duration. IF YOU NEGLET THIS, YOU’LL ENDANGER YOURSELF OR THE LEAF-SUCKER. •... - Page 6 AF 200 S.p.A. - Pic. n°8- - Pic. n°9- OPERATING AND REGULATING THE MACHINE • Before starting to use the leaf-sucker check the fixing of the suction opening. • Check the fixing of the bag and that the bag is not torn. •...
- Page 7 AF 200 S.p.A. MAINTENANCE • For changing the oil and other maintenance operations on the engine(spark plugs, air filter, regulations), refer to the engine manual provided. • Clean periodically the bag from the dust. Do not assemble the bag if it is wet - Pic.
- Page 8 Vibration to handles with weighting UNI EN 1033-1 value: 5,4 m/sec 2 This declaration of CE conformity is valid only if the product doesn’t undergo any changes or modifications without authorization. S.p.A. VIA LAMPEDUSA 1 40017 S. MATTEO DELLA DECIMA (BO) ITALY TEL. +39/051/820534 TELEFAX +39/051/820526 www.benassi.eu e-mail: export@benassispa.it Dealer stamp...
