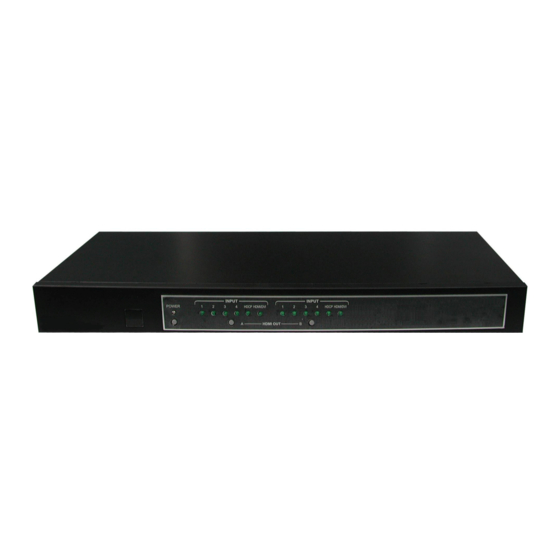

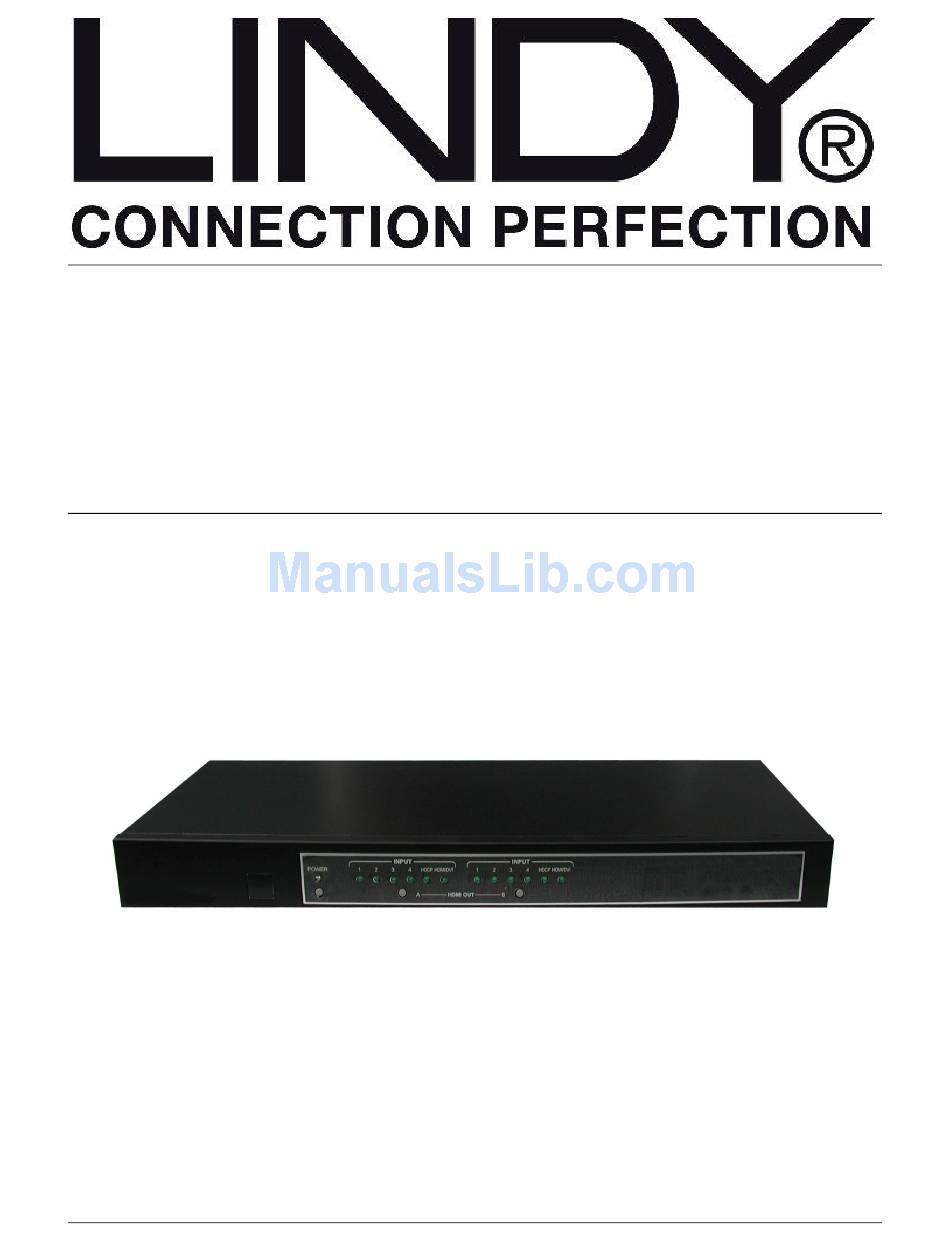

- Page 1 HDMI 4x2 Matrix Switch 1.3b Quick Start Guide English LINDY No. 38042 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (March 2009)
- Page 2 1. Introduction Thank you for purchasing the LINDY HDMI 4 x 2 Matrix Switch 1.3b with remote control. This high performance switch offers you the maximum convenience in HDMI signal distribution when you have multiple HDMI sources and displays to connect together.
- Page 3 Rear Panel EDID control switch: Default setting is TV, change this setting to STD if you have problems displaying a picture on the screen RS-232 communication port: Connect to the COM port of your PC for control over the RS-232 channel HDMI outputs: Connect each of these outputs to the HDMI inputs of your display HDMI inputs:...
- Page 4 6. Package Contents • 4x2 HDMI 1.3b Matrix • Remote Control (with battery) • IR Receiver • Power Cord • 5V DC PSU • LINDY Manual 7. Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11...
- Page 5 Each individual EU member state has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic products. LINDY No. 38042 www.lindy.com March 2009...
