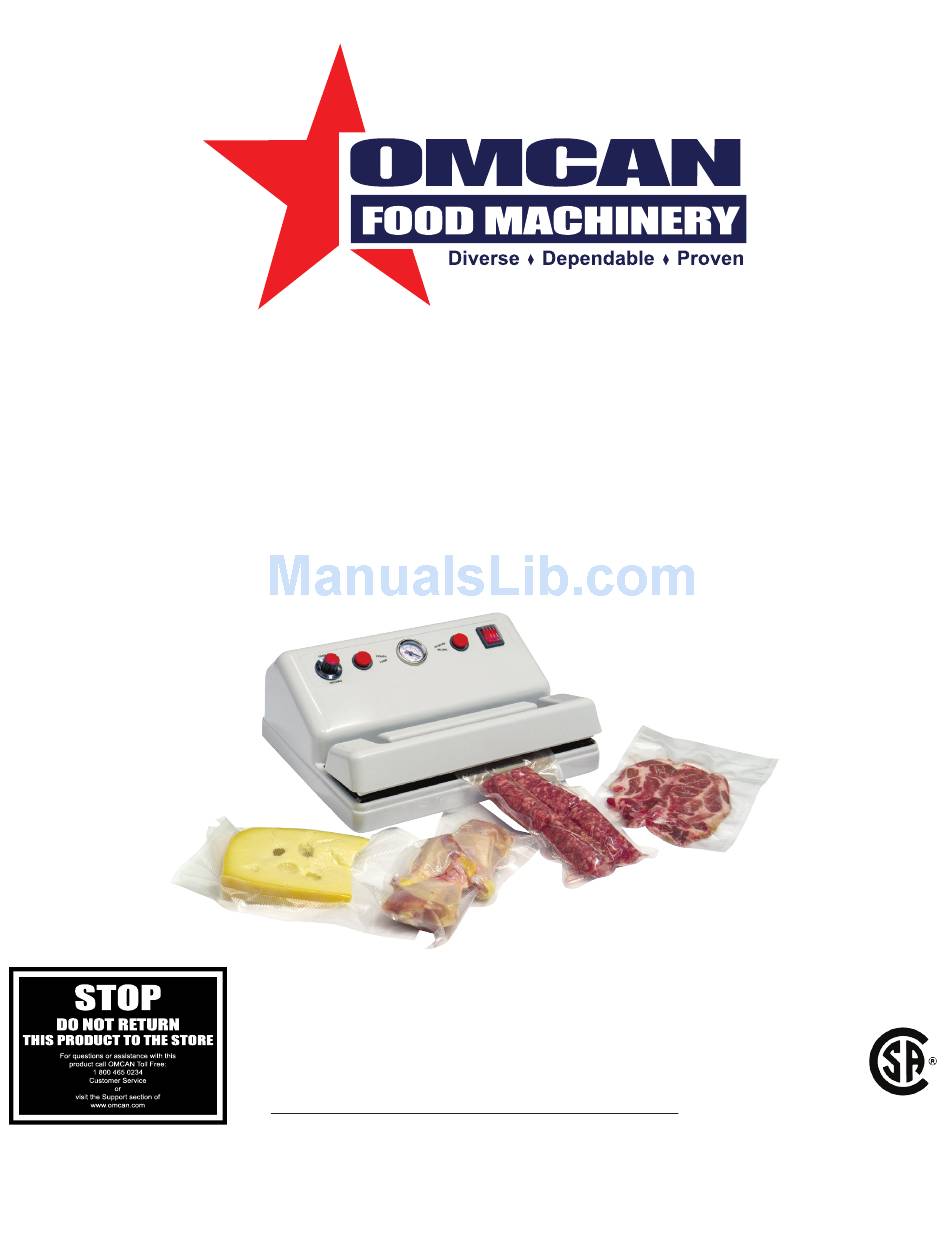

- Page 1 Vacuum Packaging Machines MT500 Instruction Manual Version 1 3115 Pepper Mill Court, Mississauga, ON, L5L 4X5 1-800-465-0234 4450 Witmer Industrial Estates, Unit 4, Niagara Falls, NY, 14305 www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MT500 Section Page General Information -------------------------------------------------------------------------------- 3 Safety --------------------------------------------------------------------------------------------- 3 - 4 Technical Specifications -------------------------------------------------------------------------- 4 Installation -------------------------------------------------------------------------------------------- 5 Operating --------------------------------------------------------------------------------------------- 5 Maintenance ----------------------------------------------------------------------------------------- 6 Parts Breakdowns ----------------------------------------------------------------------------- 7 - 8 Electrical Schematics ------------------------------------------------------------------------------ 9 Warranty Registration... -
Page 3: General Information
General Information Omcan Manufacturing and Distributing Company Inc. and Food Machinery Of America, Inc. dba Omcan are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. -
Page 4: Technical Specifications
Safety eliminate risks in the best possible manner (integrate safety in design and manufacture of the machine); adopt the necessary protection measures regarding risks that cannot be eliminated - inform users regarding residual risks caused by incomplete efficiency of the safety measures adopted. The manufacturer, during design and manufacture of the machine as well as when drawing up operating instructions, has considered not only formal use of the machine but also all reasonably possible uses (2). -
Page 5: Installation
Installation Set MT 500 on a stable horizontal surface. Make sure ventilation is not blocked by any obstacle. Check that the operating voltage for MT 500 corresponds to available grid voltage. Also check that the plug has a ground connection since this appliance has insulation and is equipped with a device for connection to the safety ground conductor in accordance with the provisions for class 1 appliances (CEI 64 8 Standards) and must be firmly connected to ground. -
Page 6: Maintenance
Maintenance All maintenance must be done with the machine off and the power plug disconnected from the power outlet. The machine must remain off for at least 20 minutes so that all welding components cool down. The following maintenance procedures can be performed safely if you comply with these precautions every day, or whenever necessary. -
Page 7: Parts Breakdowns
Parts Breakdown Model MT500 14407... - Page 8 Parts Breakdown Model MT500 14407 Item Item Item Description Position Description Position Description Position 16552 Potentiometer 19928 Mobile Plate Vacuum 39091 Transformer 16553 Time regulator knob 16556 Silicon Rubber 39092 Power Supply Cable 16554 Vacuum Push Button 16557 Teflon 16563...
-
Page 9: Electrical Schematics
Electrical Schematics Model MT500 14407... -
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: www.omcan.com/warrantyregistration.html For mailing in Canada For mailing in the US... - Page 12 Over the last 60 years, Omcan has grown to become a leading supplier to the food service industry in Canada and the USA. Our success over these many years is directly attributed to our established relationships with all of our valued customers and through providing them with Diverse, Dependable and Proven products.
