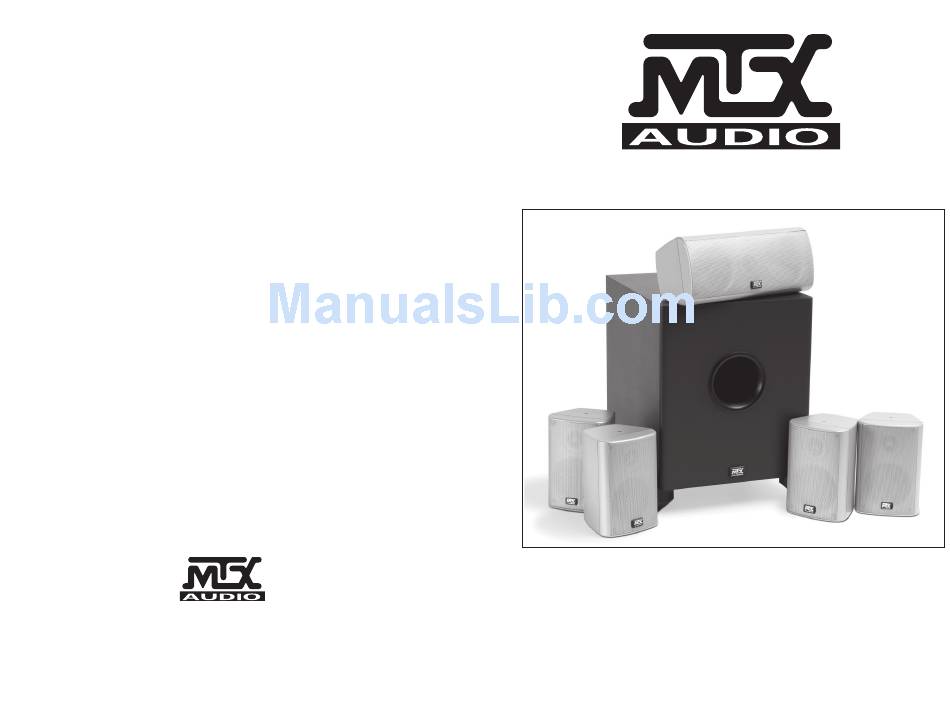

- Page 1 HTB1-S 1 Mitek Plaza Home Theater Loudspeaker Winslow, IL 61089 815-367-3000 System 800-225-5689 21A8361...
-
Page 2: Care And Maintenance
INTRODUCTION Congratulations on your purchase of MTX Loudspeakers. Your new speakers represent the latest technologies in loudspeaker design and manufacturing. They will provide outstanding performance and years of listening enjoyment. Please take time to read through this manual thoroughly to insure you get maximum performance out of your new loudspeakers. -
Page 3: Specifications
SPECIFICATIONS HTB1 Satellite/Center Channel Driver Complement Midrange- 3” shielded with paper cone, foam surround Tweeter- 1/2" Balanced dome tweeter Frequency Response: 150Hz - 20kHz Impedance: 8 ohms nominal Power Handling: 75 watts RMS / 150 watts peak music Recommended Amplifier Power: 20-100 watts RMS Sensitivity: 85dB@2.83V/1M Weight: Satellite- 1.8 lbs. - Page 4 EXPLANATION OF FEATURES AND CONTROLS Refer to Figure A 1) Power Switch: This two position switch controls the power status of the sub- woofer. Off: Turns the unit off. On: Turns the unit on regardless of whether a signal is present or not. 2) Subwoofer crossover (Freq): This rotary control adjusts a variable low pass fil- ter to set the upper frequency at which the output of the subwoofer begins to roll- off.
