Parameters
Los parámetros, Paramètres, Parameter
21.77
F s :
Hz
10.99
Q ms :
0.275
C ms :
mm/N
: 194.07
M ms
2.42
R ms :
kg/s
10.867
V as :
ft³ (
0.320
X max :
13.236
D:
in (
138.26
S d :
in² (
44.06
V d :
in³ (
0.62
Q es :
3.11
R e :
Ω
11.52
B l :
Tm
200
P rms :
Watts
0.590
Q ts :
0.494 %
η ο
:
89.13
SPLo:
SPL 2.83V/1m :
DESIGNED EXCLUSIVELY FOR
AMPLIFIERS
Recommended Power Rating of
La Potencia nominal recomendada, Le Pouvoir recommandé Evaluant, Empfohlene Kraft Einzuschätze
g
307.67
liters)
8.13
in (
mm)
336.20
mm)
891.97
cm²)
0.72
liters)
dB
93.13
dB
100 - 200 Watts RMS

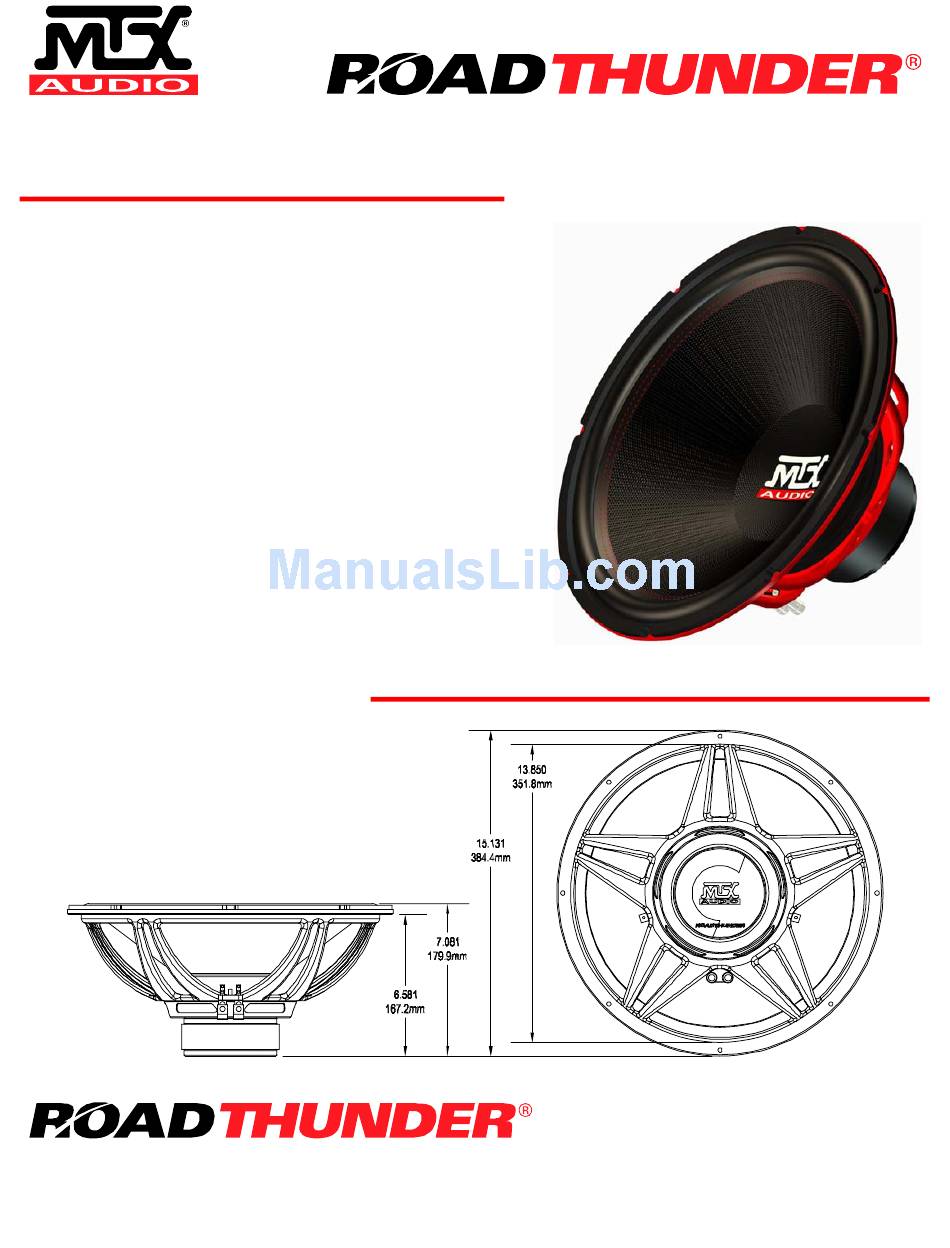

RT15-04
Specifications
Las especificaciones , Spécifications, Spezifikationen
21A7449
Advertisement
Related Manuals for MTX RoadThunder RT15-04
Summary of Contents for MTX RoadThunder RT15-04
-
Page 1: Specifications
Parameters Los parámetros, Paramètres, Parameter 21.77 F s : 10.99 Q ms : 0.275 C ms : mm/N : 194.07 M ms 2.42 R ms : kg/s 10.867 307.67 V as : ft³ ( 0.320 8.13 X max : in ( 13.236 336.20 in (... - Page 2 Sealed Enclosure El Cerco sellado, Clôture scellée, Abgedichtete Einschließung For the best possible sound quality where space is a premium, MTX recommends using a sealed enclosure. For excellent sound quality with increased output compared to sealed enclosures (3dB or more), MTX recommends using vented...
- Page 3 Vented Enclosure Descargar Cerco, Clôture donnere vent, Vented Einschließung For the best possible sound quality where space is a premium, MTX recommends using a sealed enclosure. For excellent sound quality with increased output compared to sealed enclosures (3dB or more), MTX recommends using vented...
- Page 4 Wiring Configuration La Configuración del alambrado, La Configuración del alambrado, Verdrahtende Konfiguration Wired Direct (Alambró Directo, Télégraphié Direct, Direkt hat verdrahtet) A 4Ω speaker will represent a 4Ω load. Ω Ω (Un orador 4 representará una carga 4 , Un 4 Ω...
