- Page 1 Installation Guide Copyright © 2005 MSI Computer Corp.

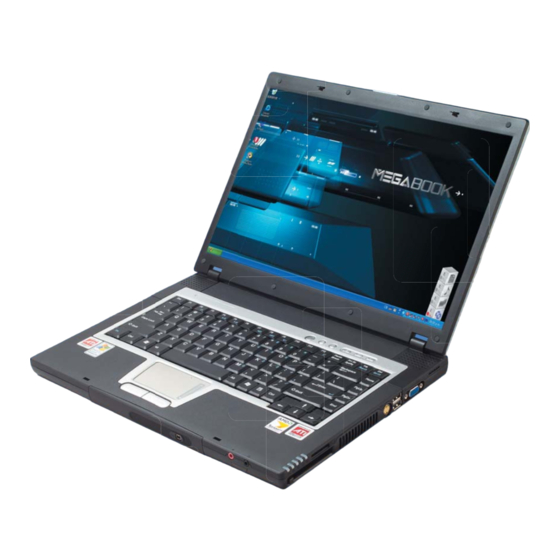

- Page 2 Overview: MS-1029 is shipped out as a bare bone. Some of the components are equipped while some are not. This installation guide provides you with the information of notebook hardware setup. Before assembling your Notebook, please prepare for the installation tools and appropriate items. If you are not clear about the items, please contact your dealer for more information.
- Page 3 Right view Left view Rear view Others: Step 1: Installing CPU 1-1 Pull the CPU socket handle sideways away from the socket and then raise the lever up to a 90- degree angle.
- Page 4 1-2 Carefully align the processor using the gold arrow marking on the substrate of the FC-PGA2 package and the socket for reference. !!!The CPU only fit in the correct orientation!!! 1-3 Taking care not to bend any of the processor pins, carefully insert the processor into the socket. Hold the CPU down firmly with one hand and close and secure the socket lever with the other.
- Page 5 Step 2: Installing CPU Heat Sink 2-1 Please use the given CPU heat sink (refer to Figure 2-1) Hint: We recommend you to apply the given thermal grease for better heat conduction between your CPU and heat sink. 2-2 Align the CPU heat sink in the correct direction.
- Page 6 2-3 a.b.c Slide the golden part of the heat sink and align total of 7 screws (4 screws on the CPU heat sink and 3 screws along the mechanism) properly before locking down the nuts. 2-4a.b.c.d Lock down the heat sink diagonally or according to “1-2-3-4” shown on the CPU heat sink. !!!Improper to lock the CPU heat sink nuts will damage the CPU !!! Hint: Please check the heat sink and make sure it is in good contact with the CPU before you turn on your notebook.
- Page 7 2-5 Please use the given CPU heat sink fan (refer to Figure 2-6) 2-7 Plug the CPU heat sink fan connector first before you position the fan. !!! Improper connection of the CPU heat sink fan and/or without pluging the fan connector will damage the notebook and CPU!!!
- Page 8 2-8 Position the fan in the proper location. 2-9 a.b.c Lock down the CPU heat sink fan by using the given 3 screws.
- Page 9 Step 3: Installing Notebook Memory 3-1 Align the memory module to the DIMM socket 1. 3-2 Push down the memory module gently until the metal-locking levers aside from the DIMM socket 1 is fastened. !!! Memory module can only fit in one direction due to the keyed notch. Wrong orientation will cause improper installation and may damage the memory modules or DIMM sockets!!!
- Page 10 3-3 If you have more than one memory module, please align the 2nd memory module to the DIMM socket 2. 3-4 Push down the memory module gently until the metal-locking levers aside from the DIMM socket 2 is fastened. !!! Memory module can only fit in one direction due to the keyed notch. Wrong orientation will cause improper installation and may damage the memory modules or DIMM sockets!!!
- Page 11 Step 4: Installing Mini PCI WLAN Card 4-1 Align the Mini PCI Card to the Mini PCI socket. 4-2 Adjust the attached antennas and push down the Mini PCI Card gently until the metal-locking levers aside from the Mini PCI socket is fastened.
- Page 12 !!! Mini PCI Card can only fit in one direction due to the keyed notch. Wrong orientation will cause improper installation and may damage the Mini PCI card or Mini PCI socket!!! 4-3a.b Connect 3 antennas on Mini PCI card. 4-4 a.b.c.d.e After installing the heat sink, fan, memory and mini PCI WLAN card, slide the cover and gently press down the cover.
- Page 13 Step 5: Installing Notebook Hard Drive (HDD)
- Page 14 5-1 Please use the given HDD shielding tray (refer to Figure 5-1) 5-2 Insert the HDD sideway to the given HDD shielding tray. !!!Improper alignment will cause the damage to the HDD and the Notebook!!! 5-3 Slide the semi-finished goods (HDD+ HDD shielding tray) into HDD bay. Make sure you cannot see the HDD label after you slide the semi-finished goods (HDD+ HDD shielding tray) into HDD bay.
- Page 15 !!! There is only 1 correct alignment and orientation in sliding semi-finished goods (HDD + HDD shielding tray)!!! !!!Improper alignment will cause the damage the to the HDD and the Notebook!!! 5-4 After proper alignment, use both thumbs to push in semi-finished goods assembly (HDD+ HDD shielding tray) into HDD bay.
- Page 16 !!! Failure to apply any screw may cause HDD assembly to fall off in Notebook HDD area and will damage the HDD and the Notebook!!! 5-6 a.b.c. After installing the HDD, slide the cover and gently press down the cover. Lock down the cover by applying 2 screws.
- Page 17 Step 6: Installing the Battery 6-1 Align battery to the battery slot and push down the battery gently. Hint: If you wish to remove the battery, make sure the battery locking mechanism is in “Unlock” position.
- Page 18 Step 7: Final Check 7-1 Check all steps and make sure to fasten all the components and screws before powering on your Notebook. !!! Improper installation of any device(s) and loosen screws may damage the Notebook after powering on the notebook!!! Hint: If you are unable to power on your notebook after following the above procedure, or if there are any other issues, please contact your local retailer or national distributor for help.
- Page 19 8-2 Under “BOOT” menu in the BIOS Setup Utility, press <Enter> to select the first boot device. 8-3 Insert a Bootable OS CD into the OSD tray. 8-4 To save/ exit the BIOS Setup Screen, press “Y” to save/ exit. 8-5 After seeing the Intel Logo, immediately press “Enter”...
