Service Manual
SPECIFICATIONS
Power Source:
220-240V a.c., 50Hz
Power Consumption:
48W
Stand-by Power
Consumption:
0,8W
Aerial Impedance:
75Ω unbalanced, Coaxial Type
Receiving System:
PAL B/G, PAL D/K ,PAL-60
SECAM B/G, SECAM D/K
M.NTSC (AV)
NTSC (AV only)
Receiving Channels:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV (S01-S05)
CATV S1-S10 (M1-M10)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video/Audio
Video
38,9MHz
Audio
32,4MHz, 33,4MHz
Colour
34,47MHz (PAL),
34,5MHz (SECAM),
34,65MHz (SECAM)
Terminals:
AV1 IN
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)
AV1 OUT
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV FRONT
High Voltage:
Picture Tube:
Audio Output:
Headphones:
Accessories
supplied :
Dimensions:
Height:
Width:
Depth:
Net weight:
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE:
the Z8 Technical guide.
0,7V p-p 75Ω

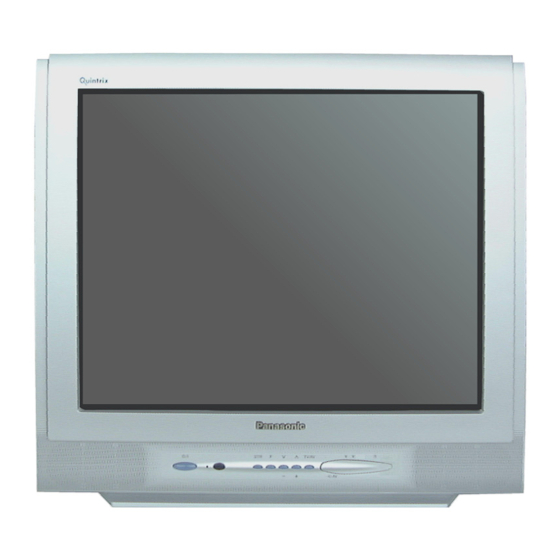

Colour Television
TX-21AT1P
Z8T Chassis
Audio (RCAx1)
Video (RCAx1)
27kV ± 1kV
A51ERF135X71
1 x 5W RMS, 1 x 10W MPO
8Ω Impedance
8Ω Impedance
Remote Control
2 x R6 (UM3) Batteries
476mm
524mm
473mm
22kg
This Service Manual should be used in conjunction with
ORDER No. 03-SM-004
500mV rms 10kΩ
1V p-p 75Ω
51cm
Advertisement
Table of Contents
Related Manuals for Panasonic TX-21AT1P
Summary of Contents for Panasonic TX-21AT1P
-
Page 1: Service Manual
ORDER No. 03-SM-004 Service Manual Colour Television TX-21AT1P Z8T Chassis SPECIFICATIONS Power Source: 220-240V a.c., 50Hz AV FRONT Audio (RCAx1) 500mV rms 10kΩ Power Consumption: Video (RCAx1) 1V p-p 75Ω Stand-by Power High Voltage: 27kV ± 1kV Consumption: 0,8W Picture Tube:... -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ................................. 2 SERVICE HINTS ..................................3 ADJUSTMENT PROCEDURE AND SELF-CHECK ........................4 WAVEFORM PATTERN TABLE ............................... 5 ALIGNMENT SETTINGS ................................6 BLOCK DIAGRAMS.................................. 7 PARTS LOCATION................................. 10 REPLACEMENT PARTS LIST..............................11 SCHEMATIC DIAGRAMS............................... 17 CONDUCTOR VIEWS ................................20 SAFETY PRECAUTION GENERAL GUIDE LINES It is advisable to insert an isolation transformer in the... -
Page 3: Service Hints
SERVICE HINTS How to remove the rear cover 1. Remove the 5 screws as shown in Fig.2. Screws Screws Fig.2. LOCATION OF CONTROLS Y-Board E-Board Focus Screen Fig. 3... -
Page 4: Adjustment Procedure And Self-Check
ADJUSTMENT PROCEDURE Item / Preparation Adjustments +B SET-UP Confirm the following voltages. Receive a Greyscale signal. ± 0,3V ± 1V Set the controls : ± 10V 27,5 ± 1,5V ± 1V ± 1,5V Brightness Minimum ± 1V ± 1V ± 0,3V ±... -
Page 5: Waveform Pattern Table
WAVEFORM PATTERN TABLE CONDITIONS: Contrast: Brightness: Colour: Sharpness:... -
Page 6: Alignment Settings
ALIGNMENT SETTINGS To access Service Mode select program position 99 and set sharpness to minimum. Press “MUTE” button on remote control and at the same time press the "V" button on the customer controls at the front of the TV, this will place the TV set into Service Mode. ∧... -
Page 7: Block Diagrams
AUDIO IN VIDEO IN VIDEO OUT R IN G IN B IN AUDIO IN B IN R OUT AUDIO OUT G IN G OUT AUDIO IN R IN B OUT AUDIO OUT HEADPH... - Page 8 Mains In...
