Control 4 C4-8x8HDMIVSW-B Installation And Setup Manual

8×8 HDMI Matrix Switch
Installation and Setup
Guide
Supported Model
• C4-8x8HDMIVSW-B 8×8 HDMI Matrix Switch
Introduction
The Control4® 8x8 HDMI Matrix Switch enables up to eight (8) HDMI
inputs to be distributed to eight (8) zones, with Ethernet pass-
through and IR and RS232 control.
• Enables up to eight (8) AV sources for multi-room AV
distribution via full-matrix switching
• System control is enabled through Ethernet, giving installation
flexibility for new or retrofit installations
• Easily installed with Control4 Simple Device Discovery Protocol
(SDDP)
• 2U rack-mount ears conform to EIA 19" rack standards
Box Contents
• 8×8 HDMI Matrix Switch (C4-8x8HDMIVSW-B)
• Power cord and external power supply
• Warranty card
• Rack-mount ears (2)
• Four (4) 8-32 x 3/8" Phillips screws
• Four (4) feet (pre-attached), which can be removed for device
rack mounting.
Available Accessories
• HDBaseT Receiver (C4-HDBTE-B)
Specifications
HDBaseT Receiver
Model number
Voltage
Current
Network connectivity
Full matrix switching
Rack-mount
™
C4-8x8HDMIVSW-B
12VDC
8.5A
10/100 BaseT Ethernet
Yes
Yes, 2U rack-mount ears included
Source inputs
HDMI
HDBaseT Ethernet inputs
Zone outputs
HDBaseT outputs
HDMI outputs (exclusive-or of
HDBT 7/8)
Stereo audio output (3.5 mm
stereo jack)
Control
RS232 serial ports
IR ports
Environmental
Operational temperature
Humidity
Storage
Miscellaneous
Dimensions
Weight
Shipping weight
HDBaseT Receiver
Model number
Voltage
Current
Dimensions
Weight
Shipping weight
Front and Rear Panel Description

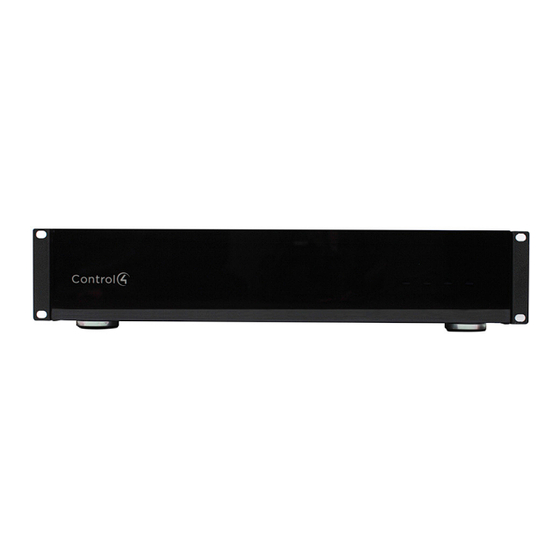

Front Panel
LED Indicators
A
Status—One blink=unable to obtain IP address from DHCP
server. Off indicates normal operation.
B
Link—Indicates a connection to Director.
C
Power—Flashes while booting. Solid blue when powered on.
8
8
8
2
8
8
8 (IR frequency: 38 KHz)
32˚F ~ 104˚F (0˚C ~ 40˚C)
5% to 95% non-condensing
-4˚F ~ 158˚F (-20˚C ~ 70˚C)
13.4" x 10.1" x 3.9"
(341 x 257 x 100 mm) (w/feet)
13.4" x 10.1" x 3.6"
(341 x 257 x 91 mm) (no feet)
8.64 lbs (3.92 kg) (unit only)
12.48 lbs (5.66 kg)
(box, power supply & cord)
C4-HDBTE-B
12VDC
1.5A
4.0" x 4.8" x 0.9"
(102 x 123 x 23 mm) (w/mount)
1.3 lbs (0.6 kg) (unit only)
3.0 lbs (1.35 kg) (box & power
supply)
A B C
1
