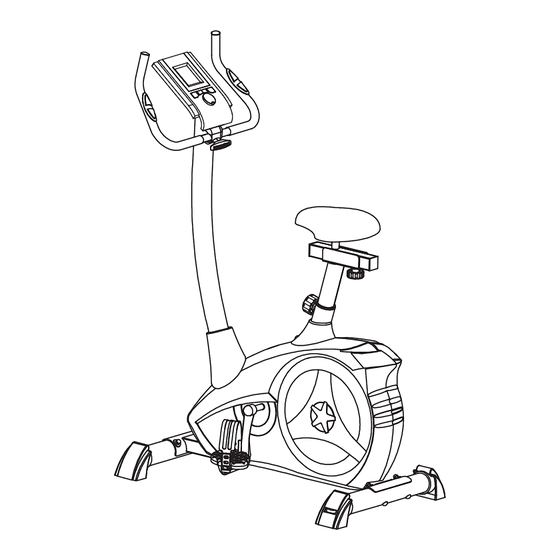

Model No. WLIVEX86011.0
Serial No. ___________
Write the serial number in the
space above for reference.
QUESTIONS ?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Line
by WESLO
EasyFit.
by WESLO
Visit our webite
www.iconsupport.eu
USERʼS MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Weslo EasyFit WLIVEX86011.0

Summary of Contents for Weslo EasyFit WLIVEX86011.0

  • Page 1 Line by WESLO EasyFit. by WESLO USERʼS MANUAL Model No. WLIVEX86011.0 Serial No. ___________ Write the serial number in the space above for reference. QUESTIONS ? If you have questions, or if there are missing parts, please contact us: Call: 08457 089 009 From Ireland: 053 92 36102 Website: www.iconsupport.eu...
