Summary of Contents for AccuBANKER AB-1100 Plus Basic

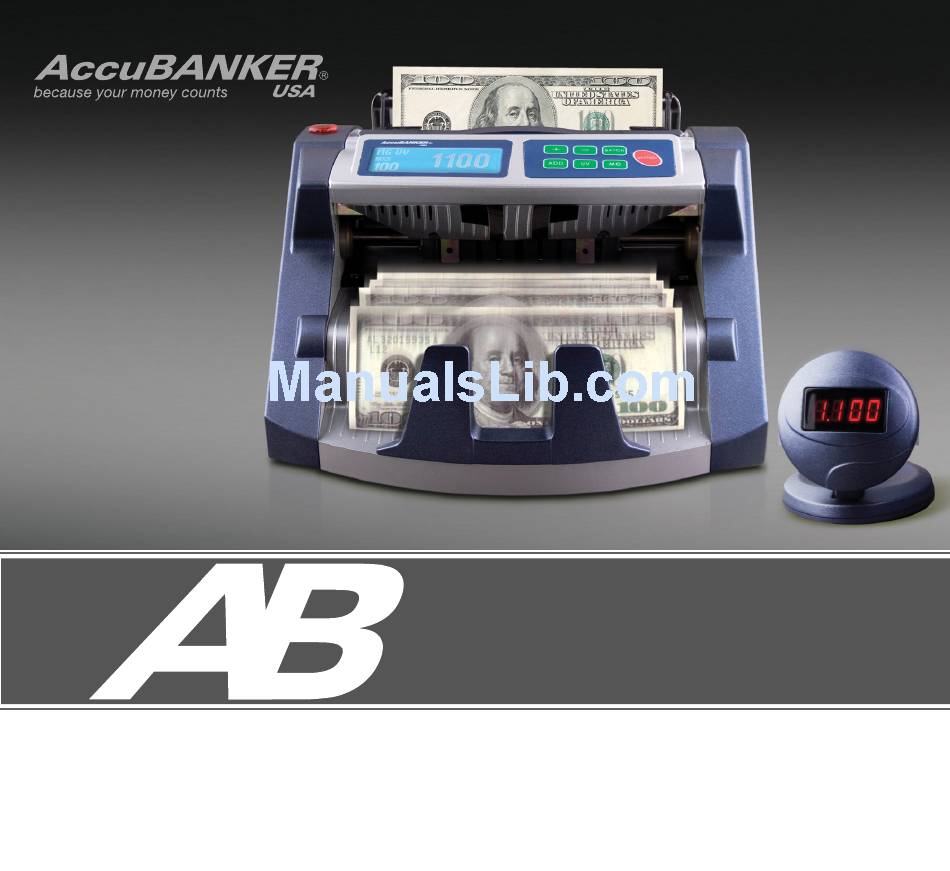

- Page 1 User Guide Bill Counter AB1100 PLUS...
- Page 2 Thank you for purchasing this AccuBANKER product. We recommend reading all information in the user guide to become familiar with this product. AccuBANKER and its logo are registered trademarks of Hilton Trading Corp. All Rights Reserved.
-
Page 3: Table Of Contents
Table of Contents GETTING STARTED: BASIC INSTRUCTIONS FOR ALL MODELS IMPORTANT SAFETY INSTRUCTIONS OTHER SAFETY CONSIDERATIONS BOX CONTENTS CLEANING OF THE MACHINE 1.0 GENERAL CONTROLS AND PARTS 1.1 Control Panel and Display 2.0 FEATURES 2.1 Counting Mode 2.2 Preset Batching Function 2.3 ADD Function 2.4 MG and/or UV Detection Functions 2.5 Automatic Start... - Page 4 Table of Contents 3.3 Counting Function 3.4 UV Detection Function 3.5 MG / UV Detection Function 3.6 “ADD” Function 3.7 “WIDTH” Detection Function 3.8 Bill Density Detection Function 3.9 “BATCH” Function 3.10 Emergency Stop Feature 4.0 TROUBLESHOOTING 4.1 Avoiding Problems 4.2 Jamming 4.3 Counting is Wrong (Miscounting) 4.4 Additional Recommendation...
-
Page 5: Basic Instructions For All Models
Basic Instructions The AB-1100 Plus Series is our newest back-loading bill counter machine which is a step further in banknotes counting technology. Its capability to count reliably either PAPER (traditional) or POLYMER (plastic) banknotes make this new model an indispensable counting machine for the financial market of today. This model counts at a rate of 1500 bills per minute, It includes Adding, Batching and UV Counterfeit Detection functions. - Page 6 Basic Instructions cont. The main features of each model are given below: Model AB-1100 Plus Basic: This model counts at a rate of 1500 bills per minute. It include Adding and Batching functions but not any Counterfeit De- tection. Model AB-1100 Plus UV: This model counts at a rate of 1500 bills per minute.
-
Page 7: Important Safety Instructions
Important Safety Instructions When using this bill counter, basic safety precautions should always be followed to reduce the risk of fire, electric shock or injury to persons; including the following: Warn in g Caution Do not use this product in areas where it may be exposed to water When unplugging the power cord, do not pull it by the or other liquids. -
Page 8: Other Safety Considerations
Other Safety Considerations • Read and understand all of the instructions. • Follow all warnings and instructions marked on the unit. • The slots and openings in the back or bottom of the case, are provided for ventilation, to protect the unit from overheating. These openings should never be blocked or covered by placing the product on the bed, sofa, rug, or similar surfaces. - Page 9 Other Safety Considerations • Never push objects of any kind into the unit through case slots, since they may touch dangerous voltage points or shortcut parts, resulting in a risk of fire or electric shock. • Unplug this product from the wall outlet and refer servicing to qualified ser- vice personnel under the following conditions: When the power supply cord or plus is damaged or frayed.
-
Page 10: Box Contents
Box Contents When opening the box, verify that all the items described below are included. If any item is damaged or missing, contact the dealer where the unit was purchased. 1. Bill Counter AB1100 PLUS 2. External Display 3. Power Cord 4. -
Page 11: Cleaning Of The Machine
Cleaning of the Machine WARNING: BEFORE DOING ANY CLEANING, TURN THE POWER SWITCH OFF AND DISCONNECT THE POWER CORD FROM THE MACHINE. KEEP IN MIND THAT PROBLEMS OR DEFECTS THAT ARISE FROM LACK OF PERIODIC MAINTENANCE ARE NOT COVERED BY THE WARRANTY. A) Cleaning the Optical Sensors It is important to clean all the sensors to avoid any paper particles or dust from sticking to the IR transmitter or IR receiver sensors. -
Page 12: General Controls And Parts
1.0 General Controls and Parts 5. Optical Sensors 1. Hopper 6. Control Panel 2. Hopper Guiders 7. Emergency Stop Button 3. Retractable Handle 8. Auxiliary Counting Screen 4. Stacker... - Page 13 General Controls and Parts cont. 9. Rubber Tongue 10. Bill Thickness Adjustment Screw 11. Power Switch 12. Power Cord Outlet 13. Auxiliary Screen Jack...
-
Page 14: Control Panel And Display
General Controls and Parts cont. 1.1 Control Panel and Display 1. Preset Number (Batch) 2. Counting Number (Counter) 3. Batch “+” Button (To add) 4. Batch “-” Button (To subtract) 5. Batch Button (Preset to 100, 50, 20 and 10) 6. -
Page 15: Features
2.0 Features 2.1 Counting Mode Once turned on, the machine defaults to this mode, and will start to count the bills placed in the hopper. 2.2 Preset Batching Function Counts bills per batch up to the numbers preset with the “Batch” and “+” or “-” buttons. -
Page 16: Emergency Stop Feature
2.0 Features cont. 2.6 Emergency Stop Feature The unit stops automatically when the resistance in the feeding friction rollers increases abnormally. Moreover, a red octagonal button located on the upper left side of the unit stops all operations when depressed. 2.7 Auxiliary Counting Screen The AB-1100 Series is equipped with an auxiliary counting screen. -
Page 17: Operations
3.0 Operations 3.1 Power Up Connect the power cord to the unit, then to a power source and turn the power switch ON; the unit will conduct a self-check by spinning the counting wheels several times. The counting number display will show “0” when the unit is ready to start counting. -
Page 18: Counting Function
3.0 Operations cont. 3.3 Counting Function Once the bills are correctly placed in the hopper plate, the machine will start counting automatically. The counted bills number will be shown on the Display. Moreover, once the bills are removed from the stacker and a new bundle of bills placed into the hoper, the “Counter”... - Page 19 3.0 Operations cont. 2. The machine will count until the hopper is empty or reaches a preset batching number. 3. The number of counted bills is displayed on the screen. 4. The next counting operation will start again- with “0” on the screen. 5.
-
Page 20: Uv Detection Function
3.0 Operations cont. 3.4 Ultraviolet Detection Function (Available for the models AB-1100 UV and/or AB-1100 MG/UV, only) UV detection function is selected or deselected by pressing the UV button on the Control Panel. The UV function is able to check all types of banknotes containing UV features and alert the user in case it fails. -
Page 21: Mg / Uv Detection Function
3.0 Operations cont. 3.5 Ultraviolet and Magnetic Detection Functions (Available for the model AB-1100 MG/UV only) The MG detection function is selected or deselected by pressing the MG button on the control panel. The Magnetic function is able to check all types of ban- knotes that use magnetic ink on its printing process. -
Page 22: Add" Function
3.0 Operations cont. NOTE: The ultraviolet and magnetic detection systems integrated in the AB-1100 (models UV and MG/UV only,) are valuable instruments that help the user verify the legitimacy of bills. However, the AB-1100 (models UV and MG/UV only,) like all other counters with integrated detectors found in the market, cannot guarantee the legiti- macy of any bill analyzed by it due to the unpredictable techniques or advances that counterfeiters may introduce. -
Page 23: Bill Density Detection Function
3.0 Operations cont. 3.8 Bill Density Detection Function This feature will allow you to detect when two bills stuck together each other try to pass through the unit. Also if a bill doesn’t meet the fitness requirements it will be detected by the unit. To activate it, press down the “ADD”... -
Page 24: Emergency Stop Feature
3.0 Operations cont. 3.10 Emergency Stop Feature The AB-1100 Plus Series is equipped with an emergency stop button which protects the user in the event that unintended objects (e.g. neckties, scarves, etc) reach the feeding rollers of the unit. If the internal resistance increases beyond the parameters of normal bill counting, the counting operation is stopped immediately. -
Page 25: Troubleshooting
4.0 Troubleshooting 4.1 Avoiding Problems Pre-select the bills you are going to count in the machine. Do not attempt to count bills: a. With staples or metal clips b. Torn or washed c. Profusely stained d. Covered with adhesive media (for AB-1100 UV and AB-1100 MG/UV models, only) 4.2 Jamming a. -
Page 26: Counting Is Wrong (Miscounting)
4.0 Troubleshooting cont. 4.3 Counting is Wrong (Miscounting) a. Turn the thickness adjustment screw counter-clockwise (to reduce friction) or vice versa (to increase friction) until you realize the unit is working properly. b. Adjust the rubber tongue position until the counting numbers are right. c. -
Page 27: Maintenance
5.0 Maintenance 5.1 Verifying the Adjustment of the Hopper Plate The hopper plate ensures proper feeding of the bills for counting. It is secured to the back of the unit by two pivoting points and a magnetic lock. To verify that the Hopper Plate is properly adjusted, press or lift the hopper plate and look for any displacement (see figure 1). -
Page 28: Flipping The Rubber Tongue
5.0 Maintenance cont. 5.2 Flipping the Rubber Tongue When should the rubber tongue be flipped? The rubber tongue should be flipped when the bill thickness adjustment screw does not solve the problem of improper banknote feeding or miscounting error repeatedly. Procedure: Press the hopper plate (metal plate) downward (figure 1). - Page 29 Make sure the rubber tongue is 1/4” ahead of the tips of the metal plate that holds it down. Once both sides of the rubber tongue have been used, contact your local service representative or AccuBanker to get a new one.
-
Page 30: Error Messages
6.0 Error Messages MESSAGES POSSIBLE CAUSES SOLUTION a)Remove the suspicious bill and count again. UV ALARM Suspicious UV features b)In case you need it, reduce the UV sensitivity a)Remove the suspicious bill and count again. Suspicious MG features MG ALARM b)In case you need it, reduce the MG sensitivity a)Verify the Hopper is not loose a)Two or more bills were fed... -
Page 31: Specifications
7.0 Specifications Counting Speed: 1500 notes / min Feeding System: Roller Friction System (Back-loading) Hopper Capacity: 100 old bills or 200 new bills Stacker Capacity: 100 old bills or 200 new bills Display: High Resolution LCD Display Size of Countable Bills: 50mm X 100mm - 100mm X 185mm Thickness of Countable Bills: 0.06mm - 0.12mm Ambient Temperature: 32°F - 104°F (0 C - 40 C) Ambient Humidity: 25% - 80%... - Page 32 www.accubanker.com...
