EasyStart
• DSP Analog Modeling Tone Generator: 70
Waveforms, 8 types of oscillator algorithms, 4 note
polyphony, Single, Split and Dual voice modes
• 128 user-editable programs
• Over 35 Realtime Knobs and front panel keys.
• Virtual Patch function has 8 sources and 8
destinations + 4 knobs for realtime control over
synth parameters
• Built-in effects: 3 effects at once + AMP Distortion.
Chorus/Flange, Phase, Ensemble. 3 types of sync-
able Delay, 2-band EQ

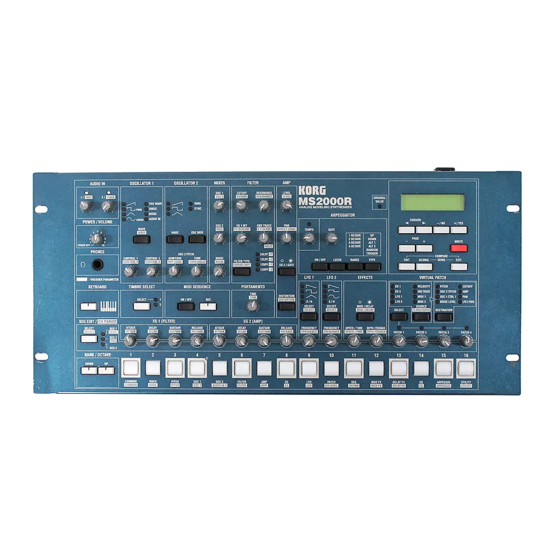

MS2000R Specifics
Listening to the Demo Songs
Selecting and playing Programs
Check out The Arpeggiator
Meet The Mod Sequencer
TheVocoder and The Audio Inputs
Virtual Patch Mode
Overview of the Effects
Tips, Tricks and Important Owner's Manual Refrences
MS2000/MS2000R Main Features
EasyStart CONTENTS
• Mod Sequencing: Step or motion sequencer. 16
steps per track (3 tracks per timbre). Editable in
realtime using 16 knobs
• Arpeggiator: 6 patterns, 4 octave range,
dedicated tempo and gate knobs, programmable
Target, Key Sync, Swing and Resolution
• Vocoder: 16-band programmable vocoder with
31 editable parameters and 4 Filter Formant
settings
• 2 Audio inputs: Apply filter, LFOs, effects, etc. to
your live audio, and Vocoder
2
2
2
3
3/4
4
5
5
6
Advertisement
Related Manuals for Korg MS2000
Summary of Contents for Korg MS2000
- Page 1 EasyStart MS2000/MS2000R Main Features • DSP Analog Modeling Tone Generator: 70 • Mod Sequencing: Step or motion sequencer. 16 Waveforms, 8 types of oscillator algorithms, 4 note steps per track (3 tracks per timbre). Editable in polyphony, Single, Split and Dual voice modes realtime using 16 knobs •...
-
Page 2: Listening To The Demo Songs
Selecting and playing Programs The MS2000 provides an easy way to get to Program Play mode and select Programs. No matter what “state” the front panel or display is in when you walk up to the keyboard, simply press the [EXIT] key, and you’ll go to Program Play mode. Programs are organized into 8 banks, each containing 16 sounds. - Page 3 MS2000/MS2000R EasyStart (Located to the left of the LCD screen) as you edit - it will light when you reach the control’s original position. The ORIGINAL VALUE LED is also helpful when you want to learn just how a Program was created.
- Page 4 The Vocoder & Modifying external waveforms using the Audio Inputs The MS2000 has two audio inputs. AUDIO IN 1 is for connecting a synthesizer or other audio source. The input signal can be used as the oscillator 1 waveform, allowing you to modify the audio source using the FILTER, AMP, EG and LFO knobs and apply effects.
- Page 5 Chorus/Flanger, Ensemble, or Phaser. The 3 Delays available are Stereo Delay, Cross Delay, and L/R Delay. The Delay times can be controlled by the TEMPO knob when the MS2000 is running on its internal clock, and can also be controlled by external MIDI...
-
Page 6: Tips And Tricks
Increasing MS2000 Polyphony You can connect the MS2000 MIDI OUT to another MS2000 or MS2000R MIDI IN, to increase the polyphony from four voices to eight. To do this, go to [GLOBAL] mode, page 4E, for both instruments, and set one synth’s NoteRcv value to EVN and the other synth’s NoteRcv value to ODD.
