Summary of Contents for Seiki SE65UO01UK
-

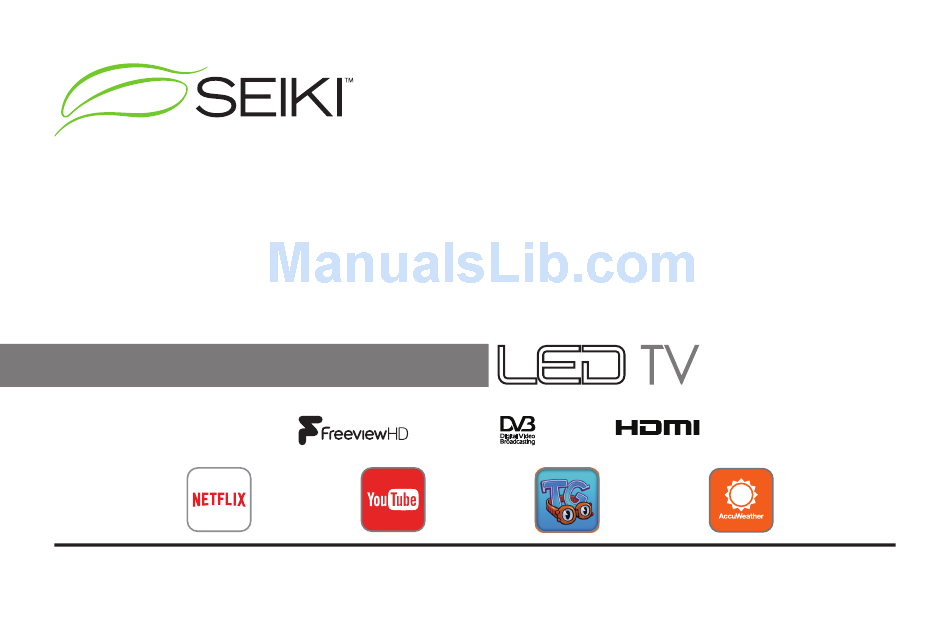

Page 1: User Manual
USER MANUAL SE65UO01UK Read the User Manual carefully before using the TV and keep it for further reference. -
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Safety Information Preparation What's Included Front View Rear View Installing the Stand Removing the Stand for Wall-Mounting Remote Control Connecting External Devices Customizing TV Settings Initial Setup Navigating the Setup Settings Streaming Media Listening to Music Viewing Photos Watching Movies My Text... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Please keep the unit in a well-ventilated environment. • Read these instructions – All the safety and operating instructions should be read before this product is operated. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain • Keep these instructions – The safety and operating instructions should be retained or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled for future reference. -
Page 4: Safety Information
SAFETY INFORMATION WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instruction. To ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below. Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product. • To prevent overload, do not share the same power supply socket with too many other electronic components. -
Page 5: What's Included
PREPARATION What's Included TV Stand Six Screws TV Set Quick Start Guide MINI AV Cable Quick Start Guide Remote Control with Batteries MINI YPBPR Cable... -
Page 6: Front View
PREPARATION Front View 1. POWER Switch the TV between On / Standby mode. 2. SOURCE Press to select among different input signal sources. 3. MENU Display the main menu. 4. CH / Press to select a channel. 5. VOL +/- Press to adjust the volume. -
Page 7: Rear View
PREPARATION Rear View Power Cord Connect to AC power outlet. Network connection port. HDMI Input Connect to a High-Definition (HD) signal output device.(HDMI can support 4K60Hz Signal) Connect to a computer or other devices with a VGA interface. PC AUDIO Connect to a computer audio output. SCART Socket Connect to SCART cable between the SCART socket on the TV and the SCART socket on the external device (decoder, or DVD player). Connect to a... -
Page 8: Installing The Stand
PREPARATION Installing the Stand • 1.Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching. • 2. Fix the base stand to the TV using the 6 provided screws. Removing the Stand for Wall-Mounting • 1.Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching. • 2.Untighten the 6 pcs screws holding the stand assembly and remove them. • 3.Attach the wall-mount bracket to the TV using the mounting holes on the back of the TV. -
Page 9: Remote Control
PREPARATION : Switch the TV between On and Standby mode. Remote Control MUTE: Mute and restore TV sound. 0~9: Select a program.(ATV/DTV mode) CH.LIST: Display channel list. (ATV / DTV mode) : Return to the previous viewing channel. APP: Press to select the desired APP. MENU: Display the main menu. SOURCE: Select among the different input signal sources:ATV/AV/Component/SCART/HDMI1/HDMI2/HDMI3/VGA/USB/DTV. -
Page 10: Connecting External Devices
CONNECTING EXTERNAL DEVICES Remarks:Component/AV is sharing with Audio in (L/R). -
Page 11: Customizing Tv Settings
CUSTOMIZING TV SETTINGS Initial Setup • Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. -
Page 12: Navigating The Setup Settings
CUSTOMIZING TV SETTINGS Navigating the Setup Settings • Press the MENU button to display the main menu. • Use buttons to select Setup menu and press or OK button to enter, and then use to navigate and select the available menu. -
Page 13: Streaming
CUSTOMIZING TV SETTINGS Streaming • Press the MENU button to display the main menu. Then use button to enter the streaming and use button to select the desired APP and press OK button to view. Or press the hotkey on the remote control to enter the APP directly. Netflix Enjoys TV shows &... -
Page 14: Listening To Music
CUSTOMIZING TV SETTINGS Listening to Music • After entering Media, use buttons to select Music and press OK to enter. Then use buttons to navigate in the music folder to select the desired music, a subscreen menu will pop up, press button to display the selected music. -
Page 15: Watching Movies
CUSTOMIZING TV SETTINGS Watching Movies • After entering Media, use buttons to select Movie and press OK to enter. Then use buttons to navigate in the video folder to select the desired video, a subscreen menu will pop up, press button to display the selected video. -
Page 16: Source
CUSTOMIZING TV SETTINGS Source • Press the MENU button to display the main menu, then use buttons to select the Source menu and press OK to enter. Use buttons to select different input sources among: ATV/AV/Component/SCART/HDMI1/HDMI2/HDMI3/ VGA/USB/DTV and press OK button to confirm. Setup • Press the MENU button to display the main menu. -
Page 17: System
CUSTOMIZING TV SETTINGS System • Press buttons to select System menu and then press OK button to enter. Use buttons to select the following system options and then press buttons to adjust each option’s setting. Menu Language Select menu language : English, Español, Français, Italiano, Nederlands, Português, Deutsch. Subtitle Language Select the desired subtitle language. -
Page 18: Channel
CUSTOMIZING TV SETTINGS Select to turn On/Off LED status. LED status HDMI EDID: HDMI 1.4/HDMI 2.0 Other Setting INlink: set the following settings: INlink Control, Device Power Off, TV Power On, Audio Receiver, INlink Device List, Root Menu. Allows you to select your preferences in the PVR File System. PVR Option Allows you to select the OSD language and the country where you will operate the TV the first time. Then First Time Setup... -
Page 19: Support
• Press buttons to select Support menu and then press OK button to view the built-in user manual. USER MANUAL SE65UO01UK Read the User Manual carefully before using the TV and keep it for further reference. Lock • Press buttons to select Lock menu and then press OK button to enter. -
Page 20: Picture
CUSTOMIZING TV SETTINGS Use 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password Change Password for confirmation. Select to turn On/Off system lock. Channel lock & parental guide will only be accessible when you turn the System Lock system lock on. -
Page 21: Network
CUSTOMIZING TV SETTINGS Tint Adjust the balance between red and green levels. Face Colour Adjust the value of face colour. Colour Temp. Cycle among colour temperatures: Warm/Cool/Normal. MEMC Cycle among Motion Estimate and Motion Compensation modes:Middle/High/Off/Low. Noise Reduction: Reduce the noise level of the connected device: Off/Weak/Middle/Strong. Colour Space: To adjust the following settings: Colour Mode, Colour, Hue, Saturation, Brightness and Advanced Setting Reset. - Page 22 CUSTOMIZING TV SETTINGS Auto Upgrade • After the TV connects to network, the system will automatically detect software version. • If there is a new version, it will be downloaded in the background. When you want to enter the app, a menu bar will pop up reminding you that upgrade software is downloading.
-
Page 23: Audio
CUSTOMIZING TV SETTINGS Audio • Press buttons to select Audio menu and then press OK button to enter. Press buttons to select the following audio options and then press buttons to adjust each option’s setting. Surround Sound Allow the selection of an audio-enhancement technique: Standard / Music / Movie / User. Sound Mode Alternative: you may press the S.MODE button to select the sound mode directly. -
Page 24: Parental Control
PARENTAL CONTROL Press the MENU button on the main unit or on the remote control and then press buttons to select Lock menu. Use the 0-9 buttons to input the 4-digit password to enter the Lock menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. - Page 25 PARENTAL CONTROL • Motion Picture Association of America (MPAA) Rating System Grade Meaning General Audiences Content not offensive to most viewers. Parental Guidance Content is such that parents may not want their children to view the program. Suggested Parents Strongly Program is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated PG-13 Cautioned...
-
Page 26: Troubleshooting
TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support. - Page 27 TROUBLESHOOTING Lines or streaks in • Check antenna (change the position of the antenna.) pictures No pictures when • Check if the input source is HDMI1/HDMI2/HDMI3. connecting HDMI Pictures appear in wrong • Adjust the Aspect Ratio settings in the Setup menu or press the ASPECT button on the remote control. ratio The audio function does not work • Press the VOL +/- buttons.
-
Page 28: Maintaining
MAINTAINING • Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you. • Storage temperatures are 32° to 122°F(0° to 50°C) • Working temperatures are 32° to 95°F(0° to 35°C) • Do not place your TV in direct sunlight or near a heat source SPECIFICATION Panel Size 64.5 inch diagonally Display Type Panel Technology Panel 60 Hz Vs. 120 Hz 120 Hz Display Resolution 3840 x 2160 HDMI Support 3840 x 2160 60Hz Panel Resolution 3840 x 2160 Aspect Ratio... -
Page 29: Disposal Information
PLUG REPLACEMENT-UK Should you need to replace the plug; the wires in the power cable are coloured in the following way: Blue – Neutral ‘N’ Brown – Live ‘L’ As the colours of the wires in the power cable may not correspond with the coloured markings identifying the terminals in your plug, and proceed as follows: The blue wire must be connected to the terminal that is marked with the letter N. - Page 30 (“Warranty”) as follows: REPLACEMENT : For a period of one (1) year from date of original consumer purchase, if this Product or any part is determined by SEIKI, or a SEIKI authorized service provider, to be defective, SEIKI will replace the Product with new or re-certified product of similar or better specification, at SEIKI’s option, at no charge to the original consumer.
-
Page 31: Ott App Service
OTT APP SERVICE If you want to know about these APP information or get more service. Please refer to following content. • Netflix You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to https://contactus.netflix.com/help for alternative contact information. • YouTube You can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs... - Page 32 Service Hotline: 0-345-658-8290 www.seiki-uk.com IMPORTER ADDRESS: UNIT 1 KENFIG INDUSTRIAL ESTATE PORT TALBOT SA13 2PE UNITED KINGDOM COMPANY NO.07230773 © 2016 Tongfang Global(UK) Co. Ltd. All rights reserved.
