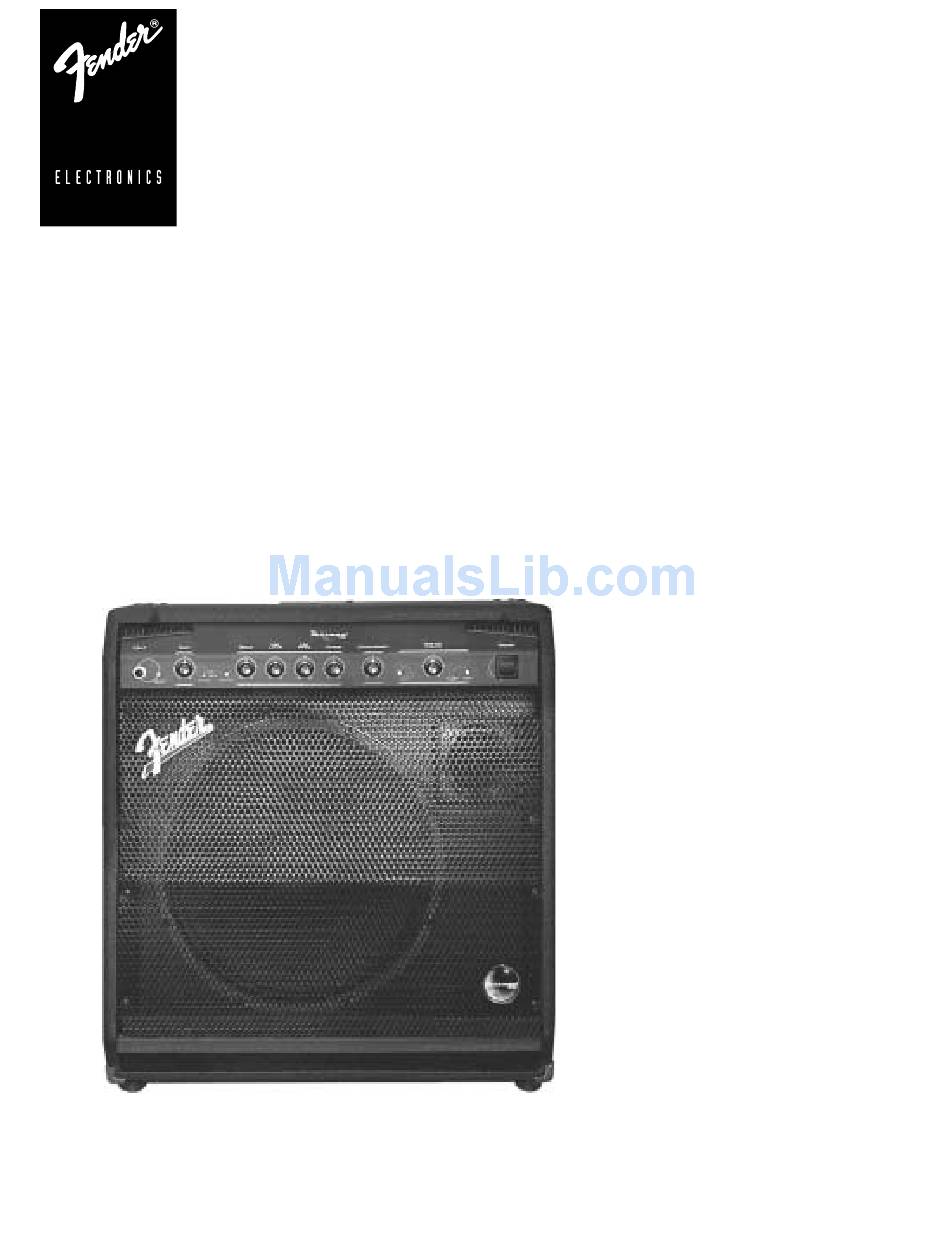

Page 1: Service Manual
BASSMAN 60 p/n 022-4502-000 (120V) SERVICE MANUAL CONTENTS: Notices Specifications Parts lists: PCB assembly Chassis assembly Cabinet assembly End item Schematics/diagrams Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258... -
Page 2: Important Notice
Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. -
Page 3: Specifications
Bass: +/-15 dB @ 50 Hz Effects Loop: Send impedance: 1kΩ Return impedance: 22kΩ Nominal level: +4dBu One 8 Ω Fender Special Design 12" woofer (P/N 0047539000) Speaker Complement: One Piezo Horn (P/N 0053641000) Dimensions: Height:20 1/2" (52.1 cm) Width: 20" (50.8 cm) Depth: 17 1/2"... -
Page 4: Parts List
BASSMAN 60 SERVICE NOTES HORN REPLACEMENT requires speaker removal in order to access horn wiring. If wire ties, clamps, etc. are removed for ease of connecting/disconnecting horn wires, these must be replaced to prevent buzzing at higher power levels. CHASSIS REMOVAL is accomplished by first removing six (4) screws from the top, and one (1) screw from each side of the cabinet;... - Page 5 LED RED LONG LEAD LUMEX D40 D46 D49 0036178000 SPACER LED .5X.1 BRN A6192-1 @ D40 D46 D49 & D56 0055646000 PCB FAB. BASSMAN 60 0024937001 RES CF 1/4W 5% 10ohm LL R60 R95-96 R144-146 0024947001 RES CF 1/4W 5% 47ohm LL...
- Page 6 BASSMAN 60 PRINTED CIRCUIT BOARD ASSEMBLY (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION 0024993001 RES CF 1/4W 5% 47k LL R6-8 R21 R23 R38 R52 R78 0024994001 RES CF 1/4W 5% 56k LL R9 R125 0024995001 RES CF 1/4W 5% 68k LL...
-
Page 7: Chassis Assembly
EXPORT END ITEM ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 0055622000 CABINET ASSEMBLY BASSMAN 60 0055638000 CHASSIS ASSY BASSMAN 60 120V 0055639000 CHASSIS ASSY BASSMAN 60 230V 0055642000 CHASSIS ASSY BASSMAN 60 100V 0050850000 NAMEPLATE VINTAGE PLASTIC SMALL 0047248000 CORD PWR W/IEC CONN DOM... - Page 8 END ITEM ASSEMBLY (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION 0036199000 SCRW M 8-32x1-3/16 OHP BLX @chassis 0050312000 SCRW 2-56X3/8 FHP NI @logo 0029527000 WSHR FNSH 8-5/8 FLNGD BLX WX @chassis 0055672000 GRILLE, METAL, BASSMAN 60 0055731000 LOGO, DOME, BASSMAN AMPS...
