Page 1

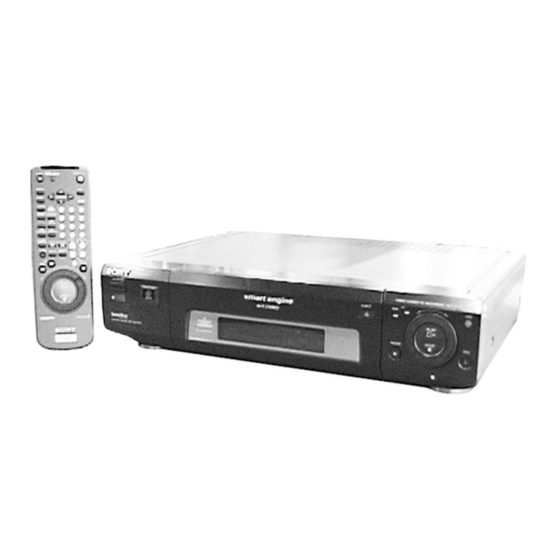

SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/ F900VC/F990B/F990NP/F990UX/F990VC 3 7 63 1515 0 RMT-V222C/V222D/V222E/V223C/V240/V240A/V240B/V240C/V240D SERVICE MANUAL French Model SLV-E850B/F900B/F990B UK Model SLV-E850UX/F900UX/F990UX Greek Model SLV-E880EG Spanish Model SLV-F900NP/F990NP Germany Model Photo : SLV-F990 SLV-F900VC/F990VC • Refer to the SERVICE MANUAL of VHS MECHANICAL ADJUSTMENTS for MECHANICAL ADJUSTMENTS.
Page 2
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC SERVICE NOTE 3 7 63 1515 0 ERROR CODE INDICATION • Error codes are indicated using the lower 5 digits in the fluorescent display tube. “At this time, Colon “:” between character is not indicated.” Mode code indication when the error has occurred.
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC SECTION 1 This section is extracted from 3 7 63 1515 0 GENERAL SLV-E880EG instruction manual. L 13942296513 u163 http://www.xiaoyu163.com...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 3-5. MODE CONTROL BLOCK DIAGRAM F900/F990 MODEL IC901 (SEE PAGE 4-49) IC902 MA-316 BOARD SERIAL µ CON AT-24 TRANSFER CONTROL (SEE PAGE 3-6) CN164 CN166 CN950 µ CON CS BOARD µ...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 3-6. TUNER BLOCK DIAGRAM MA-316 BOARD RFU 750 TU702 (SEE PAGE 4-21) V DET TU VIDEO IC540 TU/IF SPLITTER DEMODULATOR IC820 VIDEO (HIFI) BLOCK UHF/ (SEE PAGE 3-3) TU L...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS RP-231 (REC/PB AMP) PRINTED WIRING BOARD There are few cases that the part printed on this diagram isn’t mounted in this model.
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 RP-231 (REC/PB AMP) SCHEMATIC DIAGRAM — Ref. No.: RP-231 Board; 1,000 Series — THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 MA-316 (VIDEO, SERVO/SYSTEM CONTROL, AUDIO, TUNER) PRINTED WIRING BOARD There are few cases that the part printed on this diagram isn’t mounted in this model. — Ref. No.: MA-316 Board; 2,000 Series —...
Page 48
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 FR-128 (MODE CONTROL) PRINTED WIRING BOARD There are few cases that the part printed on this diagram isn’t mounted in this model. — Ref. No.: FR-128 Board; 3,000 Series —...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 63 1515 0 SE-69 (SECAM VIDEO SIGNAL PROCESS) PRINTED WIRING BOARD — Ref. No.: SE-69 Board; 2,000 Series — There are few cases that the part printed on this diagram isn’t mounted in this model. L 13942296513...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 63 1515 0 DM-73 (OPERATION SWITCHES) PRINTED WIRING BOARD — Ref. No.: DM-73 Board; 2,000 Series — There are few cases that the part printed on this diagram isn’t mounted in this model. L 13942296513 ML-15 RP-231 <F900/F990 MODEL>...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 NR-26 (DNR PROCESSOR) PRINTED WIRING BOARD There are few cases that the part printed on this diagram isn’t mounted in this model. — Ref. No.: NR-26 Board; 6,000 Series —...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC 3 7 6 3 1 5 1 5 0 ML-15 (SERIAL TRANSFER) PRINTED WIRING BOARD There are few cases that the part printed on this diagram isn’t mounted in this model. — Ref. No.: ML-15 Board; 6,000 Series —...
http://www.xiaoyu163.com 3 7 63 1515 0 AT-23/24 (ANTENNA) PRINTED WIRING BOARD There are few cases that the part printed on this — Ref. No.: AT-23/24 Board; 4,000 Series — diagram isn’t mounted in this model. L 13942296513 u163 ANTENNA 4-48 AT-23/24 http://www.xiaoyu163.com...
http://www.xiaoyu163.com 3 7 63 1515 0 SW-300 (REMOTE CONTROL RECEIVER) PRINTED WIRING BOARD There are few cases that the part printed on — Ref. No.: SW-300 Board; 7,000 Series — this diagram isn’t mounted in this model. L 13942296513 u163 4-51 http://www.xiaoyu163.com...
http://www.xiaoyu163.com 3 7 63 1515 0 5-6. SERVO/SYSTEM CONTROL MICROPROCESSOR PIN FUNCTIONS (MA-316 BOARD IC160) Pin No. Pin Name Function Pin No. Pin Name Function RF SWP RF switching pulse output. BG/L’ control signal. AF REC P “H” when HiFi audio REC. AVSS —...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC SECTION 6 3 7 63 1515 0 ADJUSTMENTS 6-1. MECHANICAL ADJUSTMENTS 2-1-3. Input Signal Check Video signal produced by a pattern generator is used as an adjustment signal to perform electrical alignment for this unit. This video signal For the mechanical adjustments, please refer to the must satisfy the specification.
http://www.xiaoyu163.com 3 7 63 1515 0 2-1-5. Input/Output Levels and Impedance 2-2. POWER SUPPLY CHECK 2-2-1. Output Voltage Check (MA-316 Board) Video input: LINE IN EURO Mode Input signal: 1Vp-p, 75ohms, unbalanced, Measuring Instrument Digital voltmeter sync negative TUNER 30V Check Video output: LINE OUT EURO Measurement point...
http://www.xiaoyu163.com 3 7 63 1515 0 [Adjustment Method] 2-4. VIDEO SYSTEM CHECKS Short-circuit between pin 5 (AV ADJ) and 3 (GND) of CN261 For the video system checks, follow the checking procedures given for about 1 second to activate the RF switching position below as a rule.
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC SECTION 7 3 7 63 1515 0 REPAIR PARTS LIST 7-1. EXPLODED VIEWS Note: • -XX, -X mean standardized parts, so they may • The mechanical parts with no reference number The components identified by mark ! or have some differences from the original one.
http://www.xiaoyu163.com 3 7 63 1515 0 7-1-1. FRONT PANEL ASSEMBLY AND UPPER CASE SECTION (continued) not supplied supplied not supplied L 13942296513 not supplied F900, F990, MODEL Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 3-989-330-01 RING, JOG 1-783-167-11 CABLE, FLAT (FFM-18) 3-979-309-21 BUTTON (AV), CENTER 3-968-554-01 SCREW (WN1411 D2.5 EJOT K25)
http://www.xiaoyu163.com AT-23 AT-24 DM-73A 3 7 63 1515 0 7-2. ELECTRICAL PARTS LIST Note: • Due to standardization, replacements in the • RESISTORS When indicating parts by reference number, parts list may be different from the parts All resistors are in ohms. please include the board name.
