One for All ACCESS 4 User Manual

Press POWER once to
POWER
turn on or off the
selected device.

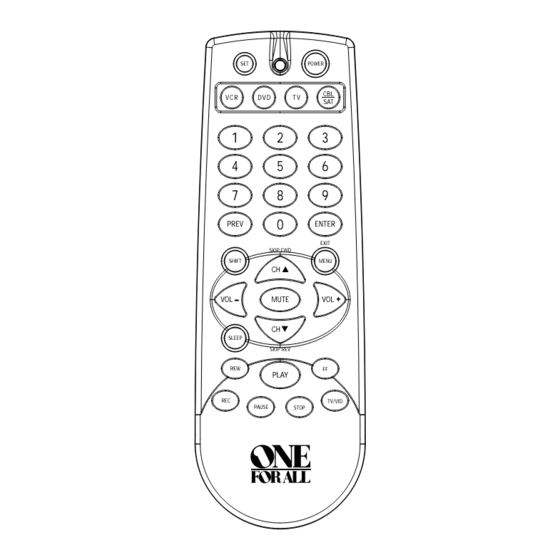

CBL Mode Keys for Access 4:
V C R D V D T V
SAT
ACCESS 4
Press VCR, DVD, TV, or
CBL/SAT once to select
UNIVERSAL REMOTE CONTROL
a home entertainment
device to control.
Use the keypad (0 ~ 9)
1 2 3
SET POWER
to directly select
4 5 6
CBL
V C R D V D T V channels (for example,
SAT 7 8 9
09 or 31).
0
1 2 3
Press MUTE once to
4 5 6 MUTE
turn sound off
7 8 9
or on.
0
PREV ENTER
Press PREV once to
PREV
EXIT
SKIP FWD
recall the last-viewed
SHIFT MENU
CH
channel and to page
VOL +
VOL – MUTE
back one screen on the
main menu.
CH
SLEEP
SKIP REV
Press ENTER once
ENTER
REW FF
PLAY
after entering channel
REC TV/VID
numbers on some TV
PAUSE STOP
models.
EXIT Use MENU (or EXIT) to
MENU
choose options (or
exit) from your
selected device's
menu or guide.
USER'S GUIDE
Use VOL+ (or VOL-)
VOL +
VOL – –
to raise (or lower) the
sound volume.
Use CH+ (or CH -) to
SKIP FWD
CH select the next higher
(or lower) channel.
CH
INTRODUCTION
When controlling a
SKIP FWD
SHIFT
The One For All Access 4 Universal
DVD player, use SKIP
CH
Remote Control is designed to operate
FORWARD to next DVD
CH
three (or four) home entertainment
chapter., use SKIP
SKIP REV
devices, depending on the model pur-
REVERSE to the last
chased (see Key Charts, Mode Keys on
DVD chapter.
the right).
The remote control requires two fresh
Press SHIFT and use
SHIFT
AAA alkaline batteries and easy program-
the Up/Down/Left
MUTE
ming to control your devices.For best
Right cursor keys to
results, please read and perform all
move the cursor in the
instructions listed here.Also, keep these
program guide and
instructions for future reference.
menu screens.
Press SHIFT and MUTE
FEATURES AND FUNCTIONS
to select a menu item.
Press SLEEP to activate
Use the Key Charts to learn how to use the
SLEEP
your device's sleep
universal functions of the One For All
timer (not available
Access 4 Universal Remote Control.
for all devices).
Key Charts
Use the transport keys
REW FF
Use SET for all PLAY
SET
to control your VCR,
programming REC
PAUSE STOP
CD or DVD player, or
sequences.
VOD. To record a
program, press the
The LED (red light)
record key (
blinks to show that
twice.
the remote control is
working and is
sending signals.
INSTALLING BATTERIES PROGRAMMING
TV/VCR COMBO CONTROL
1. On the remote control's back, push the
tab and lift off the battery cover.
Perform the following instructions to
control a TV/VCR Combo:
2. Obtain two (2) new AAA alkaline
batteries. Match the + and – marks
1. Turn on the TV/VCR Combo and
on the batteries to the + and –
insert a video cassette.
marks in the battery case, then insert
NOTE: Please read steps 2-4 completely
the new batteries.
before proceeding. Highlight or write down
the codes and device you wish to program
3. Press the battery cover back into
before moving on to step 2.
place. The tab should click when the
cover is locked.
2. On the remote control, press VCR.
Press and hold SET until the LED
4. Test the unit by pressing POWER
blinks twice, then release SET.
and any mode key (e.g., TV). If the
batteries are inserted correctly, the
3. Use the Setup Codes For TV/VCR
LED will blink once.
Combos (on the back side) to locate
the brand name and then enter the
NOTE: When batteries need replacement,
first four-digit code for your device.
the remote control will stop operating.
Remove the old batteries and insert new If performed correctly, the LED will
ones within 30 minutes to ensure all of
blink twice.
your programming information is restored.
NOTE: If the LED did not blink twice, then
repeat steps 2 through 3 and try entering
the same code again.
PROGRAMMING
4. Aim the remote control at the device
DEVICE CONTROL
and press POWER once. It should turn
The One For All Access 4 remote control off. If the device does not respond,
is preprogrammed at the factory to repeat steps 2-3, trying each code for
operate an RCA TV and VCR, a Motorola your brand until you find one that
(GI) cable box, and a Toshiba DVD play- works. If it still does not work, try
er. To control devices other than the Searching For Your Code.
default brands, perform the following
NOTE: If the device does not have a
steps; otherwise skip this section:
POWER key, press the ( Play ) key.
NOTE: For TV/VCR Combo control, see the
next section.
SEARCHING FOR YOUR CODE
1. Turn on a device (e.g.,VCR) and, if
applicable, insert media, (e.g.,
If your device does not respond to the
cassette or disc).
remote control after trying all codes
listed for your brand, or if your brand is
NOTE: Please read steps 2-4 completely
not listed at all, try searching for your
before proceeding. Highlight or write down
the codes and device you wish to program code. For example, to search for a code
before moving on to step 2.
for your TV:
2. On the remote control, press a device
1. On the remote control, press TV once.
key once (i.e., VCR, DVD, TV, or
2. Press and hold SET until the LED
CBL/SAT ). Press and hold SET until
blinks twice, then release SET.
the LED blinks twice, then release
SETP.
3. Enter 9 - 9 - 1. The LED will
blink twice.
3. Use the Manufacturer's Codes to
locate the type of device and brand
4. Aim the remote control at the the
name and then enter the first four-
TV and slowly alternate between
digit code for your component. If
pressing POWER and TV. Stop when
performed correctly, the LED will
the TV turns off.
blink twice.
NOTE: In the search mode, the remote
NOTE: If the LED did not blink twice, then control will send IR codes from its library
repeat steps 2 through 3 and try entering
to the selected device, starting with the
the same code again.
most popular code first.
4. Aim the remote control at the device 5. To lock in the code, press and hold
and press POWER once. The device
SET until the LED blinks twice, then
should turn off. If it does not respond,
release SET.
repeat steps 2-3, trying each code for
6. To search for the codes of your other
your brand until you find one that
devices, repeat steps 1 through 5, but
works. If it still does not work, try
substitute the appropriate device key
Searching For Your Code.
for the device you are searching for.
REC )
NOTE: If the device does not have a
POWER key, press the ( Play ) key.
5. Repeat steps 1 through 4 for each
device you want to control.
CHECKING THE CODES VCR back to VCR: SET - 9 - 9 - 2
- VCR - VCR
If you have set up the remote control
DVD as 2nd TV key: SET - 9 - 9 - 2
using the Searching For Your Code
- TV - DVD
procedure, you may need to find out
which four-digit code is operating your
DVD as 2nd CBL key: SET - 9 - 9 - 2
equipment:
- CBL/SAT - DVD
For example, to find out which code is
DVD as 2nd SAT key: SET - 9 - 9 - 2
operating your TV:
- CBL/SAT - DVD
1. On the remote control, press TV once.
DVD as 2nd VCR key: SET - 9 - 9 - 2
2. Press and hold SET until the LED
- VCR - DVD
blinks twice, then release SET.
DVD back to DVD: SET - 9 - 9 - 2
3. Enter 9 - 9 - 0. The LED will
- DVD - DVD
blink twice.
When a re-assignment is done, the LED
4. To view the code for the first digit,
will blink twice to confirm your choice.
press 1 once.Wait 3 seconds, count
At that time, you will need to program
the LED blinks (e.g., 3 blinks = 3)
and write down the number. the remote control for the new device
(see Programming Device Control).
NOTE: If a code digit is "0", the LED will
not blink.
5. Repeat step 4 three more times for CHANGING VOLUME LOCK
remaining digits. Use 2 for the
second digit, 3 for the third digit, The One For All Access 4 is set to
control the volume of your TV in the TV,
and 4 for the fourth digit.
VCR, CBL/SAT, and DVD modes. If you
6. To check for codes of other devices,
want the volume to be controlled by a
repeat steps 1 through 5, but substi-
mode other than TV (e.g., CBL/SAT),
tute the appropriate device key for
change the Volume Lock as follows:
each device you are checking.
To Change Volume Lock To
As before, write down each four-
digit code. Another Mode:
1. On the remote control, press and
hold SET until the LED blinks twice,
RE-ASSIGNING DEVICE KEYS
then release SET.
The One For All Access 4 can be set to
2. Enter 9 - 9 - 3 and then press any
control a second TV,VCR, or DVD player.
mode key once (except TV). The LED
will blink twice.
For example, to control two TVs, a VCR,
and a cable box, you will need to re-
3. Now, whenever you press VOL+,
assign the unused DVD key to operate
VOL–, or MUTE, volume will be
the second TV as follows:
controlled by your mode choice.
1. On the remote control, press and
Unlocking Volume Control:
hold SET until the LED blinks twice,
NOTE: Perform these instructions when you
then release SET.
want independent volume control for each
2. Enter 9 - 9 - 2. The LED will
programmed device (e.g., TV volume control
blink twice.
in TV mode, CBL/SAT volume control in
CBL/SAT mode, etc.)
3. Press TV once, then press DVD once.
1. On the remote control, press and
4. The DVD key is now ready to be
hold SET until the LED blinks twice,
programmed for your second TV.
then release SET.
See Programming Device Control.
2. Enter 9 - 9 - 3 and then press VOL+.
To re-assign other device keys, repeat
The LED will blink four times.
steps 1 through 4 by substituting the key
sequence from the below chart for the 3. Volume will again be controlled
according to its default states.
most popular components:
To Re-Assign Key
Sequence Perform
TROUBLESHOOTING
VCR as 2nd TV key: SET - 9 - 9 - 2
For assistance, please contact us in any
- TV - VCR
of the following ways:
VCR as 2nd CBL key: SET - 9 - 9 - 2
• Consumer Help Line: (330) 405-8612
- CBL/SAT - VCR
• Internet: http://www.oneforall.com
VCR as 2nd SAT key: SET - 9 - 9 - 2
PROBLEM: LED does not blink when
- CBL/SAT - VCR
you press a key.
VCR as 2nd DVD key: SET - 9 - 9 - 2
SOLUTION: Replace batteries with two
- DVD - VCR
new AAA alkaline batteries.
This product has been
PROBLEM: LED blinks when you er. This warranty does not cover damage
or failures caused by products or ser-
press a key, but home
discontinued and is no
vices not supplied by OFA, or which
entertainment component
longer supported.
result from accident, misuses, abuse,
does not respond.
neglect, mishandling, misapplication,
SOLUTION: Make sure the remote faulty installation, set-up adjustment,
improper maintenance, alteration, mal-
control is aimed at your
adjustment of consumer controls, modi-
home entertainment
fications, commercial use, or that is
device and is not farther
attributable to acts of God.
than 15 feet away.
There are no express warranties except
PROBLEM: The unit does not control
as listed above. OFA SHALL NOT BE
home entertainment
LIABLE FOR INCIDENTAL OR CONSE-
devices or commands are
QUENTIAL DAMAGES RESULTING
not working properly.
FROM THE USE OF THIS PRODUCT
OR ARISING OUT OF ANY BREACH OF
SOLUTION: Try all listed codes for the
WARRANTY,ALL EXPRESS AND
component brands being
IMPLIED WARRANTIES, INCLUDING
set up. Make sure they
THE WARRANTIES OF MER-
can be operated with an
CHANTABILITY AND FITNESS FOR A
infrared remote control. PARTICULAR PURPOSE,ARE LIMIT-
ED TO THE WARRANTY PERIOD SET
PROBLEM: TV/VCR combo does not
FORTH ABOVE. Some states do not
respond properly.
allow the exclusion or limitation of inci-
dental or consequential damagers, or
SOLUTION: Use the VCR codes for
limitations on how long an implied war-
your brand. Some combo
ranty lasts, so the above exclusions or
units may require both a
limitations may not apply to you. This
TV code and a VCR code
warranty gives you specific legal rights
for full operation.
and you may also have other rights
which vary from state to state.
PROBLEM: Changing channels does
To obtain warranty service for a defec-
not work properly.
tive product, please return the product,
SOLUTION: If original remote control
preferably in the original carton, along
required pressing ENTER
with your purchase receipt, to the store
to change channels, press of original purchase for the first 90 days.
ENTER on the remote A note detailing the complaint would be
helpful. The store, at its option, will
control after entering the
replace or repair this product if found to
channel number.
be defective.
PROBLEM: Tried "Search Method"
If the unit has been purchased more
and still could not find a
than 90 days ago, pls return it to Impact
working code.
Distribution Services, 6262 Patterson
Pass Road, Suite C, Livermore, CA 94550
SOLUTION: Clear the device key as
together with the original receipt and
follows: Press and hold
$3.95 to cover postage and handling. It
SET until the LED blinks
will be repaired or replaced at the manu-
twice, then release. Next
facturer's option. The manufacturer
enter 9 - 9 - 2. Then press
reserves the right to substitute a current-
the device key to be ly manufactured model with equal or
cleared twice. Now repeat superior features.
the "Search Method. "
▲ ▼
PROBLEM: CH and CH do not
ADDITIONAL INFORMATION
work for your RCA TV.
ONE FOR ALL® is the registered trade-
SOLUTION: Due to RCA design (1983-
mark of Universal Electronics Inc.
1987), only the original
Computime International Ltd. is the
remote control will oper-
Licensee of the ONE FOR ALL® brand
ate these functions.
for USA and Canada.
PROBLEM: Remote control does not
Copyright 2001 by Universal Electronics
turn on Sony or Sharp
Inc. No part of this publication may be
TV/VCR Combo.
reproduced, transmitted, transcribed,
SOLUTION: For power on, these prod-
stored in any retrieval system, or trans-
ucts require programming
lated to any language, in any form or by
TV codes. For Sony, use
any means, electronic, mechanical, mag-
TV code 0000 and VCR
netic, optical, manual, or otherwise,
code 0032. For Sharp, use
without the prior written permission of
TV code 0093 and VCR
Universal Electronics Inc.
code 0048.
One For All® Access 4 is compatibile for
LIFETIME WARRANTY
use in North America excluding Mexico.
One For ALL ("OFA") warrants this URC-4640w/4605n
product to be free from defects in mate-
rials and workmanship, under normal
use, throughout the period of the prod-
uct's ownership by the original purchas-
03/02
