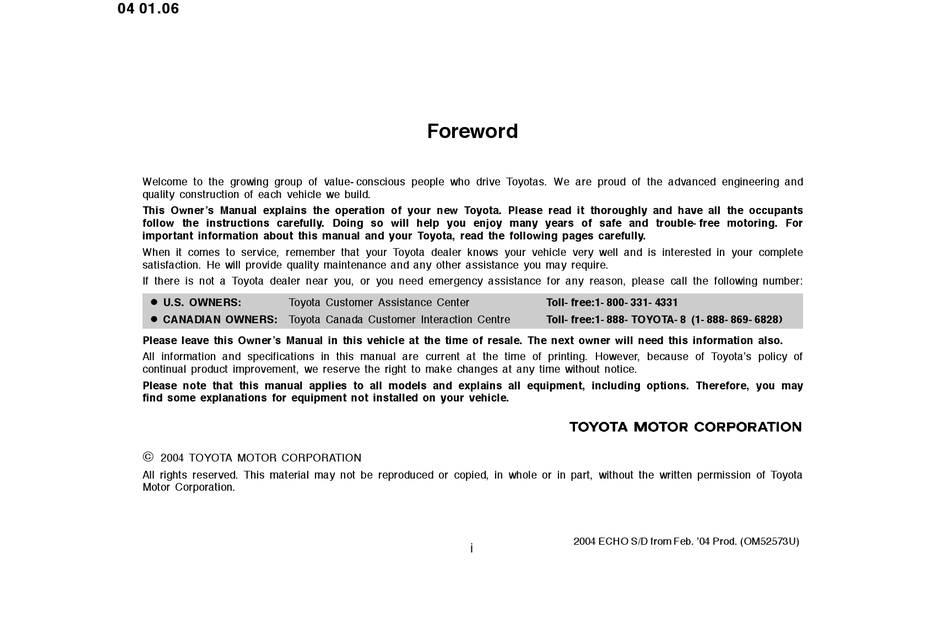

Page 1 When it comes to service, remember that your Toyota dealer knows your vehicle very well and is interested in your complete satisfaction. He will provide quality maintenance and any other assistance you may require. If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number: U.S. OWNERS:...
Page 2: Important Information About This Manual
You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 3: Occupant Restraint Systems
None of these systems, either indi- Toyota encourages you and your family to take the time vidually or together, can ensure that there is no injury in to read Section 1- 3 of this Owner’s Manual carefully.
Page 4 New vehicle warranty with tremendous speed. The rapid deployment of the SRS airbags makes the SRS airbags themselves poten- Your new vehicle is covered by the following Toyota tial sources of serious injury if an occupant is too close limited warranties:...
Page 5 Toyota A wide variety of non- genuine spare parts and accesso- CAUTION ries for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant WARNING: Engine exhaust, some of its constitu-...
Page 6 Toyota Underinflated or overinflated tire inflation pres- sure and the excess load may result in the The spark ignition system in your Toyota meets all re- deterioration of steering ability and braking abil- quirements of the Canadian Interference- Causing Equip- ity, leading to an accident.
Page 7 SRS airbag and seat belt pretensioner removed and disposed of by the quali- fied service shop or by your Toyota dealer before you dispose of your vehicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 8 04 01.06 viii 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 9 ........Indicator symbols on the instrument panel ..... . . 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 10: Instrument Panel Overview
9. Automatic transmission selector lever or SU11001a manual transmission gear shift lever 10. Parking brake lever 11. Power door lock switch (without power windows) 12. Hood lock release lever 13. Window lock switch 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 11 8. Car audio 9. Cigarette lighter/Power outlet SU11002a 10. Ashtray/Coin box 11. Ignition switch 12. Tilt steering lock release lever 13. Power rear view mirror control switches 14. Instrument panel light control knob 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 12: Instrument Cluster Overview
04 01.06 Instrument cluster overview "Type A SU11015 1. Service reminder indicators and 3. Fuel gauge 5. Trip meter reset knob indicator lights 4. Odometer and two trip meters 2. Speedometer 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 13 04 01.06 "Type B SU11014 1. Service reminder indicators and 3. Fuel gauge 5. Trip meter reset knob indicator lights 4. Odometer and two trip meters 2. Speedometer 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 14 "Type C SU11009a 1. Service reminder indicators and 4. Odometer and two trip meters 6. Trip meter reset button indicator lights 5. Fuel gauge 7. Tachometer 2. Speedometer 3. Extinction canceling button 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 15 92 in Section 1- 6. ∗ 1 SRS warning light ∗ 2 : For details, see “Engine coolant temperature indicator and warning light” on page 89 in Section 1- 6. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 16 04 01.06 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 17: Table Of Contents
..........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 18: Keys
Since the doors and trunk lid can be locked without a key, you should always carry a spare master key in case you accidentally lock your keys inside the ve- hicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 19: Wireless Remote Control
(See “If you lose lowing instructions in order not to cause your wireless remote control transmitter” damage to the transmitter. Unlocking operation on page 196 in Section 4.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 20 To cancel the “PANIC” mode, unlock any door with the key or wireless remote con- trol transmitter, or open the trunk with the key from the “LOCK” to “ON” position. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 21 NOTICE Toyota dealer. Do not bend the terminals. z Dispose of used battery according to the local laws. Replace the transmitter battery by follow- ing these procedures: 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 22 Do not touch or move any compo- Connect the equipment into an outlet nents inside the transmitter, or it on a circuit different from that to may interfere with proper operation. which the receiver is connected. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 23 Toyota dealer. z Dispose of used battery according to the local laws. Replace the transmitter battery by follow- ing these procedures: 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 24 Water may cause unexpected that may cause undesired operation. rust. z Do not touch or move any compo- nents inside the transmitter, or it may interfere with proper operation. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 25: Side Doors
Increase the separation between the unlock all the doors simultaneously. equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 26 Vehicles with power door lock sys- tem—Doors cannot be locked when either front door is open and the key is in the ignition. Vehicles with power windows (passen- ger’s side) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 27 When the child- protector is locked, you cannot open the rear door by the inside door handle. We recommend using this feature whenever small children are in the vehicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 28: Power Windows
To open: Lightly push down the switch. To close: Pull up the switch. To close: Pull up the switch. If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 29 When small children are in the ve- hicle, never let them use the power window switches without supervi- sion. Use the window lock switch to prevent them from making unex- pected use of the switches. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 30: Trunk Lid
Section 2 for precautions to observe when loading luggage. To close the trunk lid, lower it and press down on it. After closing the trunk lid, try pulling it up to make sure it is securely closed. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 31 After locking the rear seatbacks, try fold- ing them down to make sure they are securely locked, otherwise someone could get into the trunk by folding down a rear seat. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 32: Hood
Then lower the hood occur. and make sure it locks into place. If nec- essary, press down gently on the front edge to lock it. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 33: Theft Deterrent System
3. Close and lock all the doors, trunk and hood. The indicator light will come on when all the doors, trunk and hood are closed and locked. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 34 Open the trunk with the key. is disconnected and then reconnected. If the system does not work properly, have it checked by your Toyota dealer. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 35: Fuel Tank Cap
When opening the cap, do not re- move the cap quickly. In hot weath- er, fuel under pressure could cause injury by spraying out of the filler neck if the cap is suddenly re- moved. Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 36 When installing, turn the cap clockwise till you hear a click. If the cap is not tightened securely, the malfunction indicator lamp comes Make sure the cap is tightened securely. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 37 ..........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 38: Seats
Move your seat to the rear as far collision. as you can while still reaching the pedals comfortably. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 39 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 40 In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 41 After putting back the seatback, try After passengers are in, lift up the seat- pushing the seatback forward and back and return the seat until it locks. rearward to make sure it is secured in place. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 42: Fold- Down Rear Seat
3. Fold down the seatback. Each seatback may be folded separately. Make sure the luggage loaded in the enlarged trunk will not damage the webbing of the rear center seat belt when left seatback folded down. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 43 You will hear a click when the tab locks Insert the key into the hole (light gray) into the buckle. on the buckle to release tab 1 (light gray), and allow the belt to retract. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 44: Head Restraints
Do not drive with the head re- is arranged in the proper position straints removed. for ready use. If the seat belt does not function SU13007 normally, immediately contact your Toyota dealer. Rear seat 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 45: Seat Belts
In the event of a serious injury to the child. frontal collision, the more the seat is reclined, the greater the risk of personal injury. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 46 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 47 To raise: Slide the anchor up. portion upward through the latch plate. To lower: Push in the lock release button and slide the anchor down. After adjustment make sure the anchor is locked in position. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 48 See the information in the following the rear center seat belt. (See “Fold- down columns. rear seat” in this Section for the instruc- tion of how to correctly connect the seat belt.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 49 Buckle 1—Properly matches with light gray tab Buckle 2—Properly matches with interi- or color tab 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 50 When not in use, remove the extender and store in the vehicle for future use. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 51 The airbag The seat belt pretensioners and SRS air- sensor assembly consists of a safing sen- bags may not operate together in all colli- sor and airbag sensor. sions. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 52 92.) If any of the following conditions occurs, this indicates a malfunction of the airbags or seat belt pretensioners. Contact your Toyota dealer as soon as possible. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 53: Srs Driver And Front Passenger Airbags
The SRS front passenger airbag is activated even with no passenger in the front seat. Always wear your seat belt properly. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 54 “Seat belts” on page 37. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 55 SRS front airbags and the seat belt pretensioners may not activate together. Always wear your seat belts properly. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 56 5. Airbag sensor assembly once. The windshield may be damaged by The airbag sensor assembly consists of a absorbing some of the force of the inflat- safing sensor and airbag sensor. ing airbag. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 57 Sit up straight and well back in the speed force. Otherwise, seat, and always use your seat belt child may be killed or seriously in- properly. jured. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 58 Like- wise, the driver and front passenger should not hold objects in their arms or on their knees. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 59 (For details, “Service reminder passenger airbag indicators and warning buzzers” on page 92.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 60: Srs Side Airbags
The SRS side airbag on the passenger seat is activated even with no passenger in the front seat. Always wear your seat belt properly. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 61 The rear seats are the safest for infants and children. instructions concerning installation of a child restraint sys- tem, see “Child restraint—” on page 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 62 Always wear your seat belts properly. 2- door models) The SRS side airbag system is controlled by the airbag sensor assembly. The side airbag sensors consist of a safing sensor and airbag sensor. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 63 Do not apply excessive be hot. The airbags are designed to inflate weight to the outer side of the only once. seats on vehicles with side airbags. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 64 Likewise, driver front passenger should not hold objects in their arms or on their knees. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 65 (shaded in the illustration) is interconnecting wiring and power sources. scratched, cracked, or otherwise dam- (For details, “Service reminder aged. indicators and warning buzzers” on page 92.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 66: Child Restraint
Otherwise, the child may be killed you and the vehicle’s interior. or seriously injured. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 67 If it is not secured properly, event of a sudden stop or accident. it may cause death or serious injury to the child in the event of a sud- den stop or accident. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 68 —Installation with 3- point type seat belt SU13201 SU13033 SU13202 (A) Infant seat (C) Booster seat (A) INFANT SEAT INSTALLATION An infant seat must be used in rear- facing position only. SU13032 (B) Convertible seat 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 69 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 70 To hold the infant seat securely, make sure the belt is in the lock mode before letting the belt retract. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 71 Follow all the installation ger. manufacturer’s instructions about the instructions provided by its manufac- applicable age and size of the child as turer. well as directions for installing the child restraint system. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 72 Otherwise, child if the rear- facing child re- child may be killed or seriously in- jured. straint system is installed on the front passenger seat. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 73 If the driver’s seat position does not allow sufficient space for safe installation, install child straint system on the rear right seat. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 74 To hold the convertible seat securely, it is secure. Follow all the installation make sure the belt is in the lock mode instructions provided by its manufac- before letting the belt retract. turer. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 75 Always move the seat as far back as possible, because the front pas- senger airbag could inflate with considerable speed force. Otherwise, the child may be killed or seriously injured. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 76 See “Seat belts” on Do not insert coins, clips, etc. in page 37 for details. the buckle as this may prevent your child from properly latching the tab and buckle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 77 Follow all the installation instructions provided by its manufacturer. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 78 1. Remove the head restraint. Anchor brackets are installed for each rear seating position. This symbol indicates the location of user ready anchor brackets. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 79 Latch hook onto the anchor anchor bracket is not in use. bracket and tighten the top strap. For instructions to install the child re- straint system, see “Child restraint” on page 58. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 80 In this case, it is not necessary to fix the child restraint system with a seat belt on the vehicle. Canada only Canada only Type A Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 81 2. Latch the buckles onto the anchor- ages. If your child restraint system has a top strap, it should be anchored. (For the installation of the top strap, see “—Using a top strap” on page 69.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 82 Otherwise, this can cause severe inju- ry to the child in case of a sudden braking or collision. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 83 ..........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 84: Tilt Steering Wheel
Any object seen in a convex mirror will look smaller and farther away than when seen in a flat mirror. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 85 Push the switch to “L” (left) or “R” (right). 2. Control switch—To move the mirror Push the switch in the desired direc- tion. Mirrors can be adjusted when the key is in the “ACC” or “ON” position. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 86: Anti- Glare Inside Rear View Mirror
Night driving—Lever at position 2 before driving. Remember that by reducing glare you also lose some rear view clarity. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 87: Vanity Mirrors
SU13061 hicle and an accident may occur re- sulting in death or serious injuries. To use the vanity mirrors, swing down the sun visor and open the cover. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 88 04 01.06 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 89 ........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 90: Headlights And Turn Signals
“OFF” position. remove the key with the headlights and You can flash the high beam headlights tail lights left on. with the knob turned to “OFF”. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 91: Emergency Flashers
If the turn signal indicator lights (green lights) on the instrument panel flash faster than normal, a front or rear turn signal bulb is burned out. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 92: Instrument Panel Light Control
When all the doors are locked or the ignition switch is turned to “ACC” or “ON” after all the doors are closed, the light fades out. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 93: Windshield Wipers And Washer
Type A Lever position Speed setting glass. Position 1 Intermittent Position 2 Slow Position 3 Fast For a single sweep of the windshield, push the lever up and release it. SU14016 Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 94: Rear Window Defogger
Push the switch once again to turn the defogger off. On some models, the system will automat- ically shut off after the defogger has oper- ated about 15 minutes. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 95 ....... . . Service reminder indicators and warning buzzers ....2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 96 On inclines or curves, due to the move- ment of fuel in the tank, the fuel gauge needle may fluctuate or the low fuel level warning light may come on earlier than usual. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 97 If it keeps lighting on with the engine fully warmed, contact your Toyota dealer as soon as possible to service the ve- hicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 98 If it keeps lighting on with the into the red zone. This may cause engine fully warmed, contact your Toyota severe engine damage. dealer as soon as possible to service the vehicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 99 A reading, then push and hold the button/knob until the me- ter is set to zero. The same process can be applied for resetting the trip meter B. Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 100 04 01.06 Service reminder indicators and warning buzzers If the indicator or buzzer comes on... Do this. If parking brake is off, stop immediately and contact Toyota dealer. Fasten driver’s seat belt. (Indicator and buzzer) Fasten front passenger’s seat belt.
Page 101 If the indicator or buzzer comes on... Do this. Stop and check. Take vehicle to Toyota dealer. Close all doors. Take vehicle to Toyota dealer immediately. Add washer fluid. Stop and check. (in red) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 102 04 01.06 If the indicator or buzzer comes on... Do this. Key reminder Remove key. buzzer Light reminder Turn off lights. buzzer 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 103: Driver's Seat Belt Reminder Light
(c) Front Passenger’s Seat Belt NOTICE Reminder Light Do not continue driving if the engine This light reminds you to buckle up the drive belt is broken or loose. front passenger’s seat belt. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 104: Malfunction Indicator Lamp
Call a ventionally. warning light system itself. Toyota dealer or qualified repair shop for Contact your Toyota dealer as soon as assistance. possible to service the vehicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 105: Open Door Warning Light
(m) Key Reminder Buzzer This buzzer reminds you to remove the key when you open the driver’s door with the ignition key in the “ACC” or “LOCK” position. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 106: Srs Warning Light
If any service reminder indicator or warn- ing buzzer does not function as described above, have it checked by your Toyota dealer as soon as possible. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 107 ..........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 108: Ignition Switch With Steering Lock
“LOCK” position and open the driver’s position if the engine is not running. door, a buzzer will remind you to remove The battery will discharge and the the key. ignition could be damaged. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 109: Automatic Transmission
2: Stronger engine braking holding the lock release button in. (The L: Maximum engine braking ignition switch must be in “ON” position.) Shift while holding the lock release button in Shift normally 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 110 Always drive your vehicle with the over- drive on for better fuel economy and quieter driving. If the engine is turned off when the over- drive is off and restarted, the overdrive will automatically be on. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 111 Be sure to turn the switch on immedi- NOTICE ately afterward. When towing a trailer, in order to main- Never shift into reverse while the ve- tain engine braking efficiency, do not hicle is moving. use overdrive. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 112: Manual Transmission
Section 4. The transmission is fully synchronized and upshifting or downshifting is easy. For the best compromise between fuel economy and vehicle performance, you should upshift or downshift at the following speeds: 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 113: Parking Brake
Make sure the vehicle is completely stopped before shifting into reverse. NOTICE SU16007a Do not downshift if you are going faster than the maximum allowable speed for the next lower gear. Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 114 CAUTION Before driving, be sure the parking brake is fully released and the park- ing brake reminder light is off. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 115 Car audio system operating hints ......2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 116 If another function was pre- viously playing, it will come on again. Type 2: AM·FM radio/compact disc player 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 117 Keep in mind that if you are listening to a stereo recording or broadcast, changing the right/left balance will increase the vol- ume of one group of sounds while de- creasing the volume of another. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 118 04 01.06 —Controls and features "Type 1 Details of specific buttons, controls, and features are described in the alphabetical list that follows. SU17004 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 119 “TRE -5” to “TRE 5”. automatically reverses and begins to play the other side. This is true whether the cassette was playing or fast forwarding. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 120 “AUX”. In both cases, a cassette or off according to the mode used for must already be loaded in the player. indicates no disc is loaded inside the recording the tape. magazine. Insert a disc. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 121 There must be at least 3 seconds of blank space between tracks in order for the re- peat feature to work correctly. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 122 After the beginning of the tape is lease the “ ” or “ ” under the “SEEK”. reached, the player will automatically Do this again to find another station. start playing the same side. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 123 If you want to return to the beginning of the current track, push the down side of the button one time, quickly. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 124 04 01.06 "Type 2 Details of specific buttons, controls and features are described in the alphabetical list that follows. Z17056 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 125 The display vehicle to your Toyota dealer. ranges from F7 to R7. BAL: Adjusts the sound balance between the right and left speakers. The display ranges from L7 to R7. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 126 If the signal becomes extremely weak, the To turn off the repeat feature, push this it will stop scanning. radio switches from stereo to mono recep- button again. tion. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 127 The rest of the title will appear. TUNE (Tuning) Turn the “TUNE” knob clockwise to step up the frequency. Turn the knob counter- clockwise to step down the frequency. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 128 04 01.06 "Type 3 Details of specific buttons, controls and features are described in the alphabetical list that follows. Z17047 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 129 F7 to R7. player will stop and then play that same side. If a tape fast- forwards completely, the cassette will play the other side of the tape using the auto- reverse feature. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 130 Eject the disc or magazine. Set the disc or magazine again. “ERROR 4”: Over- current. your Toyota dealer to inspect. If the malfunction still exists, take your vehicle to your Toyota dealer. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 131 To stop with some spoken word, live, or classical scanning, push this button again. If the recordings. player scanned all the tracks on the disc, it will stop scanning. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 132 AM signals. And of course, radio signals have a limited range, and the farther you are from a station, the weaker its signal will be. In addition, reception conditions change constantly as your vehicle moves. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 133 The easiest way to nal signal can be picked up again. clean them is by using a cleaning tape. (A wet type is recommended.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 134 CD- RW (CD- Re- writable) Compact disc players use an invisible CD- ROM Z17039 laser beam which could cause hazard- radiation exposure directed outside the unit. Be sure to operate the player correctly. Low quality discs 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 135 Remove discs from the compact disc player when you are not listening to them. Store them in their plastic cases away from moisture, heat, and direct sunlight. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 136 04 01.06 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 137 ........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 138: Controls
04 01.06 Controls 1. “A/C” Button (on some models) 2. Air intake selector 3. Air flow selector 4. Fan speed selector 5. Temperature selector SZ18006 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 139 3. Floor—Air flows mainly from the floor vents. 4. Floor/Windshield—Air flows mainly from the floor vents and windshield vents. Use with the air intake selector posi- tioned in FRESH. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 140 SZ18009 Air intake selector Move the lever to select the air source. 1. Recirculate—Recirculates the air inside the vehicle. 2. Fresh—Draws outside air into the sys- tem. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 141: Air Flow Selector Settings
On cold days, set the fan speed to “high” for a minute to help clear the intake ducts of snow or moisture. This can reduce the amount of fogging on the windows. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 142 Air intake—FRESH (outside air) the vehicle interior while defrosting or cold air comes out from the center Air flow—PANEL defogging the windshield. vents in spite of the position of the air Air conditioning—OFF flow selector. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 143: Instrument Panel Vents
To heat the vehicle interior while de- On humid days, do not blow cold air frosting windshield, choose on the windshield—the difference be- floor/windshield air flow. tween the outside and inside tempera- tures could make the fogging worse. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 144 04 01.06 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 145 ..........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 146: Clock
Do not hold the cigarette lighter pressed 1:01—1:29, the time will change to 1:00. If the time is between 1:30—1:59, the time Use a Toyota genuine cigarette lighter or will change to 2:00. equivalent for replacement. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 147: Power Outlet
12V/120W. z To prevent the battery from being discharged, do not use the power outlet longer than necessary when the engine is not running. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 148: Glove Box
To reduce the chance of injury in closed while driving. case of an accident or a sudden stop, always keep the auxiliary box closed while driving. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 149: Cup Holders
Rear (center) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 150: Floor Mat
If the floor clip into the holes in the floor carpet. slips and interferes with movement of the pedals during driv- ing, it may cause an accident. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 151 ..........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 152: Break- In Period
Number 91) or higher. Use of unleaded fuel with an octane num- ber or rating lower than stated above will cause persistent heavy knocking. If se- vere, this will lead to engine damage. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 153 These types of gas- paint damage. vice. oline provide excellent vehicle perfor- mance, reduce vehicle emissions, and im- FUEL TANK CAPACITY prove air quality. 45 L (11.9 gal., 9.9 lmp. gal.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 154: Operation In Foreign Countries
The three- way catalytic converter is an emission control device installed in the exhaust system. The purpose is to reduce pollutants in the exhaust gas. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 155: Engine Exhaust Cautions
Maintenance Guide” “Owner’s ning. If it is unavoidable, however, Manual Supplement”. do so only in an unconfined area and adjust the heating or cooling system to force outside air into the vehicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 156: Facts About Engine Oil Consumption
When judging the amount of oil con- sumption, note that the oil may become diluted and make it difficult to judge the true level accurately. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 157: Brake System
“Checking the engine oil level” in Sec- bring the vehicle to a stop with normal tion 7- 2. pedal pressure. There is enough reserved vacuum for one or two stops but no more! 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 158 This means that the anti- lock brake system is in the self- check mode, and does not indicate a malfunction. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 159 The use of tires other than specified may fail to detect the accurate turning speed resulting in a longer stopping dis- tance. Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 160: Brake Pad Wear Limit Indicators
If you hear a squealing or scraping noise while driving, have brake pads checked and replaced by your Toyota dealer as soon as possible. Expensive ro- tor damage can result if the pads are not replaced when necessary. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 161: Your Toyota's Identification
This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. SU21025 Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 162: Theft Prevention Labels
NOTICE The engine number is stamped on the You should not attempt to remove the engine block as shown. theft prevention labels as it may vio- late certain state or federal laws. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 163: Tire Information
5. Radial tires or bias- ply tires—A radial tire has “RADIAL” on the sidewall. A tire not marked with “RADIAL” is a bias- ply tire. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 164 5. Manufacturer’s optional tire type tire. For details, see “Types of code tires” on page 166. 6. Manufacturing week 10.Uniform tire quality gra- 7. Manufacturing year ding—For details, see “Uniform tire quality grading” that follows. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 165 4. Tire construction code (R=Radial, 8. Carcass D=Diagonal) 9. Rim lines 5. Wheel diameter (in inches) 10.Bead wires 6. Load index (2 digits or 3 digits) 11. Chafer 7. Speed symbol (alphabet with one letter) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 166 Quality grades can be found where appli- cable on the tire sidewall between tread shoulder and maximum sec- tion width. For example: Treadwear 200 Traction AA Temperature A. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 167 Excessive speed, underinfla- tion, or excessive loading, either sep- arately or in combination, can cause heat buildup and possible tire failure. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 168 (c) vehicle capacity weight; and (d) production options weight i ht 68 kg (150 lb.) times the number of occupants specified in the second column Normal occupant weight of Table 1 that follows 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 169 (distributed in accordance with Table 1 that follows) and dividing by two Weather side the surface area of the rim not covered by the inflated tire 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 170 Vehicle normal load, number of occu- Occupant distribution in a normally of occupants pants loaded vehicle 2 through 4 2 in front 5 through 10 2 in front, 1 in second seat 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 171: Vehicle Load Limits
NOTICE Even if the number of occupants are within the seating capacity, do not exceed the total load ca- pacity. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 172 Or they may move during sharp vehicle acceleration or turning, and im- pair the driver’s control of the vehicle. In an accident they may injure the vehicle occu- pants. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 173 Your gers with the combined weight of 176 vehicle is not designed for trailer kg (388 lb.) get on, the available car- towing. go and luggage load will be reduced as follows: 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 174: Types Of Tires
2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 175 ..........How to save fuel and make your vehicle last longer, too ..2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 176: Before Starting The Engine
Simply restart it, using the correct proce- dure given in normal starting. If the engine will not start... See “If your vehicle will not start” in Sec- tion 4. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 177: Tips For Driving In Various Conditions
If they still do not work safely, pull to the side of the road and call a Toyota dealer for assistance. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 178: Winter Driving Tips
Do not use plain water alone. Use a washer fluid containing an anti- freeze solution. Check the condition of the battery and cables. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 179: Dinghy Towing
Ice and snow built up under your fenders can make steering difficult. During bad winter driving, stop and check under the fenders occasionally. Depending on where you are driving, we recommend you carry some emer- gency equipment. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 180 Dinghy towing requires special equip- vehicle. ment and accessories. Please refer to your service outlet of the motorhome manufacture recommended equipment. NOTICE Dinghy towing does not eliminate the possibility of damage to your vehicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 181: Trailer Towing
Maintain a moderate speed on high- ways. The faster you drive,the greater the fuel consumption. By reducing your speed, you will cut down on fuel con- sumption. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 182 (For scheduled maintenance information, please refer “Scheduled Maintenance Guide” “Owner’s Manual Supplement”.) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 183: In Case Of An Emergency
........If you lose your wireless remote control transmitter ... . . 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 184: If Your Vehicle Will Not Start
Do not pull- or push- start the ve- hicle. It may damage the vehicle or cause a collision when the engine starts. Also the three- way catalytic converter may overheat and become a fire hazard. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 185 2000 rpm with the accelerator pedal lightly depressed. diately. Then get immediate medical attention. If possible, continue to apply water with a sponge or cloth while en route to the medical office. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 186 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 187: If Your Engine Stalls While Driving
If another attempt is not successful, the steam. Escaping steam or coolant is battery may be depleted. Have it checked a sign of very high pressure. at your Toyota dealer. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 188: If You Have A Flat Tire
220 in Section 7- 2. CAUTION Do not attempt to remove the radiator cap when the engine and radiator are hot. Serious injury could result from scalding hot fluid and steam blown out under pressure. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 189 (manual). Block the wheel diag- the jack. onally opposite to the one be- D Raise the vehicle only high ing changed if necessary. enough to remove and change the tire. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 190 D Avoid sudden acceleration, To keep the compact spare tire no- sudden deceleration and sharp ticeable, do not hide the wheel by a turns with the compact spare wheel cover or such. tire. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 191 4. Spare tire or sudden braking. To prepare yourself for an emergency, you should familiarize yourself with the use of the jack, each of the tools and their storage locations. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 192 Take due care in peating the above removal steps in handling the ornament to avoid reverse order to prevent it from flying unexpected personal injury. forward during a collision or sudden braking. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 193 Be careful that the wrench does not slip off the nut. Do not remove the nuts yet—just un- screw them about one- half turn. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 194 Wiggle the tire and press it and turn it clockwise. As the jack back over the other bolts. touches the vehicle and begins to lift, double- check that it is properly posi- tioned. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 195 Press back on the cause wheel nuts to loosen and tire and see if you can tighten them eventually cause a wheel to come off more. while driving. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 196 Tighten each nut a little at a time in the order shown. Repeat the process until all the nuts are tight. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 197 As soon after changing wheels as possible, tighten the wheel nuts to the torque specified in Section 8 with a torque wrench and have a technician repair the flat tire. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 198: If Your Vehicle Becomes Stuck
If your vehicle remains stuck after jects. rocking the vehicle several times, Remove the wheel ornament from the consider other ways such as tow- flat tire before restowing the flat tire. ing. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 199: If Your Vehicle Needs To Be Towed
Use a safety chain system for all towing, wheels straight. and abide by the state/provincial and local laws. The wheels and axle on the ground must be in good condition. If they are damaged, use a towing dolly. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 200 (b) Using flat bed truck Front (c) Towing with sling type truck NOTICE Do not tow with sling type truck, ei- ther from the front or rear. This may cause body damage. SU41024a Rear 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 201 Vehicles with an automatic trans- front vehicle or damage to that ve- mission, never tow a vehicle from hicle. the rear with four wheels on the ground. This may cause serious damage to the transmission. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 202 3. Secure the front towing eyelet to the shown in the illustrations. on the front bumper, using a flat- hole on the bumper by turning clock- bladed screwdriver which is wrapped wise. with a cloth. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 203: If You Cannot Shift Automatic Transmission Selector Lever
2. Pry up the cover with a flat- bladed keep the brake pedal depressed. and result in death or serious injury. screwdriver or equivalent. Be sure to have the system checked by your Toyota dealer as soon as possible. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 204: If You Lose Your Keys
Be extremely cautious to avoid cuts from You can use the wireless remote control the glass. system with the new transmitter. Contact your Toyota dealer for detailed information. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 205: Corrosion Prevention And Appearance Care
........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 206 High humidity accelerates corrosion es- at least once a month to minimize cor- pecially when temperatures range just rosion. above the freezing point. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 207 Even if your the wheel and cause accidents while garage is heated, a wet vehicle can cor- the vehicle is moving. rode if the ventilation is poor. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 208 Always remove the plastic bumpers if the paint. your vehicle is re- painted and placed in a high heat paint waxing booth. High temperatures could damage the bumpers. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 209 NOTICE z Do not use dye or bleach on the belts—it may weaken them. z Do not use the belts until they be- come dry. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 210 Immediately clean any spill using the method mentioned above. If you have any questions about the cleaning of your Toyota, your local Toyota dealer will be pleased to answer them. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 211 ......Emissions inspection and maintenance (I/M) programs ..For scheduled maintenance information, please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 212 Simple instructions for how to per- or if you prefer, your Toyota dealer will be without invalidating this warranty. See form them are presented in Section 7. pleased to do them at a nominal cost. “Owner’s Warranty Information Booklet”...
Page 213 Power steering fluid level formation. Check the level through the reservoir. The level should be in the “HOT” or “COLD” range depending on the fluid temperature. See Section 7- 2 for additional information. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 214 In a safe place, check that the brakes do curely. Make sure the engine hood sec- not pull to one side when applied. ondary latch secures the hood from open- ing when the primary latch is released. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 215 Strange noises related to suspension movement Loss of brake effectiveness; spongy feeling brake or clutch pedal; pedal al- most touches floor; vehicle pulls to one side when braking Engine coolant temperature continually higher than normal 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 216 Also, if the malfunction indicator lamp had come on recently due to temporary mal- function such as a loose fuel tank cap, your vehicle may not pass the I/M test. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 217 ......... 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 218: Engine Compartment Overview
3. Power steering fluid reservoir 4. Brake fluid reservoir 5. Battery 6. Fuse blocks 7. Engine coolant reservoir 8. Radiator 9. Condenser SU71011 10. Electric cooling fan 11. Engine oil level dipstick 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 219: Fuse Locations
“Parts and tools”. SY71004a Utmost care should be taken when work- ing on your vehicle to prevent accidental injury. Here are a few precautions that you should be especially careful to ob- serve: 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 220 Be extremely cautious when work- and water. ing on the battery. It contains poi- Do not leave used oil within the sonous and corrosive sulfuric acid. reach of children. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 221: Parts And Tools
50% coolant and 50% deion- formance or radio noise. ized water. z Do not overfill automatic transmis- Tools: sion fluid, transmission Funnel (only for adding coolant) could be damaged. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 222: Positioning The Jack
Support position for clamp bolts) Pantograph jack ..CHECKING AND REPLACING FUSES Parts (if replacement is necessary): Genuine Toyota fuse or equivalent with same amperage rating as original 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 223 Never get under the vehicle when the vehicle is supported by the jack alone; use vehicle support stands. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 224 04 01.06 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 225 ....... . 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 226: Checking The Engine Oil Level
1.5 (1.6, 1.3) as it will go, or the reading will not be correct. 4. Pull the dipstick out and look at the oil level while holding a rag under the end. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 227 If SAE 5W- 30 oil is not available, SAE 10W- 30 oil may be used. However, it API02 should be replaced with SAE 5W- 30 at the next oil change. ILSAC certification mark 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 228: Checking The Engine Coolant Level
Toyota engines. Do not use plain water alone. pump. Please contact your Toyota dealer for fur- If you can find no leak, have your Toyota ther details about “Toyota Genuine Motor dealer test the cap pressure and check Oil”. for leaks in the cooling system.
Page 229: Checking The Radiator And Condenser
Toyota vehicles. lem. Please contact your Toyota dealer for If the level is low, add SAE J1703 or further details. FMVSS No.116 DOT 3 brake fluid to the brake reservoir. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 230: Checking Power Steering Fluid
Close eyes, go to the doctor. NOTICE If you spill some of the fluid, be sure to wash it off with water to prevent it from damaging the parts or paint. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 231: Checking Tire Inflation Pressure
“HOT” range. If the level is at the low side of either range, add automatic transmission fluid DEXRONrII or III to Type A bring the level within the range. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 232 3 hours and has not been driven for more than 1.5 km or 1 mile since, you will get an accurate cold tire inflation pres- sure reading. Type B 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 233 If a tire frequently needs refilling, valve. In case of applying too have it checked by your Toyota deal- much air, press the center of the valve and release the air to adjust. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 234: Checking And Replacing Tires
If you are not sure, consult with your Toyota dealer. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 235 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 236: Rotating Tires
See “If you have a flat tire” in Section 4 for tire change procedure. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 237 B Width of side chain 10 (0.39) C Length of side chain 30 (1.18) D Diameter of cross chain 4 (0.16) E width of cross chain 14 (0.55) F Length of cross chain 25 (0.98) 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 238: Replacing Wheels
2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 239: Aluminum Wheel Precautions
When balancing your wheels, use only Toyota balance weights or equivalent and a plastic or rubber hammer. As with any wheel, periodically check your aluminum wheels for damage. If damaged, replace immediately. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 240 04 01.06 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 241 ........2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 242: Checking Battery Condition
Overtightening may damage the battery case. cal office. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 243: Battery Recharging Precautions
NOTICE Toyota dealer. Never recharge the battery while the CLEAR Have battery engine is running. Also, be sure all checked by your LIGHT accessories are turned off. Toyota dealer. YELLOW 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 244: Checking And Replacing Fuses
See hicle for emergencies. Section 8 of this manual for the functions controlled by each circuit. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 245: Adding Washer Fluid
Do not touch the glass part of a age your vehicle’s paint. bulb with bare hands. NOTICE Only use a bulb of the listed type. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 246 License plate lights High mounted stoplight Interior light — Trunk light A: HB2 halogen bulbs B: HB4 halogen bulbs C: Single end bulbs (amber) D: Wedge base bulbs E: Double end bulbs 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 247 Aiming is not necessary after replacing the bulb. When aiming adjustment is nec- essary, contact your Toyota dealer. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 248 2. Pull the bulb out of the bulb base. 3. Install a new bulb base by turning it clockwise to the front of the vehicle. If the connector is tight, wiggle it. SU73014b 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 249 —Rear side marker/stop/tail, rear turn signal, back- up lights —License plate lights SU73033a SU73056 SU73034c a: Rear side marker b: Stop/tail lights c: Rear turn signal light d: Back- up lights SU73055 SU73025c 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 250 04 01.06 —High mounted stoplight SU73030 SU73032 SU73031 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 251 ........... . . 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 252: Dimensions And Weight
(in.): 1420 (55.9) Vehicle capacity weight (occupants+luggage) kg(lb.): 351 (775) ∗ 1 Sports Fender And Rocker Panel With Extensions ∗ 2 With P175/65R14 81S tires ∗ 3 With P185/60R15 84T tires 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 253: Service Specifications
11.8—12.0 V Discharged ity. ∗ : Voltage that is checked 20 minutes af- ter the key is removed with all the lights turned off Charging rates: 5 A max. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 254 Toyota Genuine ATF Type T- IV Wheel free play: Change automatic transmission fluid only Less than 30 mm (1.2 in.) as necessary. Power steering fluid type: Automatic transmission fluid DEXRONrII or III 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 255: Tires
103 (10.5, 76) NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pres- sure” through “Aluminum wheel precautions”, page 223 through 231 in Section 7- 2. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 256: Fuses
20. FOG 15 A: Front fog lights 12. ACC 15 A: Clock, radio, cigarette light- 6. HORN 15 A: Horn 13. A.C 7.5 A: Air conditioning system 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 257 “ST”, “AM2”, “H- LP LH”, and “H- LP RH” fuse 30. ALT 100 or 120 A: “ECU- B”, “TAIL”, “D/L”, “OBD”, “A.C”, “HTR”, “POWER”, “STOP” and “FL DEF” fuses 31. ABS 60 A: Anti- lock brake system 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 258 04 01.06 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 259 Reporting safety defects for U.S. owners Reporting safety defects for U.S. owners ..... . 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 260 However, NHTSA cannot become involved in individual problems between you, your dealer, or Toyota Motor Sales, U.S.A., Inc. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 261 Toyota Genuine ATF Type T- IV See page 246 for detailed information. Tire information: See pages 223 through 231. Publication No. OM52573U Tire inflation pressure: See page 247. Part No. 01999-52573 Printed in Japan 01- 0402- 00 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 262 The Toyota authorized Repair Manual is packed with literally everything you need to know to perform your own maintenance in virtually every area of your new vehicle. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)
Page 263 Toyota dealer. Areas covered include such things as spark plug re− Pub. Name: 2004 ECHO Repair Manual placement, valve clearance adjustment and engine oil Pub. No.: RM1041U and filter replacement. 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

Toyota 2004 Echo Owner's Manual

1 2 Section -

1 3 Section -

1 4 Section -

1 5 Section -

1 7 Section -

1 9 Section -

1 10 Section -

2 Section

3 Section

Section

7 1 Section -

7 2 Section -

Quick Links

Chapters

Related Manuals for Toyota 2004 Echo

Summary of Contents for Toyota 2004 Echo

Table of Contents
