Summary of Contents for Sym Wolf Classic 150

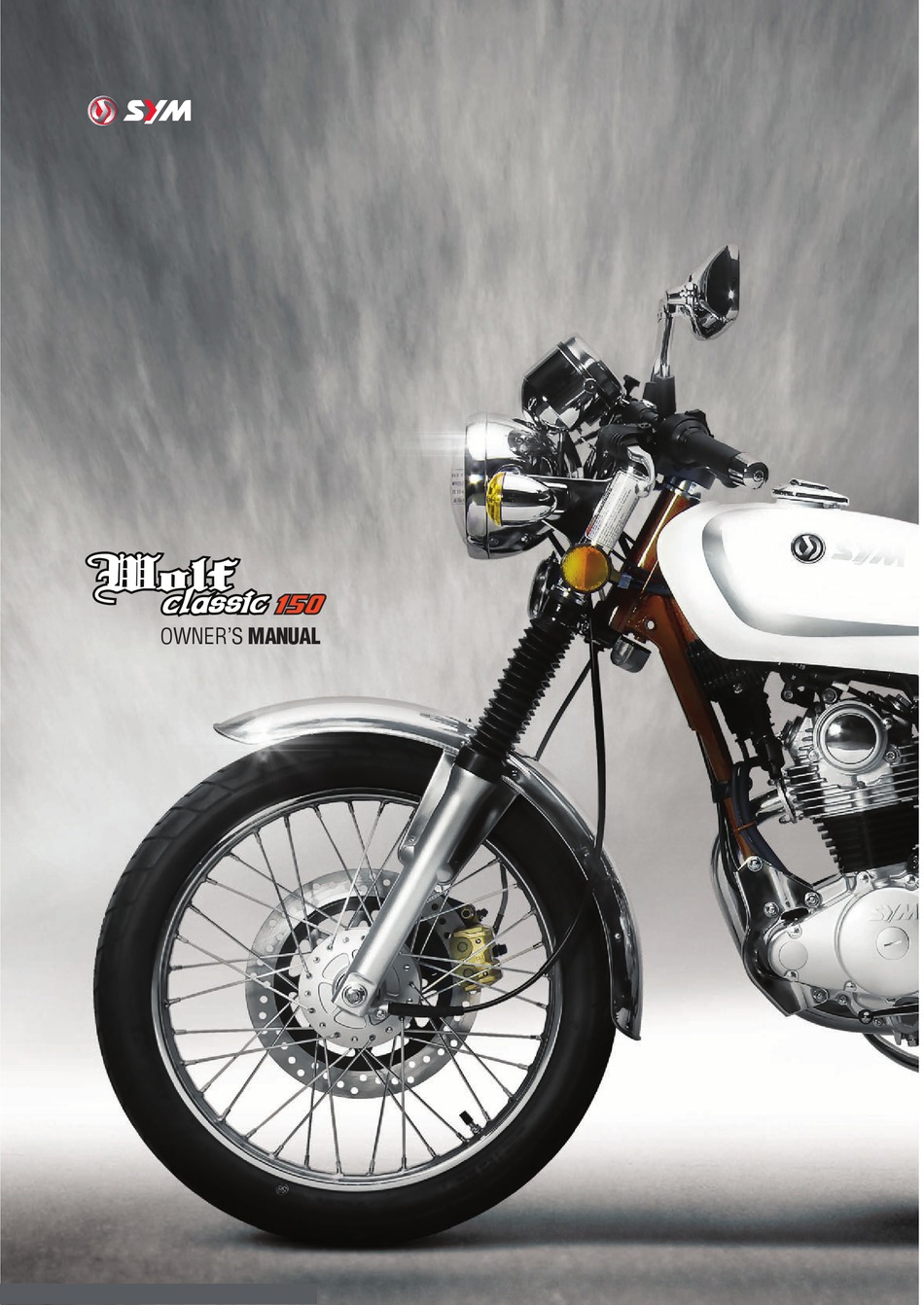

- Page 1 OWNER’S MANUAL...
-
Page 2: Noise Emission Warranty
Ÿ The safety, stability and handling of this motorcycle may be adversely affected by the addition of accessories or luggage. Ÿ Do not install accessory or replacement parts not approved by sym. Ÿ Failure to follow these warnings could lead to an accident, serious injuries or death. -
Page 3: Contents
4. SAFETY DEFECT REPORT SANYANG INDUSTRY CO., Ltd. NO. 3,chung-Hua Road Hukou Shiang Hsin-Chu County, 303 Taiwan, R.O.C Copyright © 2013 SANYANG INDUSTRY CO., Ltd. All rights reserved. Reporting Safety Defects If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Sanyang Industry Co., Ltd. -
Page 4: Table Of Contents
1. CONTENTS ........................1 2. CONTROL LOCATION ....................3 3. BEFORE RIDING ......................4 4. USE GENUINE SPARE PARTS ................4 5. SAFE RIDING ......................5 6. RIDING .......................... 6 7. USE OF EACH COMPONENT ................. 7 Gauges ........................... 7 Operation of Ignition switch .................... - Page 5 Wiring rubber cap ......................23 Drive chain ........................23 Cam chain adjustment ....................24 Tire inspection ......................24 Steering handle front shock absorbers inspection ............25 Checking the lubrication of body’s various mechanisms ..........25 Back mirror ........................25 License plate ........................ 25 Inspection and maintenance of battery .................
-
Page 6: Control Location
MODEL: WOLF SERIES Oil level Kick starter pedal ENG. Stop / Starter switch Front turn signal light Rear turn High & Low beam / signal light Ignition switch Turn signal / Horn switch Choke level Fuel tank cap Headlight Tail light Fuses &... -
Page 7: Before Riding
Also, it may result in unexpected troubles and lower the motorcycle’s performance. Ÿ Always use SYM Genuine Spare Parts to keep your motorcycles pure blood and to ensure its long service life. -
Page 8: Safe Riding
It is very important to be relax and clothe properly when riding, observe traffic regulations, do not rush, always drive carefully and relaxed. Obey all national and local laws and regulations. Usually, most people would ride their newly bought motorcycle very carefully, but after they became familiar with their motorcycles, they tended to become reckless which may result in an accident. -
Page 9: Riding
Keep the related parts of your body such as arms, palms, lumbar, and toes relax and ride with the Ÿ most comfortable posture in order to be able to react quickly whenever it is necessary. Ÿ Rider’s posture will greatly affect riding safety. Always keep your body’s gravity in the center of the seat, if your body’s gravity is on the rear part of seat, the front wheel load will be reduced, and this will cause the steering handle shaking. -
Page 10: Use Of Each Component
GAUGES Speedometer Odometer tachometer Trip odometer reset knob High Beam Indicator Fuel gauge Trip odometer Transmission neutral Trip odometer Turn Signal Indicator Indicator CAUTION: Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such as gasoline…etc to avoid damaging these components. Speedometer：... -
Page 11: Operation Of Ignition Switch
OPERATION OF IGNITION SWITCH IGNITION SWITCH “Start” position Ÿ Engine can be started in this position. Ÿ Ignition switch key can not be removed. “Stop” position Ÿ Engine is shut off and can not be started in this position . Ÿ... -
Page 12: Use Of Buttons
USE OF BUTTONS Headlight switch High/Low Beam Switch Turn Signal Switch Hazard switch Electrical Starter Horn Switch Button • Engine Stop Switch Switch to this position to turn off the engine when a state of emergency. Switch to this position and the engine can be started. •... -
Page 13: Fuel Tank Cap
Ÿ Turn Signal Switch Turn signal lights are used when turning left/right or changing lane. Turn ignition switch to “ON”, and slide the turn signal switch to left or right. Then, the turn signal lights will flash. To release, simply return the turn signal light button to the original position. TURN R Right-side turn signal light flashing means you intend to make a right turn. -
Page 14: Rear Shock Absorber Adjustment
REAR SHOCK ABSORBER ADJUSTMENT Ÿ There are five positions in each shock absorber can be adjusted. Ÿ I: normal position. (light rode or good road condition) Ÿ II~V: increase the spring tension gradually. Method of adjustment：heavier load or worse road condition) Ÿ... -
Page 15: Important Points And Cautions For Starting Engine
METHOD OF STARTING THE ENGINE (Start the engine with start motor) CAUTION: Ÿ Please check the oil and fuel volume before starting the engine. Start the engine in a ventilative area. 1. Turn the ignition switch “ON 2. Is there enough fuel in the fuel 3. - Page 16 CAUTION: Ÿ If engine can not be started after starter motor running for 3~5 seconds, turn the throttle valve handle 1/8~1/4 turns, and then press starter button again for an ease start. Ÿ In order to avoid damaging the starter motor, please do not press the starter button continuously over 15 seconds.
-
Page 17: Riding The Motorcycle
SET UP RIDING Check the brakes and tire pressure before riding. 1. Squeeze the clutch lever fully, then push shift pedal down to engage the 1st gear. 2. Then release the clutch lever slowly, and at the same time, open the throttle gradually, the motorcycle will move. -
Page 18: Riding In Grade
RIDING IN GRADE Up Grade Riding up a slightly grade can ride with high position gear. Under heavy loading or steep grade riding condition, It must ride with low gear. Down Grade Close the throttle and operate the brakes when riding down a slight grade. -
Page 19: The Control Of Throttle Valve Handle
THE CONTROL OF THROTTLE VALVE HANDLE Deceleration Acceleration : To increase speed. When riding on an inclined road, turn the throttle Acceleration valve handle slowly to allow the engine to output its power. Deceleration : To decrease speed. Maintenance Performance-During the initial period, it is better to ride in low speed for running the engine in good condition and long life. -
Page 20: Parking Method
PARKING METHOD Brake-Apply both the front and rear brakes. Ÿ Close the throttle then squeeze the brake control lever. Ÿ “Brake slightly in beginning, then squeeze tightly”, it is the best way to brake. CAUTION: Ÿ Use of only the front or brake may cause wheel slip. Ÿ... -
Page 21: Inspection And Maintenance Before Riding
Do the previous troubles still exist? CAUTION: Ÿ If any problem founded during routine inspection, correct the problem before using the motorcycle again, have your motorcycle checked and repaired by the “SYM dealer or authorized service personnel” if necessary. FUEL INSPECTION Check fuel quantity, see if it is enough for your destination. -
Page 22: Fuel Coke Cleaning
Engine Oil : Use API SH, SAE 10w-40 grade or better Drain bolt engine oil. Otherwise, damage will not be covered by warranty. ※Recommended Oil: SYM Genuine EXTRA 4X OIL. Oil Capacity : 1.2 Liter (1.0 liters for routine change). Oil filter change: 1.0 liters. 10.Inspection and maintenance before riding... -
Page 23: Oil Filter Cleaning
OIL FILTER CLEANING The oil filter in engine left side, near change pedal. Open the filter nut assembly of the filter, and remove the filter. Remove the foreign materials from the filter by using a gasoline or air spraying gun. WARNING: Ÿ... -
Page 24: Clutch Lever
Adjustment: Ÿ The indentation of brake adjustment nut must be aligned with the pin. (see below figure) Adjustment nut To increase free play To decrease Adjustment nut free play Ÿ Turn the adjustment nut on brake arm of front and rear wheels to adjust the free play of hand-brake lever. -
Page 25: Throttle Valve Handle Clearance Adjustment
THROTTLE VALVE HANDLE CLEARANCE ADJUSTMENT Ÿ Correct clearance allows throttle vale handle to rotate 2~6 mm 2~6mm. Ÿ Loosen the lock nut first, then turn the adjust nut to adjust. Tighten the lock nut securely when finished. Check Items: 1. Check throttle valve cable to see if it can be moved smoothly from a closed position to a wide open position. -
Page 26: Cam Chain Adjustment
CAM CHAIN ADJUSTMENT If cam chain is too slack which will affect valve timing and influence engine operation. Adjust the chain according to the following procedure: Cam chain adjuster Check the cam chain by listening for chain noise during the engine idling speed. When the chain produces a chattering noise, it is an indication that the chain is too loose, and if it is a whining noise the chain is too tight. -
Page 27: Steering Handle Front Shock Absorbers Inspection
Ÿ Check steering handle if it is being pulled too tight by the brake cables. Ÿ Take your motorcycle to SYM Authorized Dealer or Franchised Dealer for a check or adjustment if any abnormal conditions are found. -
Page 28: Inspection And Maintenance Of Battery
The electrolyte will vaporize so it is necessary to inspect and refill if necessary. Have your motorcycle Distilled water checked by SYM Authorized Dealer or Franchised Dealer should any abnormality is found. Ÿ Remove the right side cover, the electrolyte level Upper should be between the upper and lower limit. -
Page 29: Checking And Changing Fuses
CHECKING AND CHANGING FUSES Turn off ignition switch, and check fuses if they are intact. Replace the blown fuse with a new one having the same specified amperage rating (15A). Using a fuse of more than 15 amperes, a brass or iron wire to replace a blown fuse is strictly prohibited to avoid damaging the electrical system and the circuit. -
Page 30: Checking The Front And Rear Lights
CHECKING THE FRONT AND REAR LIGHTS Ÿ Start engine and turn on the head lamp switch. Check if head lamp and rear lamp come on. Ÿ Check the brightness and direction of front light by wall to see if it is correct. Ÿ... -
Page 31: Checking The Air Cleaner
CHECKING THE AIR CLEANER If air cleaner is clogged by dust, engine performance and fuel economy will be affected, so, it’s important to do periodic maintenance. 1. Remove the left side cover by removing the one screw. 2. Remove the air cleaner cover by removing the three screws. -
Page 32: When There Is An Abnormal Condition Or A Trouble
【Have your motorcycle checked by SYM authorized dealer or franchised dealer immediately if there are no problems with the above items and engine still can not be started.】... -
Page 33: Cautions For Riding Motorcycle
1. Is there any gasoline in the tank? 2. Have you operated the starting essential points correctly? NOTE: If there is any abnormal or breakdown of the motorcycle, go to your SYM dealer for inspection as soon as possible. 14.Cautions for riding motorcycle... -
Page 34: Periodical Maintenance Schedule
☆The above maintenance schedule is established by taking the monthly 1,000 kilometers as a reference which ever comes first. ※Have your motorcycle checked and adjusted periodically by your SYM Authorized Dealer or Franchised Dealer to maintain the motorcycle at the optimum condition. -
Page 35: Specification
Classic 150 Model Item Specification PA15C1-A PA15C1-C Length 1, 905 mm Width 715 mm Height 1,040 mm Wheel base 1,225 mm Net Weight 125 kg Type 4- stroke single cylinders engine Fuel Unleaded (octane 90 or higher) Cooling type Air-cooled Displacement 149.5 cc.
