Baxi Brazilia F5 Installation And Servicing Instructions
Balanced flue gas wall heater
Hide thumbs
Also See for Brazilia F5:
- Installation and servicing instructions (20 pages) ,
- User operating instructions manual (8 pages) ,
- Installation and owner's manual (28 pages)
Related Manuals for Baxi Brazilia F5
Summary of Contents for Baxi Brazilia F5

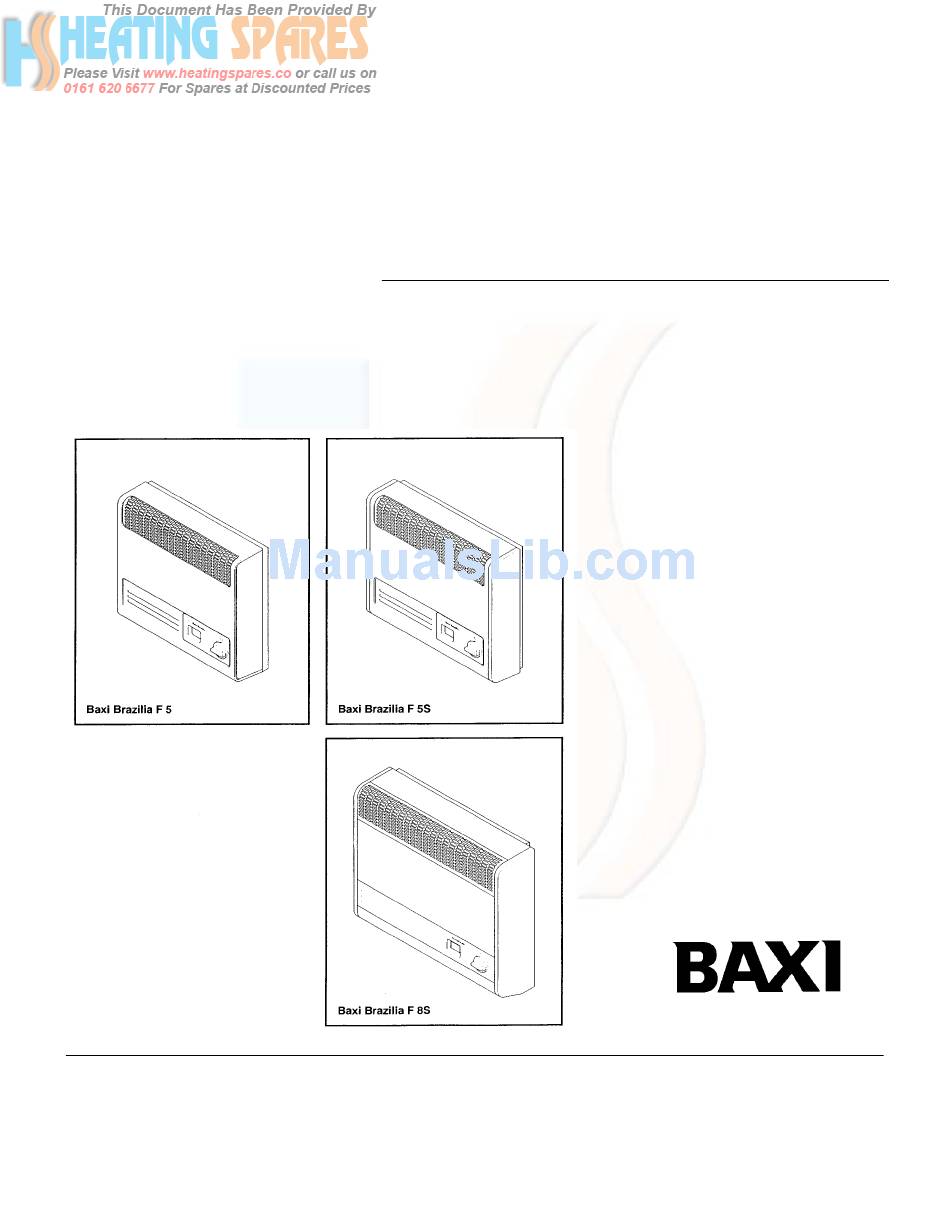

- Page 1 Baxi Brazilia F5, F5S & F8S Balanced Flue Gas Wall Heaters Comp No. 243469 - Iss 1 - 6/99 Installation and Servicing Instructions Supplied By www.heating spares.co Tel. 0161 620 6677...
- Page 2 Everyone who works at the company has a commitment to quality because, as shareholders, we know that satisfied customers mean continued success. We hope you get a satisfactory service from Baxi. If not, please let us know. For GB/IE only.
-
Page 3: Table Of Contents
Brazilia F5, F5S & F8S Baxi Heating Ltd. Contents – Page 3 Section Page Introduction Technical Data Site Requirements Installation Commissioning the Appliance Annual ServIcing Changing Components Fault Finding Short Parts List Supplied By www.heating spares.co Tel. 0161 620 6677... -
Page 4: Introduction
Baxi Heating Ltd. Introduction – Page 4 1.1 Description 1. The Baxi Brazilia F is a range of room sealed gas convector appliances designed to be used with gas type G20 (Natural Gas) at supply pressure 20 mbar. 2. The Baxi Brazilia F range is also available for use with gas type G3t (Propane) at supply pressure 37 mbar. -
Page 5: Technical Data
Brazilia F5, F5S & F8S Baxi Heating Ltd. Technical Data – Page 5 F 5 & F 5S Natural Gas F 8S Natural Gas Category of Appliance 1 Category of Appliance 1 The appliance is set for Gas Type G20 at 20mbar. - Page 6 Brazilia F5, F5S & F8S Baxi Heating Ltd. Technical Data – Page 6 F 5 & F 5S Propane F 8S Propane Category of Appliance I Category of Appliance I The appliance is set for Gas Type G31at 37mbar. The appliance is set for Gas Type G31 at 37mbar.
-
Page 7: Site Requirements
Brazilia F5, F5S & F8S Baxi Heating Ltd. Site Requirements – Page 7 3.1 Location 1. The appliance must be fitted on a suitable outside wall to meet the requirements of the balanced flue arrangement. 2. For applications involving walls constructed from or comprising of combustible material, reference should be made to the requirements of B.S. - Page 8 The guard must be screwed to the wall over the flue terminal and be at least 50mm (2 in) clear of any part of the terminal. A suitable guard is available direct from Baxi Heating, Part No. 080266 (Fig. 5).
- Page 9 Brazilia F5, F5S & F8S Baxi Heating Ltd. Site Requirements – Page 9 3.5 Ventilation 1. The appliance is room sealed and therefore requires no purpose built ventilation. 2. It is intended for use in habitable rooms, and must not be filled in cupboards or confined compartments.
-
Page 10: Installation
Brazilia F5, F5S & F8S Baxi Heating Ltd. Installation – Page 10 4.1 Preparation 1. Ensure that the length of the flue ducting is suitable for the wall thickness. 2. Select a position for the appliance. Using the template supplied, mark the position of the flue ducting and the four fixing holes. -
Page 11: Commissioning The Appliance
Brazilia F5, F5S & F8S Baxi Heating Ltd. Commissioning the Appliance - Page 11 5.1 Commissioning the Appliance 1. Turn on the gas service cock. 2. Fit the control knob onto the control tap spindle (Fig. 10). 3. Purge any air from the system. -
Page 12: Annual Servicing
Brazilia F5, F5S & F8S Baxi Heating Ltd. Annual Servicing – Page 12 6.1 Servicing the Appliance 1. For reasons of safety and economy the appliance should be serviced annually 2. Before servicing please read Section 1.3 Important Information. 3. Turn off the gas supply and ensure that the appliance is cold. -
Page 13: Changing Components
Brazilia F5, F5S & F8S Baxi Heating Ltd. Changing Components – Page 13 7.1 Changing Components 1. Before changing any components please read Section 1.3 Important Information. 2. Turn off the gas supply and ensure that the appliance is cold. - Page 14 Brazilia F5, F5S & F8S Baxi Heating Ltd. Changing Components – Page 14 7.4 Burner 1. Undo the heat exchanger retaining nuts and washers and draw the casting forwards off the locating studs (Fig. 24). 2. Remove the three screws holding the burner retaining plate to the airbox, also remove the insulation and undo the thermocouple nut from the gas tap (Fig.
-
Page 15: Fault Finding
Brazilia F5, F5S & F8S Baxi Heating Ltd. Fault Finding – Page 15 Supplied By www.heating spares.co Tel. 0161 620 6677... -
Page 16: Short Parts List
Brazilia F5, F5S & F8S Baxi Heating Ltd. Short parts list – page 16 G.C. Description Manufacturers Part No. 205890 Knob Control (5) 234632 205887 Knob Control (5S) 234637 205894 Knob Control (8S) 234643 205837 Burner (515S) 224041 205864 Burner (8S)
