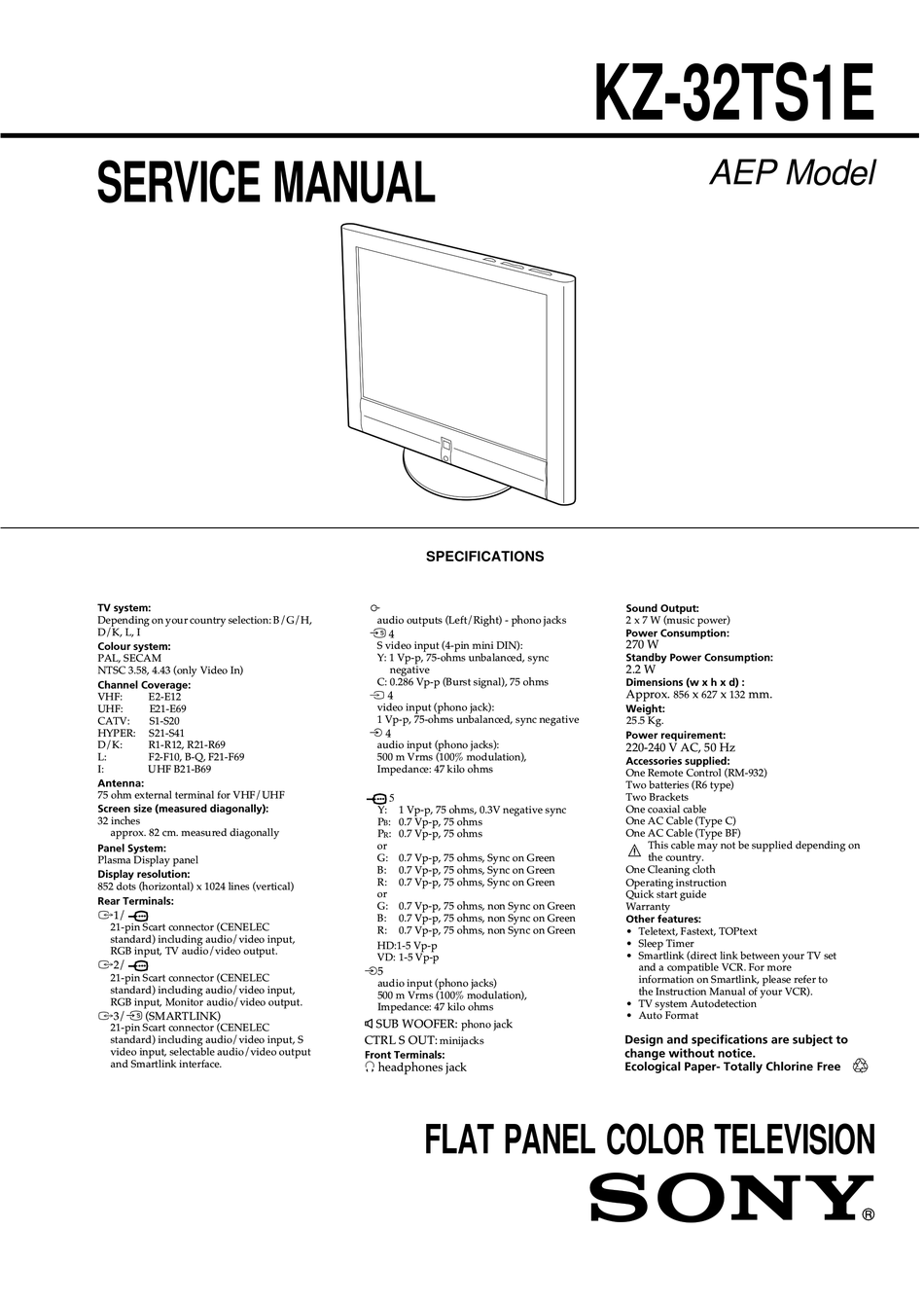

Sony KZ-32TS1E Service Manual

SERVICE MANUAL

TV system:
epending on your country selection: B/G/H,
/K, L, I
Colour system:
PAL, SECAM
NTSC 3.58, 4.43 (only Video In)
Channel Coverage:
VHF: E2-E12
UHF: E21-E69
CATV: S1-S20
HYPER: S21-S41
/K: R1-R12, R21-R69
L: F2-F10, B-Q, F21-F69
I: UHF B21-B69
Antenna:
75 ohm external terminal for VHF/UHF
Screen size (measured diagonally):
32 inches
approx. 82 cm. measured diagonally
Panel System:
Plasma isplay panel
Display resolution:
852 dots (horizontal) x 1024 lines (vertical)
Rear Terminals:
1/
i
21-pin Scart connector (CENELEC
standard) including audio/video input,
RGB input, TV audio/video output.
2/
i
21-pin Scart connector (CENELEC
standard) including audio/video input,
RGB input, Monitor audio/video output.
3/ (SMARTLINK)
i r
21-pin Scart connector (CENELEC
standard) including audio/video input, S
video input, selectable audio/video output
and Smartlink interface.
SPECIFICATIONS
audio outputs (Left/Right) - phono jacks
4
r
S video input (4-pin mini IN):
Y: 1 Vp-p, 75-ohms unbalanced, sync
negative
C: 0.286 Vp-p (Burst signal), 75 ohms
4
t
video input (phono jack):
1 Vp-p, 75-ohms unbalanced, sync negative
4
o
audio input (phono jacks):
500 m Vrms (100% modulation),
Impedance: 47 kilo ohms
5
Y: 1 Vp-p, 75 ohms, 0.3V negative sync
P : 0.7 Vp-p, 75 ohms
B
P : 0.7 Vp-p, 75 ohms
R
or
G: 0.7 Vp-p, 75 ohms, Sync on Green
B: 0.7 Vp-p, 75 ohms, Sync on Green
R: 0.7 Vp-p, 75 ohms, Sync on Green
or
G: 0.7 Vp-p, 75 ohms, non Sync on Green
B: 0.7 Vp-p, 75 ohms, non Sync on Green
R: 0.7 Vp-p, 75 ohms, non Sync on Green
H :1-5 Vp-p
V : 1-5 Vp-p
5
o
audio input (phono jacks)
500 m Vrms (100% modulation),
Impedance: 47 kilo ohms
SUB WOOFER: k
phono jac
5 5 5 5
CTRL S OUT:
minijacks
Front Terminals:
headphones jack
i
FLAT PANEL COLOR TELEVISION
KZ-32TS1E
AEP Model
Sound Output:
2 x 7 W (music power)
Power Consumption:
270 W
Standby Power Consumption:
2.2 W
Dimensions (w x h x d) :
Approx. x x mm.
856 627 132
Weight:
25.5 Kg.
Power requirement:
220-240 V AC, 50 Hz
Accessories supplied:
One Remote Control (RM-932)
Two batteries (R6 type)
Two Brackets
One coaxial cable
One AC Cable (Type C)
One AC Cable (Type BF)
This cable may not be supplied depending on
the country.
One Cleaning cloth
Operating instruction
Quick start guide
Warranty
Other features:
¥ Teletext, Fastext, TOPtext
¥ Sleep Timer
¥ Smartlink (direct link between your TV set
and a compatible VCR. For more
information on Smartlink, please refer to
the Instruction Manual of your VCR).
¥ TV system Autodetection
¥ Auto Format
Design and specifications are subject to
change without notice.
Ecological Paper- Totally Chlorine Free
