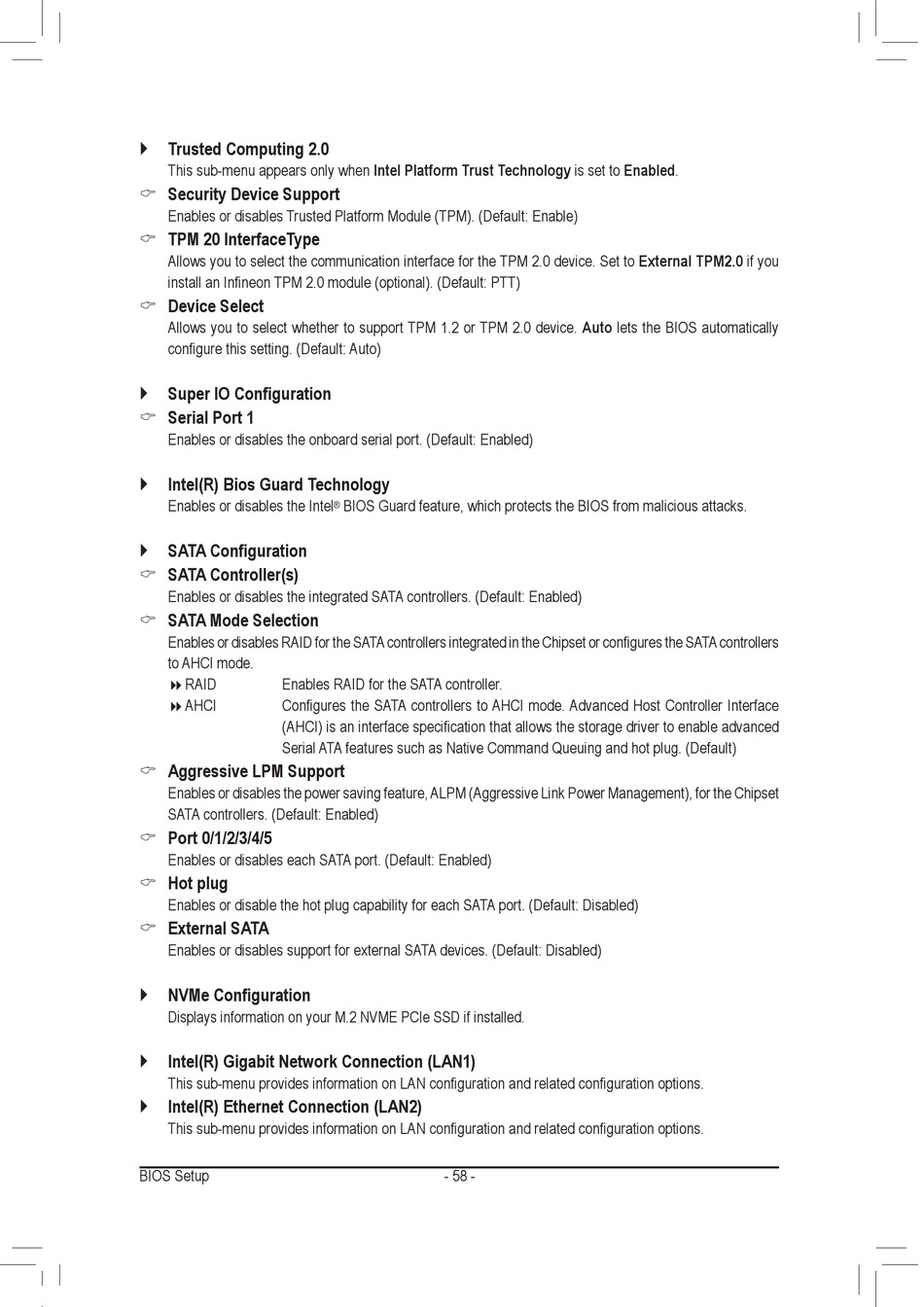

` Trusted Computing 2.0
This sub-menu appears only when Intel Platform Trust Technology is set to Enabled.
& Security Device Support
Enables or disables Trusted Platform Module (TPM). (Default: Enable)
& TPM 20 InterfaceType
Allows you to select the communication interface for the TPM 2.0 device. Set to External TPM2.0 if you
install an Infineon TPM 2.0 module (optional). (Default: PTT)
& Device Select
Allows you to select whether to support TPM 1.2 or TPM 2.0 device. Auto lets the BIOS automatically
configure this setting. (Default: Auto)
` Super IO Configuration
& Serial Port 1
Enables or disables the onboard serial port. (Default: Enabled)
` Intel(R) Bios Guard Technology
Enables or disables the Intel
` SATA Configuration
& SATA Controller(s)
Enables or disables the integrated SATA controllers. (Default: Enabled)
& SATA Mode Selection
Enables or disables RAID for the SATA controllers integrated in the Chipset or configures the SATA controllers
to AHCI mode.
RAID Enables RAID for the SATA controller.
AHCI C onfigures the SATA controllers to AHCI mode. Advanced Host Controller Interface
(AHCI) is an interface specification that allows the storage driver to enable advanced
Serial ATA features such as Native Command Queuing and hot plug. (Default)
& Aggressive LPM Support
Enables or disables the power saving feature, ALPM (Aggressive Link Power Management), for the Chipset
SATA controllers. (Default: Enabled)
& Port 0/1/2/3/4/5
Enables or disables each SATA port. (Default: Enabled)
& Hot plug
Enables or disable the hot plug capability for each SATA port. (Default: Disabled)
& External SATA
Enables or disables support for external SATA devices. (Default: Disabled)
` NVMe Configuration
Displays information on your M.2 NVME PCIe SSD if installed.
` Intel(R) Gigabit Network Connection (LAN1)
This sub-menu provides information on LAN configuration and related configuration options.
` Intel(R) Ethernet Connection (LAN2)
This sub-menu provides information on LAN configuration and related configuration options.
BIOS Setup
BIOS Guard feature, which protects the BIOS from malicious attacks.
®
- 58 -
