Exploded Views; Front Panel Section - Sony STR-K990 Service Manual

NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• The mechanical parts with no reference
number in the exploded views are not supplied.

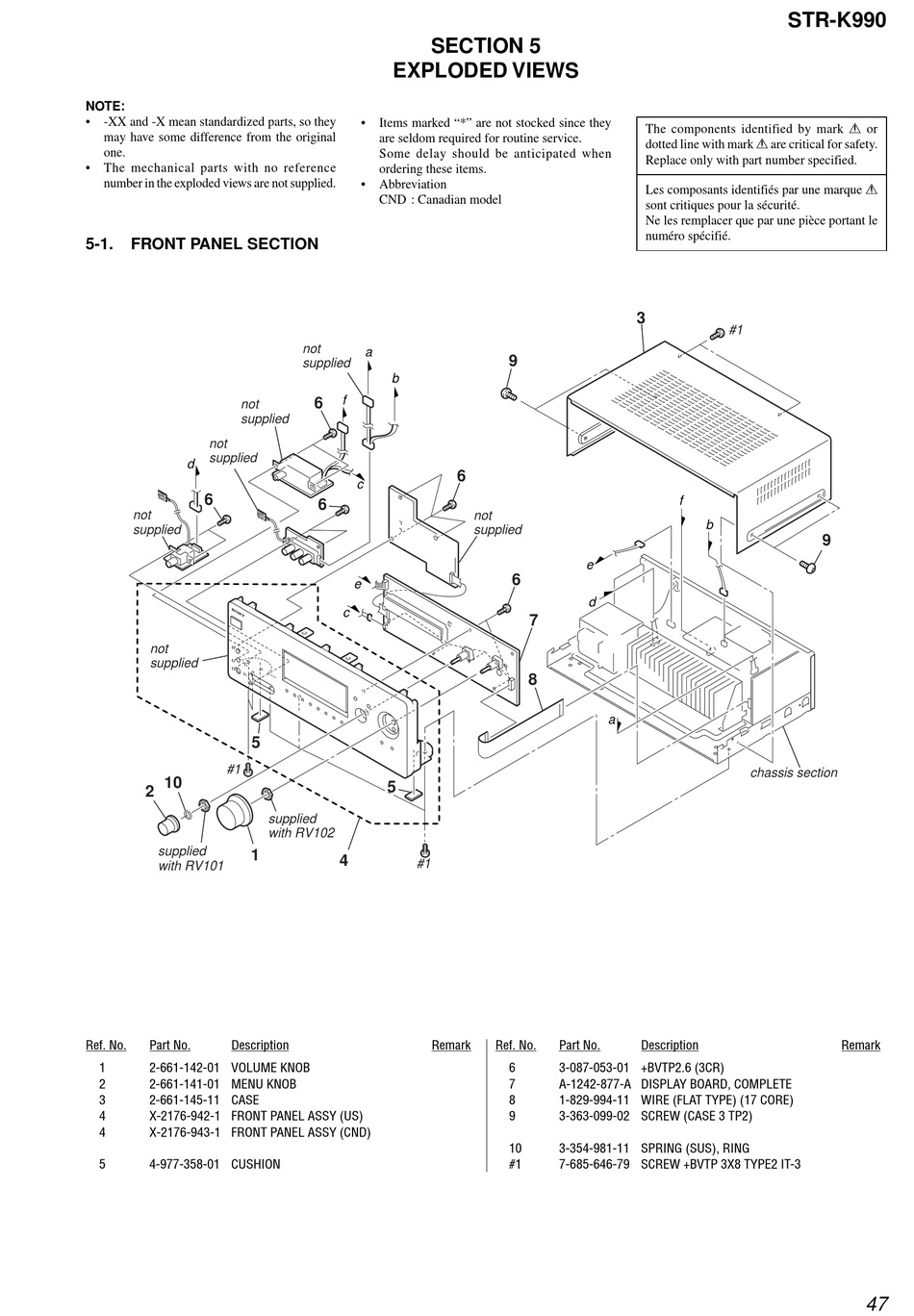

5-1.

FRONT PANEL SECTION

not
supplied
not
supplied
d
6
not
supplied
not
supplied
5
#1
10
2
supplied
1
with RV101
Ref. No. Part No. Description
1 2-661-142-01 VOLUME KNOB
2 2-661-141-01 MENU KNOB
3 2-661-145-11 CASE
4 X-2176-942-1 FRONT PANEL ASSY (US)
4 X-2176-943-1 FRONT PANEL ASSY (CND)
5 4-977-358-01 CUSHION
SECTION 5

EXPLODED VIEWS

• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• Abbreviation
CND : Canadian model
not
a
supplied
b
f
6
c
6
e
c
5
supplied
with RV102
4
#1
Remark
9
6
not
supplied
e
6
d
7
8
a
Ref. No. Part No.
6 3-087-053-01 +BVTP2.6 (3CR)
7 A-1242-877-A DISPLAY BOARD, COMPLETE
8 1-829-994-11 WIRE (FLAT TYPE) (17 CORE)
9 3-363-099-02 SCREW (CASE 3 TP2)
10 3-354-981-11 SPRING (SUS), RING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
STR-K990
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
3
#1
f
b
chassis section
Description
9
Remark
