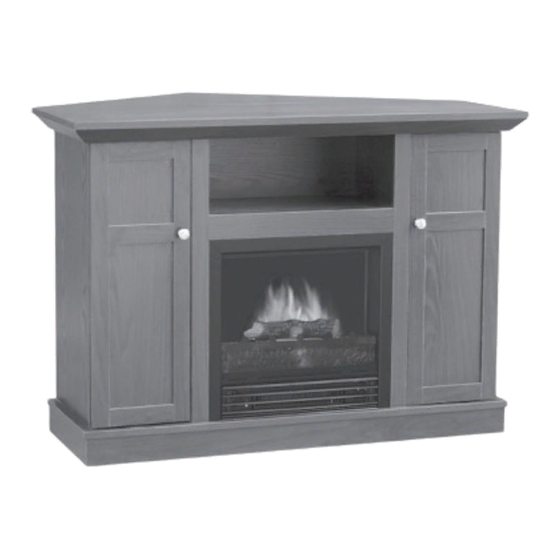

ElEctric FirEplacE HEatEr
Model: SBM902CM-42FDC
iMpOrtaNt:
plEasE NOtE: wHEN yOu OpEN tHE cartON, carEFully cHEck
tHE uNit aNd MakE surE tHErE is NO daMagE. iF yOu HavE aNy
prOblEMs witH assEMbliNg tHE uNit, witH HOw tHE variOus
FuNctiONs wOrk, Or witH daMagE Or HavE MissiNg parts, plEasE
call 1-800-459-4409 (MONday tO Friday, 8:30aM tO 5:00pM, Est)
iMMEdiatEly FOr sErvicE.
NOtE: dO NOt rEturN uNit tO tHE stOrE bEFOrE calliNg tHE tOll
FrEE NuMbEr. dO NOt dispOsE OF yOur packagiNg cartONs uNtil
yOu arE cOMplEtEly satisFiEd witH yOur NEw ElEctric FirEplacE
HEatEr. rEad all iNstructiONs tHOrOugHly bEFOrE OpEratiNg
yOur NEw ElEctric FirEplacE HEatEr.
NOTE: Light bulbs may become loose during shipping. If the flame effect is dim or
does not work, please check that light bulb or bulbs are finger tight in socket. See
instructions for replacing bulb or bulbs.
NOTE: The electric fireplace heater may emit a slight harmless odor when first
turned on. This is caused by activating the internal heater components for the first
time and should not occur again.
INSTRUCTION MANUAL
attENtiON:
1. Find a location for the electric fireplace heater that is protected from
direct sunlight.
2. Do not plug the unit into the power outlet before reading all instructions.

IMPORTANT SAFETY INSTRUCTIONS

wHEN usiNg ElEctrical appliaNcEs, basic prEcautiONs sHOuld
always bE FOllOwEd tO rEducE tHE risk OF FirE, ElEctric sHOck,
aNd iNJury tO pErsONs, iNcludiNg tHE FOllOwiNg:
1) read all instructions before using this electric fireplace heater.
2) this electric fireplace heater is hot when in use. to avoid burns, do not let
bare skin touch hot surfaces. the grill directly in front of the heater outlet
becomes hot during heater operation. keep combustible materials, such
as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9 m) away from the front of the unit and keep them away from the sides
and rear.
3) Extreme caution is necessary when any heater is used by or near children or
individuals with disabilities and whenever the fireplace is left operating
and unattended.
4) always unplug electric fireplace heater when not in use.
5) do not operate any electric fireplace heater with a damaged cord or plug or
after the heater malfunctions, has been dropped or damaged in any manner.
6) do not use outdoors.
7) this electric fireplace heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater where it may fall
into a bathtub or other water container.
8) do not run cord under carpeting. do not cover cord with throw rugs,
runners, or similar coverings. arrange cord away from traffic area and
where it will not be tripped over.
9) to disconnect electric fireplace heater, turn controls to off, then remove
plug from outlet.
10) connect to properly grounded outlets only.
11) do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
12) to prevent a possible fire, do not block air intakes or exhaust in any
manner. do not use on soft surfaces, like a bed, where openings may
become blocked.
13) a heater has hot and arcing or sparking parts inside. do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
14) use this electric fireplace heater only as described in this manual. any other
use not recommended by the manufacturer may cause fire, electric shock,
or injury to persons.
15) avoid the use of an extension cord because the extension cord may overheat
and cause a risk of fire. However, if you have to use an extension cord, the
cord shall be No.16 awg minimum size and rated not less than 1875 watts.
16) caution: do not plug this product into a receptacle controlled by a wall
switch or dimmer.
17) when storing or transporting the unit and cord, keep in a dry place, free
from excessive vibration and store so as to avoid damage.
SAVE THESE INSTRUCTIONS FOR FUTURE USE.
cautiON:
If you use this heater in conjunction with a thermal control, a program controller,
a timer or any other device that switches the heater on automatically, remember
to observe all safety warnings at all times. The fireplace heater has safety
overheat protection. If the overheat protection trips, switch off all buttons and wait
approximately 5 - 10 minutes. It should reset automatically once the unit cools down.
warNiNg:
prOcEdurEs aNd tEcHNiquEs, iF NOt carEFully FOllOwEd, will
rEsult iN daMagE tO tHE EquipMENt aNd will ExpOsE tHE usEr tO
tHE risk OF sEriOus iNJury, illNEss Or dEatH.
tHis ElEctric FirEplacE HEatEr is FOr usE ON 120 vOlts. tHE cOrd
Has a plug as sHOwN at a iN illustratiON bElOw. aN adaptEr as
sHOwN at c is availablE FOr cONNEctiNg tHrEE-bladE grOuNdiNg-
typE plugs tO twO-slOt rEcEptaclEs. tHE grEEN grOuNdiNg plug
ExtENdiNg FrOM tHE adaptEr Must bE cONNEctEd tO a pErMaNENt
grOuNd, sucH as a prOpErly grOuNdEd OutlEt bOx. tHE adaptEr
sHOuld NOt bE usEd iF a tHrEE-slOt grOuNdEd rEcEptaclE is
availablE.
a 15 aMp circuit is rEquirEd tO OpEratE tHis HEatEr. iF tHE
brEakEr trips wHEN tHE HEatEr is usEd, yOu May NEEd tO MOvE tHE
HEatEr tO aNOtHEr lOcatiON Or uNplug OtHEr appliaNcEs tHat
arE ON tHE saME circuit. iF yOu rEquirE aN ExtENsiON cOrd, usE
ONE tHat is ratEd at 1875 watts.
1
