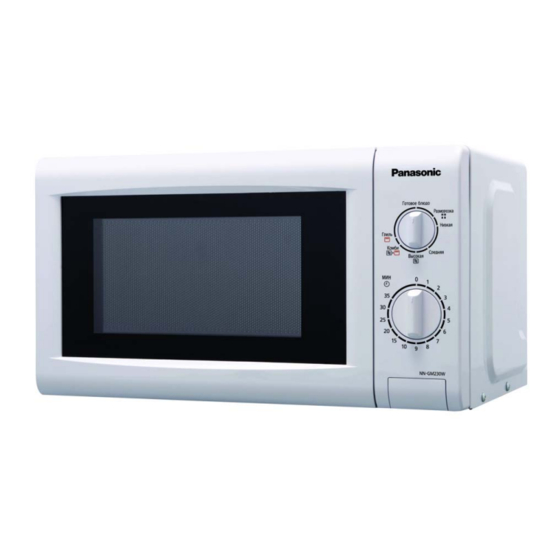

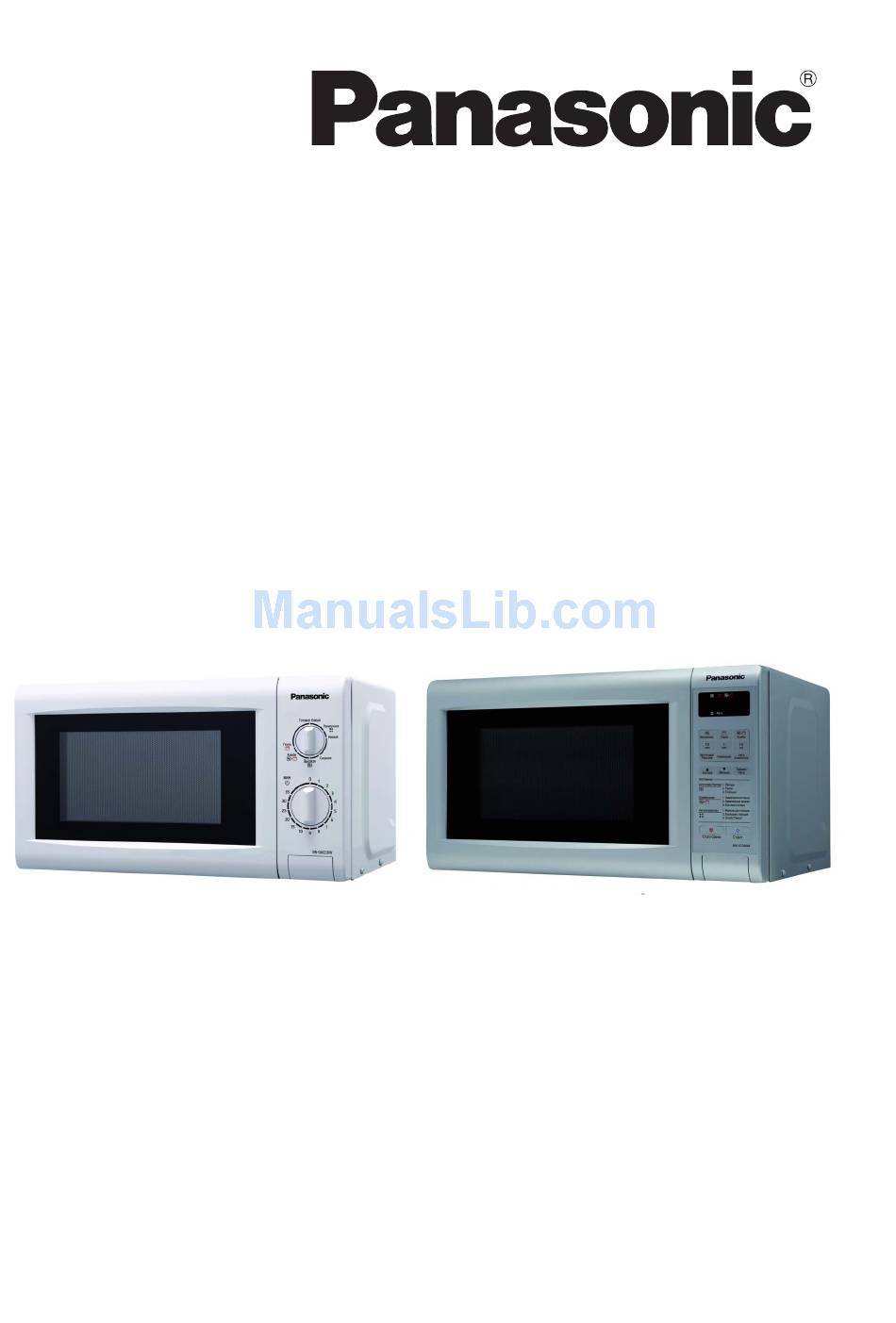

Operating Instructions Инструкция по использованию Інструкція з експлуатації Microwave/Grill Oven Микроволновая печь с грилем Мікрохвильова піч з грилем NN-GT261W Model No: NN-GM231W For domestic use only Только для домашнего использования Побутового призначення Before operating this oven, please read these instructions completely and keep for future reference.
Parts of your oven Control Panels General Guidelines 11-12 Containers to use 13-14 Microwave Cooking and Defrosting NN-GM231W Setting the Clock/Timer/Child Safety Lock NN-GT261W Microwave Cooking and Defrosting NN-GT261W Grilling Combination Cooking Auto Weight Defrosting NN-GT261W Defrosting Guidelines Defrosting Charts...
Installation and Connection 3. For proper operation, ensure a sufficient air Examine your microwave oven circulation for the oven. Unpack the oven, remove all packing material, Counter-top use: and examine the oven for any damage such as Allow 15 cm of space on the top of dents, broken door latches or cracks in the the oven, 10 cm at the back, 5 cm on door.
Page 5
Installation and Connection Attention! WARNING Important Safety Instructions This product is designed to plug to AC power outlet with (the third) safety earth wire. For your safety, do 1. The door seals and seal areas should be not ignore that safety earth wire, because in such case cleaned with a damp cloth.
Safety Instructions Use of your oven Accessories 1. Do not use the oven for any reason other The oven comes equipped with a variety than the preparation of food. This oven is of accessories. Always follow directions given for use of specifically designed to heat or cook food.
1.Service VICING call WHEN YOUR OVEN REQUIRES SER your local Panasonic engineer (Customer Support). It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives...
Important Information – Read Carefully Safety Christmas Pudding. If smoke or a fire occurs in the oven, press Christmas puddings and other foods high in Stop/Cancel pad or turn TIMER Dial fats or sugar, eg. jam, mince pies, must not back to zero position and leave the door closed be over heated.
Page 9
Important Information – Read Carefully Meat Thermometer. Keeping Your Oven Clean. Use a meat thermometer to check the It is essential for the safe operation of the degree of cooking of joints and poultry only oven that it is wiped out regularly. Use when meat has been removed from the warm soapy water, squeeze the cloth out microwave.
Microwaving Principles Important Notes The dish used to cook or Microwave energy has been used in this country to cook and reheat the food will get reheat food since early experiments with radar in World War II. warm during cooking, as the Microwaves are present in the atmosphere all the time, both heat conducts from the naturally and from manmade sources.
1. The Roller Ring and oven cooking process without cancelling the floor should be cleaned program. frequently to prevent For NN-GT261W excessive noise. Cooking resumes as soon as the door is closed 2. The Roller Ring must always and start is pressed.
(6) Auto Weight Microwave Programs Grill Setting (7) Auto Weight Combination Programs (8) Auto Weight Defrost Pad Beep Sound (NN-GT261W only): (9) Timer /Clock Pad When a pad is touched correctly a beep will be (10) Weight Selection Pads heard. If a pad is touched and no beep is...
General Guidelines STANDING TIME PIERCING Dense foods e.g. meat, jacket potatoes and cakes, require standing time (inside or outside of the oven) after cook ing, to allow heat to finish con ducting to the centre of the food to cook through completely. Wrap meat joints and jacket potatoes in aluminium foil while standing.
Page 14
General Guidelines CHECKING FOOD SHAPE Even shapes cook evenly. Food cooks better by microwave when in a round container rather than square. It is essential that food is checked during and after a recommended cooking time, even if an AUTO PROGRAM has been used (just as you would check food cooked in a conven tional STARTING TEMPERATURE oven).
Containers to use Choosing the correct container is a very important factor in deciding the success or failure of your cooking. Testing Dishes for Suitability When unsure that a cooking Result con tainer is suitable for use If the dish is suitable for in your microwave, check by micro waving, it will remain the follow ing test:...
Page 16
Containers to use PLASTIC Many plastic containers are designed for microwave use. Only use Tupperware ® containers if they are designed for microwave use. Do not use Melamine as it will scorch. Do not use plastic for cooking foods high in sugar or fat or foods that require long cooking times e.g.
Microwave Cooking and Defrosting for NN-GM231W The glass turntable must always be in position when using the oven. Wattage High Medium 360 Watts 250 Watts Defrost 270 Watts • Turn dial to select • Set cooking time by turning power level. dial.
Setting the Clock for NN-GT261W When the oven is first plugged in “88:88” appears in display window. eg. 11.25pm Press five times Press eleven times (to set 1 mins.) (to set hours) Press twice (to set 10 mins.) • Press •...
Microwave Cooking and Defrosting for NN-GT260 The glass turntable must always be in position when using the oven. Wattage 800 Watts High 1 Press 270 Watts Defrost 2 Presses 700 Watts Medium 3 Presses С т а р т 360 Watts 4 Presses 250 Watts 5 Presses...
After turning, return food to the oven and close door. For NN-GM231W grill mode will restart when the oven door is closed. For NN-GT261W after closing oven door, press START. The oven display will continue to count down the remaining grilling time. It is quite safe to open the oven door at any time to check the progress of the food as it is grilling.
Combination Cooking For NN-GM231W • Set cooking mode selection dial to • Set cooking time by turning timer dial. If combination position door is already closed cooking time will begin immediately. For NN-GT260 • Press • Select cooking time. Time •...
Auto Weight Defrost for NN-GT261W This feature allows you to defrost bread, meat items and joints of meat automatically once you have entered in the weight of the food. С т а р т • Select desired program. • Set Weight using the •...
Defrosting Guidelines For Best Results: 1. Place foods in a suitable container. Meat joints and chickens should be placed on an upturned saucer or on a plastic rack if you have one. 2. Check food during defrosting, as foods vary in their defrosting speed. 3.
For larger quantities adjust times accordingly. Food should not be covered during defrosting. Defrosting Time per 450g (1lb) Standing Meat Method Time NN-GT261W NN-GM231W Place in a suitable dish or on an Beef/Lamb/Pork 10-12 mins. 7-9 mins. upturned saucer or use a rack. Turn 60 mins. Joint 450g (1lb) 3-4 times.
Auto Weight Cook/Reheat Programs for NN-GT261W This feature allows you to cook or reheat foods by setting the weight only. The oven determines the microwave power level and / or combination level then the cooking time automatically. Select the category of food and then just enter the weight. The weight is entered in grams.
Page 26
Auto Weight Cook/Reheat Programs Fresh Vegetables 200g - 800g To cook fresh vegetables eg. carrots, cauliflower, not suitable for potatoes. Place prepared vegetables into a shallow container on turntable. Add 15ml (1 tbsp) of water per 100g of vegetables. Cover with pierced cling film or lid. Select program (1 presses of pad), enter weight, press start.
Page 27
Auto Weight Cook/Reheat Programs Frozen Pizza 150g - 400g For reheating and browning the top of frozen (NOT Fresh) purchased pizza. Remove all packaging and place the pizza on Wire Rack on Glass Tray. Frozen Lasagna 200g and 400g program is suitable for frozenlasagne, cannelloni, potato topped dishes, pasta bakes. This For reheating, browning and crisping the top of pre-cooked frozen lasagna.
Cooking and Reheating Guidelines Most foods reheat very quickly in your oven by HIGH power. MINCE PIES - CAUTION Meals can be brought back to serving temperature in just REMEMBER even if the pastry is minutes and will taste freshly cooked and NOT leftover. cold to the touch, the filling will be Always check food is piping hot and return to oven if piping hot and will warm the...
Do not cover. If using grill mode, use HIGH 15 secs. heatproof plate. Grill GT261 ⁄ mins. Grill GM231 1-2 mins. For NN-GT261W use grill level 1 Rolls (High Grill). HIGH 25-35 secs. Grill GT261 3-4 mins. 2-3 mins. Grill GM231...
Page 30
Reheating Charts Weight/ Power Time to Food Instructions/Guidelines Quantity Level Select (approx) PASTRY PRODUCTS - PRECOOKED - N.B. Pastries reheated by microwave will have a soft base. HIGH 1 min40 secs-2mins Combi* GT261 4-5 mins. Cornish Pasty 255 g (1) Combi* GM231 7-8 mins.
Reheating Charts Weight/ Power Time to Food Instructions/Guidelines Quantity Level Select (approx) PURCHASED CONVENIENCE FOODS - FROZEN N.B. Transfer food from foil container to a similar sized microwave safe dish. Plastic dishes designed for microwave and conventional ovens may be used with care.
Page 32
Cooking Charts Weight/ Power Time to Food Instructions/Guidelines Quantity Level Select (approx) CHICKEN from raw – Caution: Hot fat! Remove dish with care. Place on microwave safe rack or plate. 18-20 mins. Cover and place on turntable. Quarters 552 g (2) 16-20 mins.
Page 33
Cooking Charts Weight/ Power Time to Food Instructions/Guidelines Quantity Level Select (approx) PIZZA – FRESH CHILLED – N.B. Remove all packaging. Pizzas will have a soft base. HIGH ⁄ ⁄ 3 -4 mins. Place on heatproof plate on turntable. Thin & Crispy 370 g 10-12 mins.
Page 34
Cooking Charts Weight/ Power Time to Food Instructions/Guidelines Quantity Level Select (approx) FRESH VEGETABLES – Place in shallow microwave safe dish. Green Beans 450 g HIGH 6-7 mins. Beetroot 250 g HIGH 8 -10 mins. ⁄ ⁄ Broccoli + Cauliflower - florets 450 g HIGH 7 mins.
Before Requesting Service ALL THESE THINGS ARE NORMAL: The oven causes interference Some radio and TV interference might occur when you cook with with my TV. the microwave oven. This interference is similar to the interference caused by small such as mixers, vacuums, hair dryers, etc. It does not indicate a problem oven.
Care of your Microwave Oven 1. Turn the oven off and remove the power plug 6. It is occasionally necessary to remove the glass from the wall socket before cleaning. tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher 2.
Page 52
NN-GM231W 360 B 250 B Готовое блюдо 270 B NN-GM231W . 22. Rus-15...
Page 53
NN-GT261W "88.88" . 11:25 таймер / часы / 10 1-3. =14:00. NN-GT261W С т а р т • • • NN-GT261W CHILD LOCK С т а р т С т о п / С б р о с "L---". Rus-16...
Page 54
NN-GT261W С т а р т Нажмите кнопку соответствующее число раз: 1 нажатие - Высокая мощность 8 00Вт 2 - Режим Разморозки 270Вт 3 - Средняя мощность - 700Вт 4 - Низкая мощность 360Вт 5 - Нагрев для поддержания блюда теплым 250Вт...
Page 55
NN-GM231W NN-GT261W С т а р т Нажмите кнопку соответствующее число раз . NN-GM231W NN-GT261W NN-GM231W: Rus-18...
Page 56
NN-GM231W NN-GT261W С т а р т . (1,2,3) – Некоторые – NN-GM231W : Rus-19...
Page 57
NN-GT261W С т а р т 200 -1000 600 -1600 100 -600 . 22. . 22. Rus-20...
Page 64
меняться - во 25-35 35-55 G T261 2 ½ NN-GM231 1 - 2 NN-GT261W Высокую мощность гриля. 25-35 GT261 NN-GM23 2 ½ - 3 4 ½ 3 - 3 ½ 3 - 3 ½ 2 ½ с Rus-27...
Page 65
- во 255 (1) GT261 GM231 250 (1) 260 (4) 2 - 3 ½ ½ 400 (4) GT261 13-14 GM231 2 ½ - 3 200 ( GT261 5 ½ - 6 GM231 90 (2) 10-20 2 ½ 3 -3 ½ GT261 3½...
Page 66
- во 5½ 23-24 2 - 3½ ½ или ВЫСОКИЙ GT261 ВЫСОКИЙ GM231 18-20 + Комби * 20-23 GM231 23-25 GT261 - во – 2½ - 3 130 (4) 50-60 8½ 35-40 12-15 + НИЗКИЙ 40-42 11-14 11-13 18-20 GT261* 19-20 GM231 12-14...
Page 67
Уровень мощности - во 18-20 552 (2) * GT261 16-20 Комби* GM231 22-23 10-12 4½ -6 – ½ ½ 380 (4 ) 4 -5 4½-6 450 (2 ) 170 (1 ) 4½-6 7 - 8½ 400 (4) 10½-11 ½ 10-10½ комбинированный...
Page 68
- во 3 -4 ½ ½ Комби* GT261 10-12 Комби* GM231 4½-7 10-12 NN-GM231. 360 (2) + НИЗКИЙ Поместите на решетку для гриля , поставьте под ней жаропрочную 17-18 тарелку. Переверните по истечении половины времени приготовления. ½ ½ 4 -5 2 ½...
Page 69
- во 8 -10 ½ ½ 5½-6 ½ ½ 3 -4 5½-6 5½ (225 ½ ½ 8 -9 9 -10 ½ ½ Rus-32...
Page 78
’ 23-24 ’ до готовності, двічі тривалого Uk-6...
Page 79
– ’ ’ ’ ’ Під час розігрівання придатні . 13-14. ’ . 26. 72°, ’ залишити – . 22. Uk-7...
Page 80
’ Розетка, захищена 13-амперним запобіжником Мікро х вильовий магнетрона хвилевід Поворотний стіл Віддзеркален ня крізь ’ розігрівання готових страв . 11) Uk-8...
Page 81
– Шнур живлення дверцят Дисплей Панель керування Наклейка з ідентифікаційним номером для печі щоб із Uk-9...
Page 82
NN-GM231W NN-GT261W Ав т о Ми к р о в о л ны Г р и л ь К омб и ми н ми н с е к Ав т ог о т ов к а/ Ав т о К омб и н а ц и я...
Page 83
Час витримки ’ ’ ’ 10-15 – 5 . 21. обережні Більшість свіжих продуктів, таких як овочі та фрукти, дуже відрізняються за вмістом вологи залежно від сезону, наприклад, картопля. Тому залежно від сезону час готування слід регулювати. Сухі продукти, такі як рис та макарони, можуть...
Page 94
’ NN-GM 231W ) NN-GT261W 10 -12 решітку 3-4 рази переверніть та розділіть на дрібніші 9 10 частини під час розморожування. . 15 Два рази переверніть під час розморожування . У разі необхідності накрийте фольгою . 15 9 10 Ціла курка...
Page 95
NN-GT261W Перед подачею на стіл переконайтесь, що їжа готова. Uk-23...
Page 98
Щоб уникнути . 2 - 7 32 ’ ’ ’ . ’ 210-240 30-50 15-20 Uk-26...
Page 99
початкової Страви Вага/ Режим готування Час Рекомендації Кількість (приблизний) ХЛІБ. УВАГА! Хліб, розігрітий у мікрохвильовій печі буде дуже м’яким всередині. ВИСОКИЙ 25-35 сек. Покладіть у відповідний посуд, поставте на або ГРИЛЬ 3-4 хв. Круасани поворотний стіл. Не ВИСОКИЙ 35-55 сек. накривайте.
Page 100
Розігрівання їжі з урахуванням ваги та часу Страви Вага/ Режим готування Час (приблизний) Рекомендації Кількість ГОТОВІ ВИРОБИ З ТІСТА. УВАГА! ВИСОКИЙ хв сек хв Покладіть у відповідний Корнуольські 225 г (1) КОМБІНОВАНИЙ* GT261 4-5 хв. посуд, поставте на пиріжки поворотний стіл. Не КОМБІНОВАНИЙ...
Page 101
Страви Вага/ Режим готування Час Рекомендації Кількість (приблизний) ГОТОВІ КУПЛЕНІ СТРАВИ – ЗАМОРОЖЕНІ. УВАГА! Якщо їжа знаходиться у контейнері з фольги, вийміть її та покладіть у посуд, придатний до використання у мікрохвильовій печі. хв. 5½ ВИСОКИЙ + витримка 1 хв. Лазанья...
Page 102
СВІЖА КУРКА. УВАГА! Гарячий жир! Обережно виймайте їжу з печі. Покладіть у відповідний НИЗЬКИЙ 11-13 хв. посуд. Накрийте та поставте на поворотний стіл. Покладіть на решітку або КОМБІНОВАНИЙ* Філе 450 г (2) 18-20 хв. перевернуте блюдо. GT261 Переверніть після першої КОМБІНОВАНИЙ* половини...
Page 103
ОМЛЕТ. • Додайте 1 сл. л. молока на ВИСОКИЙ сек. кожне використане яйце. • Збийте яйця, молоко та 1 яйце невелику кількість ВИСОКИЙ 20 сек. вершкового масла. • Готуйте протягом першої стадії готування, а потім ВИСОКИЙ сек. перемішайте. 2яйця • Готуйте протягом другої стадії...
Page 104
Вага/ Страви Режим готування Час (приблизний) Рекомендації Кількість ЗАМОРОЖЕНА ПІЦА. УВАГА! Повністю зніміть упаковку. Піца може мати м’яку основу. ВИСОКИЙ 3½ 4½ хв . КОМБІНОВАНИЙ* Покладіть у термостійкий 10-12 хв. Тонка та хрустка 370 г GT261 посуд на поворотний стіл. Не...
Page 105
Покладіть у відповідний посуд або на решітку. ВИСОКИЙ 2-2½ хв. Накрийте та поставте на поворотний стіл. Покладіть на решітку з КОМБІНОВАНИЙ* Тонкі 110 г (4) 15-16 хв. розташованим під нею GT260 термостійким блюдом. Переверніть після першої КОМБІНОВАНИЙ* 13-14 хв. половини часу, відведеного GМ230 на...
Page 108
Panasonic : +38-0-(44) 490-38-98 : 0-800-309-880 Декларація про Відповідність Вимогам Технічного Регламенту Обмеження Використання деяких Небезпечних Речовин в електричному та електронному обладнанні (затвердженого Постановою №1057 Кабінету Міністрів України) Виріб відповідає вимогам Технічного Регламенту Обмеження Використання деяких Небезпечних Речовин в електричному та електронному обладнанні (ТР ОВНР).
Page 109
дорівнює 7 рокам з дати виготовлення за умови, що виріб використо вується Термін служби у суворій відповідності до дійсної інструкції з експлуатації та технічних стандартів, що застосовуються до цього виробу. Декларацію про відповідність можна переглянути на http://service.panasonic.ua у розділі «Документи» Виробник: Panasonic Corporation Панасонік Корпорейшн...
