DESCRIPTION
• Metal construction with chrome plating, chrome with LifeShine
brass accents or platinum finish
• Includes showerhead, arm and flange
OPERATION
• Lever style handle
• Handle operates counterclockwise through a 270˚ arc with off at
6 o'clock and maximum hot at the 9 o'clock position. Shut off in
clockwise direction
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3˚
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min) Max
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to: CSA B-125, ASME A112.18.1M and ANSI A117.1,
ASSE 1016, and all applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
7" (178mm)
ESC. DIAM.
Rev. 8/06
2" CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
4-1/2"
(114mm)
DIRECTION
OF HANDLE
ROTATION
2-13/16" C.C.
(72mm)
FLOOR LINE
THICK WALL APPLICATION

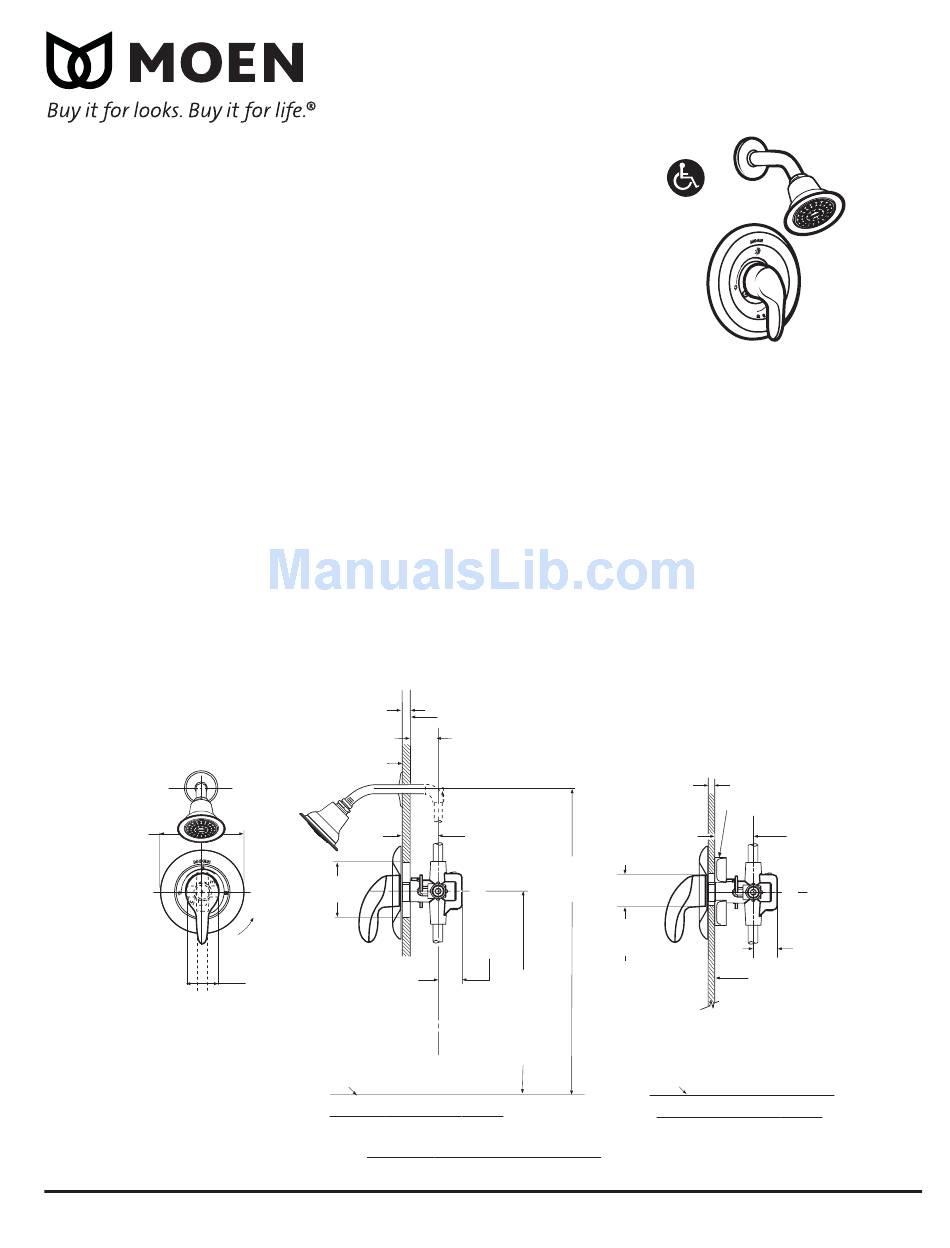

CRITICAL DIMENSIONS
S p e c i f i c a t i o n s
ADA
®
polished
Single-Handle Shower Only Trim Kit
Models: TL2302, TL2302CP, TL2302PM
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN IPS (16mm)
2-1/2" MAX.
(63mm)
6'-6"
(1981mm)
C L
NOMINAL
DIAMETER
WALL
1-3/8"
OPENING
(35mm)
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
SHOWER
45" (1143mm)/
48" (1219mm)
32" (813mm)
TUB/SHOWER
AND TUB ONLY
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
Villeta
™
Posi-Temp
(Packed 1 per carton)
Discontinued Models:
TL2392, TL2392CP, TL2392P,
TL2392PM, TL2392W, TL2302W,
TL2302ST, TL2302P
3/16"(typ) (5mm)
PLASTER GROUND
1-1/2"
(38mm)
L C
1-3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
FLOOR LINE
THIN WALL APPLICATION
www.moen.com
®
