GEAppliances JGP320EV Dimension Manual

GE Appliances
JGP320EV—Built-In Gas Cooktop

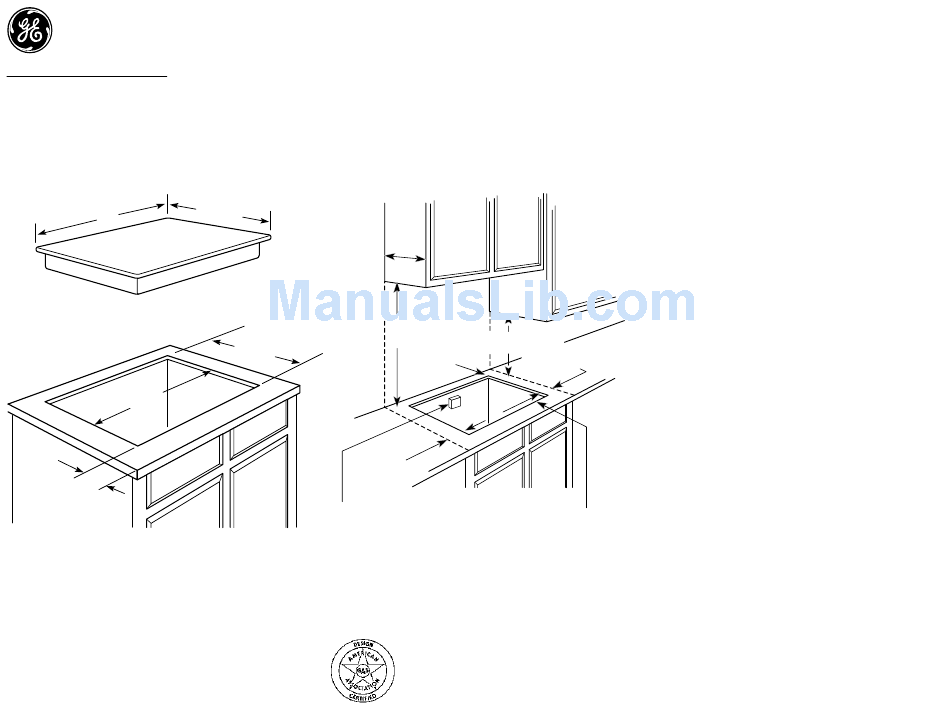

Dimensions (in inches)
30-1/4
Cooktop
28-1/2
3-1/4
Revised 3/96
Counter Installation Dimensions (in inches)
21-1/4
19-1/2
3" MIN.
clearance to
side wall
Electrical junction
box 12" MIN.
below countertop
For answers to your GE appliance questions, call
GE Answer Center
13" MAX.
depth
30" MIN. to
unprotected
18" MIN.
cabinet
to cabinet 3" MIN.
clearance to
1-3/4" to
side wall
rear wall
Note: Allow 5-3/4" depth
at rear for electrical
and gas connections.
® service, 800.626.2000.
AGA Requirement: All gas cooktop models required 3-1/2"
free area below countertop surface to combustible material.
Requires 18" minimum from cooktop to adjacent overhead
cabinets.
Note: If installing a gas sealed burner model with a GE
Telescopic Downdraft System, consult both cooktop and
downdraft installation instructions packed with product
before installing. Cooktop gas/electric supply may needs
to be re-routed to install downdraft.
Electrical Rating: 120V, 60Hz, 5A
Installation With Single Wall Oven Information:
30" Gas Cooktops are approved for use over select GE 27"
Wall Ovens. 30" and 36" Gas Cooktops are approved for use
over select 30" Wall Ovens. Refer to cooktop and wall oven
installation instructions, [Pub. No. 31-10167 (JKP18AV/17WV/
16GV/15AV/14WV/13GV/ JKS05GV); Pub. No. 31-10125
(JTP18AV/17WV/16GV/14WV/13GV)] packed with product for
current dimensional data.
Installation Information: Before installing, consult
Cut should
not interfere
installation instructions packed with product for current
with cabinet
dimensional data.
structure at
front
