Moen Muirfield 84000 Series Specifications

DESCRIPTION
• Metal construction with various finishes identified by suffix
• 1/2" IPS connections
• Includes pop-up type waste assembly
OPERATION
• Pivot action lever style handle
• Temperature controlled through 180˚ degree arc
of handle travel
FLOW
• Aerator is limited to 1.5 gpm (5.7 L/min)
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel material
• Can accommodate reversed piping and back to back
installations
STANDARDS
• Third party certified to meet: CSA B-125.1, ASME A112.18.1,
ICC 117.1 and all applicable requirements referenced therein
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
• for lever handle
ADA
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
7-5/8"
(193mm)
Lift
Rod
4-1/2"
(114mm)
6-1/8"
(154mm)
CRITICAL DIMENSIONS
S p e c i f i c a t i o n s

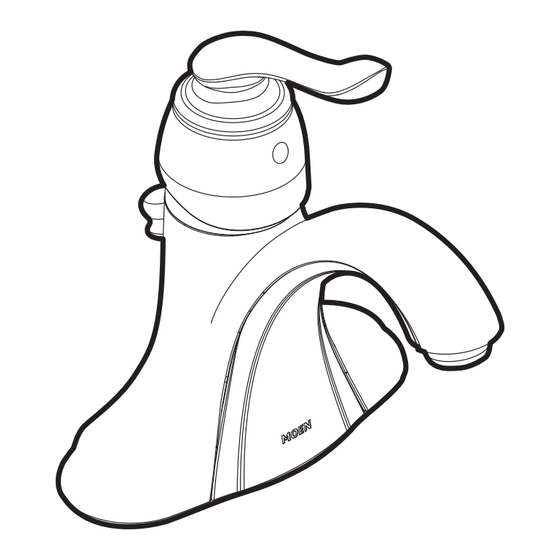

Single-Handle Lavatory Faucet
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3-1" DIA. HOLES, 4" ON CENTER
4-1/2"
(114mm)
5-1/8"
(129mm)
3-1/2"
(89mm)
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
™
MUIRFIELD
with Plastic Waste Assembly
Model: 84000 series
www.moen.com
