DESCRIPTION
•
Metal construction with various finishes identified by suffix
•
Use with io Digital valve 4994 and spout shank 4998
OPERATION
•
Digital Thermostatic control
•
Digital control dial controls temperature with LED indicators
•
Digital control dial controls the flow rate with LED indicators
8-1/8"
( 206 mm )
•
Digital on/off button
5-1/2"
( 139 mm )
•
Digital safety lock
•
3 digital presets for custom water level and temperature control
•
Hot top off (optional remote required for this function)
•
Temperature range adjustment from 60 degrees F to 120 degrees F (16
2-3/8"
degrees C to 49 degrees C). Factory maximum setting is 115 degrees
( 60 mm )
(46 degrees C)
6-5/8"
•
Remote (optional) uses RF technology and has a 30' (9.2m) range
MIN.
( 168 mm )
depending on intermediary structures
STANDARDS
•
Third party certified to meet ASME A112.18.1/CSA B-125.1, CSA B125.3,
ASSE1070 and all applicable requirements referenced therein
•
Digital controller third party certified to meet UL1951
•
Digital controller and Remote control third party certified to meet FCC
part 15
WARRANTY
•
Lifetime limited warranty against finish defects to the original consumer
purchaser. 5 year warranty against finish defects in commercial
installations
•
5 year warranty against leaks, drips and operation defects
to the original consumer purchaser
•
1 year warranty against leaks, drips and operation defects if used in
commercial installations
1-13/16"
( 46 mm )
2-3/4"
( 70 mm )
DATA CABLE ( 30' ) ( 9.2 m )
NOTE: THE INSTALLATION SHOWN IS FOR TILE DECKS, THIS VALVE WILL ALSO FIT STEEL, CAST IRON OR PLASTIC DECKS
Rev. 2/09
9"
( 228 mm )
MOUNT THRU
1-3/8" ( 35 mm ) HOLE
3" ( 76 mm ) MAX
ROUGH - IN DECK
THICKNESS
4-3/8"
( 111 mm )
7-5/16"
( 186 mm )
2-3/8"
( 60 mm )

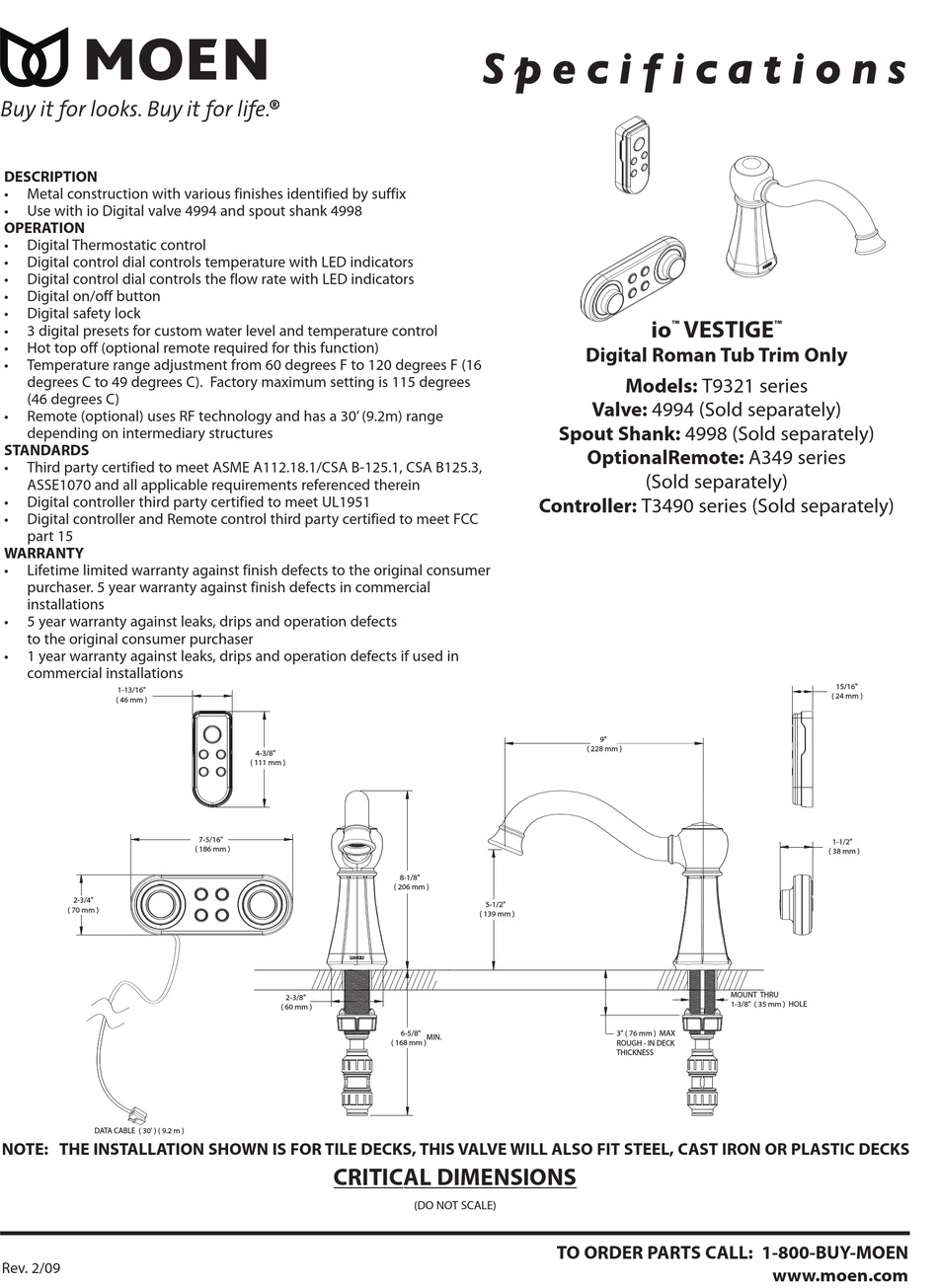

CRITICAL DIMENSIONS
15/16"
( 24 mm )
1-1/2"
( 38 mm )
Spout Shank: 4998 (Sold separately)
Controller: T3490 series (Sold separately)
8-1/8"
( 206 mm )
5-1/2"
( 139 mm )
6-5/8"
MIN.
( 168 mm )
(DO NOT SCALE)
TO ORDER PARTS CALL: 1-800-BUY-MOEN
io
™
VESTIGE
Digital Roman Tub Trim Only
Models: T9321 series
Valve: 4994 (Sold separately)
OptionalRemote: A349 series
(Sold separately)
9"
( 228 mm )
MOUNT THRU
1-3/8" ( 35 mm ) HOLE
3" ( 76 mm ) MAX
ROUGH - IN DECK
THICKNESS
™
15/16"
( 24 mm )
1-1/2"
( 38 mm )
www.moen.com
