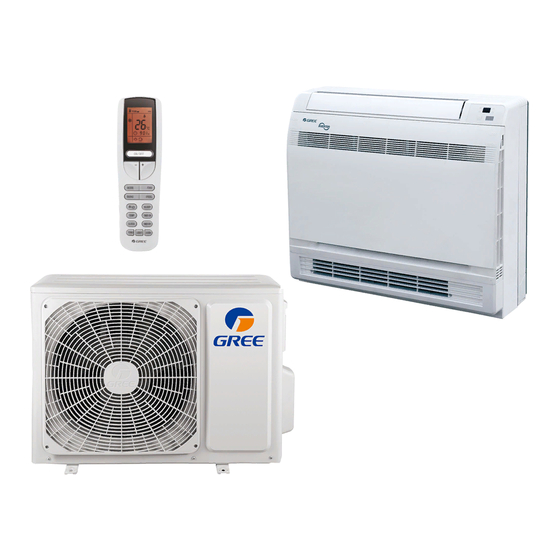

Change for Life Console Type Air Conditioner Owner's Manual Residential Air Conditioners MODEL: GEH09AA-K3DNA1A GEH12AA-K3DNA1A GEH18AA-K3DNA1A Thank you for choosing Residential Air Conditioners,please read this owner’s manual carefully before operation and retain it for future reference. -
Page 2: Table Of Contents
Con tents OPERATION INSTRUCTIONS Part names and their functions ......................1 How to use the remote control to operate the unit ................2 Maintenance ............................7 Operating guide ..........................10 Precautions ............................12 Checking before contact the service man ..................13 INSTALLATION INSTRUCTIONS Installation of indoor unit ........................ -
Page 3: Operation Instructions
Part names and their functions OPERATION INSTRUCTIONS INDOOR UNIT CAUTION Before opening the front panel, be sure to Air outlet selection switch stop the operation and turn the breaker OFF. Do not touch the metal parts on the inside This setting blows air from •... -
Page 4: How To Use The Remote Control To Operate The Unit
How to use the remote control to operate the unit OPERATION INSTRUCTIONS Remote Controller Description ON/OFF Press it to start or stop operation. : Press it to decrease temperature setting. : Press it to increase temperature setting. MODE Press it to select operation mode (AUTO/COOL/DRY/FAN/HEAT). - Page 5 How to use the remote control to operate the unit OPERATION INSTRUCTIONS Remote Controller Description ON/OFF : Press this button to turn on the unit .Press this button again to turn off the unit. Press this button to decrease set temperature. Holding it down above 2 seconds rapidly decreases set temperature.
- Page 6 How to use the remote control to operate the unit OPERATION INSTRUCTIONS ress this button to achieve the on and off of healthy and scavenging functions in operation status. Press this button for the first time to start scavenging function; LCD displays“...
- Page 7 How to use the remote control to operate the unit OPERATION INSTRUCTIONS QUIET: Press this button, the Quiet status is under the Auto Quiet mode (display " " and "Auto" signal) and Quiet mode (display " " singal) and Quiet OFF (there is no signal of " "...
- Page 8 How to use the remote control to operate the unit OPERATION INSTRUCTIONS Combination of "MODE " and "-" buttons : About switch between Fahrenheit and centigrade " " " - " At unit OFF, press MODE buttons simultaneously to switch between ℉...
-
Page 9: Maintenance
Maintenance OPERATION INSTRUCTIONS Before inspection and maintenance of the unit. PLEASE set power switch to “OFF” to cut off the power supply. Units ● Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. ● Front panel Open the front panel. -
Page 10: Titanium Apatite Photocatalytic
Maintenance OPERATION INSTRUCTIONS Titanium Apatite Photocatalytic 4. Clean or replace each filter. Air-Purifying Filter See figure. Air filter 5. Set the air filter and Titanium Apatite Photocatalytic Air-Purifying Filter as they were and close the front panel. • Operation without air filters may result in troubles as dust will accumulate inside the indoor unit. -
Page 11: Before A Long Idle Period
Maintenance OPERATION INSTRUCTIONS Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. •... -
Page 12: Operating Guide
Operating guide OPERATION INSTRUCTIONS Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0... - Page 13 Operating guide OPERATION INSTRUCTIONS...
-
Page 14: Precautions
Precautions OPERATION INSTRUCTIONS... -
Page 15: Checking Before Contact The Service Man
Checking before contact the service man OPERATION INSTRUCTIONS PROBLEM CAUSES...
