Moen 84502 Specifications

DESCRIPTION
• Metal construction with a chrome plated finish
• 1/2" IPS connections
OPERATION
• Pivot action knob style handle
• Temperature controlled through 180˚ degree arc
of handle travel
FLOW
• Aerator is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel material
• Can accommodate reversed piping and back to
back installations
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M and all applicable requirements
referenced therein and complies with the applicable
requirements of ANSI A117.1
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
DECK PLATE
1-3/4"
(45mm)
MAX.
1/2" IPS
ADAPTER
ESCUTCHEON WIDTH
TOP OF
MOUNTING
SURFACE
Lift
Rod
2" 2"
(25mm)
(25mm)
6-1/8" (156mm)

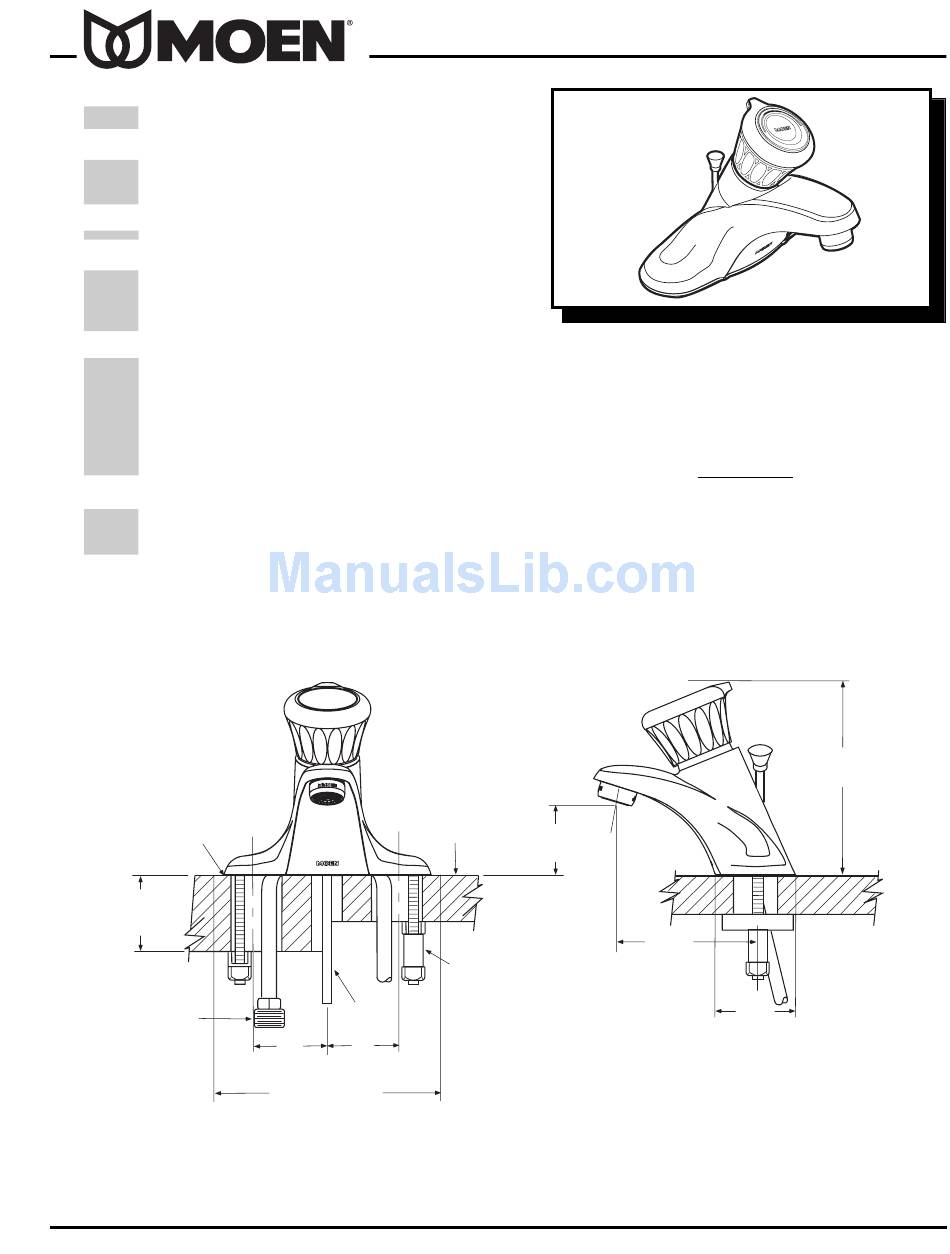

CRITICAL DIMENSIONS
Single-Handle Lavatory Faucet
with Plastic Waste Assembly
NOTE: See reverse side for illustrated parts
NOTE:
INSTALLED THRU 3-1" DIA. HOLES, 2" ON CENTER
2"
(51mm)
SPACER
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
MORE THAN
3/4" THICK
(DO NOT SCALE)

Specifications

Model: 84502
Less Waste
Model: 84500
THIS FAUCET IS DESIGNED TO BE
5-1/8" (130mm)
4-3/8"
(111mm)
2"
(51mm)
ESC.
WIDTH
