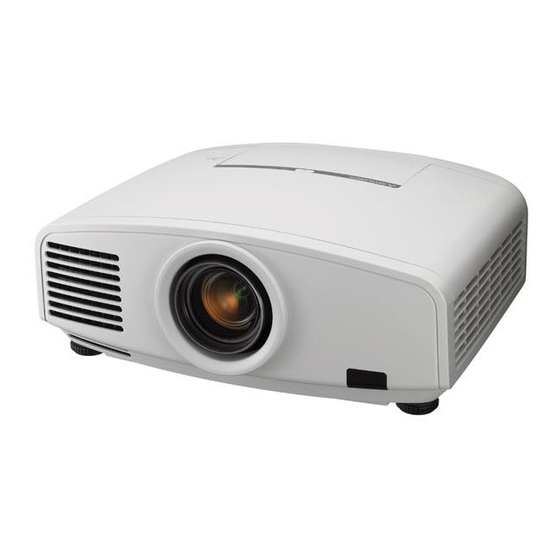

- Page 1 DLP™ PROJECTOR MODEL XD2000U XD1000U User Manual XD2000 XD1000 This User Manual is important to you. Please read it before using your projector.
- Page 2 RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE: SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. WARNING Use the attached specifi ed power supply cord. If you use another power-supply cord, it may cause interference with radio and television reception.
-
Page 3: Table Of Contents
Contents Important safeguards ...4 Preparing your projector ...6 Using the remote control ...9 Setting up your projector ...10 Viewing computer images ...13 Viewing video images ...17 Menu operation ...22 Adjusting projected images ...25 Advanced features ...28 Replacing the lamp ...32 Troubleshooting ...34... -
Page 4: Important Safeguards
fi re, electric shock or other personal injury. 7. Water and moisture Do not use this projector near water or in contact with water. 8. Accessories Do not place this projector on an unstable cart, stand, tripod, bracket or table. - Page 5 Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It might cause fi re or electric shock. In this case, unplug immediately and contact your dealer.
-
Page 6: Preparing Your Projector
Preparing your projector Checking accessories The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package. Cables USB 4 -pin (type B) Audio/Video cable USB cable (246C381-10) (246C509-10) Power supply parts... -
Page 7: Control Panel
9 Power jack 10 USB terminal 11 SERIAL terminal (D-SUB 9-pin) • Used for projector control by computer. Contact your dealer for details. 12 REMOTE IN / OUT jack 13 MONITOR OUT terminal (Mini D-SUB 15-pin) 14 AUDIO OUT terminal (Mini jack) -
Page 8: Bottom Side
1 Lamp cover 2 Adjustment feet Caution: Do not replace the lamp immediately after using the projector because the lamp would be extremely hot and it may cause burns. 1 Laser aperture 2 Transmission window 3 Wired remote control jack... -
Page 9: Using The Remote Control
Vertical directions (ceiling mount) Using the wired remote control Attached remote control for this projector can be used as a wired remote control with remote control cable. Wired remote control is useful for operating in a distance or outside of the operation area. -
Page 10: Setting Up Your Projector
12.) • Do not place this projector on a carpet or blanket because the exhaust vent and the intake vent on the bottom surface are blocked and the inside of the projector is heated, causing a breakdown or fi re. - Page 11 • Do not install the projector where the exhaust vents are exposed to air emitted by an air conditioning. Such installation may cause a breakdown. • Do not install the projector near a fi re alarm because it emits hot air from its exhaust vents. Rear projection Ask a specialist for installation.
-
Page 12: Screen Size And Projection Distance
• The above fi gures are approximate and may be slightly different from the actual measurements. • The lens movable range shows distances from the factory default position. LENS SHIFT button To adjust the positions of the projector and the screen, use LENS SHIFT button. 1. Press the LENS SHIFT button. 2. Press the button to move the image position. -
Page 13: Viewing Computer Images
Preparation: • Make sure that the power of the projector and that of the computer are turned off. • When connecting the projector to a desktop computer, disconnect the RGB cable that is connected to the monitor. COMPUTER IN/COMPONENT VIDEO IN-1... - Page 14 • Use 100-240 V AC 50/60 Hz to prevent fi re or electric shock. • Do not place any objects on the power cord or do not place the projector near heat sources to prevent damage to the power cord. If the power cord should be damaged, contact your dealer for replacement because it may cause fi...
- Page 15 1. Put the projector into standby mode by pressing the main power switch. The POWER indicator lights up red. • If the projector was turned off before the lamp was cooled down suffi ciently last time, the fan may start rotating and the POWER button may not work after the main power switch is turned ON.
- Page 16 • For safety's sake, unplug the power cord from the outlet. Instant Shut Down You can turn off this projector just by turning off the power switch or unplugging the power cord without pressing the POWER button. • Don’t shut down the projector while the STATUS indicator is blinking after the lamp lights up because the lamp’s life may be shortened.
-
Page 17: Viewing Video Images
When a TV tuner or VCR is connected: When you use this projector with a TV tuner or VCR connected, no image may appear or a message of NO SIGNAL may appear on the screen when you change the channel via any channel that is not being received. In such a case, set the channels of the TV tuner or VCR again. - Page 18 • Image may not be projected correctly with some DVD players. • If colors aren’t displayed correctly when the projector is connected to a high-defi nition video device having R, G, and B output terminals, set COMPUTER INPUT to RGB in the SIGNAL menu.
- Page 19 1. Put the projector into standby mode by pressing the main power switch. The POWER indicator lights up red. • If the projector was turned off before the lamp was cooled down suffi ciently last time, the fan may start rotating and the POWER button may not work after the main power switch is turned ON.
- Page 20 • • For safety's sake, unplug the power cord from the outlet. Instant Shut Down You can turn off this projector just by turning off the power switch or unplugging the power cord without pressing the POWER button. • Don’t shut down the projector while the STATUS indicator is blinking after the lamp lights up because the lamp’s life may be shortened.
- Page 21 Setting the aspect ratio You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the setting according to the type of the input video signal. How to change the settings: With the remote control: 1.
-
Page 22: Menu Operation
Menu operation • Menus are not displayed when no signal is supplied to the projector. IMAGE INSTALLATION ZOOM/FOCUS LOCK FEATURE SIGNAL HORIZ.POSITION * 1: Not available when COLOR ENHANCER is set to sRGB. * 2: Not available with certain signals. - Page 23 Regardless of the setting of LAMP MODE in the INSTALLATION menu, the STANDARD lamp mode is activated by default whenever the projector is turned on. When LAMP MODE has been set to LOW, the lamp mode changes from STANDARD to LOW about 1 minute after turn-on.
- Page 24 • When SCART INPUT is set to ON, nothing is output to the external monitor. • When SCART INPUT is set to ON, normal computer signals aren't projected. • Use a SCART-BNC (or SCART-Mini D-SUB 15P) cable (option) when connecting this projector with an AV device equipped with the SCART terminal.
-
Page 25: Adjusting Projected Images
Adjusting projected images To adjust the brightness (CONTRAST and BRIGHTNESS): You can make adjustments for the brightness of the projected image using the menu. (See page 22 for menu setting.) 1. Display the IMAGE menu. 2. Select CONTRAST or BRIGHTNESS by pressing the 3. -
Page 26: About Color Temperature
Adjusting projected images (continued) To adjust the tone of white (COLOR TEMP.): You can select a preset color temperature (white tone) using the menu. (See page 22 for menu setting.) 1. Display the IMAGE menu. 2. Select COLOR TEMP. by pressing the 3. - Page 27 This projector automatically and properly projects video signals supplied from the computer. However, some video signals may not be projected, depending on the type of the computer. In such a case, press the AUTO POSITION button. (See page 16.) When the signal is still not projected properly, adjust the projected image using the SIGNAL menu.
-
Page 28: Advanced Features
Advanced features Password function This projector is equipped with the password function that is designed for prevention of wrong operation by children and restriction on operation by other than specifi ed users. DISPLAY INPUT ...When the projector is turned on, the startup screen (or splash screen) will appear and stay on the screen until the password is entered. - Page 29 • In the EXPAND mode, the SHUTTER and OVER SCAN functions are disabled. Picture in Picture (PinP) One of the special features of this projector is the picture-in-picture (PinP) mode. The PinP mode allows you to view the images from different sources at the same time.
-
Page 30: Mouse Remote Control
Advanced features (continued) Mouse remote control By connecting to personal computer through the USB port, you can operate your computer with the projector remote control. Projector + computer with USB connector • You can use the mouse remote control function with a computer supporting USB only. -
Page 31: Supervising And Controlling By Computer
Industries Association (JBMIA) . • This projector is fully compliant to the specifi cations of JBMIA PJLink™ Class 1. It supports all the commands defi ned by PJLink™ Class 1, and the compliance has been verifi ed with the PJLink™ standard specifi cations Version 1.0... -
Page 32: Replacing The Lamp
WARNING: • Be careful not to drop the lamp fi xing screws into the inside of the projector. Don’t put a metal piece or fl ammable object into the projector. Using the projector with any foreign object present inside may result in electric shock or fi... -
Page 33: Reset Lamp Operation Time
Cleaning of the projector and the ventilation slots Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft cloth dampened with diluted mild detergent, and then wipe them with a dry cloth. -
Page 34: Troubleshooting
Troubleshooting Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure to unplug the power plug, and then contact your dealer. No image appears on the screen. Problem Solution Power can not be •... - Page 35 • Adjust the projector and the screen so that they are perpendicular to each other. (See page 12.) • This symptom is normal for a DLP™ projector and is not a malfunction. (A very small White dots are seen number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of on projected images.
- Page 36 Others Problem Solution The exhaust vents • This air comes out after cooling the inside of the projector. You may feel hot, but this is not a malfunction. emit warm air. • Check that the volume isn't set to low.
-
Page 37: Indicators
Indicators This projector has 2 indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problems persist, turn the projector off and consult your dealer. Normal condition POWER STATUS CONDITION... -
Page 38: Specifi Cations
Specifi cations The specifi cations and outside appearance of the projector are subject to change without prior notice. Type Model Display Technology Projection lens Light-source lamp Image size (Projection distance) Maximum Computer signal resolution Video signal Component signal Computer/Component video input... - Page 39 Specifi cation of RGB signals in each computer mode of the projector Signal mode resolution (H x V) TV60, 480i(525i) TV50, 576i(625i) 1080i 60 (1125i 60) 1080i 50 (1125i 50) 1080i 50a (1250i 50) 480p (525p) 576p (625p) 720p 60 (750p 60)
- Page 40 Specifi cations (continued) Connectors COMPUTER IN / COMPONENT VIDEO IN (Mini D-SUB 15-pin) SERIAL (D-SUB 9-pin) Pin No. Name Dimension Drawings (unit : mm) Without terminal cover 215* Factory-defaults EN-40 Pin No. Spec. R(RED)/C G(GREEN)/Y B(BLUE)/C DDC 5V DDC Data HD/CS DDC Clock With terminal cover...
