- Page 1 Installation, operating and maintenance instructions E-Tech 09 - 15 Single phase E-Tech 22 - 28 - 36 Tri phase excellence in hot water 09/09/2004 - 66402800...
-
Page 2: Table Of Contents
Electric connection / Models : 09 - 15 Electric connection / Models : 22 - 28 - 36 Sizing of supply wires Wiring diagrams / Models : 09 - 15 - 22 Wiring diagrams / Model : 28 Wiring diagrams / Model: 36... -
Page 3: Warnings
WARNINGS WHO SHOULD READ THESE INSTRUCTIONS IMPORTANTS NOTES These instructions should be read by: These instructions are an integral part of the equipment to which - the specifying engineer they relate and must be handed to the user. - the installer - the user The product must be installed and serviced by qualified engineers in - the service engineer... -
Page 4: Introduction

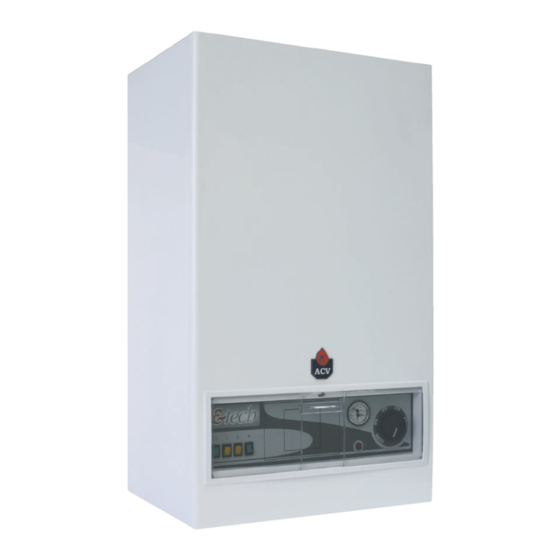

This wall hung electric boiler is available in 5 models : The boilers have been manufactured to comply with the following • models 09 and 15 are supplied with 230 Volt single phase standards BS EN60335-2-35: 1998, BS EN55014-2:1997 and •... - Page 5 INTRODUCTION Top cover Automatic air vent Brass pocket Heating elements Heating body Hand side panel Cable glands Control panel Pressure safety valve Expansion vessel Rear panel Valve of expansion vessel Water pressure switch Expansion vessel connection Supplementary heating return (not used) Circulating pump Expansion vessel connection Heating out...
-
Page 6: Instructions
INSTRUCTIONS USER DATA • As with most boilers and heating appliances the casing and pipework can get hot during normal running so the boiler must All user controls are situated on the front panel of the boiler, there not be covered and the surrounding area must be kept clear. are no user controls inside the boiler casing. -
Page 7: Technical Characteristics
TECHNICAL CHARACTERISTICS Model 4.2 to 7.2 to 14.4 to 21.6 to 30 to Power 8.4 kW 14.4 kW 21.6 kW 28.8 kW 36 kW Nominal supply voltage 1 x 230 V 1 x 230 V 3 x 400 V + N 3 x 400 V + N 3 x 400 V + N Ohmic esistance... -
Page 8: Electrical Data Of Model 09
TECHNICAL CHARACTERISTICS Electrical data of model 09 STAGE 1 STAGE 2 TOTAL POWER TERMINALS Single phase 8.4 kW (*) Terminals 1 and 2 shunted Terminal 3 L1 (A) Terminals 3, 4, 5 and 6 shunted Terminal 1 N (A) Relay K3 activated... -
Page 9: Electrical Data Of Model 15
(*) Factory configuration / (**) Remove the shunt 17 and 18 in order to desactivate the relay. Power variation (kW) relative to voltage 220 V 230 V 240 V 3 x 380 V 3 x 400 V 3 x 415 V E-Tech W 09 E-Tech W 15 13.2 14.4 15.7 E-Tech W 22 19.5 21.6 23.3... - Page 10 TECHNICAL CHARACTERISTICS Electrical data of model 22 STAGE 1 STAGE 2 TOTAL POWER TERMINALS Tri phase 21.6 kW (*) Terminals 3 and 4 shunted Terminal 2 L1 (A) 20.8 10.4 31.2 Terminals 5 and 6 shunted Terminal 3 L2 (A) 20.8 10.4 31.2...
-
Page 11: Mounting
MOUNTING 332 mm 442 mm DIMENSIONS 178 mm 90 mm 379 mm WALL MOUNTING INSTALLATION ROOM The appliance must be positioned in such a way as to be easily accessible at all times. In addition, the following minimum distances around the appliance must be complied with 53,2 mm 48,4 mm... -
Page 12: Installation
INSTALLATION DISASSEMBLING Panel removal and access to hydraulic connections 1. undo screws 2. tilt panel towards you and lift clear remove the top cover 3. loosen screws of the control panel 4. turn up the control panel 5. block the control panel with the screw - 11 -... -
Page 13: Heating Connection
INSTALLATION NOTE: HEATING CONNECTION • controller not supplied in standard Limiting the maximum adjustable temperature Factory setting Floor heating 30 - 85°C 30 - 50°C HEATING CONNECTION + DHW : “Y” PLAN NOTE: • controller not supplied in standard Limiting the minimum adjustable temperature 60 - 85°C HEATING CONNECTION + DHW : “S”... -
Page 14: Electric Connection / Models : 09 - 15
INSTALLATION ELECTRIC CONNECTION / MODELS : 09 - 15 • This appliance must be permanently connected to fixed wiring and must be earthed. • The wiring must be carried out by a competent person and be in accordance with the current IEE Wiring Regulations. -
Page 15: Electric Connection / Models : 22 - 28 - 36
INSTALLATION ELECTRIC CONNECTION / MODELS : 22 - 28 - 36 • This appliance must be permanently connected to fixed wiring and must be earthed. • The wiring must be carried out by a competent person and be in accordance with the current IEE Wiring Regulations. •... - Page 16 INSTALLATION - 15 -...
- Page 17 INSTALLATION - 16 -...
- Page 18 INSTALLATION - 17 -...
- Page 19 INSTALLATION 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 17 18 - 18 -...
- Page 20 INSTALLATION 17 18 17 18 17 18 17 18 - 19 -...
- Page 21 INSTALLATION 19 20 19 20 19 20 19 20 - 20 -...
- Page 22 INSTALLATION 19 20 19 20 19 20 19 20 - 21 -...
-
Page 23: Honeywell Sundial Wiring Diagrams
HONEYWELL SUNDIAL WIRING DIAGRAMS MOTOR MOTOR Honeywell Sundial Wiring Centre V4043H V4043H `S ` Plan HTG ZONE VALVE DHW ZONE VALVE T6306B ROOM STAT CYLINDER STAT Note: Earth wires not shown for clarity During installation the earth wires from each component connect to terminal 3 in the wiring centre CABLE COLOUR CODES bk- black... -
Page 24: Honeywell Sundial Wiring Centre 'Y' Plan
HONEYWELL SUNDIAL WIRING DIAGRAMS V4073A MID POSITION ZONE VALVE Honeywell Sundial Wiring Centre `Y ` Plan T6306B ROOM STAT CYLINDER STAT Note: Earth wires not shown for clarity During installation the earth wires from each component connect to terminal 3 in the wiring centre CABLE COLOUR CODES bk- black br- brown... -
Page 25: Commissioning And Maintenance
COMMISSIONING AND MAINTENANCE COMMISSIONING - WATER STARTING THE BOILER 1. The system must be thoroughly cleansed prior to connection 1. Switch on the internal or external timeclock (if fitted) of the boiler. The system water should be treated to prevent 2. -
Page 26: Removal The Heating Elements
REMOVAL THE HEATING ELEMENTS - 25 -... -
Page 27: Spare Parts
SPARE PARTS N° Casing A01 Side panel 21471421 21471421 21471421 21471421 21471421 A02 Front panel 21473421 21473421 21473421 21473421 21473421 A03 Top cover 21475421 21475421 21475421 21475421 21475421 A04 Rear panel 21474421 21474421 21474421 21474421 21474421 A05 Control panel ABS 497B1025 497B1025 497B1025... - Page 28 SPARE PARTS N° Accessories B01 Base for relay 54428195 54428195 54428195 54428195 54428195 B02 Control circuit “Siemens” 54766015 54766015 54766015 54766015 54766015 B03 Relay Siemens 3TG 54452082 54452082 54452082 54452082 54452082 B04 Timer “Crouset” 54428192 54428192 54428192 54428192 54428192 B05 Blocking 54452092 54452092 54452092...
- Page 29 SPARE PARTS - 28 -...
- Page 30 - 29 -...
