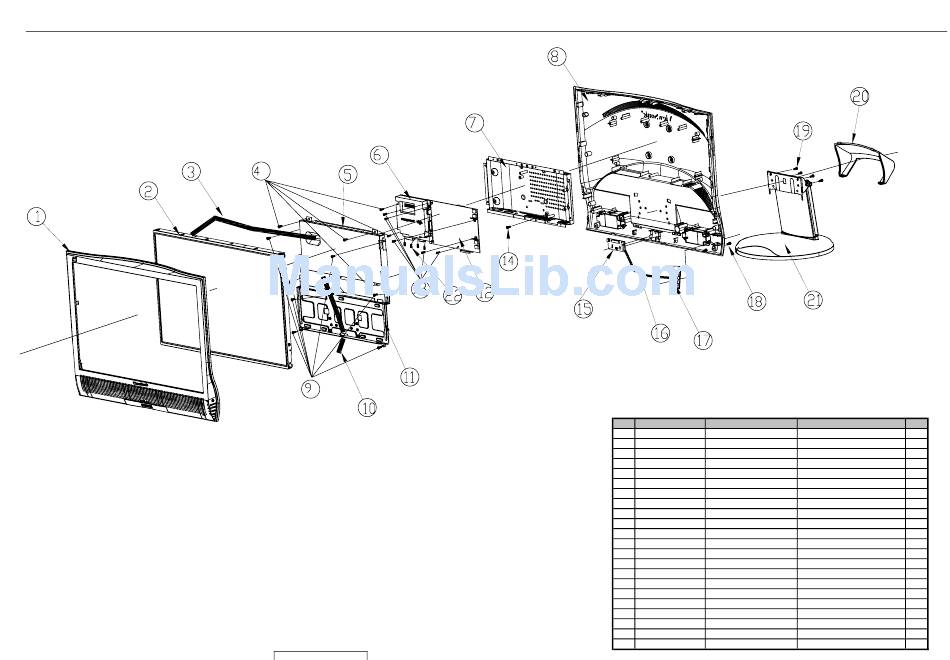

10. Exploded Diagram and Exploded Parts List

ViewSonic Corporation
84
VG1930wm-3
Confidential - Do Not Copy
EXPLODED PARTS LIST (VG1930WM-3)
ViewSonic Model Number: VS11419
Rev: 1a
Serial No. Prefix: QC6
Item ViewSonic P/N Ref. P/N
1 C-00008270 151-MF1-KCIEUT9E-1H BEZEL
2 N/A 705-590-G14CH
3 CB-00008111 631-030-VG1930H
4 HW-00008085 107-005-3082H
5 N/A 123-002-CA787DGH
6 B-00008270 899-VLG-19A2D-AH
7 N/A 123-B0D-19A2DH
8 C-00008271 151-MR1-KCIE9E-12H
9 PL-00008091 107-010-3073H
10 CB-00008115 631-013-VG1930-AH
11 N/A 121-001-19A2DH
12 B-00008269 860-AB0-190DTLB-PVH POWER BOARD
13 HW-00008084 107-005-3032H
14 HW-00008086
108-305-4133H
15 B-00008272
899-40P-19A2DH
16 N/A
631-006-VG1930H
17 B-00008271
899-400-19A2DH
18 N/A
107-010-3071H
19 N/A
108-S10-4033H
20 C-00008272
154-001-19A2D9E-1H
21 PL-00008090 151-MS0-HASTANDH
22 N/A
131-030-2110H
Description Q'ty
1
PANEL 1
LVD LINE 1
SCREW 5
METAL COVER 1
AD BOARD 1
Metal Case 1
REAR COVER 1
SCREW 7
CONTROL WIRE 1
Support Bracket 1
1
SCREW 5
SCREW 5
POWER CONTROL BOARD 1
CONNECT WIRE 1
KEY BOARD 1
SCREW 2
SCREW 4
HINGE COVER 1
STAND ASSY 1
STAND OFF 1
