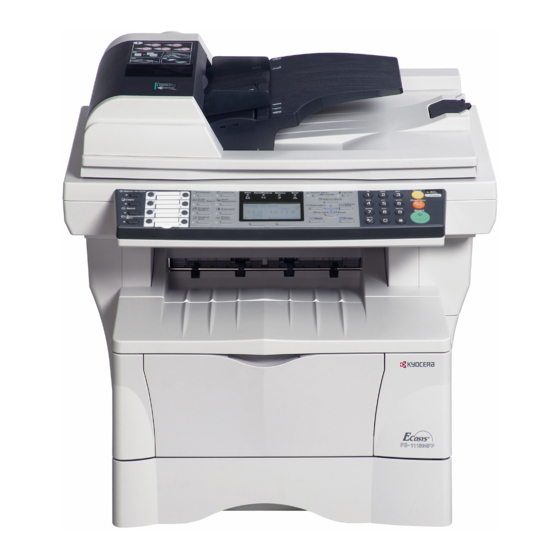

Kyocera FS-1118MFP Installation Manual

Remove the Machine from the Box and Check Contents
KM-1820
FS-1118MFP
1. Toner Container
2. Power Cord
3. Main Body
Remove all Packing and Transport Materials
B A B
1.
Remove the protective sheet (A) and the
packing tape (B).
4.
Pull the cassette out of the machine.
7.
Open the top cover.
1
2
3
4. One-touch Key Sheet
5. Operation Guide and CD-ROM
6. Cleaning Cloth
2.
Open the original cover.
F
5.
Remove the protective packing (F) from
inside the cassette.
8.
Open the front cover.
Place the machine in a stable position (refer to the Operation Guide).
4
5
6
CAUTION: Be sure to hold the machine as shown and do not carry it by holding
only the top portion.
Make sure the cassette does not come out and the original cover is closed when
holding or transporting the machine.
D
C
C
C
E
3.
Remove the packing tape (C), the protective packing (D) and the protective sheet (E).
6.
Turn the yellow transport pin (G) on the left side of the machine
counter-clockwise to remove it and remove the paper tag (H).
Store the pin for future use as shown in step 9.
9.
Store the yellow transport pin (G). Be sure to save this pin as it is
essential that it is used whenever the machine is moved.
D
C
C
C
C
C
G
H
G
