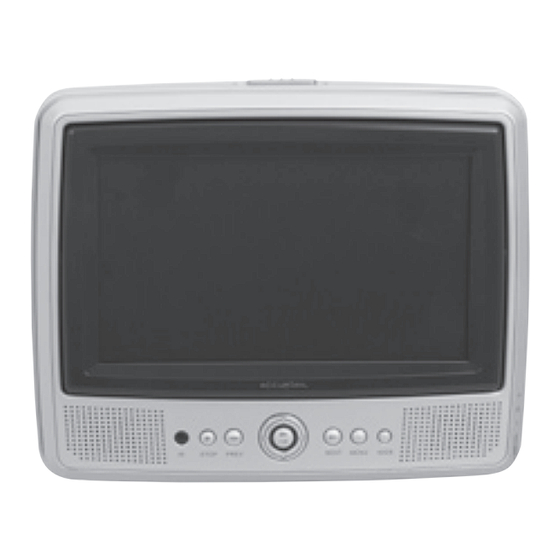

7-inch Dual Screen Portable DVD Player
APD-3911
Thank you for purchasing this Accurian Portable 7-inch Dual Screen
Portable DVD Player.
Quick Start p. 4
What's Included
DVD player
monitor
mini-DIN cable
remote
carrying bag
video cable
AC adapter
vehicle adapter
user's guide
Please read this user's guide before installing, setting up, or using your new product.
Advertisement
Table of Contents
Summary of Contents for Accurian APD-3911
- Page 1 7-inch Dual Screen Portable DVD Player APD-3911 Thank you for purchasing this Accurian Portable 7-inch Dual Screen Portable DVD Player. Quick Start p. 4 What’s Included DVD player monitor mini-DIN cable remote carrying bag video cable AC adapter vehicle adapter user’s guide...
-
Page 2: Table Of Contents
Contents Quick Start: Setup in Your Vehicle DVD Player Features Monitor Features Remote Control Features Replacing the Battery in your Remote Control Display Feature Current title, chapter, and elapsed time Current language and subtitle information Elapsed chapter time Remaining chapter time Elapsed title time Remaining title time DVD Player System Setup... -
Page 4: Quick Start: Setup In Your Vehicle
Quick Start: Setup in Your Vehicle Follow these steps to quickly and easily set up your player and second monitor in your vehicle. For a complete description of your player’s features, see page 6-11. Install straps by inserting straps into holes on back ... - Page 5 Plug in vehicle power adapter to the DVD player / monitor. Using an adapter that was not included may not meet the player’s specifications CAUTION! and could damage the player or the adapter. For more information on supplying power to your Vehicle Power player, see page 17.
-
Page 6: Dvd Player Features
DVD Player Features Headphone jacks (Left Side) Insert one or two sets of headphones for private listening. Insert in headphone jack 1 to mute sound. PREV WIDE OK Front Front Go back to the Switch between Play a disc. previous chapter or the 16:9 and 4:3 track. - Page 7 ON 1OFF E-PORT Right Right Insert a game controller (optional). Side Side Out / In Select either DVD output from the built-in player, or to receive input from other devices. Insert the A/V cable to play MONITOR to additional Insert the mini-DIN cable to play to monitors or the other monitor (included).You can receive input from...
-
Page 8: Monitor Features
Monitor Features Front A/V INPUT Connect the A/V cable to optional A/V equipment (not included). - Page 9 Power Insert an A/C adapter or a car power adapter for use with additional equipment (not included). Right Right Side Side MONITOR PORT MONITOR PORT Insert the mini-DIN cable to receive Insert the mini-DIN cable to receive Bottom Bottom input from the DVD player (included). Or, input from the DVD player (included).
-
Page 10: Remote Control Features
Remote Control Features DISPLAY Angle Mark Press to display disc information including Press to change angle if language, chapter, and title information. available on disc. MENU DVD menus vary according to how each DVD disc is formatted and is separate from the DVD player’s features. -
Page 11: Replacing The Battery In Your Remote Control
Replacing the Battery in your AUDIO Select one of the language Remote Control audio soundtracks programmed on a DVD or Press the tab on the battery audio output mode on an compartment tray, slide the battery audio CD. compartment tray out, and insert a new battery plus “+”... -
Page 12: Display Feature
Display Feature The Display feature shows language, title, chapter, and time information for a DVD that is playing: To display the DVD playback information during playback, on the remote press Display once for the following DVD display options: Current title, chapter, and elapsed time Current title Current chapter Elapsed play time for... -
Page 13: Elapsed Chapter Time
Press Display repeatedly to view the following DVD and music CD time related information in sequence in the last column. Elapsed chapter time Ì ß 2/23 00:02:04 Remaining chapter time 2/23 -00:00:39 ß Elapsed title time ß 2/23 00:19:39 Remaining title time 2/23 -01:00:13... -
Page 14: Dvd Player System Setup
DVD Player System Setup Complete the following steps to change your DVD player’s system settings, including default language, video and password settings. The following DVD player settings apply to DVD playback only, and not all DVDs can use these features. NOTES: In order for changes to take effect, you must make them before loading the DVD. -
Page 15: Language Setup
Language Setup OSD Language You can change the DVD player system menu language to one of the following: English (player default), Spanish, French. Note: you must change the Menu Language language setting before changing the DVD disc menu language. *Audio Language The default language audio track is automatically used during DVD playback if available on a DVD. -
Page 16: Default Setup
Rating You cannot play DVDs rated higher than the level you selected unless you cancel the parental lock function. The parental lock level is equivalent to the following ratings: Level 1: G Level 2: PG Level 3: PG-13 Level 4: R Level 5: NC-17 Level 6: Disable Default Setup Default Select to Reset the DVD player to its factory default... -
Page 17: What Is Region Encoding
can only be used for discs on which subtitles have been recorded in multiple languages. On some DVDs, subtitles are activated from the main menu of the DVD. Press MENU to activate the main menu. What is region encoding? DVD players are designed to play movies coded by regions and will only play movies coded to their particular region.The list below shows the movie regions by number.This coding is used because a movie may be released on DVD before it is available in theaters in some countries. -
Page 18: Why Is There No Picture Or The Picture Jumps
Why is there no picture or the picture jumps? There are several possible causes: • Make sure that the region number of the disc matches the region number of the player. • Stop the DVD player and clean the disc. •... -
Page 19: Specifications
SPECIFICATIONS Compatible discs........................DVD/JPEG/CD/MP3 Laser type ..............Semiconductor laser, Wave Length: 650nm/795nm Signal system ..............................NTSC Video output level ........................1 Vp-p (75 ohm) Audio output level .........................1.4 Vrms(10k ohm) S/N ratio: ................................60dB Dynamic range: ..............................85dB Power supply ..............................DC 9-12V Power consumption ............................12 W Dimension ......DVD Player W212 x H55 x D173 mm, Monitor W201 x H34 x D164 mm Specifications are typical;... -
Page 20: Rf Emissions Information
Innovation One directly. Innovation One, Inc. 350 North Henderson Street Fort Worth, TX 76102 04/05 APD-3911 ©2006. Innovation One, Inc. All rights reserved. 01A06 Accurian is a trademark used by Innovation One. Printed in China...
