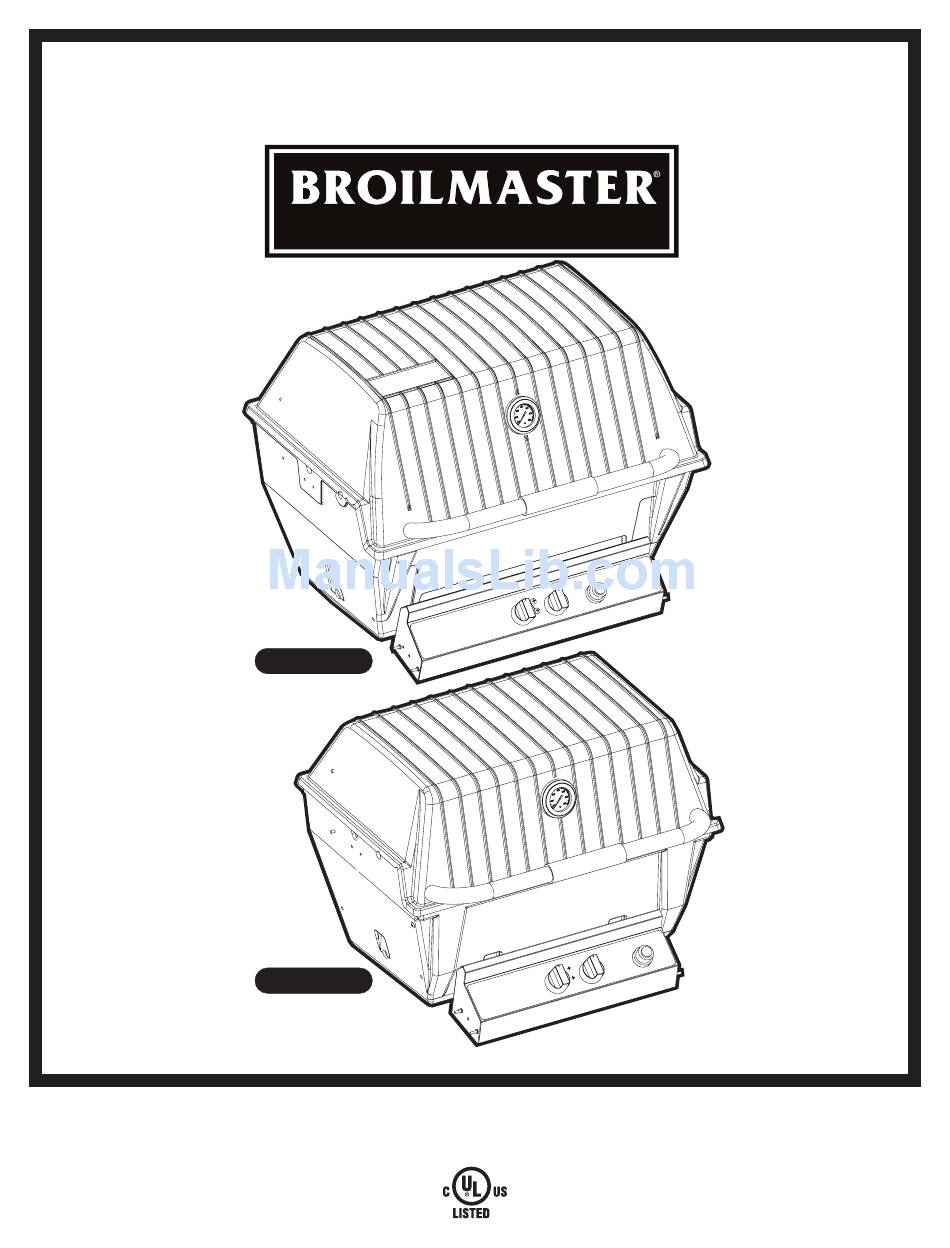

  • Page 1 P R E M I U M G R I LL S SERIES SERIES H3X(N)-3; H4X(N)-2 H3X AND H4X GRILL HEAD GAS-FIRED Page 1...
  • Page 2 IMPORTANT INFORMATION IMPORTANT his manual should be read thoroughly by the installer and by anyone who will use or maintain the grill. Installer - Write the model number, serial number, and date of installation in the manual. If available, attach a copy of the receipt. Leave this manual with the grill owner. Grill Owner - Read and retain this manual.
  • Page 3: Thank You

    We hope you enjoy years of great meals prepared on your Broilmaster. And we hope to add your photo to the Hall of Fame one day. Thank You! Broilmaster is a registered trademark of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 Telephone 800-851-3153...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster gas grill. ASSEMBLY INSTRUCTIONS ..................... 5 H3X SERIES PARTS DIAGRAM ....................6 H4X SERIES PARTS DIAGRAM ....................7 GRILL HEAD HARDWARE PACK - B102153 ................
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN This Grill Head requires Broilmaster Mounting (Cart, Post, or a Built-In Kit). See Mounting Instructions to assemble mounting before Assembling Grill Head. Compare the parts in the box to the parts list provided in this manual. If any are missing, contact your Broilmaster dealer before beginning assembly.
  • Page 6: H3X Series Parts Diagram

    H3X SERIES PARTS DIAGRAM Page 6 B102231-2-1014...
  • Page 7: H4X Series Parts Diagram

    H4X SERIES PARTS DIAGRAM B102043 (1) GRILL BODY TOP B076621 (1) DP119 (1) TOP WITH HEAT INDICATOR, HINGE HEAT INDICATOR B101665 (1) PUSH NUT B073097 (1) FOAM GRIP B101420 (1,LP) OR B101421 (1,NAT) B070486 (1) VALVE LPG OR NATURAL LID HANDLE P312 (2, LP) P245 (2, NAT) ORIFICE LPG OR NATURAL B060757(1)
  • Page 8: Grill Head Hardware Pack - B102153

    GRILL HEAD HARDWARE PACK - B102153 KEPS NUT, HEX NUT, PHILLIPS PAN HEAD SCREW, PHILLIPS PAN HEAD SCREW, SS,10-24 SS,1/4-20 SS,1/4-20 X 1-1/2 SS,10-24 X 1 B073967 B076331 B101649 B073978 GROUND BATTERY, AA KNOB COTTER PIN WIRE B076529 B070084 B057805 B072684 FOAM GRIP B073097...
  • Page 9: Unpack And Remove Lid

    UNPACK AND REMOVE LID REMOVING LID To ease assembly, remove Grill Lid and Warming Rack. Remove Warming Rack and set aside. Remove the two Pins and Clips at the rear of the Grill Prior to assembling Grill Head Lid and set aside. After Pins, Lid and assemble Cart or Post mounting first.
  • Page 10: Insert Burner Hold-Down Bolt

    INSERT BURNER HOLD-DOWN BOLT PHILLIPS PAN HEAD SCREW SS, 1/4-20 X 1-1/2 B101649 (1) HEX NUT, SS, 1/4-20 B076331(1) 7/16” Page 10 B102231-2-1014...
  • Page 11: Wind Deflector Placement

    WIND DEFLECTOR PLACEMENT Place the Wind Deflector in the bottom Casting. The Wind Deflector cannot be installed until after the bottom Casting is installed on the Cart or Post. B102231-2-1014 Page 11...
  • Page 12: Insert Control Panel

    INSERT CONTROL PANEL KEPS NUT, SS, 10-24 B073967(2) 3/8” Ease the Control Shield over the studs on the Control Panel. Then insert the two studs through the holes on the front of the grill. Attach with the two keps nuts. Remove Plastic Film on label.
  • Page 13: Attach Ignitor Wire

    ATTACH IGNITOR WIRE GROUND LUG Connect the ground wire to the ground lug on the Collector Box before installing the burner into the casting. COLLECTOR BOX B102231-2-1014 Page 13...
  • Page 14: Install Burner Assembly

    INSTALL BURNER ASSEMBLY COTTER PIN, B057805(1) Slide the Venturi onto the Valve Assembly as shown. Insert the Burner Assembly into the Grill bottom with the Venturi Raise the end of the Burner Bracket Tubes facing the front of the Grill. and slip it over the Phillips Truss Head Screw.
  • Page 15: Connect Ignitor Leads

    CONNECT IGNITOR LEADS IGNITOR Route Leads from Burner and Secure to Ignitor Terminals (polarity is not important). The Ignitor terminals do not have a polarity. B102231-2-1014 Page 15...
  • Page 16: Knob And Battery Placement

    KNOB AND BATTERY PLACEMENT Page 16 B102231-2-1014...
  • Page 17: Install Handle

    INSTALL HANDLE PHILLIPS PAN HEAD SCREW, SS,10-24 X 1 B073978 (2) Tip: For ease of installation, lightly lubricate the inside of the Foam Grip with Liquid Soap before twisting it on to Handle. B102231-2-1014 Page 17...
  • Page 18: Reinstall Lid

    REINSTALL LID HINGE PIN, (FROM PREVIOUS STEPS) B057804 (2) COTTER PIN, (FROM PREVIOUS STEPS) B057805 (2) Page 18 B102231-2-1014...
  • Page 19: Install Racks

    INSTALL RACKS B102231-2-1014 Page 19...
  • Page 20: Install Warming Rack

    INSTALL WARMING RACK Page 20 B102231-2-1014...
  • Page 21: Propane Gas Grills

    PROPANE GAS GRILLS 3/4” For Natural Gas Grills please proceed to page 25. Attach the LP hose and Regulator to the fitting on the Burner Control Valve mounted on the Control Panel. Tighten this connection with a wrench. LP GAS REGULATOR AND HOSE B102231-2-1014 Page 21...
  • Page 22: Grill Location

    PROPANE GAS GRILLS Grill Location Failure to follow these safety precautions could result in a fire or explosion causing property damage or personal This grill is designed for outdoor use only. injury. Never operate your grill in any building, garage, or other Use extreme caution when handling propane gas cylinders.
  • Page 23: Propane Gas Grills

    PROPANE GAS GRILLS Propane Cylinder Requirements ATTENTION: Propane gas cylinders must comply with Cylinder Requirements and Connection Requirements above. Your Broilmaster Premium Gas Grill requires a standard 20-lb propane gas cylinder, which is available from your grill dealer, Note: Not all valve and cylinder combinations are compatible. your LP supplier, and at most hardware and home stores.
  • Page 24: Connecting Propane Gas Grill

    CONNECTING PROPANE GAS GRILL Pressure Regulator and Hose Assembly The pressure regulator has an outlet pressure of not more than eleven inches water column. It must be connected to the Propane gas cylinder’s female valve outlet before the grill can be operated. Make sure the grill’s burner controls are off.
  • Page 25: Connecting Natural Gas Grill

    CONNECTING NATURAL GAS GRILL 3/4” Attach the Natural Gas hose to the fitting on the Burner Control Valve mounted on the Control Panel. Snug this connection with a wrench. 12 FT QUICK DISCONNECT HOSE Not Supplied (Purchased Accessory, NG12) B102231-2-1014 Page 25...
  • Page 26: Natural Gas Grills

    NATURAL GAS GRILLS Connection Requirements Grill Location Broilmaster natural gas grills are not equipped with pressure This grill is designed for outdoor use only. regulators. Your gas grill operates at a manifold pressure of seven inches water column. (Your natural gas technician will Never operate your grill in any building, garage, or other understand what this means.) enclosed area.
  • Page 27: Completed Assembly

    COMPLETED ASSEMBLY Thank you for purchasing a Premium Gas Grill and we hope you enjoy years of great meals prepared on your Broilmaster. Please feel free to visit the Broilmaster Facebook page and share photos of your Broilmaster grill. Thank You! B102231-2-1014 Page 27...
  • Page 28: Owner's Manual For H3X And H4X Grills

    OWNER’S MANUAL FOR H3X AND H4X GRILLS OPERATION - PROPANE AND NATURAL GAS GRILLS Check for Gas Leaks Operating Instructions Check for gas leaks every time you connect your Broilmaster Lighting with the Electric Ignitor propane gas grill to a Propane gas cylinder, when a connected cylinder has not been used recently, or when either a natural or propane grill is being used for the first time.
  • Page 29 OPERATION - PROPANE AND NATURAL GAS GRILLS Electrical Accessories Before Cooking Any electrical accessory (e.g. rotisserie) used must be electrically Before cooking on a grill for the first time, it should be broken grounded in accordance with local codes or, in the absence of in to burn off any oil residue from the manufacturing process.
  • Page 30: Maintenance

    MAINTENANCE Cleaning the Grill at least twice monthly when spiders are active. If the grill has been unused for an extended period of time inspect the tubes before using the grill. CAUTION Cleaning Venturi Tubes o prevent injury, use care when cleaning a hot grill. 1.
  • Page 31: Troubleshooting

    TROUBLESHOOTING Although we have attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Do not repair or replace any part of the grill unless specifically recommended in this manual. All other service should be referred to a qualified technician.
  • Page 32: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING piders and insects can nest in gas grill burners causing the gas ignite under the control panel. This is very dangerous and can damage the grill, making it unsafe to operate. Inspect the grill at least twice per year and more often when spiders are active. Be sure all grill controls are turned off and the grill is cool before using any type of aerosol cleaner on or around the grill.
  • Page 33 IMPORTANT SAFETY INFORMATION Practice Safe Grilling Do not wear loose fitting clothing or flammable clothing (such as synthetics) around the grill. Never let clothing, pot holders, or other flammable materials come in contact with or too close to any grate, burner or hot surface.
  • Page 34: Cooking Tips

    COOKING TIPS Cook Food To Proper Temperatures Cooking food safely requires that you raise the internal temperature of the meat high enough and for a long enough period of time to kill any food-borne bacteria that may cause illnesses. Color is not the best indicator that food is safe to eat. Use a high-quality probe thermometer to be sure your food is properly cooked.
  • Page 35: Warranty Terms

    WARRANTY TERMS Empire Comfort Systems Inc. warranties this Broilmaster premium gas grill to be free from defects at the time of purchase and for the periods specified below. Broilmaster Premium Gas Grills must be installed by a qualified tech- nician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable.
  • Page 36: Grill Maintenance History

    GRILL MAINTENANCE HISTORY Date Maintenance Performed Page 36 B102231-2-1014...
  • Page 37 GRILL MAINTENANCE HISTORY Date Maintenance Performed B102231-2-1014 Page 37...
  • Page 38 GRILL MAINTENANCE HISTORY Date Maintenance Performed Page 38 B102231-2-1014...
  • Page 39: Master Parts Distributor List

    MASTER PARTS DISTRIBUTOR LIST To order parts under warranty, please contact your local Broilmaster dealer. See the dealer locator at www.broilmaster.com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem.
