Page 3 HIROSHIMA, JAPAN Important Notes About This Manual Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
Page 4: How To Use This Manual
Mazda. By reading your manual, you can Please refer to the manual for a detailed find out about the features, important explanation.
Page 5: Table Of Contents
Friday, January 16 2015 4:24 PM Black plate (5,1) Table of Contents Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags.
Page 6 Mazda5_8DW4-EC-14H_Edition3 Page6 Friday, January 16 2015 4:24 PM Black plate (6,1) I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 7: Your Vehicle At A Glance
Mazda5_8DW4-EC-14H_Edition3 Page7 Friday, January 16 2015 4:24 PM Black plate (7,1) Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Interior Overview ................1-2 Interior Equipment (View A) ............ 1-2 Interior Equipment (View B) ............ 1-3 Interior Equipment (View C) ............
Page 8: Interior Overview
Mazda5_8DW4-EC-14H_Edition3 Page8 Friday, January 16 2015 4:24 PM Black plate (8,1) Your Vehicle at a Glance Interior Overview Interior Equipment (View A) Door-lock knob ....................page 3-10 Power door lock switch ..................page 3-11 DSC OFF switch ....................page 5-26 Lighting control ....................
Page 9: Interior Equipment (View B)
Mazda5_8DW4-EC-14H_Edition3 Page9 Friday, January 16 2015 4:24 PM Black plate (9,1) Your Vehicle at a Glance Interior Overview Interior Equipment (View B) Audio control switches ..................page 6-47 SRS air bags ...................... page 2-46 Cruise control switches ..................page 5-21 Climate control system ..................
Page 10: Interior Equipment (View C)
Mazda5_8DW4-EC-14H_Edition3 Page10 Friday, January 16 2015 4:24 PM Black plate (10,1) Your Vehicle at a Glance Interior Overview Interior Equipment (View C) Seat belts ......................page 2-18 SRS air bags ...................... page 2-46 Remote fuel-filler lid release ................page 3-20 Bottle holder ....................
Page 11: Exterior Overview
Mazda5_8DW4-EC-14H_Edition3 Page11 Friday, January 16 2015 4:24 PM Black plate (11,1) Your Vehicle at a Glance Exterior Overview Front Hood ........................page 3-21 Windshield wiper blades ..................page 8-28 Moonroof ......................page 3-23 Outside mirror ....................page 3-32 Child safety locks ....................page 3-13 Tires ........................
Page 12: Rear
Mazda5_8DW4-EC-14H_Edition3 Page12 Friday, January 16 2015 4:24 PM Black plate (12,1) Your Vehicle at a Glance Exterior Overview Rear Rear wiper blade ....................page 8-29 Liftgate ......................page 3-14 Antenna ......................page 6-11 Sliding doors ...................... page 3-12 Door lock ......................page 3-10 Tires ........................
Page 13 Mazda5_8DW4-EC-14H_Edition3 Page13 Friday, January 16 2015 4:24 PM Black plate (13,1) Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Seats ....................2-2 Front Seats ................2-2 Second-Row Seats ..............2-5 Third-Row Seat ...............
Page 14: Front
Consult an Be careful not to place your hands Authorized Mazda Dealer if there is and fingers around moving parts of any need to remove or reinstall the the front seat when adjusting the front seats.
Page 15 Mazda5_8DW4-EC-14H_Edition3 Page15 Friday, January 16 2015 4:24 PM Black plate (15,1) Essential Safety Equipment Seats qSeat Recline Do not drive with the seatback unlocked: WARNING All of the seatbacks play an important role in your protection in a Do not drive with either front seat vehicle.
Page 16 Mazda5_8DW4-EC-14H_Edition3 Page16 Friday, January 16 2015 4:24 PM Black plate (16,1) Essential Safety Equipment Seats qArmrest CAUTION The armrest can be used or placed upright. When returning a rear-reclined seatback to its upright position, make sure you hold onto the seatback with your other hand while operating the lever.
Page 17: Second-Row Seats
Mazda5_8DW4-EC-14H_Edition3 Page17 Friday, January 16 2015 4:24 PM Black plate (17,1) Essential Safety Equipment Seats Do not drive with the seatback Second-Row Seats unlocked: All of the seatbacks play an WARNING important role in your protection in a Do not stack cargo higher than the vehicle.
Page 18 Mazda5_8DW4-EC-14H_Edition3 Page18 Friday, January 16 2015 4:24 PM Black plate (18,1) Essential Safety Equipment Seats qSeat Slide qSeat Recline WARNING To move the seat forward or backward, raise the lever and slide the seat to the Do not drive with the seats reclined: desired position and release the lever.
Page 19 Mazda5_8DW4-EC-14H_Edition3 Page19 Friday, January 16 2015 4:24 PM Black plate (19,1) Essential Safety Equipment Seats qThird-Row Seat Access CAUTION After folding the second-row seat When returning a rear-reclined seatback and sliding the seat forward, you seatback to its upright position, can access the third-row seat easily.
Page 20 Mazda5_8DW4-EC-14H_Edition3 Page20 Friday, January 16 2015 4:24 PM Black plate (20,1) Essential Safety Equipment Seats 4. Pull the strap and lift the end of the CAUTION seat-bottom up and forward. Ø When folding a seatback, always hold onto the seatback with your other hand while operating the lever.
Page 21 Mazda5_8DW4-EC-14H_Edition3 Page21 Friday, January 16 2015 4:24 PM Black plate (21,1) Essential Safety Equipment Seats Returning seatbacks to their original CAUTION positions Ø When folding a seatback, always 1. Return the seatback to its original hold onto the seatback with your position while raising its lever.
Page 22: Third-Row Seat
Mazda5_8DW4-EC-14H_Edition3 Page22 Friday, January 16 2015 4:24 PM Black plate (22,1) Essential Safety Equipment Seats Never allow a passenger to sit or stand Third-Row Seat on the folded seatback while the vehicle is moving: WARNING Driving with a passenger on the Do not stack cargo higher than the folded seatback is dangerous.
Page 23 Mazda5_8DW4-EC-14H_Edition3 Page23 Friday, January 16 2015 4:24 PM Black plate (23,1) Essential Safety Equipment Seats 3. Lower the head restraints all the way Make sure the seatback is secured by down (page 2-14). attempting to lightly move it forward and back.
Page 24: Seat Arrangements
Mazda5_8DW4-EC-14H_Edition3 Page24 Friday, January 16 2015 4:24 PM Black plate (24,1) Essential Safety Equipment Seats Seat Arrangements Illustrations are of representative seat arrangements. WARNING Do not arrange the seats while driving: Arranging the seats while driving is dangerous because you do not get the full protection from seat belts and you cannot keep your balance.
Page 25 Mazda5_8DW4-EC-14H_Edition3 Page25 Friday, January 16 2015 4:24 PM Black plate (25,1) Essential Safety Equipment Seats CAUTION Ø Be careful not to place your hands and fingers around moving parts of the seat when arranging the seat to prevent injury. Ø Do not move around in the vehicle while the seats are folded down. A foot could be injured if it becomes pinched between the seat bottom and seatback.
Page 26 Mazda5_8DW4-EC-14H_Edition3 Page26 Friday, January 16 2015 4:24 PM Black plate (26,1) Essential Safety Equipment Seats 2. Fold the second-row seats. Head Restraints Refer to Folding the Second-Row Seats on page 2-8. Your vehicle is equipped with head restraints on all outboard seats. The head To return the seats to their road positions, restraints are intended to help protect you reverse the procedures above.
Page 27 Mazda5_8DW4-EC-14H_Edition3 Page27 Friday, January 16 2015 4:24 PM Black plate (27,1) Essential Safety Equipment Seats qNormal Head Restraints Third-Row outboard seat Height adjustment To raise a head restraint, pull it up to the desired position. To lower the head restraint, press the stop- catch release, then push the head restraint down.
Page 28 Mazda5_8DW4-EC-14H_Edition3 Page28 Friday, January 16 2015 4:24 PM Black plate (28,1) Essential Safety Equipment Seats To fold the head restraint, pull the strap í Seat Warmer and fold the head restraint downward. To return the head restraint to its upright The front seats are electrically heated.
Page 29 Mazda5_8DW4-EC-14H_Edition3 Page29 Friday, January 16 2015 4:24 PM Black plate (29,1) Essential Safety Equipment Seats NOTE WARNING Use the seat warmer when the engine is Ø Be careful when using the seat running, and do not continue to use it for a warmer.
Page 30: Seat Belt Systems
Seat Belt Precautions Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and all passengers always wear seat belts. Your vehicle has the following types of seat belts. With Driver and Front Passenger Occupant Classification System model...
Page 31 Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before they are used again.
Page 32 Mazda5_8DW4-EC-14H_Edition3 Page32 Friday, January 16 2015 4:24 PM Black plate (32,1) Essential Safety Equipment Seat Belt Systems CAUTION Belt retraction may become difficult if the belts and rings are soiled, so try to keep them clean. For more details about cleaning the seat belts, refer to “Cleaning the Lap/Shoulder Belt Webbing”...
Page 33 Mazda5_8DW4-EC-14H_Edition3 Page33 Friday, January 16 2015 4:24 PM Black plate (33,1) Essential Safety Equipment Seat Belt Systems qAutomatic Locking Mode Always use the automatic locking mode to keep the child-restraint system from shifting to an unsafe position in the event of an accident. To enable seat belt automatic locking mode, pull it all the way out and connect it as instructed on the child-restraint system.
Page 34: Seat Belt
Mazda5_8DW4-EC-14H_Edition3 Page34 Friday, January 16 2015 4:24 PM Black plate (34,1) Essential Safety Equipment Seat Belt Systems WARNING Seat Belt Positioning the Shoulder Portion of the qFastening the Seat Belt Seat Belt: Improper positioning of the shoulder 1. Grasp the seat belt tongue. portion of the seat belt is dangerous.
Page 35 If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting WARNING properly, have it inspected at an Authorized Mazda Dealer. Positioning the Shoulder Portion of the Seat Belt: To secure the outboard-rear row seat belts...
Page 36: Front Seat Belt Pretensioner And Load Limiting Systems
Even if the pretensioners have not deployed, the load limiting function must Pretensioners: be checked by an Authorized Mazda In moderate or severe frontal or near- Dealer after any collision. frontal accidents, the front air bag and WARNING pretensioner systems deploy simultaneously.
Page 37 The pretensioner system will activate in a limiter has been expended: moderate or greater frontal or near-frontal, Always have an Authorized Mazda or a severe side collision. It will not Dealer immediately inspect the front activate in most rollovers, rear impacts.
Page 38 ON. If any of these occur, Driving the vehicle with the air bag/ consult an Authorized Mazda Dealer as front seat belt pretensioner system soon as possible. The system may not warning beep sounding is dangerous.
Page 39: Seat Belt Extender
If you sell your Mazda, do When ordering an extender, only order not leave your seat belt extender in one that provides the necessary additional the vehicle.
Page 40: Seat Belt Warning Light
Mazda5_8DW4-EC-14H_Edition3 Page40 Friday, January 16 2015 4:24 PM Black plate (40,1) Essential Safety Equipment Seat Belt Systems Do not leave a seat belt extender Seat Belt Warning Light connected to the buckle: Leaving a seat belt extender connected to the buckle without using the seat belt is dangerous.
Page 41: Seat Belt Reminder
Mazda5_8DW4-EC-14H_Edition3 Page41 Friday, January 16 2015 4:24 PM Black plate (41,1) Essential Safety Equipment Seat Belt Systems NOTE Seat Belt Reminder The warning light flashes and a beep sound will be heard for about 6 seconds if the If the vehicle is driven with the driver or driver's seat belt is not fastened when the front passenger's seat belt unfastened, the ignition is switched ON.
Page 42: Child Restraint
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be properly restrained and child-restraint systems of all kinds are properly secured on the rear seats which are the best place for children.
Page 43 Mazda5_8DW4-EC-14H_Edition3 Page43 Friday, January 16 2015 4:24 PM Black plate (43,1) Essential Safety Equipment Child Restraint WARNING Use the correct size child-restraint system: For effective protection in vehicle accidents and sudden stops, a child must be properly restrained using a seat belt or child-restraint system depending on age and size.
Page 44 Mazda5_8DW4-EC-14H_Edition3 Page44 Friday, January 16 2015 4:24 PM Black plate (44,1) Essential Safety Equipment Child Restraint Vehicles with a front passenger air bag have a warning label attached as shown below. The warning label reminds you not to put a rear-facing child-restraint system on the front passenger seat at any time.
Page 45 Mazda5_8DW4-EC-14H_Edition3 Page45 Friday, January 16 2015 4:24 PM Black plate (45,1) Essential Safety Equipment Child Restraint Seating a child in a child-restraint system on the front passenger seat is dangerous under certain conditions (With Driver and Front Passenger Occupant Classification System): Your vehicle is equipped with front passenger seat weight sensors.
Page 46 NOTE Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems in the rear seats. When using these anchors to secure a child-restraint system, refer to “LATCH Child-Restraint Systems” (page 2-43).
Page 47: Child-Restraint System Installation Position
Mazda5_8DW4-EC-14H_Edition3 Page47 Friday, January 16 2015 4:24 PM Black plate (47,1) Essential Safety Equipment Child Restraint Child seat Child-Restraint System A child seat restrains a child's body using Installation Position the harness. In this owner's manual, explanation of child-restraint systems is provided for the following three types of popular child- restraint systems: infant seat, child seat, booster seat.
Page 48: Installing Child-Restraint Systems
Follow these instructions when using a installed on the seats that take tethers to child-restraint system, unless you are be effective. In your Mazda, tethered attaching a LATCH-equipped child- child-restraint systems can only be restraint system to the rear LATCH lower accommodated in the four positions on anchors.
Page 49 Mazda5_8DW4-EC-14H_Edition3 Page49 Friday, January 16 2015 4:24 PM Black plate (49,1) Essential Safety Equipment Child Restraint 3. (Third-row seat) 6. Push the child-restraint system firmly Raise the head restraint to the top into the vehicle seat. Be sure the belt locked position.
Page 50 Mazda5_8DW4-EC-14H_Edition3 Page50 Friday, January 16 2015 4:24 PM Black plate (50,1) Essential Safety Equipment Child Restraint Anchor bracket location (Second-row Tether strap position (Third-row seats) seats) Tether strap Forward WARNING Tether strap position (Second-row Use the tether and tether anchor only seats) for a child-restraint system: Tether strap...
Page 51 To check if your front seats have side air not deploy based on the fact that the bags: front passenger air bag deactivation Mazda vehicles equipped with side air bag indicator light illuminates, you will have a “SRS AIRBAG” tag on the should not use a rear-facing child- outboard shoulder of the front seats.
Page 52 Mazda5_8DW4-EC-14H_Edition3 Page52 Friday, January 16 2015 4:24 PM Black plate (52,1) Essential Safety Equipment Child Restraint Do not allow a child to lean over or Do not allow a child or anyone to lean against the side window of a vehicle over or against the side window of a with side air bags: vehicle with side and curtain air bags:...
Page 53 Mazda5_8DW4-EC-14H_Edition3 Page53 Friday, January 16 2015 4:24 PM Black plate (53,1) Essential Safety Equipment Child Restraint 3. Place the child-restraint system on the 7. (With Driver and Front Passenger seat without putting your weight on the Occupant Classification System) seat and fasten the seat belt. See the Make sure the front passenger air bag manufacturer's instructions on the deactivation indicator light illuminates...
Page 54 Authorized Mazda Dealer as soon as possible. 2-42 I n f o r ma t i o n P r o v i d e d b y :...
Page 55: Latch Child-Restraint Systems
Child Restraint LATCH Child-Restraint Systems Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems the second-row seats. Both anchors must be used, otherwise the seat will bounce around and put the child in danger. Most LATCH child- restraint systems must also be used in conjunction with a tether to be effective.
Page 56 Mazda5_8DW4-EC-14H_Edition3 Page56 Friday, January 16 2015 4:24 PM Black plate (56,1) Essential Safety Equipment Child Restraint qLATCH Child-Restraint System 5. If your child-restraint system came equipped with a tether, that means it is Installation Procedure (Second- very important to properly secure the Row Seats) tether for child safety.
Page 57 Mazda5_8DW4-EC-14H_Edition3 Page57 Friday, January 16 2015 4:24 PM Black plate (57,1) Essential Safety Equipment Child Restraint WARNING Use the tether and tether anchor only for a child-restraint system: Using the tether or tether anchor to secure anything but a child-restraint system is dangerous.
Page 58: Srs Air Bags
Mazda5_8DW4-EC-14H_Edition3 Page58 Friday, January 16 2015 4:24 PM Black plate (58,1) Essential Safety Equipment SRS Air Bags Supplemental Restraint System (SRS) Precautions The front and side supplemental restraint systems (SRS) include 6 air bags. Please verify the air bags equipped on your vehicle by locating the “SRS AIRBAG” location indicators.
Page 59 Mazda5_8DW4-EC-14H_Edition3 Page59 Friday, January 16 2015 4:24 PM Black plate (59,1) Essential Safety Equipment SRS Air Bags If your vehicle is also equipped with a driver and front passenger occupant classification system, refer to the Driver and Front Passenger Occupant Classification System (page 2-61) for details.
Page 60 Mazda5_8DW4-EC-14H_Edition3 Page60 Friday, January 16 2015 4:24 PM Black plate (60,1) Essential Safety Equipment SRS Air Bags Never use a rear-facing child-restraint system in the front seat with an air bag that could deploy: Rear-facing child-restraint systems on the front seat are particularly dangerous even though you may feel assured that a front passenger air bag will not deploy based on the fact that the front passenger air bag deactivation indicator light illuminates.
Page 61 Mazda5_8DW4-EC-14H_Edition3 Page61 Friday, January 16 2015 4:24 PM Black plate (61,1) Essential Safety Equipment SRS Air Bags Do not attach objects on or around the area where a side air bag deploys: Attaching objects to the front seat in such a way as to cover the outboard side of the seat in any way is dangerous.
Page 62 It also includes installing extra electrical equipment on or near system components or wiring. An Authorized Mazda Dealer can provide the special care needed in the removal and installation of front seats.
Page 63 Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and that familiarization with all instructions about them, from the Owner's Manual, is important.
Page 64: Supplemental Restraint System Components
Mazda5_8DW4-EC-14H_Edition3 Page64 Friday, January 16 2015 4:25 PM Black plate (64,1) Essential Safety Equipment SRS Air Bags Supplemental Restraint System Components With front passenger occupant classification system 2-52 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 65 Mazda5_8DW4-EC-14H_Edition3 Page65 Friday, January 16 2015 4:25 PM Black plate (65,1) Essential Safety Equipment SRS Air Bags Without front passenger occupant classification system Driver/Front passenger inflators and air bags Crash sensor, and diagnostic module (SAS unit) Front seat belt pretensioner and load limiting systems (page 2-24) Front air bag sensor Side crash sensors Air bag/front seat belt pretensioner system warning light (page 2-57)
Page 66: How The Srs Air Bags Work
SRS Air Bags How the SRS Air Bags Work Your Mazda is equipped with the following types of SRS air bags. SRS air bags are designed to work together with the seat belts to help to reduce injuries during an accident.
Page 67 Mazda5_8DW4-EC-14H_Edition3 Page67 Friday, January 16 2015 4:25 PM Black plate (67,1) Essential Safety Equipment SRS Air Bags qFront Passenger Air Bag The front passenger air bag is mounted in the front passenger dashboard. The inflation mechanism for the front passenger air bag is the same as the driver's air bag, as mentioned above.
Page 68 Mazda5_8DW4-EC-14H_Edition3 Page68 Friday, January 16 2015 4:25 PM Black plate (68,1) Essential Safety Equipment SRS Air Bags (With Driver and Front Passenger Occupant Classification System) In addition, the front passenger side air bag is designed to only deploy in accordance with the total seated weight on the front passenger seat.
Page 69 A system malfunction is indicated if the warning light constantly flashes, constantly illuminates or does not illuminate at all when the ignition is switched ON. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate in an accident.
Page 70: Srs Air Bag Deployment Criteria
Mazda5_8DW4-EC-14H_Edition3 Page70 Friday, January 16 2015 4:25 PM Black plate (70,1) Essential Safety Equipment SRS Air Bags SRS Air Bag Deployment Criteria This chart indicates the applicable SRS equipment that will deploy depending on the type of collision. (The illustrations are the representative cases of collisions.) Types of collision A severe frontal/near frontal collision A severe side collision...
Page 71: Limitations To Srs Air Bag
Mazda5_8DW4-EC-14H_Edition3 Page71 Friday, January 16 2015 4:25 PM Black plate (71,1) Essential Safety Equipment SRS Air Bags Limitations to SRS Air Bag In severe collisions such as those described previously in SRS Air Bag Deployment Criteria , the applicable SRS air bag equipment will deploy. However, in some accidents, the equipment may not deploy depending on the type of collision and its severity.
Page 72 Mazda5_8DW4-EC-14H_Edition3 Page72 Friday, January 16 2015 4:25 PM Black plate (72,1) Essential Safety Equipment SRS Air Bags Roll-over 2-60 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 73 Mazda5_8DW4-EC-14H_Edition3 Page73 Friday, January 16 2015 4:25 PM Black plate (73,1) Essential Safety Equipment SRS Air Bags í Driver and Front Passenger Occupant Classification System First, please read Supplemental Restraint System (SRS) Precautions (page 2-46) carefully. qDriver Seat Slide Position Sensor Your vehicle is equipped with a driver seat slide position sensor as a part of the supplemental restraint system.
Page 74 ON and does not illuminate as indicated in the front passenger air bag deactivation indicator light on/off condition chart, do not allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as soon as possible. The system may not work properly in an accident.
Page 75 Mazda5_8DW4-EC-14H_Edition3 Page75 Friday, January 16 2015 4:25 PM Black plate (75,1) Essential Safety Equipment SRS Air Bags WARNING Do not decrease the total seated weight on the front passenger seat: When an adult or large child sits on the front passenger seat, decreasing the total seated weight on the front passenger seat required for air bag deployment is dangerous.
Page 76 Mazda5_8DW4-EC-14H_Edition3 Page76 Friday, January 16 2015 4:25 PM Black plate (76,1) Essential Safety Equipment SRS Air Bags Do not increase the total seated weight on the front passenger seat: When an infant or small child sits on the front passenger seat, increasing the total seated weight on the front passenger seat is dangerous.
Page 77 If the front passenger air bag deactivation indicator light still illuminates, move the passenger to the rear seat. If sitting in the rear seat is not possible, slide the front passenger seat as far back as possible. Consult an Authorized Mazda Dealer as soon as possible.
Page 78: Monitoring And Maintenance
The air bag systems do not require regular maintenance. But if any of the following occurs, take your vehicle to an Authorized Mazda Dealer as soon as possible: The air bag system warning light flashes. The air bag system warning light remains illuminated.
Page 79 Improper disposal of an air bag or a vehicle with live air bags in it can be extremely dangerous. Unless all safety procedures are followed, injury can result. Ask an Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air bag equipped vehicle.
Page 80 Mazda5_8DW4-EC-14H_Edition3 Page80 Friday, January 16 2015 4:25 PM Black plate (80,1) 2-68 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 81: Knowing Your Mazda
Mazda5_8DW4-EC-14H_Edition3 Page81 Friday, January 16 2015 4:25 PM Black plate (81,1) Knowing Your Mazda Explanation of basic operations and controls; opening/closing and adjustment of various parts. Doors and Locks ................3-2 Keys ..................3-2 Keyless Entry System ............... 3-3 Door Locks ................3-9 Liftgate ..................
Page 82: Doors And Locks
This could result in If your key is lost, consult your Authorized someone being badly injured or even Mazda Dealer and have your code number killed. Children may find these new ready. kinds of keys to be an interesting toy...
Page 83: Keyless Entry System
To install a new battery, refer to Maintenance (page 3-7). Additional transmitters can be obtained at an Authorized Mazda Dealer. Up to 3 transmitters can be used with the keyless entry system per vehicle. Bring all transmitters to an Authorized Mazda Dealer when additional transmitters are required.
Page 84 Mazda5_8DW4-EC-14H_Edition3 Page84 Friday, January 16 2015 4:25 PM Black plate (84,1) Knowing Your Mazda Doors and Locks qTransmitter To confirm that all doors and the liftgate have been locked, press the lock button again within 5 seconds. If they are closed...
Page 85 Mazda5_8DW4-EC-14H_Edition3 Page85 Friday, January 16 2015 4:25 PM Black plate (85,1) Knowing Your Mazda Doors and Locks Unlock button Panic button To unlock the driver's door, press the If you witness from a distance someone unlock button and the hazard warning attempting to break into or damage your lights will flash twice.
Page 86 Mazda5_8DW4-EC-14H_Edition3 Page86 Friday, January 16 2015 4:25 PM Black plate (86,1) Knowing Your Mazda Doors and Locks Declaration of Conformity Keyless entry system I n f o r ma t i o n P r o v i d e d b y :...
Page 87 Mazda5_8DW4-EC-14H_Edition3 Page87 Friday, January 16 2015 4:25 PM Black plate (87,1) Knowing Your Mazda Doors and Locks qTransmitter Maintenance 2. Insert a screwdriver into the slot and push the tab to remove the key from If the buttons on the transmitter are the transmitter.
Page 88 Authorized Mazda Dealer. If your transmitter is lost or stolen, consult an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen transmitter inoperative. CAUTION Radio equipment like this is governed by laws in the United States.
Page 89: Door Locks
Mazda5_8DW4-EC-14H_Edition3 Page89 Friday, January 16 2015 4:25 PM Black plate (89,1) Knowing Your Mazda Doors and Locks After closing the doors, always verify Door Locks that they are securely closed: Doors not securely closed are WARNING dangerous, if the vehicle is driven...
Page 90 Mazda5_8DW4-EC-14H_Edition3 Page90 Friday, January 16 2015 4:25 PM Black plate (90,1) Knowing Your Mazda Doors and Locks qLocking, Unlocking with Key To lock either front door with the door- lock knob from the outside, push the The driver's door can be locked/unlocked door-lock knob to the lock position and with the key.
Page 91 Mazda5_8DW4-EC-14H_Edition3 Page91 Friday, January 16 2015 4:25 PM Black plate (91,1) Knowing Your Mazda Doors and Locks To lock a sliding door with the door-lock Locking, unlocking with key knob from the outside, slide the door-lock All doors and the liftgate lock...
Page 92 Mazda5_8DW4-EC-14H_Edition3 Page92 Friday, January 16 2015 4:25 PM Black plate (92,1) Knowing Your Mazda Doors and Locks Locking, unlocking with door-lock CAUTION switch When opening/closing a sliding door, All doors and the liftgate lock follow the cautions below. If the automatically when LOCK is pressed.
Page 93 Mazda5_8DW4-EC-14H_Edition3 Page93 Friday, January 16 2015 4:25 PM Black plate (93,1) Knowing Your Mazda Doors and Locks NOTE Opening/closing from inside When closing the sliding door from the fully- To open, pull the inner door handle opened position and from outside the vehicle, toward the back.
Page 94: Liftgate
Mazda5_8DW4-EC-14H_Edition3 Page94 Friday, January 16 2015 4:25 PM Black plate (94,1) Knowing Your Mazda Doors and Locks CAUTION Liftgate Ø Before opening the liftgate, WARNING remove any snow and ice Never allow a person to ride in the accumulation on it. Otherwise, the...
Page 95 Mazda5_8DW4-EC-14H_Edition3 Page95 Friday, January 16 2015 4:25 PM Black plate (95,1) Knowing Your Mazda Doors and Locks qLocking, Unlocking with Key While the ignition is switched ON, the liftgate can be opened only when the The liftgate can be locked/unlocked by...
Page 96 Lever After performing this emergency measure, have the vehicle inspected at an Authorized Mazda Dealer as soon as possible. 3-16 I n f o r ma t i o n P r o v i d e d b y :...
Page 97: Power Windows
Mazda5_8DW4-EC-14H_Edition3 Page97 Friday, January 16 2015 4:25 PM Black plate (97,1) Knowing Your Mazda Doors and Locks qOperating the Driver's Side Power Windows Power Window The ignition must be switched ON for the Normal opening/closing power windows to operate. To open the window to the desired WARNING position, lightly hold down the switch.
Page 98 Mazda5_8DW4-EC-14H_Edition3 Page98 Friday, January 16 2015 4:25 PM Black plate (98,1) Knowing Your Mazda Doors and Locks Power window system initialization WARNING procedure Make sure nothing blocks the window If the battery was disconnected during just before it reaches the fully closed...
Page 99 Mazda5_8DW4-EC-14H_Edition3 Page99 Friday, January 16 2015 4:25 PM Black plate (99,1) Knowing Your Mazda Doors and Locks qOperating the Passenger Power qPower Window Lock Switch Windows This feature prevents all power windows from operating, except the driver's power The power windows may be operated window.
Page 100: Fuel-Filler Lid And Cap
Black plate (100,1) Knowing Your Mazda Doors and Locks CAUTION Fuel-Filler Lid and Cap Always use only a genuine Mazda WARNING fuel-filler cap or an approved When removing the fuel-filler cap, equivalent, available at an loosen the cap slightly and wait for any Authorized Mazda Dealer.
Page 101: Hood
Contact an Authorized Mazda Dealer as soon as possible. 2. Insert your hand into the hood opening, slide the hood latch lever, and lift the hood.
Page 102 Mazda5_8DW4-EC-14H_Edition3 Page102 Friday, January 16 2015 4:25 PM Black plate (102,1) Knowing Your Mazda Doors and Locks qClosing the Hood 3. Grasp the support rod in the padded area and secure it in the support rod 1. Check under the hood area to make...
Page 103: Moonroof Í
The moonroof can be opened or closed does not get inside the cabin area. After electrically only when the ignition is washing your Mazda or after it rains, wipe the switched ON. water off the moonroof before operating it to...
Page 104 Mazda5_8DW4-EC-14H_Edition3 Page104 Friday, January 16 2015 4:25 PM Black plate (104,1) Knowing Your Mazda Doors and Locks qSunshade To close to the desired position, press the front of the tilt or slide switch. The sunshade can be opened and closed by hand.
Page 105: Security System
Mazda5_8DW4-EC-14H_Edition3 Page105 Friday, January 16 2015 4:25 PM Black plate (105,1) Knowing Your Mazda Security System CAUTION Immobilizer System When starting the engine do not The immobilizer system allows the engine allow the following, as the engine to start only with a key the system may not start due to the electronic recognizes.
Page 106 Always keep a spare key, in case one is lost. If a key is lost, contact an Authorized Mazda Dealer as soon as possible. If you lose a key, an Authorized Mazda Dealer will reset the electronic codes of your remaining keys and immobilizer system.
Page 107 Mazda5_8DW4-EC-14H_Edition3 Page107 Friday, January 16 2015 4:25 PM Black plate (107,1) Knowing Your Mazda Security System Declaration of Conformity Immobilizer system 3-27 I n f o r ma t i o n P r o v i d e d b y :...
Page 108 Disarming shut off the engine. Go to an Authorized The system is disarmed when the ignition Mazda Dealer and have it checked. If you is switched ON with the correct ignition shut off the engine while the light is key.
Page 109: Theft-Deterrent System Í
Mazda5_8DW4-EC-14H_Edition3 Page109 Friday, January 16 2015 4:25 PM Black plate (109,1) Knowing Your Mazda Security System NOTE í Theft-Deterrent System If the battery goes dead while the theft- deterrent system is armed, the horn will If the theft deterrent system detects an...
Page 110 NOTE Unlocking the driver's door with the key. If you have any problem with the theft- The hood is opened. deterrent system, consult an Authorized Mazda The key is inserted in the ignition switch. Dealer. The ignition is switched ON.
Page 111 A label indicating that your vehicle is equipped with a Theft-Deterrent System is in the glove compartment. Mazda recommends that you affix it to the lower rear corner of a front door window. 3-31 I n f o r ma t i o n P r o v i d e d b y :...
Page 112: Steering Wheel And Mirrors
Mazda5_8DW4-EC-14H_Edition3 Page112 Friday, January 16 2015 4:25 PM Black plate (112,1) Knowing Your Mazda Steering Wheel and Mirrors Steering Wheel Mirrors WARNING qOutside Mirrors Never adjust the steering wheel while Check the mirror angles before driving. the vehicle is moving:...
Page 113 Mazda5_8DW4-EC-14H_Edition3 Page113 Friday, January 16 2015 4:25 PM Black plate (113,1) Knowing Your Mazda Steering Wheel and Mirrors qRearview Mirror 2. Depress the mirror switch in the appropriate direction. Rearview mirror adjustment Selector switch Before driving, adjust the rearview mirror to center on the scene through the rear window.
Page 114 Mazda5_8DW4-EC-14H_Edition3 Page114 Friday, January 16 2015 4:25 PM Black plate (114,1) Knowing Your Mazda Steering Wheel and Mirrors WARNING Do not stack cargo or objects higher than the seatbacks: Cargo stacked higher than the seatbacks is dangerous. It can block...
Page 115: Before Driving Your Mazda
Mazda5_8DW4-EC-14H_Edition3 Page115 Friday, January 16 2015 4:25 PM Black plate (115,1) Before Driving Your Mazda Important information about driving your Mazda. Fuel and Engine Exhaust Precautions ........4-2 Fuel Requirements ..............4-2 Emission Control System ............4-3 Engine Exhaust (Carbon Monoxide) ......... 4-4 Before Starting the Engine ............
Page 116: Fuel And Engine Exhaust Precautions
Fuel Requirements Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL, which will reduce exhaust emissions and keep spark plug fouling to a minimum. Your Mazda will perform best with fuel listed in the table. Fuel Octane Rating...
Page 117: Emission Control System
Ø USE ONLY UNLEADED FUEL. Ø Do not drive your Mazda with any sign of engine malfunction. Ø Do not coast with the ignition switched off. Ø Do not descend steep grades in gear with the ignition switched off.
Page 118: Engine Exhaust (Carbon Monoxide)
When inhaled, it can cause loss of consciousness and death. If you smell exhaust gas inside your vehicle, keep all windows fully open and contact an Authorized Mazda Dealer immediately. Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous.
Page 119: Before Starting The Engine
Mazda5_8DW4-EC-14H_Edition3 Page119 Friday, January 16 2015 4:25 PM Black plate (119,1) Before Driving Your Mazda Before Starting the Engine Before Getting In After Getting In Be sure the windows, outside mirrors, Are all doors closed and locked? and outside lights are clean.
Page 120: Driving Tips
Environment No special break-in is necessary, but a few precautions in the first 1,000 km (600 How you operate your Mazda determines miles) may add to the performance, how far it will travel on a tank of fuel. Use economy, and life of your Mazda.
Page 121: Hazardous Driving
Mazda5_8DW4-EC-14H_Edition3 Page121 Friday, January 16 2015 4:25 PM Black plate (121,1) Before Driving Your Mazda Driving Tips Hazardous Driving Floor Mat WARNING WARNING Be extremely careful if it is necessary to Make sure the floor mats are hooked downshift on slippery surfaces:...
Page 122: Rocking The Vehicle
(35 mph), and do not allow of sand or salt. anyone to stand behind a wheel when Ask an Authorized Mazda Dealer to pushing the vehicle: perform the following precautions: When the vehicle is stuck, spinning...
Page 123 CAUTION Install the chains on the front tires only. Do not use chains on the rear tires. Check local regulations before using Please consult an Authorized Mazda studded tires. Dealer. NOTE Installing the chains If your vehicle is equipped with the tire 1.
Page 124: Driving In Flooded Area
Mazda5_8DW4-EC-14H_Edition3 Page124 Friday, January 16 2015 4:25 PM Black plate (124,1) Before Driving Your Mazda Driving Tips Driving In Flooded Area Overloading WARNING WARNING Dry wet brakes by driving very slowly Be careful not to overload your vehicle: and applying the brakes lightly until...
Page 125: Driving On Uneven Road
Mazda5_8DW4-EC-14H_Edition3 Page125 Friday, January 16 2015 4:25 PM Black plate (125,1) Before Driving Your Mazda Driving Tips Driving on Uneven Road Your vehicle's suspension and underbody can be damaged if driven on rough/uneven roads or over speed bumps at excessive speeds. Use care and reduce speed when traveling on rough/uneven roads or over speed bumps.
Page 126: Towing
Before Driving Your Mazda Towing Trailer Towing Your Mazda is not designed for towing. Never tow a trailer with your Mazda. 4-12 I n f o r ma t i o n P r o v i d e d b y :...
Page 127: Driving Your Mazda
Mazda5_8DW4-EC-14H_Edition3 Page127 Friday, January 16 2015 4:25 PM Black plate (127,1) Driving Your Mazda Explanation of instruments and controls. Starting and Driving ..............5-2 Ignition Switch ................5-2 Starting the Engine ..............5-3 Turning the Engine Off ............. 5-4 Brake System ................5-5 Manual Transaxle Operation ...........
Page 128: Starting And Driving
Mazda5_8DW4-EC-14H_Edition3 Page128 Friday, January 16 2015 4:25 PM Black plate (128,1) Driving Your Mazda Starting and Driving WARNING Ignition Switch Do not stop the engine while the qIgnition Switch Positions vehicle is moving: Stopping the engine while the vehicle is moving for any reason other than in an emergency is dangerous.
Page 129: Starting The Engine
Mazda5_8DW4-EC-14H_Edition3 Page129 Friday, January 16 2015 4:25 PM Black plate (129,1) Driving Your Mazda Starting and Driving NOTE Starting the Engine When the ignition is switched ON, the sound of the fuel pump motor operating near the fuel NOTE tank can be heard. This does not indicate an Engine-starting is controlled by the spark abnormality.
Page 130: Turning The Engine Off
Emergency Starting. If the engine still does accident and serious injury. not start, have your vehicle inspected by an Authorized Mazda Dealer (page 7-16). 1. Stop the vehicle completely. 2. (Manual transaxle) Shift into neutral.
Page 131: Brake System
Do not coast with the engine stalled or qFoot Brake turned off, find a safe place to stop: Coasting with the engine stalled or Your Mazda has power-assisted brakes turned off is dangerous. Braking will that adjust automatically through normal require more effort, and the brake's use.
Page 132 Mazda5_8DW4-EC-14H_Edition3 Page132 Friday, January 16 2015 4:25 PM Black plate (132,1) Driving Your Mazda Starting and Driving qParking Brake CAUTION WARNING Ø Do not drive with your foot held on the clutch pedal or brake pedal, Before leaving the driver's seat, always...
Page 133 Mazda Dealer. WARNING Do not drive with the brake system warning light illuminated. Contact an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving with the brake system warning light illuminated is dangerous. It indicates that your...
Page 134 ABS. friction and road contact because of Should this happen, consult an Authorized water on the road surface). You can Mazda Dealer as soon as possible. still have an accident. NOTE When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS warning light may illuminate.
Page 135 Have the vehicle towed to not indicate a malfunction. an Authorized Mazda Dealer to have The brake assist equipment does not the brakes inspected as soon as supersede the functionality of the vehicle's possible: main braking system.
Page 136: Manual Transaxle Operation
Mazda5_8DW4-EC-14H_Edition3 Page136 Friday, January 16 2015 4:25 PM Black plate (136,1) Driving Your Mazda Starting and Driving WARNING Manual Transaxle Operation Do not use sudden engine braking on qManual Transaxle Shift Pattern slippery road surfaces or at high speeds: Shifting down while driving on wet,...
Page 137 Mazda5_8DW4-EC-14H_Edition3 Page137 Friday, January 16 2015 4:25 PM Black plate (137,1) Driving Your Mazda Starting and Driving qRecommendations for Shifting Upshifting For normal acceleration, we recommend these shift points. Gear Vehicle speed 1 to 2 25 km/h (15 mph) 2 to 3...
Page 138: Automatic Transaxle Controls
Mazda5_8DW4-EC-14H_Edition3 Page138 Friday, January 16 2015 4:25 PM Black plate (138,1) Driving Your Mazda Starting and Driving Automatic Transaxle Controls Various Lockouts: Indicates that you must depress the brake pedal to shift (The ignition must be switched to ACC or ON).
Page 139 Mazda5_8DW4-EC-14H_Edition3 Page139 Friday, January 16 2015 4:25 PM Black plate (139,1) Driving Your Mazda Starting and Driving qTransaxle Ranges WARNING The shift lever must be in P or N to If the engine is running faster than idle, operate the starter.
Page 140 3. Move the shift lever. qShift-Lock System 4. Take the vehicle to an Authorized The shift-lock system prevents shifting Mazda Dealer to have the system out of P unless the brake pedal is checked. depressed. To shift from P: 1.
Page 141 Mazda5_8DW4-EC-14H_Edition3 Page141 Friday, January 16 2015 4:25 PM Black plate (141,1) Driving Your Mazda Starting and Driving qManual Shift Mode Gear position indicator The numeral for the selected gear This mode gives you the feel of driving a illuminates. manual transaxle vehicle by operating the...
Page 142 Mazda5_8DW4-EC-14H_Edition3 Page142 Friday, January 16 2015 4:25 PM Black plate (142,1) Driving Your Mazda Starting and Driving Shifting Manually Shifting down (M5 → M4 → M3 → M2 → M1) Manually Shifting up To shift down to a lower gear, move the (M1 →...
Page 143 Mazda5_8DW4-EC-14H_Edition3 Page143 Friday, January 16 2015 4:25 PM Black plate (143,1) Driving Your Mazda Starting and Driving Second gear fixed mode When the selector lever is moved back ) while the vehicle speed is about 10 km/h (6 mph) or less, the transaxle is set in the second gear fixed mode.
Page 144 Mazda5_8DW4-EC-14H_Edition3 Page144 Friday, January 16 2015 4:25 PM Black plate (144,1) Driving Your Mazda Starting and Driving Shift gear (shifting) speed limit For each gear position while in the manual mode, the speed limit is set as follows: When the selector lever is operated within the range of the speed limit, the gear is shifted.
Page 145 Mazda5_8DW4-EC-14H_Edition3 Page145 Friday, January 16 2015 4:25 PM Black plate (145,1) Driving Your Mazda Starting and Driving Recommendations for shifting Climbing steep grades from a stop To climb a steep grade from a stopped Upshifting position: For normal acceleration and cruising, we recommend these shift points.
Page 146: Power Steering
Mazda5_8DW4-EC-14H_Edition3 Page146 Friday, January 16 2015 4:25 PM Black plate (146,1) Driving Your Mazda Starting and Driving If the light remains illuminated after the Power Steering engine is started, or illuminates while driving, turn off the engine after parking Power steering is only operable when the in a safe place, and then start the engine engine is running.
Page 147: Cruise Control Í
Mazda5_8DW4-EC-14H_Edition3 Page147 Friday, January 16 2015 4:25 PM Black plate (147,1) Driving Your Mazda Starting and Driving qActivation/Deactivation í Cruise Control To activate the system, press the ON With cruise control, you can set and switch. automatically maintain any speed of more The cruise main indicator light than about 30 km/h (19 mph).
Page 148 Mazda5_8DW4-EC-14H_Edition3 Page148 Friday, January 16 2015 4:25 PM Black plate (148,1) Driving Your Mazda Starting and Driving qTo Increase Cruising Speed 3. Set the cruise control by pressing the cruise control SET /SET - switch up Follow either of these procedures.
Page 149 Mazda5_8DW4-EC-14H_Edition3 Page149 Friday, January 16 2015 4:25 PM Black plate (149,1) Driving Your Mazda Starting and Driving Your vehicle has a tap-down feature that To increase speed using accelerator pedal allows you to decrease your current speed in decrements of 1.6 km/h (1 mph) by a...
Page 150: Traction Control System (Tcs)
Mazda5_8DW4-EC-14H_Edition3 Page150 Friday, January 16 2015 4:25 PM Black plate (150,1) Driving Your Mazda Starting and Driving Press the CANCEL switch. Traction Control System (TCS) The Traction Control System (TCS) enhances traction and safety by controlling engine torque and braking.
Page 151: Dynamic Stability Control (Dsc)
Mazda5_8DW4-EC-14H_Edition3 Page151 Friday, January 16 2015 4:25 PM Black plate (151,1) Driving Your Mazda Starting and Driving qTCS/DSC Indicator Light Dynamic Stability Control (DSC) The Dynamic Stability Control (DSC) automatically controls braking and engine torque in conjunction with systems such...
Page 152 CAUTION Ø The DSC may not operate correctly unless the following are observed: Ø Use tires of the correct size specified for your Mazda on all four wheels. Ø Use tires of the same manufacturer, brand and tread This indicator light stays on for a few pattern on all four wheels.
Page 153 Mazda5_8DW4-EC-14H_Edition3 Page153 Friday, January 16 2015 4:25 PM Black plate (153,1) Driving Your Mazda Starting and Driving NOTE When DSC is on and you attempt to free the vehicle when it is stuck, or drive it out of freshly fallen snow, the TCS (part of the DSC system) will activate.
Page 154: Tire Pressure Monitoring System Í
Mazda5_8DW4-EC-14H_Edition3 Page154 Friday, January 16 2015 4:25 PM Black plate (154,1) Driving Your Mazda Starting and Driving í Tire Pressure Monitoring System The tire pressure monitoring system (TPMS) monitors the pressure for each tire. If tire pressure is too low in one or more tires, the system will inform the driver via the warning light in the instrument panel and by the warning beep sound.
Page 155 Mazda5_8DW4-EC-14H_Edition3 Page155 Friday, January 16 2015 4:25 PM Black plate (155,1) Driving Your Mazda Starting and Driving CAUTION Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label.
Page 156 Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Page 157 Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous - take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your vehicle.
Page 158 Consult an The easiest way to do it is to have an Authorized Mazda Dealer. Authorized Mazda Dealer change your tire and A system error activation may occur in complete ID signal code registration. the following cases:...
Page 159 Replacing tires and wheels CAUTION Ø When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged. Ø The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors.
Page 160: Parking Sensor System Í
Mazda5_8DW4-EC-14H_Edition3 Page160 Friday, January 16 2015 4:25 PM Black plate (160,1) Driving Your Mazda Starting and Driving í Parking Sensor System The parking sensor system uses ultrasonic sensors to detect obstructions around the vehicle while parking the vehicle in a garage or during parallel parking when the vehicle is driven at a speed of about 10 km/h (6 mph) or less.
Page 161 Very tall objects, and those which are wide at the top Small, short objects Always have the system inspected at an Authorized Mazda Dealer if any shock is applied to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect obstructions.
Page 162 Mazda5_8DW4-EC-14H_Edition3 Page162 Friday, January 16 2015 4:25 PM Black plate (162,1) Driving Your Mazda Starting and Driving qSensor Detection Range The sensors detect obstructions within the following range. A: About 50 cm (About 20 in) B: About 150 cm (About 59.1 in)
Page 163 Mazda5_8DW4-EC-14H_Edition3 Page163 Friday, January 16 2015 4:25 PM Black plate (163,1) Driving Your Mazda Starting and Driving Sensor detection condition The system can be used when the ignition is switched ON and the Park Assist Sensor Switch has been turned on.
Page 164 Mazda5_8DW4-EC-14H_Edition3 Page164 Friday, January 16 2015 4:25 PM Black plate (164,1) Driving Your Mazda Starting and Driving qParking Sensor Warning Beep Obstruction detection sound The beeper sounds as follows while the system is operating. Rear Sensor Distance between vehicle and obstruction...
Page 165 Remove any foreign material from the sensor area. If the system does not buzzer is heard five times. recover, have the vehicle inspected at an Authorized Mazda Dealer. NOTE The beep sound which indicates a system malfunction may not be heard if the ambient temperature is extremely cold, or mud, ice, or snow adheres to the sensor area.
Page 166: Instrument Cluster And Indicators
Mazda5_8DW4-EC-14H_Edition3 Page166 Friday, January 16 2015 4:25 PM Black plate (166,1) Driving Your Mazda Instrument Cluster and Indicators Meters and Gauges Speedometer ...................... page 5-41 Odometer, Trip Meter and Trip Meter Selector ..........page 5-41 Tachometer ......................page 5-42 Fuel Gauge ......................page 5-42 Dashboard Illumination ..................
Page 167 Mazda5_8DW4-EC-14H_Edition3 Page167 Friday, January 16 2015 4:25 PM Black plate (167,1) Driving Your Mazda Instrument Cluster and Indicators qSpeedometer The speedometer indicates the speed of the vehicle. qOdometer, Trip Meter and Trip Meter Selector The display mode can be changed...
Page 168 Mazda5_8DW4-EC-14H_Edition3 Page168 Friday, January 16 2015 4:25 PM Black plate (168,1) Driving Your Mazda Instrument Cluster and Indicators qTachometer For instance, trip meter A can record the distance from the point of origin, and trip The tachometer shows engine speed in...
Page 169 Mazda5_8DW4-EC-14H_Edition3 Page169 Friday, January 16 2015 4:25 PM Black plate (169,1) Driving Your Mazda Instrument Cluster and Indicators If the gauge indicates that the fuel level is When driving on snowy or foggy roads, near E, refuel as soon as possible.
Page 170: Warning/Indicator Lights And Beep Sounds
Mazda5_8DW4-EC-14H_Edition3 Page170 Friday, January 16 2015 4:25 PM Black plate (170,1) Driving Your Mazda Warning/Indicator Lights and Beep Sounds Warning/Indicator Lights Warning/Indicator lights will appear in any of the highlighted areas Signal Warning/Indicator Lights Page Brake System Warning Light 5-46...
Page 171 Mazda5_8DW4-EC-14H_Edition3 Page171 Friday, January 16 2015 4:25 PM Black plate (171,1) Driving Your Mazda Warning/Indicator Lights and Beep Sounds Signal Warning/Indicator Lights Page Air Bag/Front Seat Belt Pretensioner System Warning Light 5-50 Low Fuel Warning Light 5-50 Check Fuel Cap Warning Light...
Page 172 WARNING qBrake System Warning Light Do not drive with the brake system warning light illuminated. Contact an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving with the brake system warning light illuminated is dangerous. It indicates that your...
Page 173 ABS. Should this happen, consult an Authorized Mazda Dealer as soon as possible. NOTE When the engine is jump-started to charge When the ignition is switched ON, the...
Page 174 WARNING Do not drive with both the ABS warning light and brake warning light illuminated. Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving when the brake system This warning light illuminates when the...
Page 175 If the check engine light remains on or flashes continuously, do not drive at high speeds and consult an Authorized Mazda Dealer as soon as possible. 5-49 I n f o r ma t i o n P r o v i d e d b y :...
Page 176 ON. If any of these occur, This warning light illuminates for a few consult an Authorized Mazda Dealer as seconds when the ignition is switched soon as possible. The system may not operate in an accident.
Page 177 Close the door or liftgate securely before an electrical problem. Continuing to driving the vehicle. drive your Mazda in this condition could cause damage to your transaxle. Consult an Authorized Mazda Dealer as soon as possible.
Page 178 Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Page 179 Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous - take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your vehicle.
Page 180 Mazda5_8DW4-EC-14H_Edition3 Page180 Friday, January 16 2015 4:25 PM Black plate (180,1) Driving Your Mazda Warning/Indicator Lights and Beep Sounds qHeadlight High-Beam Indicator If the warning light illuminates again even after the tire pressures are adjusted, there Light may be a tire puncture. Replace the punctured tire with the temporary spare tire (page 7-7).
Page 181 (page 5-26). qTCS/DSC Indicator Light If the light stays on when the TCS/DSC is not switched off, take your vehicle to an Authorized Mazda Dealer. The dynamic stability control may have a malfunction. qCruise Main Indicator Light (Amber)/Cruise Set Indicator í...
Page 182 Mazda5_8DW4-EC-14H_Edition3 Page182 Friday, January 16 2015 4:25 PM Black plate (182,1) Driving Your Mazda Warning/Indicator Lights and Beep Sounds If the light remains illuminated after the Cruise Main Indicator Light (Amber) engine is started, or illuminates while The indicator light illuminates amber...
Page 183: Beep Sounds
The air bag and seat belt pretensioner system warning beep sound will continue to be heard for approximately 35 minutes. Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible. WARNING Do not drive the vehicle with the air...
Page 184 Mazda5_8DW4-EC-14H_Edition3 Page184 Friday, January 16 2015 4:25 PM Black plate (184,1) Driving Your Mazda Warning/Indicator Lights and Beep Sounds qSeat Belt Warning Beep qLights-On Reminder If the driver's seat belt is not fastened If lights are on and the key is removed...
Page 185: Switches And Controls
Mazda5_8DW4-EC-14H_Edition3 Page185 Friday, January 16 2015 4:25 PM Black plate (185,1) Driving Your Mazda Switches and Controls Lighting Control qHeadlights Turn the headlight switch to turn the headlights, other exterior lights and dashboard illumination on or off. NOTE To prevent discharging the battery, do not leave the lights on while the engine is off unless safety requires them.
Page 186 Mazda5_8DW4-EC-14H_Edition3 Page186 Friday, January 16 2015 4:25 PM Black plate (186,1) Driving Your Mazda Switches and Controls Switch Position Headlights Taillights Parking lights Auto License lights Side-marker lights Dashboard illumination AUTO (Auto-light control) When the headlight switch is in the AUTO position and the ignition is switched ON, the light sensor senses the surrounding lightness or darkness and automatically turns the headlights, other exterior lights and dashboard illumination on or off (see chart above).
Page 187 When the headlight switch is in the AUTO position and the ignition is switched to ACC or the ignition is switched off, the headlights, other exterior lights and dashboard illumination will turn off. The sensitivity of the AUTO lights may be changed by an Authorized Mazda Dealer. Refer to Personalization Features on page 10-8. í...
Page 188 Mazda5_8DW4-EC-14H_Edition3 Page188 Friday, January 16 2015 4:25 PM Black plate (188,1) Driving Your Mazda Switches and Controls qLights-On Reminder qFlashing the Headlights If lights are on and the key is removed To flash the headlights, pull the lever fully from the ignition switch, a continuous...
Page 189: Turn And Lane-Change Signals
Mazda5_8DW4-EC-14H_Edition3 Page189 Friday, January 16 2015 4:25 PM Black plate (189,1) Driving Your Mazda Switches and Controls Select the proper headlight angle from the following Turn and Lane-Change chart. Signals Front seat Rear Switch Load seat Position Driver Passenger Turn signals ×...
Page 190: Fog Lights Í
Mazda5_8DW4-EC-14H_Edition3 Page190 Friday, January 16 2015 4:25 PM Black plate (190,1) Driving Your Mazda Switches and Controls í Fog Lights Windshield Wipers and Washer The fog lights will improve visibility at night and during foggy conditions. The ignition must be switched ON.
Page 191 After 5 minutes, turn on the switch and the blades should operate normally. If they do not resume functioning, consult an Authorized Mazda Dealer as soon as possible. Drive to the side of the road and park off the right-of- way. Wait until the weather clears before trying to drive with the wipers inoperative.
Page 192 Mazda5_8DW4-EC-14H_Edition3 Page192 Friday, January 16 2015 4:26 PM Black plate (192,1) Driving Your Mazda Switches and Controls The sensitivity of the rain sensor can be Variable-speed intermittent wipers adjusted by turning the switch on the Set the lever to the intermittent position wiper lever.
Page 193 Mazda5_8DW4-EC-14H_Edition3 Page193 Friday, January 16 2015 4:26 PM Black plate (193,1) Driving Your Mazda Switches and Controls Ø When the wiper lever is in the NOTE AUTO position and the ignition is Switching the auto-wiper lever from the switched ON, the wipers may...
Page 194: Rear Window Wiper And Washer
If the washer does not work, inspect the Switch Position fluid level (page 8-26). If it's normal, Wiper operation Type Type consult an Authorized Mazda Dealer. INT Intermittent ON Normal qRear Window Washer To spray washer fluid, turn the rear wiper/ washer switch to the position.
Page 195: Rear Window Defogger
Mazda5_8DW4-EC-14H_Edition3 Page195 Friday, January 16 2015 4:26 PM Black plate (195,1) Driving Your Mazda Switches and Controls í qMirror Defogger Rear Window Defogger To turn on the mirror defoggers, switch The rear window defogger clears fog from the ignition ON and press the rear window the rear window.
Page 196: Horn
Mazda5_8DW4-EC-14H_Edition3 Page196 Friday, January 16 2015 4:26 PM Black plate (196,1) Driving Your Mazda Switches and Controls Horn Hazard Warning Flasher To sound the horn, press the mark on The hazard warning lights should always the steering wheel. be used when you stop on or near a roadway in an emergency.
Page 197: Interior Comfort
Convenient Use of the Hands-Free System ......6-79 Hands-Free Setting ..............6-85 When Bluetooth® Hands-Free Cannot be Used ..... 6-91 Safety Certification ..............6-92 Mazda Bluetooth® Hands-Free Customer Service ....6-92 Interior Equipment ..............6-93 Sunvisors ................. 6-93 Interior Lights ................. 6-93 Information Display ..............
Page 198 To help defog the windows, operate the For details, consult an Authorized Mazda air conditioner to dehumidify the air. Dealer. NOTE qReplacement of the Cabin Air Filter The air conditioner may be used along with the heater to dehumidify the air.
Page 199: Climate Control System
Mazda5_8DW4-EC-14H_Edition3 Page199 Friday, January 16 2015 4:26 PM Black plate (199,1) Interior Comfort Climate Control System Vent Operation qAdjusting the Vents Center Vents To adjust the direction of airflow, move Directing airflow the adjustment knob. Side Vents To adjust the direction of airflow, open the Knob Dial vents and rotate them left and right.
Page 200 Mazda5_8DW4-EC-14H_Edition3 Page200 Friday, January 16 2015 4:26 PM Black plate (200,1) Interior Comfort Climate Control System qSelecting the Airflow Mode Dashboard Vents Defroster and Floor Vents Dashboard and Floor Vents Defroster Vents Floor Vents I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 201: Fully Automatic Type
Mazda5_8DW4-EC-14H_Edition3 Page201 Friday, January 16 2015 4:26 PM Black plate (201,1) Interior Comfort Climate Control System Fully Automatic Type Climate control information is displayed on the information display. Auto switch Windshield defroster switch OFF switch Temperature control dial Mode selector switch Fan control dial A/C switch Air intake selector...
Page 202 Mazda5_8DW4-EC-14H_Edition3 Page202 Friday, January 16 2015 4:26 PM Black plate (202,1) Interior Comfort Climate Control System OFF switch Mode selector switch Pressing the OFF switch shuts off the The desired airflow mode can be selected climate control system. (page 6-4). Temperature control dial NOTE With the airflow mode set to...
Page 203 Mazda5_8DW4-EC-14H_Edition3 Page203 Friday, January 16 2015 4:26 PM Black plate (203,1) Interior Comfort Climate Control System Pressing the A/C switch while the AUTO WARNING switch is turned on will turn off the air Do not use the position in cold or conditioning (cooling/dehumidifying rainy weather: functions).
Page 204 Mazda5_8DW4-EC-14H_Edition3 Page204 Friday, January 16 2015 4:26 PM Black plate (204,1) Interior Comfort Climate Control System qOperation of Automatic Air qWindshield Defrosting and Defogging Conditioning 1. Press the AUTO switch. Selection of the airflow mode, air intake selector and amount of airflow will be automatically controlled.
Page 205: Rear Ventilation System
Mazda5_8DW4-EC-14H_Edition3 Page205 Friday, January 16 2015 4:26 PM Black plate (205,1) Interior Comfort Climate Control System qTemperature Sensor Rear Ventilation System The fully automatic air conditioner uses The rear ventilation system only blows the temperature sensor to measure the cool air through the rear vents while the temperature inside the passenger front climate control system is on.
Page 206 Mazda5_8DW4-EC-14H_Edition3 Page206 Friday, January 16 2015 4:26 PM Black plate (206,1) Interior Comfort Climate Control System Rear vent buttons The rear vent switches adjust the airflow volume flowing from the rear vent. OFF: Fan off LO: Low speed HI: High speed NOTE Only cool or cold air (no heat) blows through the rear vents while the front climate control is...
Page 207: Audio System
Mazda5_8DW4-EC-14H_Edition3 Page207 Friday, January 16 2015 4:26 PM Black plate (207,1) Interior Comfort Audio System CAUTION Antenna Ø To prevent damage to the qDetachable Type antenna, remove it before entering a car wash facility or passing To remove the antenna, turn it beneath a low overhead clearance.
Page 208: Operating Tips For Audio System
Mazda5_8DW4-EC-14H_Edition3 Page208 Friday, January 16 2015 4:26 PM Black plate (208,1) Interior Comfort Audio System qRadio Reception Operating Tips for Audio System AM characteristics AM signals bend around such things as WARNING buildings or mountains and bounce off the ionosphere. Therefore, they can reach Do not adjust the audio control longer distances than FM signals.
Page 209 Mazda5_8DW4-EC-14H_Edition3 Page209 Friday, January 16 2015 4:26 PM Black plate (209,1) Interior Comfort Audio System Signals from an FM transmitter are similar Flutter/Skip noise to beams of light because they do not Signals from an FM transmitter move in bend around corners, but they do reflect. straight lines and become weak in valleys Unlike AM signals, FM signals cannot between tall buildings, mountains, and...
Page 210 Mazda5_8DW4-EC-14H_Edition3 Page210 Friday, January 16 2015 4:26 PM Black plate (210,1) Interior Comfort Audio System qOperating Tips for CD Player Strong signal noise This occurs very close to a transmitter Condensation phenomenon tower. The broadcast signals are Immediately after turning on the heater extremely strong, so the result is noise and when the vehicle is cold, the CD or sound breakup at the radio receiver.
Page 211 Mazda5_8DW4-EC-14H_Edition3 Page211 Friday, January 16 2015 4:26 PM Black plate (211,1) Interior Comfort Audio System The CD revolves at high speed within A new CD may have rough edges on the unit. Defective (cracked or badly its inner and outer perimeters. If a disc bent) CDs should never be used.
Page 212 Mazda5_8DW4-EC-14H_Edition3 Page212 Friday, January 16 2015 4:26 PM Black plate (212,1) Interior Comfort Audio System Use discs that have been legitimately Do not insert any disc with a peel-off produced. If illegally-copied discs such seal affixed to it. as pirated discs are used, the system This unit may not be able to play may not operate properly.
Page 213 Mazda5_8DW4-EC-14H_Edition3 Page213 Friday, January 16 2015 4:26 PM Black plate (213,1) Interior Comfort Audio System qOperating tips for MP3 If a disc has both music data (CD-DA) and MP3 files, playback of the two file NOTE types differs depending on how the Supply of this product only conveys a license disc was recorded.
Page 214 Mazda5_8DW4-EC-14H_Edition3 Page214 Friday, January 16 2015 4:26 PM Black plate (214,1) Interior Comfort Audio System MP3 files not conforming to the MP3 Specialized glossary format containing both header frames and data frames will be skipped and Abbreviation for MPEG Audio Layer 3 . not played.
Page 215 Mazda5_8DW4-EC-14H_Edition3 Page215 Friday, January 16 2015 4:26 PM Black plate (215,1) Interior Comfort Audio System Playable WMA files are as follows: Bit rate Refers to the volume of data per second, Item Content expressed in bps (bits per second). Windows Media Audio Version Specification Generally, the larger the number of the 7.0, 8.0, 9.0...
Page 216 Mazda5_8DW4-EC-14H_Edition3 Page216 Friday, January 16 2015 4:26 PM Black plate (216,1) Interior Comfort Audio System qOperating Tips for USB device Playable AAC file specifications This unit supports playback of AAC files This unit supports playback of MP3/ recorded in CD-R and CD-RW. WMA/AAC files recorded to USB device.
Page 217 Mazda5_8DW4-EC-14H_Edition3 Page217 Friday, January 16 2015 4:26 PM Black plate (217,1) Interior Comfort Audio System The file extension may not be provided CAUTION depending on the computer operating This unit plays files with the file system, version, software, or settings. extension (mp3) as an MP3 file.
Page 218 Apple Inc., registered in the U.S. and other vehicle. Ø If data in the iPod is lost while it is countries. connected to the unit, Mazda Connectable iPods are as follows: cannot guarantee recovery of any lost data. iPod: 5G Ø...
Page 219: Audio Set
Mazda5_8DW4-EC-14H_Edition3 Page219 Friday, January 16 2015 4:26 PM Black plate (219,1) Interior Comfort Audio System Audio Set Audio information is displayed on the information display. Power/Volume/Sound Controls ................page 6-24 Operating the Radio ....................page 6-28 Operating the Satellite Radio ................. page 6-30 Operating the Compact Disc (CD) Player ..............
Page 220 Mazda5_8DW4-EC-14H_Edition3 Page220 Friday, January 16 2015 4:26 PM Black plate (220,1) Interior Comfort Audio System qPower/Volume/Sound Controls Power/Volume dial Audio control dial Power ON/OFF Audio sound adjustment Switch the ignition to ACC or ON. 1. Press the audio control dial to select the function.
Page 221 Mazda5_8DW4-EC-14H_Edition3 Page221 Friday, January 16 2015 4:26 PM Black plate (221,1) Interior Comfort Audio System 2. Turn the audio control dial to adjust the Select the desired ALC mode. selected functions as follows: Mode Volume change Indication Turn Left Turn Right No change Select mode Minimum...
Page 222 Mazda5_8DW4-EC-14H_Edition3 Page222 Friday, January 16 2015 4:26 PM Black plate (222,1) Interior Comfort Audio System BEEP setting The beep-sound when operating the audio system can be set on or off. í BT SETUP mode Music and other audio such as voice data recorded on portable audio devices and mobile phones available on the market ®...
Page 223 Mazda5_8DW4-EC-14H_Edition3 Page223 Friday, January 16 2015 4:26 PM Black plate (223,1) MEMO 6-27 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 224 Mazda5_8DW4-EC-14H_Edition3 Page224 Friday, January 16 2015 4:26 PM Black plate (224,1) Interior Comfort Audio System qOperating the Radio Band selector button Manual tuning dial/Mute button Seek tuning buttons Auto memory button Channel preset buttons Scan button Radio ON Tuning Press a band selector button ( ) to The radio has the following tuning turn the radio on.
Page 225 Mazda5_8DW4-EC-14H_Edition3 Page225 Friday, January 16 2015 4:26 PM Black plate (225,1) Interior Comfort Audio System After scanning is completed, the station Scan tuning with the strongest frequency will be tuned Press the scan button ( ) to and its frequency displayed. automatically sample strong stations.
Page 226 Mazda5_8DW4-EC-14H_Edition3 Page226 Friday, January 16 2015 4:26 PM Black plate (226,1) Interior Comfort Audio System í qOperating the Satellite Radio Seek tuning buttons Satellite button Category buttons Scan button Channel preset buttons Text button Scroll button Manual tuning dial/Instant replay button Information display All operations of the satellite radio are displayed on the Information display.
Page 227 Mazda5_8DW4-EC-14H_Edition3 Page227 Friday, January 16 2015 4:26 PM Black plate (227,1) Interior Comfort Audio System NOTE What is satellite radio? This equipment has been tested and found to With over 130 channels, SIRIUS Satellite comply with the limits for a Class B digital Radio brings you more of what you love.
Page 228 If ESN FAIL is displayed after channel 0 is selected by operating the manual SR1, SR2 and SR3: six stations can be stored tuning dial, contact an Authorized Mazda in each bank for convenient access to your Dealer. favorite stations.
Page 229 Mazda5_8DW4-EC-14H_Edition3 Page229 Friday, January 16 2015 4:26 PM Black plate (229,1) Interior Comfort Audio System UPDATING xx% is displayed when the Unsubscribed channel SIRIUS channel map is changed. If the When a selected station has not been unit is initialized or the user contract subscribed to, the display indicates the content is changed, SUBSCRIPTION following:...
Page 230 Mazda5_8DW4-EC-14H_Edition3 Page230 Friday, January 16 2015 4:26 PM Black plate (230,1) Interior Comfort Audio System (Programming with “text” display (e.g. Category change channel name)) Press the category button ( ) and select the desired category. 1. Select the desired channel to be Press the category button ( programmed.
Page 231 Mazda5_8DW4-EC-14H_Edition3 Page231 Friday, January 16 2015 4:26 PM Black plate (231,1) Interior Comfort Audio System NOTE Scan tuning Eight characters are displayed on one Press the scan button ( ) to screen. automatically sample stations. Scanning To display the rest of the characters of a stops at each station for about five long title, press the scroll button ( seconds.
Page 232 Mazda5_8DW4-EC-14H_Edition3 Page232 Friday, January 16 2015 4:26 PM Black plate (232,1) Interior Comfort Audio System If there is no channel name, Three seconds after scrolling the artist No TITLE is displayed. name, the display automatically return to display the first part of the artist's name.
Page 233 Mazda5_8DW4-EC-14H_Edition3 Page233 Friday, January 16 2015 4:26 PM Black plate (233,1) Interior Comfort Audio System NOTE Instant replay If the channel is changed, the instant replay This function allows you to rewind and buffer data is deleted. replay the program that you were After turning on the power and switching to previously or are currently listening to.
Page 234 Mazda5_8DW4-EC-14H_Edition3 Page234 Friday, January 16 2015 4:26 PM Black plate (234,1) Interior Comfort Audio System NOTE 3. SR1 - - - - appears, which indicates that it is ready for code input. Master code: The Master Code is used to initialize or re- 4.
Page 235 Mazda5_8DW4-EC-14H_Edition3 Page235 Friday, January 16 2015 4:26 PM Black plate (235,1) Interior Comfort Audio System (New ID code input determination) (Registered ID code input) 10. Determine the new ID code which 5. Input the registered ID code using has been input by pressing the scan channel preset buttons 1-4.
Page 236 Mazda5_8DW4-EC-14H_Edition3 Page236 Friday, January 16 2015 4:26 PM Black plate (236,1) Interior Comfort Audio System NOTE (Registered ID code input preparation) If an ID code is not input for ten seconds, 2. Press and hold the scan button ( “Err” is displayed and it returns to the then press channel preset button 6.
Page 237 Mazda5_8DW4-EC-14H_Edition3 Page237 Friday, January 16 2015 4:26 PM Black plate (237,1) MEMO 6-41 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 238 Mazda5_8DW4-EC-14H_Edition3 Page238 Friday, January 16 2015 4:26 PM Black plate (238,1) Interior Comfort Audio System qOperating the Compact Disc (CD) Player Play/Pause button/File dial Random button Track up/Fast-forward button Folder up button Repeat button Load button CD slot CD eject button CD play button Folder down button Text button...
Page 239 Mazda5_8DW4-EC-14H_Edition3 Page239 Friday, January 16 2015 4:26 PM Black plate (239,1) Interior Comfort Audio System Fast-forward/Reverse Repeat playback Press and hold the fast-forward button During music CD playback ) to advance through a track at high 1. Press the repeat button ( ) during speed.
Page 240 Mazda5_8DW4-EC-14H_Edition3 Page240 Friday, January 16 2015 4:26 PM Black plate (240,1) Interior Comfort Audio System During MP3/WMA/AAC CD playback MP3/WMA/AAC CD (Folder random) File number/Elapsed time 1. Press the random button ( ) during playback to play the tracks in the folder randomly.
Page 241 Use a commercially-available, non- impedance (3.5 ) stereo mini plug cable. Contact an Authorized Mazda Dealer for details. In addition, audio can be played from the vehicle's audio unit by connecting USB device or an iPod to the USB port.
Page 242 Interior Comfort Audio System qError Indications If you see an error indication on the display, find the cause in the chart. If you cannot clear the error indication, take the vehicle to an Authorized Mazda Dealer. Indication Cause Solution Depending on the...
Page 243: Audio Control Switch Operation
When the audio unit is turned on, Mazda has installed this system to prevent operation of the audio unit from the distraction while driving the vehicle and steering wheel is possible.
Page 244 Mazda5_8DW4-EC-14H_Edition3 Page244 Friday, January 16 2015 4:26 PM Black plate (244,1) Interior Comfort Audio System qChanging the Source NOTE CD, USB, iPod, SIRIUS digital satellite radio, Press the mode switch ( ) to change and BT audio modes cannot be selected in the the audio source (FM1 radio →...
Page 245 Mazda5_8DW4-EC-14H_Edition3 Page245 Friday, January 16 2015 4:26 PM Black plate (245,1) Interior Comfort Audio System With Bluetooth® Hands-Free When playing a CD, USB, iPod, or BT audio Press the seek switch up to skip to the next track. Press the seek switch down to repeat the current track.
Page 246: Aux/Usb/Ipod Mode
A commercially-available, non-impedance vehicle is dangerous as it could (3.5 ) stereo mini plug cable is required. distract your attention from the Contact an Authorized Mazda Dealer for vehicle operation which could lead to details. a serious accident. Always adjust the...
Page 247 Mazda5_8DW4-EC-14H_Edition3 Page247 Friday, January 16 2015 4:26 PM Black plate (247,1) Interior Comfort Audio System qHow to use AUX mode NOTE This mode may not be usable depending on Audio Unit Audio Control the portable audio device to be connected. Switches Before using the auxiliary jack/USB port, refer to the instruction manual for the...
Page 248 Mazda5_8DW4-EC-14H_Edition3 Page248 Friday, January 16 2015 4:26 PM Black plate (248,1) Interior Comfort Audio System qHow to use USB mode Random button Play/Pause button/File dial Track up/Fast-forward button Folder up button Repeat button Folder down button Text button Scan button Track down/Reverse button Source change button Scroll button...
Page 249 Mazda5_8DW4-EC-14H_Edition3 Page249 Friday, January 16 2015 4:26 PM Black plate (249,1) Interior Comfort Audio System Press and hold the reverse button ( ) to 2. To cancel the repeat playback, press the reverse through a track at high speed. button again after 3 seconds. Track search (Folder repeat) Press the track up button (...
Page 250 USB device. Verify that the content recorded in the USB device has File name MP3/WMA/AAC files and re-connect correctly. If the message reappears, have Folder name the unit checked by an Authorized Mazda Dealer. Album name Song name Artist name NOTE...
Page 251 Mazda5_8DW4-EC-14H_Edition3 Page251 Friday, January 16 2015 4:26 PM Black plate (251,1) MEMO 6-55 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 252 Mazda5_8DW4-EC-14H_Edition3 Page252 Friday, January 16 2015 4:26 PM Black plate (252,1) Interior Comfort Audio System qHow to use iPod mode Category down button Category up button Random button Repeat button Track up/Fast-forward button List up button Track down/Reverse button List down button Text button Scan button Source change button...
Page 253 Mazda5_8DW4-EC-14H_Edition3 Page253 Friday, January 16 2015 4:26 PM Black plate (253,1) Interior Comfort Audio System Fast-forward/Reverse Music Scan Press and hold the fast-forward button This function scans the titles in a list ) to advance through a track at high currently being played and plays ten speed.
Page 254 If you see an error indication on the title/Composer title/Podcast title) display, find the cause in the chart. If you cannot clear the error indication, take the Artist name vehicle to an Authorized Mazda Dealer. Album name Indication Cause Solution...
Page 255: Safety Certification
Ø This CD player should not be adjusted or repaired by anyone except qualified service personnel. If servicing is required, contact an Authorized Mazda Dealer. Ø Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser exposure. Never operate the CD player with the top case of the unit removed.
Page 256: Bluetooth® Audio
® Bluetooth unit, you can listen to music an Authorized Mazda Dealer when or audio recorded on these audio devices purchasing or changing devices. ® from the vehicle's speakers. Bluetooth ®...
Page 257 Mazda5_8DW4-EC-14H_Edition3 Page257 Friday, January 16 2015 4:26 PM Black plate (257,1) Interior Comfort Bluetooth® Audio NOTE Audio profile The system may not operate normally A2DP (Advanced Audio Distribution ® depending on the Bluetooth audio device. Profile) Ver. 1.0 ® To make sure that your Bluetooth audio AVRCP (Audio/Video Remote Control device is Ver.
Page 258 Mazda5_8DW4-EC-14H_Edition3 Page258 Friday, January 16 2015 4:26 PM Black plate (258,1) Interior Comfort Bluetooth® Audio qBluetooth® Audio Preparation Display Mode Function ® Pairing Bluetooth audio ® Bluetooth audio device set-up PAIR DEVICE program mode device programming ® Bluetooth audio programming, changes, Changing link Link change ®...
Page 259 Mazda5_8DW4-EC-14H_Edition3 Page259 Friday, January 16 2015 4:26 PM Black plate (259,1) Interior Comfort Bluetooth® Audio NOTE 2. Press the audio control dial to ® determine the mode. Always perform Bluetooth audio device After ENTER PIN is displayed on programming while the vehicle is stopped. ®...
Page 260 Mazda5_8DW4-EC-14H_Edition3 Page260 Friday, January 16 2015 4:26 PM Black plate (260,1) Interior Comfort Bluetooth® Audio NOTE 6. When the programming is completed, ® and PAIR SUCCESS are Some Bluetooth audio devices need a certain amount of time before the “ ”...
Page 261 Mazda5_8DW4-EC-14H_Edition3 Page261 Friday, January 16 2015 4:26 PM Black plate (261,1) Interior Comfort Bluetooth® Audio ® 4. Turn the audio control dial to select the Changing the link to a Bluetooth audio device name of the device you would like to link.
Page 262 Mazda5_8DW4-EC-14H_Edition3 Page262 Friday, January 16 2015 4:26 PM Black plate (262,1) Interior Comfort Bluetooth® Audio NOTE 4. Rotate the audio control dial and select ® the name of the programmed device Some Bluetooth audio devices need a certain amount of time before the “ ”...
Page 263 Mazda5_8DW4-EC-14H_Edition3 Page263 Friday, January 16 2015 4:26 PM Black plate (263,1) Interior Comfort Bluetooth® Audio 7. Press the audio control dial to delete 4. Rotate the audio control dial to select ® the selected device. the information for the Bluetooth unit which you would like to view.
Page 264 Mazda5_8DW4-EC-14H_Edition3 Page264 Friday, January 16 2015 4:26 PM Black plate (264,1) Interior Comfort Bluetooth® Audio NOTE Selecting a file (track) ® Some Bluetooth audio devices need a certain Short-press the track down button ( ) or amount of time before the “ ”...
Page 265 Mazda5_8DW4-EC-14H_Edition3 Page265 Friday, January 16 2015 4:26 PM Black plate (265,1) Interior Comfort Bluetooth® Audio Display scroll Only 12 characters can be displayed at one time. To display the rest of the characters of a long title, short-press the scroll button ( ).
Page 266: Bluetooth® Hands-Free
Performing phonebook registration (Mobile phone) are some which will while driving the vehicle could be a not connect with your Mazda or will distraction to your driving and result have limited function. Therefore, in an accident. In addition, a mistake ®...
Page 267 Mazda5_8DW4-EC-14H_Edition3 Page267 Friday, January 16 2015 4:26 PM Black plate (267,1) Interior Comfort Bluetooth® Hands-Free A2DP (Advanced Audio Distribution Profile) Ver. 1.0 OPP (Object Push Profile) Ver. 1.1 NOTE ® The Bluetooth Hands-Free system is operable several seconds after the ignition Pick-up button is switched to ACC or ON (requires less than 15 seconds).
Page 268 Mazda5_8DW4-EC-14H_Edition3 Page268 Friday, January 16 2015 4:26 PM Black plate (268,1) Interior Comfort Bluetooth® Hands-Free Close the windows and/or the Microphone moonroof to reduce loud noises from The microphone is used for speaking outside the vehicle, or turn down the voice commands or exchanging airflow of the climate control system conversation.
Page 269 Mazda5_8DW4-EC-14H_Edition3 Page269 Friday, January 16 2015 4:26 PM Black plate (269,1) Interior Comfort Bluetooth® Hands-Free qFunction Restrictions While Tutorial Using Bluetooth® Hands-Free The tutorial explains how to use ® Bluetooth Hands-Free. Some functions are limited while To activate the tutorial, do the following: ®...
Page 270: Basic Bluetooth® Hands-Free Operation
Mazda5_8DW4-EC-14H_Edition3 Page270 Friday, January 16 2015 4:26 PM Black plate (270,1) Interior Comfort Bluetooth® Hands-Free Voice guidance interrupt operation Basic Bluetooth® Hands- Voice guidance can be skipped by Free Operation pressing the talk button with a short press while it is being heard. A new voice input qBluetooth®...
Page 271 Mazda5_8DW4-EC-14H_Edition3 Page271 Friday, January 16 2015 4:26 PM Black plate (271,1) Interior Comfort Bluetooth® Hands-Free NOTE 1. Press the pick-up button or talk button with a short press. Other language settings can also be made while in the current setting by saying the name 2.
Page 272 ® a Bluetooth audio device if it has already been programmed as a hands-free mobile 10. Select Mazda from the device list phone. searched by the device. Since the communication range of a 11. Input the 4-digit pairing code to the ®...
Page 273 Mazda5_8DW4-EC-14H_Edition3 Page273 Friday, January 16 2015 4:26 PM Black plate (273,1) Interior Comfort Bluetooth® Hands-Free 14. Prompt: XXXXXX - - - (Ex. 5. Prompt: XXXXXXXXXXX. Stan's device ) (Device tag). Is this (Telephone number) After the beep, correct? continue to add numbers, or say Go- Back to re-enter the last entered 15.
Page 274 Mazda5_8DW4-EC-14H_Edition3 Page274 Friday, January 16 2015 4:26 PM Black plate (274,1) Interior Comfort Bluetooth® Hands-Free qReceiving an Incoming Call NOTE The volume can also be adjusted using the 1. Prompt: Incoming call, press the volume button on the steering wheel. pickup button to answer .
Page 275: Convenient Use Of The Hands-Free System
Mazda5_8DW4-EC-14H_Edition3 Page275 Friday, January 16 2015 4:26 PM Black plate (275,1) Interior Comfort Bluetooth® Hands-Free 13. Prompt: Number, please. Convenient Use of the 14. Say: [Beep] XXXXXXXXXXX Hands-Free System (Say the phone number to be registered.) qPhonebook Usage 15. Prompt: XXXXXXXXXXX Phonebook registration (Phone number registration).
Page 276 Mazda5_8DW4-EC-14H_Edition3 Page276 Friday, January 16 2015 4:26 PM Black plate (276,1) Interior Comfort Bluetooth® Hands-Free 3. Prompt: Select one of the following: For the phonebook setting method, refer New entry, edit, list names, delete, to (page 6-83). erase all or import contact. 1.
Page 277 Mazda5_8DW4-EC-14H_Edition3 Page277 Friday, January 16 2015 4:26 PM Black plate (277,1) Interior Comfort Bluetooth® Hands-Free qEmergency Calls qTransferring a Call A call can be made to the emergency Transferring a call from Hands-Free to phone number (911: U.S.A/Canada, 066: a device (Mobile phone) Mexico) using the voice input command.
Page 278 Mazda5_8DW4-EC-14H_Edition3 Page278 Friday, January 16 2015 4:26 PM Black plate (278,1) Interior Comfort Bluetooth® Hands-Free 3. Prompt: Swapping calls 6. (Dialing) Press the pick-up button or say Dial , NOTE then go to Step 7. To refuse an incoming call, press the hang- (Adding/inputting telephone up button.
Page 279 Mazda5_8DW4-EC-14H_Edition3 Page279 Friday, January 16 2015 4:26 PM Black plate (279,1) Interior Comfort Bluetooth® Hands-Free qPhonebook Settings 11. Prompt: The current number is XXXXXXXXXXX (Ex. 555-1234 ) Editing phonebook (Currently registered number). New ® The data registered to the Bluetooth number, please.
Page 280 Mazda5_8DW4-EC-14H_Edition3 Page280 Friday, January 16 2015 4:26 PM Black plate (280,1) Interior Comfort Bluetooth® Hands-Free 1. Press the pick-up button or talk button 5. Prompt: Are you sure you want to with a short press. erase everything from your Hands Free system phonebook? 2.
Page 281: Hands-Free Setting
Mazda5_8DW4-EC-14H_Edition3 Page281 Friday, January 16 2015 4:26 PM Black plate (281,1) Interior Comfort Bluetooth® Hands-Free Call : Calls the registered phonebook Hands-Free Setting data when the talk button is short- pressed. qDevice Edit : Edits the registered phonebook data when the talk button is short- Device registration pressed.
Page 282 Mazda5_8DW4-EC-14H_Edition3 Page282 Friday, January 16 2015 4:26 PM Black plate (282,1) Interior Comfort Bluetooth® Hands-Free Press the talk button with a short press 3. Prompt: Select one of the following: during the read-out at the desired device, Pairing options, confirmation prompts, and then say one of the following voice language, passcode, select phone or commands to execute it.
Page 283 Mazda5_8DW4-EC-14H_Edition3 Page283 Friday, January 16 2015 4:26 PM Black plate (283,1) Interior Comfort Bluetooth® Hands-Free 6. Say: [Beep] XXXXX... (Ex. Device 6. Say: [Beep] Delete 7. Prompt: Please say the name of the 7. Prompt: XXXXX... (Ex. Device B). device you would like to delete. Is this correct? Available devices are XXXXX...
Page 284 Mazda5_8DW4-EC-14H_Edition3 Page284 Friday, January 16 2015 4:26 PM Black plate (284,1) Interior Comfort Bluetooth® Hands-Free 8. Say: [Beep] XXXXX... (Ex. device 9. Prompt: Passcode XXXX (Passcode, PCode). Is this correct? 10. Say: [Beep] Yes 9. Prompt: New name please? 10. Say: [Beep] XXXXX... (Ex. device 11.
Page 285 Mazda5_8DW4-EC-14H_Edition3 Page285 Friday, January 16 2015 4:26 PM Black plate (285,1) Interior Comfort Bluetooth® Hands-Free qVoice Recognition Learning 6. Say: [Beep] Yes Function (Speaker Enrollment) 7. Prompt: Passcode is disabled. The voice recognition learning function Confirmation Prompts enables voice recognition appropriate to The confirmation prompt confirms the the characteristics of the user's voice.
Page 286 Mazda5_8DW4-EC-14H_Edition3 Page286 Friday, January 16 2015 4:26 PM Black plate (286,1) Interior Comfort Bluetooth® Hands-Free 5. The voice guidance reads out the voice 7. The voice guidance reads out the voice input command number (refer to the input command number (refer to the voice input command list for voice voice input command list for voice recognition learning).
Page 287: When Bluetooth® Hands-Free Cannot Be Used
Mazda5_8DW4-EC-14H_Edition3 Page287 Friday, January 16 2015 4:26 PM Black plate (287,1) Interior Comfort Bluetooth® Hands-Free NOTE When Bluetooth® Hands- The applicable phrase appears in the Free Cannot be Used display. After user voice registration is completed, ® Bluetooth Hands-Free cannot be used voice guidance “Speaker enrollment is under the following conditions: complete”...
Page 288: Safety Certification
Mazda5_8DW4-EC-14H_Edition3 Page288 Friday, January 16 2015 4:26 PM Black plate (288,1) Interior Comfort Bluetooth® Hands-Free Safety Certification Mazda Bluetooth® Hands- Free Customer Service FCC ID: CB2MBLUEC09 IC:279B- MBLUEC09 U.S.A. This device complies with Part 15 of the Phone: 800-430-0153 (Toll-free) FCC Rules and with RSS-210 of Industry www.MazdaUSA.com/bluetooth...
Page 289: Interior Equipment
Mazda5_8DW4-EC-14H_Edition3 Page289 Friday, January 16 2015 4:26 PM Black plate (289,1) Interior Comfort Interior Equipment Sunvisors Interior Lights When you need a sunvisor, lower it for qIlluminated Entry System use in front or swing it to the side. When the illuminated entry system Sunvisor operates, the overhead light (switch is in the DOOR position) turns on for:...
Page 290 Mazda5_8DW4-EC-14H_Edition3 Page290 Friday, January 16 2015 4:26 PM Black plate (290,1) Interior Comfort Interior Equipment qOverhead Lights qMap Lights Front The map lights are switched on or off by pressing the switches. Switches Switch Position Front Overhead Lights qLuggage Compartment Light Light off Light is on when any door is open...
Page 291: Information Display
Mazda5_8DW4-EC-14H_Edition3 Page291 Friday, January 16 2015 4:26 PM Black plate (291,1) Interior Comfort Interior Equipment Information Display Clock/Ambient Trip computer Climate control display Audio display temperature display display Steering switch qInformation Display Functions The information display has the following functions: Clock Ambient Temperature Display Climate Control Display...
Page 292 Mazda5_8DW4-EC-14H_Edition3 Page292 Friday, January 16 2015 4:26 PM Black plate (292,1) Interior Comfort Interior Equipment qClock qAmbient Temperature Display When the ignition is switched to ACC or When the ignition is switched ON, the ON, the time is displayed. ambient temperature is displayed. Time setting NOTE Under the following conditions, the ambient...
Page 293 When you've slowed to about 5 km/h (3 mph), - - - L/100 km (- - -mpg) will be If you have any problems with your trip displayed. computer, consult an Authorized Mazda Dealer. Current fuel economy mode This mode displays the current fuel...
Page 294 Mazda5_8DW4-EC-14H_Edition3 Page294 Friday, January 16 2015 4:27 PM Black plate (294,1) Interior Comfort Interior Equipment After pressing the INFO switch, - - - L/ Average fuel economy mode 100 km (- - - mpg) will be displayed for This mode displays the average fuel about 1 minute before the fuel economy is economy by calculating the total fuel recalculated and displayed.
Page 295 Mazda5_8DW4-EC-14H_Edition3 Page295 Friday, January 16 2015 4:27 PM Black plate (295,1) Interior Comfort Interior Equipment NOTE CANADA Even though the distance-to-empty display may indicate a sufficient amount of remaining mileage before refueling is required, refuel as soon as possible if the fuel gauge needle nears E or the low fuel warning light illuminates.
Page 296: Cup Holder
Mazda5_8DW4-EC-14H_Edition3 Page296 Friday, January 16 2015 4:27 PM Black plate (296,1) Interior Comfort Interior Equipment qFront Cup Holder The front cup holder is in the center WARNING console. Never use a cup holder to hold hot liquids while the vehicle is moving: Using a cup holder to hold hot liquids while the vehicle is moving is dangerous.
Page 297: Bottle Holder
Mazda5_8DW4-EC-14H_Edition3 Page297 Friday, January 16 2015 4:27 PM Black plate (297,1) Interior Comfort Interior Equipment Third-row seat Bottle Holder Two cup holders are in the side-trim on Bottle holders are on the inside of the both the left and right sides. doors.
Page 298: Storage Compartments
Mazda5_8DW4-EC-14H_Edition3 Page298 Friday, January 16 2015 4:27 PM Black plate (298,1) Interior Comfort Interior Equipment Storage Compartments WARNING Keep storage boxes closed when driving: Driving with the storage boxes open is dangerous. To reduce the possibility of injury in an accident or a sudden stop, keep the storage boxes closed when driving.
Page 299 Mazda5_8DW4-EC-14H_Edition3 Page299 Friday, January 16 2015 4:27 PM Black plate (299,1) Interior Comfort Interior Equipment qSmall Item Storage Spaces WARNING Do not place objects in the small storage spaces which can roll around easily or stick out. Putting objects in the small item storage spaces which can roll around easily or stick out is dangerous.
Page 300 Mazda5_8DW4-EC-14H_Edition3 Page300 Friday, January 16 2015 4:27 PM Black plate (300,1) Interior Comfort Interior Equipment qGlove Compartment qUnderseat Storage To open the glove compartment, pull the If your vehicle has a right second-row latch toward you. storage box (page 6-105), when using the storage box, small items can be stored under the both bottoms of the second-row seats.
Page 301 Mazda5_8DW4-EC-14H_Edition3 Page301 Friday, January 16 2015 4:27 PM Black plate (301,1) Interior Comfort Interior Equipment CAUTION CAUTION Do not store items above the marked When returning the seat-bottom to line indicated in the illustration its upright position, make sure there below.
Page 302 Mazda5_8DW4-EC-14H_Edition3 Page302 Friday, January 16 2015 4:27 PM Black plate (302,1) Interior Comfort Interior Equipment 3. More items can be stowed if the cover To use the storage box is removed. 1. Pull the strap and lift the seat bottom up and forward.
Page 303 Mazda5_8DW4-EC-14H_Edition3 Page303 Friday, January 16 2015 4:27 PM Black plate (303,1) Interior Comfort Interior Equipment Use the loops in the luggage compartment CAUTION to secure cargo with a rope or net. The When returning the seat-bottom to tensile strength of the loops is 196 N (20 its upright position, make sure there kgf, 44 lbf).
Page 304 Mazda5_8DW4-EC-14H_Edition3 Page304 Friday, January 16 2015 4:27 PM Black plate (304,1) Interior Comfort Interior Equipment qRear Coat Hooks qLuggage Compartment WARNING A golf bag can be carried in the luggage compartment. Never hang heavy or sharp objects on To place a golf bag in the luggage the assist grips and coat hooks: compartment, use the following Hanging heavy or sharp-ended...
Page 305: Accessory Sockets
Accessory Sockets Ø To prevent accessory socket Switch the ignition to ACC or ON. damage or electrical failure, pay Only use genuine Mazda accessories or attention to the following: the equivalent requiring no greater than Ø Do not use accessories that 120 W (DC 12 V, 10 A).
Page 306 Mazda5_8DW4-EC-14H_Edition3 Page306 Friday, January 16 2015 4:27 PM Black plate (306,1) 6-110 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 307: In Case Of An Emergency
Mazda5_8DW4-EC-14H_Edition3 Page307 Friday, January 16 2015 4:27 PM Black plate (307,1) In Case of an Emergency Helpful information on what to do in an emergency. Parking in an Emergency ............. 7-2 Parking in an Emergency ............7-2 Flat Tire ..................7-3 Spare Tire and Tool Storage ............
Page 308: Parking In An Emergency
Mazda5_8DW4-EC-14H_Edition3 Page308 Friday, January 16 2015 4:27 PM Black plate (308,1) In Case of an Emergency Parking in an Emergency Parking in an Emergency The hazard warning lights should always be used when you stop on or near a roadway in an emergency. The hazard warning lights warn other drivers that your vehicle is a traffic hazard and that they must take extreme caution...
Page 309: Flat Tire
Mazda5_8DW4-EC-14H_Edition3 Page309 Friday, January 16 2015 4:27 PM Black plate (309,1) In Case of an Emergency Flat Tire Spare Tire and Tool Storage Spare tire and tools are stored in the locations illustrated in the diagram. Jack lever Lug wrench Tiedown eyelet Jack Spare tire...
Page 310 Mazda5_8DW4-EC-14H_Edition3 Page310 Friday, January 16 2015 4:27 PM Black plate (310,1) In Case of an Emergency Flat Tire qJack To secure the jack 1. Insert the wing bolt into the jack with To remove the jack the jack screw pointing down and turn 1.
Page 311 Ø Do not use your temporary spare tire on any other vehicle; it has been designed only for your Mazda. Ø Use only one temporary spare tire on your vehicle at the same time. NOTE (With Tire Pressure Monitoring System) A tire pressure sensor is not installed to the temporary spare tire.
Page 312 Mazda5_8DW4-EC-14H_Edition3 Page312 Friday, January 16 2015 4:27 PM Black plate (312,1) In Case of an Emergency Flat Tire 2. Open and fold back the trunk board To secure the spare tire over the third-row seatback. Perform the removal procedure in reverse. Trunk board 3.
Page 313: Changing A Flat Tire
CAUTION (With Tire Pressure Monitoring System) The wheels equipped on your Mazda NOTE are specially designed for installation When blocking a tire, use rocks or wood blocks of the tire pressure sensors. Do not...
Page 314 Mazda5_8DW4-EC-14H_Edition3 Page314 Friday, January 16 2015 4:27 PM Black plate (314,1) In Case of an Emergency Flat Tire qRemoving a Flat Tire 4. Place the jack under the jack-up position closest to the tire being 1. Loosen the lug nuts by turning them changed with the jack head squarely counterclockwise one turn each, but do under the jack-up point.
Page 315 Mazda is firmly in position and that it under the jack is dangerous as it cannot slip or move. could deform the vehicle body or the vehicle could fall off the jack resulting in an accident.
Page 316 In Case of an Emergency Flat Tire í qLocking Lug Nuts WARNING If your vehicle has Mazda optional Do not jack up the vehicle higher than antitheft wheel lug nuts, one on each is necessary: wheel will lock the tires and you must use Jacking up the vehicle higher than is a special key to unlock them.
Page 317 Mazda5_8DW4-EC-14H_Edition3 Page317 Friday, January 16 2015 4:27 PM Black plate (317,1) In Case of an Emergency Flat Tire 2. Mount the spare tire. To install the antitheft lug nut 1. Place the special key on top of the nut, 3. Install the lug nuts with the beveled and be sure to hold the key square to it.
Page 318 Because the wheel studs and lug nuts on your Mazda have metric threads, using a non-metric nut is dangerous. On a metric stud, it would not secure the wheel and would damage the stud, which could cause the wheel to slip off and cause an accident.
Page 319 Mazda5_8DW4-EC-14H_Edition3 Page319 Friday, January 16 2015 4:27 PM Black plate (319,1) In Case of an Emergency Flat Tire 10. Thread the belt through the wheel as 13. Check the tire inflation pressure. shown in the figure, then attach the Refer to Tires on page 10-6. belt clips to the cargo securing loops 14.
Page 320: Overheating
Stop the engine and call an radiator are hot: Authorized Mazda Dealer. When the engine and radiator are hot, scalding coolant and steam may 6. Make sure the cooling fan is operating,...
Page 321 The engine could be seriously damaged unless repairs are made. Consult an Authorized Mazda Dealer. 7-15 I n f o r ma t i o n P r o v i d e d b y :...
Page 322: Emergency Starting
If the engine still does not start using the above procedure, have your vehicle inspected by an Authorized Mazda Dealer. 7-16 I n f o r ma t i o n P r o v i d e d b y :...
Page 323: Jump-Starting
Mazda5_8DW4-EC-14H_Edition3 Page323 Friday, January 16 2015 4:27 PM Black plate (323,1) In Case of an Emergency Emergency Starting Jump-Starting Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel unsure about jump-starting, we strongly recommend that you have a competent service technician do the work.
Page 324 Mazda5_8DW4-EC-14H_Edition3 Page324 Friday, January 16 2015 4:27 PM Black plate (324,1) In Case of an Emergency Emergency Starting Keep all flames, including cigarettes, and sparks away from open battery cells: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode.
Page 325 Mazda5_8DW4-EC-14H_Edition3 Page325 Friday, January 16 2015 4:27 PM Black plate (325,1) In Case of an Emergency Emergency Starting 2 Detach the clip facing the vehicle 1. Remove the battery cover from its front interior first and pull it outward side. with your finger approx.
Page 326 Mazda5_8DW4-EC-14H_Edition3 Page326 Friday, January 16 2015 4:27 PM Black plate (326,1) In Case of an Emergency Emergency Starting 3 Pull out the battery cover being 2 Attach the clips on both sides of careful not to allow it to contact the battery cover.
Page 327: Push-Starting
Emergency Starting 6. When finished, carefully disconnect the Push-Starting cables in the reverse order described in the illustration. Do not push-start your Mazda. NOTE WARNING Verify that the covers are securely installed. Never tow a vehicle to start it: Towing a vehicle to start it is dangerous.
Page 328: Emergency Towing
Towing Description Do not tow the vehicle pointed We recommend that towing be done only backward with driving wheels on the by an Authorized Mazda Dealer or a ground. This may cause internal commercial tow-truck service. damage to the transaxle.
Page 329: Tiedown Hooks Í
Mazda5_8DW4-EC-14H_Edition3 Page329 Friday, January 16 2015 4:27 PM Black plate (329,1) In Case of an Emergency Emergency Towing NOTE í Tiedown Hooks If it is difficult to remove the tiedown eyelet, wrap the jack lever with a cloth as shown in CAUTION the figure and press the marking on the cover Do not use the front and rear...
Page 330 Mazda5_8DW4-EC-14H_Edition3 Page330 Friday, January 16 2015 4:27 PM Black plate (330,1) In Case of an Emergency Emergency Towing qTiedown Hooks-Rear 4. Hook the tying rope to the tiedown eyelet. Tiedown hook CAUTION CAUTION The rear tiedown hook is designed If the tiedown eyelet is not securely only for lashing the vehicle during tightened, it may loosen or disengage overseas transport.
Page 331 Mazda5_8DW4-EC-14H_Edition3 Page331 Friday, January 16 2015 4:27 PM Black plate (331,1) In Case of an Emergency Emergency Towing Recreational Towing An example of recreational towing is towing your vehicle behind a motorhome. The transaxle is not designed for towing this vehicle on all 4 wheels. When doing recreational towing refer to Towing Description (page 7-22) and Tiedown Hook (page 7-23) and...
Page 332 Mazda5_8DW4-EC-14H_Edition3 Page332 Friday, January 16 2015 4:27 PM Black plate (332,1) 7-26 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 333: Maintenance And Care
Mazda5_8DW4-EC-14H_Edition3 Page333 Friday, January 16 2015 4:27 PM Black plate (333,1) Maintenance and Care How to keep your Mazda in top condition. Introduction .................. 8-2 Introduction ................8-2 Scheduled Maintenance ..............8-4 Scheduled Maintenance (USA, Canada, and Puerto Rico) ..8-4 Scheduled Maintenance (Mexico) ..........
Page 334: Introduction
If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda standards for durability and performance as described in this manual.
Page 335 Black plate (335,1) Maintenance and Care Introduction Any auto repair shop using parts equivalent to your Mazda's original equipment may perform maintenance. But we recommend that it always be done by an Authorized Mazda Dealer using genuine Mazda parts. I n f o r ma t i o n P r o v i d e d b y :...
Page 336: Scheduled Maintenance
Mazda5_8DW4-EC-14H_Edition3 Page336 Friday, January 16 2015 4:27 PM Black plate (336,1) Maintenance and Care Scheduled Maintenance Scheduled Maintenance (USA, Canada, and Puerto Rico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are used...
Page 337: Scheduled Maintenance (Mexico)
Mazda5_8DW4-EC-14H_Edition3 Page337 Friday, January 16 2015 4:27 PM Black plate (337,1) Maintenance and Care Scheduled Maintenance qSchedule 1 Number of months or kilometers (miles), whichever comes first Months Maintenance Interval ×1000 km ×1000 miles 22.5 37.5 52.5 ENGINE Audibly inspect every 120,000 km (75,000 miles), if noisy, Engine valve clearance adjust Drive belts...
Page 338 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 339 Mazda5_8DW4-EC-14H_Edition3 Page339 Friday, January 16 2015 4:27 PM Black plate (339,1) Maintenance and Care Scheduled Maintenance qSchedule 2 Number of months or kilometers (miles), whichever comes first Months Maintenance Interval ×1000 km ×1000 miles ENGINE Audibly inspect every 120,000 km (75,000 miles), if noisy, Engine valve clearance adjust Drive belts...
Page 340 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 341 Mazda5_8DW4-EC-14H_Edition3 Page341 Friday, January 16 2015 4:27 PM Black plate (341,1) Maintenance and Care Scheduled Maintenance Scheduled Maintenance (Mexico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are used Driving on rough or muddy roads...
Page 342 Mazda5_8DW4-EC-14H_Edition3 Page342 Friday, January 16 2015 4:27 PM Black plate (342,1) Maintenance and Care Scheduled Maintenance qSchedule 1 Number of months or kilometers, whichever comes first Maintenance Interval Months ×1000 km 90 100 110 120 ENGINE Engine valve clearance Audibly inspect every 120,000 km, if noisy, adjust Drive belts Engine oil Engine oil filter...
Page 343 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 344 Mazda5_8DW4-EC-14H_Edition3 Page344 Friday, January 16 2015 4:27 PM Black plate (344,1) Maintenance and Care Scheduled Maintenance qSchedule 2 Number of months or kilometers, whichever comes first Maintenance Interval Months ×1000 km ENGINE Engine valve clearance Audibly inspect every 120,000 km, if noisy, adjust Drive belts Engine oil Engine oil filter...
Page 345 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 346 Mazda5_8DW4-EC-14H_Edition3 Page346 Friday, January 16 2015 4:27 PM Black plate (346,1) Maintenance and Care Scheduled Maintenance (Cont.) Number of months or kilometers, whichever comes first Maintenance Interval Months ×1000 km 95 100 105 110 115 120 ENGINE Engine valve clearance Audibly inspect every 120,000 km, if noisy, adjust Drive belts Engine oil...
Page 347 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 348: Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the indicated intervals to ensure safe and dependable operation. Bring any problem to the attention of an Authorized Mazda Dealer or qualified service technician as soon as possible.
Page 349: Owner Maintenance Precautions
Refer to Introduction (page 8-2) for owner's responsibility in protecting your investment. For details, read the separate Mazda Warranty statement provided with the vehicle. If you are unsure about any servicing or maintenance procedure, have it done by an Authorized Mazda Dealer.
Page 350 Mazda5_8DW4-EC-14H_Edition3 Page350 Friday, January 16 2015 4:27 PM Black plate (350,1) Maintenance and Care Owner Maintenance WARNING Do not perform maintenance work if you lack sufficient knowledge and experience or the proper tools and equipment to do the work. Have maintenance work done by a qualified technician: Performing maintenance work on a vehicle is dangerous if not done properly.
Page 351: Engine Compartment Overview
Mazda5_8DW4-EC-14H_Edition3 Page351 Friday, January 16 2015 4:27 PM Black plate (351,1) Maintenance and Care Owner Maintenance Engine Compartment Overview Automatic transaxle fluid-level dipstick (Only for automatic transaxle) Engine oil-filler cap Battery Engine coolant reservoir Engine oil dipstick Brake/Clutch fluid reservoir Cooling system cap Power steering fluid reservoir Windscreen washer fluid reservoir...
Page 352: Engine Oil
Lubricant Standardization and Approval Committee (ILSAC), comprised of U.S. qRecommended Oil and Japanese automobile manufacturers. U.S.A. and CANADA Use SAE 0W-20 engine oil. Mazda Genuine Oil is used in your Mazda –40 –20 –30 –10 vehicle. Mazda Genuine 0W-20 Oil is required to achieve optimum fuel –40 –20...
Page 353 Mazda5_8DW4-EC-14H_Edition3 Page353 Friday, January 16 2015 4:27 PM Black plate (353,1) Maintenance and Care Owner Maintenance 4. Pull out the dipstick, wipe it clean, and reinsert it fully. Type A Full (ILSAC) (Mexico) Use SAE 0W-20 engine oil. If SAE 0W- 20 engine oil is not available, use SAE Type B Full...
Page 354: Engine Coolant
Rinse it off quickly if spilled. NOTE Changing the coolant should be done by an Authorized Mazda Dealer. 8-22 I n f o r ma t i o n P r o v i d e d b y :...
Page 355 If the coolant reservoir is empty or new water in the coolant mixture. coolant is required frequently, consult an Water that contains minerals will Authorized Mazda Dealer. cut down on the coolant's effectiveness. Ø Do not add only water. Always add a proper coolant mixture.
Page 356: Brake/Clutch Fluid
If the fluid decreases significantly or the fluid level is around MIN or lower than MIN, consult an Authorized Mazda Dealer to have the vehicle inspected. 8-24 I n f o r ma t i o n P r o v i d e d b y :...
Page 357: Automatic Transaxle Fluid (Atf) Í
5. Check the ATF level. If the ATF level does not reach 5 mm (0.2 in) from the end of the dipstick, consult an Authorized Mazda Dealer to have the vehicle inspected. í 8-25 Some models.
Page 358: Washer Fluid
If the ATF level does not reach the temperatures below 4 degrees C (40 appropriate level, consult an Authorized degrees F) using washer fluid without Mazda Dealer to have the vehicle anti-freeze protection is dangerous inspected. as it could cause impaired windshield NOTE vision and result in an accident.
Page 359: Body Lubrication
Mazda5_8DW4-EC-14H_Edition3 Page359 Friday, January 16 2015 4:27 PM Black plate (359,1) Maintenance and Care Owner Maintenance Inspect fluid level in the washer fluid Body Lubrication reservoir; add fluid if necessary. All moving points of the body, such as door and hood hinges and locks, should be lubricated each time the engine oil is changed.
Page 360: Wiper Blades
Be careful not to pinch hands or fingers as it may cause injury, or damage the wipers. When washing or servicing your Mazda, make sure the wiper lever is in the OFF position. Contamination of either the windshield or...
Page 361 Mazda5_8DW4-EC-14H_Edition3 Page361 Friday, January 16 2015 4:27 PM Black plate (361,1) Maintenance and Care Owner Maintenance 2. Hold the end of the rubber and pull CAUTION until the tabs are free of the metal Ø Don't bend or discard the support.
Page 362 Mazda5_8DW4-EC-14H_Edition3 Page362 Friday, January 16 2015 4:27 PM Black plate (362,1) Maintenance and Care Owner Maintenance 3. Pull down the blade rubber and slide it CAUTION out of the blade holder. To prevent damage to the wiper arm and other components, don't try to sweep the wiper arm by hand.
Page 363 Mazda5_8DW4-EC-14H_Edition3 Page363 Friday, January 16 2015 4:27 PM Black plate (363,1) Maintenance and Care Owner Maintenance 5. Carefully insert the new blade rubber. Then install the blade assembly in the reverse order of removal. 8-31 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 364: Battery
Mazda5_8DW4-EC-14H_Edition3 Page364 Friday, January 16 2015 4:27 PM Black plate (364,1) Maintenance and Care Owner Maintenance Battery WARNING Wash hands after handling the battery and related accessories: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Read the following precautions carefully before using the battery or inspecting to ensure safe and correct handling: Always wear eye protection when working near the battery:...
Page 365 Mazda5_8DW4-EC-14H_Edition3 Page365 Friday, January 16 2015 4:27 PM Black plate (365,1) Maintenance and Care Owner Maintenance Keep all flames, including cigarettes, and sparks away from open battery cells: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode.
Page 366 Mazda5_8DW4-EC-14H_Edition3 Page366 Friday, January 16 2015 4:27 PM Black plate (366,1) Maintenance and Care Owner Maintenance 2 Detach the clip facing the vehicle NOTE interior first and pull it outward Remove the battery cover before performing with your finger approx. 4 mm (0.2 battery maintenance.
Page 367 Mazda5_8DW4-EC-14H_Edition3 Page367 Friday, January 16 2015 4:27 PM Black plate (367,1) Maintenance and Care Owner Maintenance 3 Pull out the battery cover being 2 Attach the clips on both sides of careful not to allow it to contact the battery cover. the cowl grille.
Page 368: Tires
Black plate (368,1) Maintenance and Care Owner Maintenance qBattery Replacement Tires Contact an Authorized Mazda Dealer for a For reasons of proper performance, safety, battery replacement purchase. and better fuel economy, always maintain recommended tire inflation pressures and stay within the recommended load limits and weight distribution.
Page 369 Do not use any part for the tire valve cap that is not a Mazda- genuine part. Refer to the specification charts (page 10-6).
Page 370 Mazda5_8DW4-EC-14H_Edition3 Page370 Friday, January 16 2015 4:27 PM Black plate (370,1) Maintenance and Care Owner Maintenance NOTE During rotation, inspect them for correct balance. Always check tire pressure when tires are cold. Warm tires normally exceed recommended pressures. Don't release air from warm tires to adjust the pressure.
Page 371 It is recommended wheels or both, have the work done that tires generally be replaced when they are by an Authorized Mazda Dealer, or 6 years or older. Heat caused by hot climates the tire pressure sensors may be or frequent high loading conditions can damaged.
Page 372 Authorized appears, replace the tire with the Mazda Dealer, or the tire same type of temporary spare pressure sensors may be (page 8-39). damaged.
Page 373 Mazda5_8DW4-EC-14H_Edition3 Page373 Friday, January 16 2015 4:27 PM Black plate (373,1) Maintenance and Care Owner Maintenance When replacing a wheel, make sure the new one is the same as the original factory wheel in diameter, rim width, and offset (inset/outset). Proper tire balancing provides the best riding comfort and helps reduce tread wear.
Page 374: Light Bulbs
Mazda5_8DW4-EC-14H_Edition3 Page374 Friday, January 16 2015 4:27 PM Black plate (374,1) Maintenance and Care Owner Maintenance Light Bulbs Overhead light/Map lights (Front) Side turn signal lights Fog lights Front turn signal lights/Front side-marker Headlights (High beam) lights/Parking lights Headlights (Low beam) Overhead light (Rear) High-mount brake light License plate lights...
Page 375 Wire shock if the bulbs are handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is necessary. Guide Never touch the glass portion of a halogen bulb with your bare hands and 4.
Page 376 You cannot replace the low beam bulbs by yourself. The bulbs must be replaced at an 5. Install the new bulb in the reverse order Authorized Mazda Dealer. of the removal procedure. (Halogen bulb) 1. Make sure the ignition is switched off, and the headlight switch is off.
Page 377 To replace the bulb, contact an Authorized the connector with your finger and Mazda Dealer pulling the connector. If the halogen bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used.
Page 378 í Side turn signal lights Due to the complexity and difficulty of the procedure, the LED bulbs must be replaced by an Authorized Mazda Dealer. í 8-46 Some models. I n f o r ma t i o n P r o v i d e d b y :...
Page 379 Mazda5_8DW4-EC-14H_Edition3 Page379 Friday, January 16 2015 4:27 PM Black plate (379,1) Maintenance and Care Owner Maintenance 4. Pull the unit rearward to remove it. Rear turn signal lights 5. Turn the socket and bulb assembly 7. Install the new bulb in the reverse order counterclockwise and remove it.
Page 380 Due to the complexity and difficulty of of the removal procedure. the procedure, the LED bulbs must be replaced by an Authorized Mazda Dealer. NOTE LED bulb replacement is not possible because it is built into the unit. Replace the unit.
Page 381 Mazda5_8DW4-EC-14H_Edition3 Page381 Friday, January 16 2015 4:27 PM Black plate (381,1) Maintenance and Care Owner Maintenance qReplacing Interior Light Bulbs Overhead light (Rear) 1. Wrap a small flathead screwdriver with Overhead light (Front)/Map lights a soft cloth to prevent damage to the 1.
Page 382: Fuses
If a fuse has blown, the inside element will be melted. If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible. qFuse Replacement Replacing the fuses on the passenger's side...
Page 383 If it does not fit tightly, have an expert install it. We recommend an Authorized Mazda Dealer. If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the AUDIO or CIGAR circuit.
Page 384 Normal Blown WARNING Do not replace the main fuse by yourself. Have an Authorized Mazda Dealer perform the replacement: Replacing the fuse by yourself is dangerous because the MAIN fuse is a high current fuse. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.
Page 385 Mazda5_8DW4-EC-14H_Edition3 Page385 Friday, January 16 2015 4:27 PM Black plate (385,1) Maintenance and Care Owner Maintenance qFuse Panel Description Fuse block (Engine compartment) FUSE DESCRIPTION PROTECTED COMPONENT RATING IG KEY1 50 A For protection of various circuits AD FAN 30 A Cooling fan GLOW2 HEATER2...
Page 386 Mazda5_8DW4-EC-14H_Edition3 Page386 Friday, January 16 2015 4:27 PM Black plate (386,1) Maintenance and Care Owner Maintenance FUSE DESCRIPTION PROTECTED COMPONENT RATING FAN1 30 A Cooling fan AT PUMP P.SLIDE R EHPAS 80 A Power assist steering í 15 A Fog lights D.LOCK 20 A Power door lock...
Page 387 Mazda5_8DW4-EC-14H_Edition3 Page387 Friday, January 16 2015 4:27 PM Black plate (387,1) Maintenance and Care Owner Maintenance Fuse block (Passenger's side) FUSE DESCRIPTION PROTECTED COMPONENT RATING 30 A Power window M.DEF STARTER 10 A Engine control system ENG3 20 A Engine control system P.OUTLET 15 A Accessory sockets (Cargo compartment)
Page 388: Appearance Care
Occurrence Prevention Industrial pollutants and vehicle emissions It is necessary to have your Mazda drift into the air and mix with rain or dew to form acids. These acids can settle on a washed and waxed to preserve its finish vehicle's finish.
Page 389 The rings Chipped paint can lead to rust forming on can damage your vehicle's finish. your Mazda. Before this happens, repair the damage by using Mazda touch-up paint Prevention according to the instructions in this section.
Page 390: Exterior Care
Mazda5_8DW4-EC-14H_Edition3 Page390 Friday, January 16 2015 4:27 PM Black plate (390,1) Maintenance and Care Appearance Care qMaintaining the Finish Exterior Care Washing Follow all label and container directions when using a chemical cleaner or polish. CAUTION Read all warnings and cautions. Ø...
Page 391 Insects, tar, tree sap, bird droppings, NOTE industrial fallout, and similar deposits can Mazda is not responsible for scratches damage the finish if not removed caused by automatic car washes or immediately. When prompt washing with improper washing.
Page 392 CAUTION spray could damage or deform the molding, affect the sealability of parts, If your Mazda is damaged and needs and allow water to penetrate the interior. metal parts repaired or replaced, Keep a sufficient space (30 cm (12 in) or make sure the body shop applies more) between the nozzle and the vehicle.
Page 393 Mazda5_8DW4-EC-14H_Edition3 Page393 Friday, January 16 2015 4:27 PM Black plate (393,1) Maintenance and Care Appearance Care During cold weather or in coastal areas, WARNING cover bright-metal parts with a coating Dry wet brakes by driving very slowly of wax or preservative heavier than and applying the brakes lightly until usual.
Page 394 Mazda5_8DW4-EC-14H_Edition3 Page394 Friday, January 16 2015 4:27 PM Black plate (394,1) Maintenance and Care Appearance Care NOTE High water temperature and high water pressure car washers are available Do not use a wire brush or any abrasive depending on the type of high pressure cleaner, polishing compound, or solvent on car washer device.
Page 395: Interior Care
Mazda5_8DW4-EC-14H_Edition3 Page395 Friday, January 16 2015 4:27 PM Black plate (395,1) Maintenance and Care Appearance Care í Leather Interior Care Remove dust and sand first using a WARNING vacuum cleaner or other means, then wipe dirt off using a soft cloth with a leather Do not spray water in the cabin: cleaner or a soft cloth soaked in mild Splashing water on electrical parts...
Page 396 Mazda5_8DW4-EC-14H_Edition3 Page396 Friday, January 16 2015 4:27 PM Black plate (396,1) Maintenance and Care Appearance Care NOTE To keep the fabric looking clean and fresh, take care of it. Otherwise its color Because genuine leather is a natural will be affected, it can be stained easily, material, its surface is not uniform and it and its fire-resistance may be reduced.
Page 397 This may cause an accident when WARNING depressing the accelerator, brake, or clutch (Manual transaxle) pedal or Have an Authorized Mazda Dealer when getting in or out of the vehicle. replace damaged seat belts immediately: After removing the floor mats for...
Page 398 Mazda5_8DW4-EC-14H_Edition3 Page398 Friday, January 16 2015 4:27 PM Black plate (398,1) 8-66 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 399: Customer Information And Reporting Safety Defects
Importer/Distributor ......9-13 Reporting Safety Defects ....... 9-42 Warranty ..........9-14 Reporting Safety Defects (U.S.A.) ..9-42 Warranties for Your Mazda ....9-14 Reporting Safety Defects (Canada) ... 9-43 Outside the United States ....9-15 Outside Canada ......... 9-16 Service Publications ......9-44 Registering Your Vehicle in A Foreign Service Publications ......
Page 400: Customer Assistance
Answers to many questions, including how to locate or contact a local Mazda dealership in the U.S., can be found here. E-mail: click on Contact Us located on the Inside Mazda tab, or at the bottom of the page at www.mazdaUSA.com...
Page 401: Customer Assistance (Puerto Rico)
Mazda North American Operations realizes that mutual agreement on some issues may not be possible. As a final step to ensure that your concerns are being fairly considered, Mazda North American Operations has agreed to participate in a dispute settlement program administered by the Better Business Bureau (BBB) system, at no cost to you the consumer.
Page 402: Customer Assistance (Mexico)
Mazda or one of our dealers, and a statement of the relief you are seeking. 5. BBB AUTO LINE staff may try to help resolve your dispute through mediation. If...
Page 403 AND the nonconformity has been subject to repair two or more times by Mazda or its agents AND the buyer or lessee has directly notified Mazda of the need for the repair of the nonconformity; OR...
Page 404 11. If you accept the arbitrator's decision, Mazda will be bound by the decision, and will comply with the decision within a reasonable time not to exceed 30 days after we receive notice of your acceptance of the decision.
Page 405 Your complete and permanent satisfaction is of primary concern to Mazda. All Authorized Mazda Dealers have both the knowledge and tools to keep your Mazda in top condition. In our experience, any questions, problems, or complaints regarding the operation of your Mazda or any other general service transactions are most effectively resolved by your dealer.
Page 406 If a specific item of concern arises, where a solution cannot be reached between an owner, Mazda, and/or one of its dealers (that all parties cannot agree upon), the owner may wish to use the services offered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 407 1 (800) 207-0685 Ontario 1 (800) 207-0685 Atlantic Canada 1 (800) 207-0685 Quebec 1 (800) 207-0685 qRegional Offices REGIONAL OFFICES COVERING AREAS MAZDA CANADA INC. WESTERN REGION ALBERTA, 5011 275 STREET BRITISH COLUMBIA, LANGLEY, BRITISH COLUMBIA MANITOBA, V4W 0A8 SASKATCHEWAN, (778) 369-2100...
Page 408 1 Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 409 Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take the following steps: qContact Your Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 410 Mazda5_8DW4-EC-14H_Edition3 Page410 Friday, January 16 2015 4:27 PM Black plate (410,1) Customer Information and Reporting Safety Defects Customer Assistance 2. Year and model of vehicle 3. Vehicle Identification Number (17 digits, noted on your registration or title or located on the upper driver's side corner of the dash) 4.
Page 411: Mazda Importer/Distributors
TEL: (684) 699-9347 TEL: 1 (800) 263-4680 (in Canada) (905) 787-7000 (outside Canada) qPUERTO RICO/U.S. Virgin Island International Automotive Distributor Group, LLC. (Mazda de Puerto Rico) P.O. Box 191850, San Juan, Puerto Rico 00919-1850 TEL: (787) 641-1777 qMEXICO Mazda Motor de Mexico Mario Pani # 150, PB Col.
Page 412: Warranty
Mazda5_8DW4-EC-14H_Edition3 Page412 Friday, January 16 2015 4:27 PM Black plate (412,1) Customer Information and Reporting Safety Defects Warranty Warranties for Your Mazda New Vehicle Limited Warranty Powertrain Limited Warranty Safety Restraint System Limited Warranty Anti-perforation Limited Warranty Federal Emission Control Warranty/California Emission Control Warranty...
Page 413: Outside The United States
We strongly recommend that you NOT take your Mazda outside the United States. However, in the event that you are moving to Canada permanently, Mazda vehicles built for use in the United States could be eligible for exportation to Canada with specific vehicle modifications to comply with the Canadian Motor Vehicle Safety Standards (CMVSS).
Page 414: Outside Canada
We strongly recommend that you NOT take your Mazda outside Canada. However, in the event that you are moving to the United States permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the United States with specific vehicle modifications to comply with the United States Federal Motor Vehicle Safety Standards (FMVSS).
Page 415: Registering Your Vehicle In A Foreign Country (Except United States And Canada)
Parts, servicing techniques, and tools necessary to maintain and repair your vehicle may be unavailable. There might not be an Authorized Mazda Dealer in the country you plan to take your vehicle. The Mazda warranty is valid only in certain countries.
Page 416: Add-On Non-Genuine Parts And Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores. These may fit your vehicle, but they are not approved by Mazda for use with Mazda vehicles. When you install non-genuine parts or accessories, they could affect your vehicle's performance or safety systems;...
Page 417: Cell Phones
Mazda5_8DW4-EC-14H_Edition3 Page417 Friday, January 16 2015 4:27 PM Black plate (417,1) Customer Information and Reporting Safety Defects Cell Phones Cell Phones Warning WARNING Please comply with the legal regulations concerning the use of communication equipment in vehicles in your State or Province: Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous.
Page 418: Event Data Recorder
EDR. Mazda will not disclose any of the data recorded in an EDR to a third party unless: A written agreement from the vehicle owner or the lessee is obtained...
Page 419: Uniform Tire Quality Grading System (Utqgs)
Mazda5_8DW4-EC-14H_Edition3 Page419 Friday, January 16 2015 4:28 PM Black plate (419,1) Customer Information and Reporting Safety Defects Uniform Tire Quality Grading System (UTQGS) Uniform Tire Quality Grading System (UTQGS) This information relates to the tire grading system developed by the U.S. National Highway Traffic Safety Administration for grading tires by tread wear, traction, and temperature performance.
Page 420 These grades will be added to the sidewalls of passenger vehicle tires over the next several years according to a schedule established by the NHTSA and the tire manufacturers. The grade of tires available as standard or optional equipment on Mazda vehicles may vary with respect to grade.
Page 421: Tire Information (U.s.a.)
Mazda5_8DW4-EC-14H_Edition3 Page421 Friday, January 16 2015 4:28 PM Black plate (421,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tire Labeling Federal law requires tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a tire identification number for safety standard certification and in case of a recall.
Page 422 Mazda5_8DW4-EC-14H_Edition3 Page422 Friday, January 16 2015 4:28 PM Black plate (422,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) 11. Max. load rating 12. Tread wear, traction and temperature grades 13. Max. permissible inflation pressure 14. SAFETY WARNING P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation of the various components of that tire size and load index rating.
Page 423 Mazda5_8DW4-EC-14H_Edition3 Page423 Friday, January 16 2015 4:28 PM Black plate (423,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) H is the speed rating. The speed rating denotes the maximum speed for which the use of the tire is rated. Letter Rating Speed Rating 99 mph...
Page 424 Mazda5_8DW4-EC-14H_Edition3 Page424 Friday, January 16 2015 4:28 PM Black plate (424,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tread Wear, Traction and Temperature Grades Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course.
Page 425 Mazda5_8DW4-EC-14H_Edition3 Page425 Friday, January 16 2015 4:28 PM Black plate (425,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) qInformation on Temporary Tires Please refer to the sample below. 1. Temporary tires 2. Nominal width of tire in millimeters 3.
Page 426 Mazda5_8DW4-EC-14H_Edition3 Page426 Friday, January 16 2015 4:28 PM Black plate (426,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) 70 is the aspect ratio. This two-digit number indicates the tire's ratio of height to width. D is the tire construction symbol. D indicates diagonal ply construction . 16 is the wheel rim diameter in inches.
Page 427: Location Of The Tire Label (Placard)
Mazda5_8DW4-EC-14H_Edition3 Page427 Friday, January 16 2015 4:28 PM Black plate (427,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Location of the Tire Label (Placard) You will find the tire label containing tire inflation pressure by tire size and other important information on the driver's side B-pillar or on the edge of the driver's door frame.
Page 428 Mazda5_8DW4-EC-14H_Edition3 Page428 Friday, January 16 2015 4:28 PM Black plate (428,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) WARNING Always check the tire inflation pressures on a regular basis according to the recommended tire inflation pressure on the tire label and in conjunction with the information in this owner's manual: Driving your vehicle with under-inflated tires is dangerous.
Page 429 Mazda5_8DW4-EC-14H_Edition3 Page429 Friday, January 16 2015 4:28 PM Black plate (429,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) qGlossary of Terms Tire Placard: A label indicating the OE tire sizes, recommended inflation pressure, and the maximum weight the vehicle can carry. Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size, and date of manufacture.
Page 430: Tire Maintenance
Mazda5_8DW4-EC-14H_Edition3 Page430 Friday, January 16 2015 4:28 PM Black plate (430,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tire Maintenance Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are some important maintenance points: qTire Inflation Pressure Inspect all tire pressure monthly (including the spare) when the tires are cold.
Page 431 Mazda5_8DW4-EC-14H_Edition3 Page431 Friday, January 16 2015 4:28 PM Black plate (431,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) CAUTION Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or studs only from front to rear, not from side to side. Tire performance will be weakened if rotated from side to side.
Page 432 Mazda5_8DW4-EC-14H_Edition3 Page432 Friday, January 16 2015 4:28 PM Black plate (432,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) NOTE Tires degrade over time, even when they are not being used on the road. It is recommended that tires generally be replaced when they are 6 years or older.
Page 433: Vehicle Loading
Mazda5_8DW4-EC-14H_Edition3 Page433 Friday, January 16 2015 4:28 PM Black plate (433,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Vehicle Loading WARNING Do not tow a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to tow a trailer and doing so will affect the drive system which could result in vehicle damage.
Page 434 Mazda5_8DW4-EC-14H_Edition3 Page434 Friday, January 16 2015 4:28 PM Black plate (434,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Base Curb Weight is the weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equipment. Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your dealer plus any aftermarket equipment.
Page 435 Mazda5_8DW4-EC-14H_Edition3 Page435 Friday, January 16 2015 4:28 PM Black plate (435,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE CARGO Cargo Weight includes all weight added to the Base Curb Weight, including cargo and optional equipment. The cargo weight limit decreases depending on the number of vehicle occupants. The cargo weight limit can be calculated by subtracting the total weight of the vehicle occupants from the combination weight of occupants and cargo should never exceed value on the tire label.
Page 436 Mazda5_8DW4-EC-14H_Edition3 Page436 Friday, January 16 2015 4:28 PM Black plate (436,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg (849 lbs) for the combination weight of occupants and cargo should never exceed : The cargo weight limit with one occupant is 385 kg (849 lbs) _ 68 kg (150 lbs) = 317 kg (699 lbs) The cargo weight limit with two occupants is 385 kg (849 lbs) _ (68 ×...
Page 437 Mazda5_8DW4-EC-14H_Edition3 Page437 Friday, January 16 2015 4:28 PM Black plate (437,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE WARNING Exceeding Axle Weight Rating Limits: Exceeding the Safety Certification Label axle weight rating limits is dangerous and could result in death or serious injury as a result of substandard vehicle handling, performance, engine, transmission and/or structural damage, serious damage to the vehicle, or loss of control.
Page 438 Mazda5_8DW4-EC-14H_Edition3 Page438 Friday, January 16 2015 4:28 PM Black plate (438,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW). GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the vehicle - including all cargo and passengers - that the vehicle can handle without risking damage.
Page 439: Steps For Determining The Correct Load Limit
Mazda5_8DW4-EC-14H_Edition3 Page439 Friday, January 16 2015 4:28 PM Black plate (439,1) Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Steps for Determining the Correct Load Limit Steps for Determining Correct Load Limit- (1) Locate the statement The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.
Page 440: Reporting Safety Defects
P.O. Box 19734 Irvine, CA 92623-9734 Customer Experience Center or toll free at 1 (800) 222-5500 If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-13) in this booklet. 9-42 I n f o r ma t i o n P r o v i d e d b y :...
Page 441: Reporting Safety Defects (Canada)
Mazda5_8DW4-EC-14H_Edition3 Page441 Friday, January 16 2015 4:28 PM Black plate (441,1) Customer Information and Reporting Safety Defects Reporting Safety Defects Reporting Safety Defects (Canada) Canadian customers who wish to report a safety-related defect to Transport Canada, Defect Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330 Sparks Street, Ottawa ON K1A 0N5.
Page 442: Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do some of their own maintenance and repair. When requesting any of our publications through an Authorized Mazda Dealer, refer to the chart below. If they do not have what you need in stock, they can order it for you.
Page 443 Mazda5_8DW4-EC-14H_Edition3 Page443 Friday, January 16 2015 4:28 PM Black plate (443,1) Specifications Technical information about your Mazda. Identification Numbers ............... 10-2 Vehicle Information Labels ............. 10-2 Specifications ................10-4 Specifications ................10-4 Personalization Features ............10-8 Personalization Features ............10-8...
Page 444: Identification Numbers
Mazda5_8DW4-EC-14H_Edition3 Page444 Friday, January 16 2015 4:28 PM Black plate (444,1) Identification Numbers qChassis Number Vehicle Information Labels qVehicle Identification Number The vehicle identification number legally identifies your vehicle. The number is on a plate attached to the cowl panel located on the left corner of the dashboard.
Page 445 Mazda5_8DW4-EC-14H_Edition3 Page445 Friday, January 16 2015 4:28 PM Black plate (445,1) Identification Numbers qEngine Number Forward 10-3 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 446 API Service GL-4 Manual transaxle oil 75W-80 Automatic transaxle fluid Mazda Genuine ATF M-V Mazda Genuine ATF M-III , M-V, or equivalent Power steering fluid (e.g. Dexron® II) Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3 NOTE Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.
Page 447 Mazda5_8DW4-EC-14H_Edition3 Page447 Friday, January 16 2015 4:28 PM Black plate (447,1) Specifications qCapacities (Approximate Quantities) Item Capacity With oil filter replacement 5.0 L (5.3 US qt, 4.4 Imp qt) Engine oil Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt) Manual transaxle 6.7 L (7.1 US qt, 5.9 Imp qt) U.S.A.
Page 448 NOTE The tires have been optimally matched with the chassis of your vehicle. When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer. í...
Page 449 Mazda5_8DW4-EC-14H_Edition3 Page449 Friday, January 16 2015 4:28 PM Black plate (449,1) Specifications Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation Pressure on page 8-37. Standard tire Inflation pressure Tire size Front Rear P205/55R16 89H 240 kPa (35 psi) 240 kPa (35 psi) 205/50R17 89V...
Page 450: Personalization Features
Mazda5_8DW4-EC-14H_Edition3 Page450 Friday, January 16 2015 4:28 PM Black plate (450,1) Personalization Features Personalization Features The following Personalization Features are available. These settings can only be changed by an Authorized Mazda Dealer. Item Feature Factory Setting Available Settings Key reminder...
Page 451: Index
Mazda5_8DW4-EC-14H_Edition3 Page451 Friday, January 16 2015 4:28 PM Black plate (451,1) Index 11-1 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...
Page 452 Appearance Care ....... 8-56 system ........6-79 Audio System ........6-11 Hands-free setting ...... 6-85 Audio control switch ....6-47 Mazda Bluetooth® Hands-Free Audio set ........6-23 customer service ......6-92 AUX/USB/iPod Mode ....6-50 Safety certification ..... 6-92 Operating tips for audio When Bluetooth®...
Page 453 Mazda5_8DW4-EC-14H_Edition3 Page453 Friday, January 16 2015 4:28 PM Black plate (453,1) Index Child Restraint Dynamic Stability Control (DSC) ..5-25 Child restraint precautions ..2-30 DSC OFF indicator light .... 5-26 Child-restraint system installation DSC OFF switch ......5-26 position ........2-35 TCS/DSC indicator light ....
Page 454 Mazda5_8DW4-EC-14H_Edition3 Page454 Friday, January 16 2015 4:28 PM Black plate (454,1) Index Foot Brake .......... 5-5 Indicator Lights ......... 5-44 Front Seats .......... 2-2 Cruise ......... 5-55 Fuel DSC OFF ........5-55 Filler lid and cap ......3-20 Headlight high-beam ....5-54 Gauge .........
Page 455 Mazda5_8DW4-EC-14H_Edition3 Page455 Friday, January 16 2015 4:28 PM Black plate (455,1) Index Light Bulbs Parking Sensor System ..... 5-34 Replacement ....... 8-42 Park assist sensor switch .... 5-36 Specifications ......10-6 Parking sensor warning beep ..5-38 Lighting Control ....... 5-59 Sensor detection range ....
Page 456 Mazda5_8DW4-EC-14H_Edition3 Page456 Friday, January 16 2015 4:28 PM Black plate (456,1) Index Seat Belt System SRS Air Bags 3-point type ........ 2-22 Supplemental restraint system Automatic locking ...... 2-21 components ........ 2-52 Emergency locking ....2-20 Steering Wheel ........3-32 Extender ........
Page 457 Mazda5_8DW4-EC-14H_Edition3 Page457 Friday, January 16 2015 4:28 PM Black plate (457,1) Index Warning Lights ......... 5-44 Tires ABS ..........5-47 Flat tire ......... 7-3 Air bag system ......5-50 Inflation pressure ......8-37 Automatic transaxle ....5-51 Replacement ....... 8-39 Brake system ......
Page 458 Mazda5_8DW4-EC-14H_Edition3 Page458 Friday, January 16 2015 4:28 PM Black plate (458,1) 11-8 I n f o r ma t i o n P r o v i d e d b y : Form No.8DW4-EC-14H...

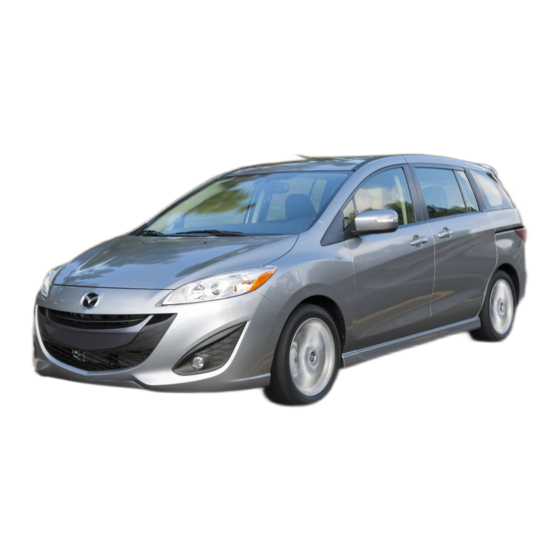

Mazda 5 2015 Owner's Manual

Table of Contents

2 Essential Safety Equipment

3 Knowing Your Mazda

Of Variousparts.

Explanationof Basicoperationsandcontrols;Opening/Closingandadjustment

4 Before Driving Your Mazda

5 Driving Your Mazda

Explanationof Instrumentsandcontrols.

Starting and Driving

Instrument Cluster and Indicators

Warning/Indicator Lights and Beep Sounds

Switches and Controls

6 Interior Comfort

System.

Use Ofvariousfeaturesfor Drivecomfort,Includingair-Conditioning Andaudio

7 In Case of an Emergency

8 Maintenance and Care

Customer Information and Reporting 9

Quick Links

Chapters

Related Manuals for Mazda 5 2015

Summary of Contents for Mazda 5 2015
