Operating Instructions Dishwasher G 5170 G 5175 en - US, CA To prevent accidents and appliance damage read these instructions before installation or use. M.-Nr. 09 016 320... -
Page 2: Table Of Contents
Loading the dishwasher ........ - Page 3 Faults in the water intake/water drain ........39 General problems with the dishwasher ....... . . 40 Sounds .
-
Page 4: Important Safety Instructions
If the supplied power cord is damaged it must only be replaced by a Miele Service technician with a genuine Miele power cord. The outlet must be accessible at all times after installation to disconnect the... - Page 5 The dishwasher must be installed and connected in accordance with the installation instructions. Installation and repair work should be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty. Do not install or use a damaged dishwasher.
- Page 6 It is possible for small fingers may be pinched in the door. Only use the dishwasher if all panels are properly in place. Do not tamper with the controls. Do not sit or stand on the door or baskets of the dishwasher.
-
Page 7: Guide To The Dishwasher
Upper spray arm (not visible) Cutlery tray Upper basket Middle spray arm Air inlet for drying (depending on model) Lower spray arm Guide to the dishwasher Triple filter system Data plate Rinse aid reservoir Dual compartment detergent dispenser... -
Page 8: Control Panel
Guide to the dishwasher Control panel Check / Refill indicators Program selection Program selector button This operating instruction manual describes several dishwasher models with different indicated settings. The different dishwasher models are named : Standard = 32 " (81.5 cm) high dishwashers = 33 "... -
Page 9: Caring For The Environment
For best results follow these tips: ^ For lowest energy consumption you may connect the dishwasher to a cold water source. ^ For fastest possible wash times, with slightly higher energy consumption, connect the dishwasher to a hot water source. -
Page 10: Before Using For The First Time
Before using for the first time To open the door ^ Pull the handle to open the door. If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will continue. To close the door ^ Push the baskets in. -
Page 11: Water Softener
Water softener To achieve good cleaning results, the dishwasher needs soft water (water that is low in minerals). Hard water results in calcium deposits on dishware and in the dishwasher. If your tap water hardness is above 4 °d (4 gr/gal) the water should be softened. - Page 12 To exit the programming mode at any time and start over again, turn the dishwasher off with the V button. ^ Press the V button to turn the dishwasher off. ^ Press and hold the "Program" button and turn the dishwasher on simultaneously using the U button.
- Page 13 ^ Press the V button to turn the dishwasher off. ^ Press and hold the "Program" button and turn the dishwasher on simultaneously using the U button. Keep the "Program" button pressed for at least four seconds until the...
-
Page 14: Filling The Salt Container
Before using for the first time Every dishwasher is tested before leaving the factory. Any water remaining in the machine is from the final factory test and does not indicate that the machine has been used. Filling the salt container... -
Page 15: Refill Salt Message
"Salt" indicator light can remain on for a short time. It will go out once the reactivation process is complete. The "Salt" indicator light is turned off if you have programmed the dishwasher to a water hardness below 4 °d (4 gr/gal)). Immediately after each refill, run the "Express"... -
Page 16: Rinse Aid
Before using for the first time Rinse aid Rinse aid helps to prevent spotting on dishes and glassware. The rinse aid is filled in the reservoir and the set amount will be automatically dosed. Filling the rinse aid reservoir with detergent will damage the reservoir. -
Page 17: Adjusting The Dosage
– Use a higher setting if spots appear on dry glassware. ^ Use a lower setting if streaking appears on dishes or glasses. ^ Turn the dishwasher off "V". ^ Press and hold the "Program" button and at the same time turn the dishwasher on g. -
Page 18: Loading The Dishwasher
Wax, grease and paint will cause permanent discoloration and damage to the dishwasher. ^ Scrape food from dishes before placing them in the dishwasher, rinsing is not necessary. ^ Some foods contain natural dyes, e.g. carrots or tomatoes. Plastic items may discolor permanently if they come in contact with food dyes. -
Page 19: Items Not Recommended For Dishwashing
The China & Crystal program*, although extremely gentle and thorough can cause the china and crystal to "wear" if they are not dishwasher safe. Loading the dishwasher Glassware: – There are no standard guidelines for washing glassware, when in doubt wash by hand. -
Page 20: Typical Load For 10 Place Settings
Loading the dishwasher Typical load for 10 place settings Upper basket Lower basket Cutlery tray... -
Page 21: Typical Load For 16 Place Settings
Loading the dishwasher Typical load for 16 place settings Upper basket Lower basket Cutlery tray... -
Page 22: Upper Basket
Loading the dishwasher Upper basket Always use the dishwasher with the upper and lower basket in place. ^ Load the upper basket with small, lightweight, or delicate items such as cups, saucers, glasses, dessert bowls and flat pans. Long items such as soup ladles, mixing... - Page 23 ^ Slide out the upper basket. To adjust the upper basket upwards: ^ Lift the basket up until it clicks into place. Loading the dishwasher To adjust the upper basket downwards: ^ Pull up on the levers at the sides of the upper basket.
-
Page 24: Lower Basket
Glasses, cups, small plates and saucers can also be arranged in the lower basket. Dishwasher with cutlery tray Dishwasher with cutlery basket Heavily soiled items ^ Place large platters and dishes in the center of the lower basket. - Page 25 ^ Slide the hooks of the insert under the struts of the lower basket. ^ Push down on the insert to snap it into position. Loading the dishwasher Glass rack ^ The glass rack can be raised to make more room for tall items.
- Page 26 Loading the dishwasher Foldable spikes (depending on model) The spikes at the front are used for plates, soup bowls, platters, desert bowls, and saucers. Both rows of spikes can be folded down to create more room for larger dishware, e. g. pots, pans and bowls.
-
Page 27: Cutlery Tray
The upper spray arm must not be blocked by tall cutlery items. The cutlery tray insert is removable. Loading the dishwasher Spoons with thick handles may have to be placed as knives and forks with their heads in the holders. -
Page 28: Cutlery Basket
Loading the dishwasher Cutlery basket (depending on model) The cutlery basket can be placed anywhere on the front rows of spikes in the lower basket. ^ To avoid risk of injury, knives and forks should be placed with the handles upwards in the basket. -
Page 29: Optional Accessories
...wash long-stemmed glassware MieleCare Collection Miele branded cleaning and care products, including dishwasher salt, detergent and rinse aid, are available to order from your Miele dealer, Miele or the on-line Miele store www.mieleusa.com Optional accessories the following accessory will need to be ordered... -
Page 30: Use
You can use powder, gel or tab detergents. Follow the dosage information on the detergent packaging. Detergent tabs are not recommended for use with the program "Express". The tabs may not dissolve completely. Dishwasher cleaning products are available from MIele. -
Page 31: Adding Detergent
Adding detergent ^ Press the latch on the detergent dispenser. The flap will spring open. The flap is always open at the end of a program. ^ Add detergent to the compartments and close the container flap. ^ Use one tab or add powder or gel detergent to compartment II and close the flap. -
Page 32: Turning On
The display and the indicators are turned off and only the U indicator lights. ^ To turn the dishwasher back on press any key (except V). If refill salt and/or rinse aid or a fault are present in the display, the dishwasher will not switch to Standby mode. -
Page 33: Program Guide
Program When to use guide Pots & Pans For normally soiled pots & pans with dried on food, and heavily soiled dishware, use 120% detergent recommended Normal Program for completely washing a full load of normally soiled dishware with the ability to adjust energy and water consumption based on the soil load of... -
Page 34: At The End Of A Program
In the "Express" program, the drying fan will run for a few minutes after the program is completed. You can now empty the dishwasher. To avoid damage to counter tops rom steam, open the door after the end of the program either fully (never ajar) or keep it closed until you are removing all the dishes. -
Page 35: Interrupting A Program
If the door is closed again, the program will continue from where it was interrupted. Water in the dishwasher is hot. Danger of scalding. Only open the door if absolutely necessary and exercise extreme caution when doing so. Before closing the door again, leave it ajar for approx. -
Page 36: Additional Options
The buzzer for a fault cannot be turned off. ^ Open the door. ^ Turn the dishwasher off with the V button. ^ Press and hold the Program button and turn the dishwasher on simultaneously using the K button. -
Page 37: Factory Default
Factory default All settings can be reset to factory default. ^ Open the door. ^ Turn the dishwasher off with the V button. ^ Press and hold the Program button and turn the dishwasher on simultaneously using the K button. -
Page 38: Frequently Asked Questions
– Reset the circuit breaker (see the data plate for minimum amperage). – If the circuit breaker trips again, contact Miele. – Turn the dishwasher off with the V button. After a few seconds: – Turn the dishwasher on. -
Page 39: Faults In The Water Intake/Water Drain
Solution – Open the water supply valve all the way. Before fixing the fault: – Turn the dishwasher off with the V button. all the way. – Clean the water intake filter (see "Cleaning and Care"). – The water pressure at the water connection is less than 30 kPa (0.3 bar/4.35 psi). -
Page 40: General Problems With The Dishwasher
Frequently Asked Questions General problems with the dishwasher Problem The display is dark and only the " U " indicator lights. Detergent residue is left in the dispenser at the end of a program. The detergent dispenser lid cannot be closed properly. -
Page 41: Sounds
Interrupt the program, and rearrange loose pieces. Remove the foreign object from the drain pump (see "Cleaning the drain pump and non-return valve") This has no effect on the dishwasher. If in doubt, contact a plumber. -
Page 42: Poor Cleaning Results
There is a bluish sheen on the surface of glasses and a film which can be wiped off. Solution See "Loading the dishwasher". Select a more intensive program (see "Program Guide"). Use more detergent, or change the detergent. rearrange the dishes if necessary. - Page 43 Problem Possible fault Dishes are not dry, The rinse aid setting may be glasses and too low, or the rinse aid cutlery are reservoir is empty. spotted. Dishes were taken out too soon. A "Tab" product was used. These products have a low drying effect.
- Page 44 Plastics are discolored. There are rust stains on cutlery. Possible fault Detergent deposits. Glasses are not dishwasher safe. The surface is affected. The wash temperature of the selected program was too low. The detergent has a low bleaching effect.
-
Page 45: After Sales Service
Miele’s Service department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unauthorized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home. -
Page 46: Transport
Transport To transport the dishwasher, e.g. when moving to a new home, note the following: – Empty the dishwasher. – Secure any loose parts, e.g. hoses, cables, cutlery baskets. – Transport the dishwasher in the upright position. If unavoidable it may be transported on its back. -
Page 47: User Maintenance Instructions
User Maintenance Instructions To prevent accidents and appliance damage, read these instructions before installation or use. -
Page 48: Cleaning And Care
The wash cabinet can be cleaned with a dishwasher cleaner such as "Dis Cleaner" available from your Miele dealer or online at www.mieleusa.com. Door and the door seal ^ Wipe the door seals regularly with a damp cloth to remove food deposits. -

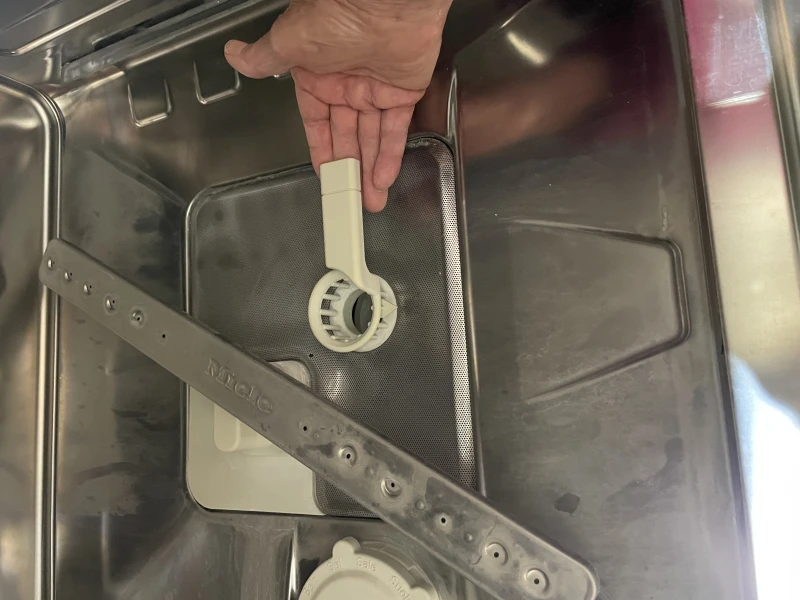

Page 49: Triple Filter System
The level of soiling and time it takes before the filters need cleaning will vary depending on your household usage. ^ Turn off the dishwasher before cleaning. Cleaning and Care ^ Turn the handle counterclockwise to release the triple filter system... - Page 50 Cleaning and Care To clean the inside of the filter, the flap must be opened. ^ Push the clips together the flap ^ Rinse under running water. ^ Close the flap so that the clip engages. ^ Return the filter so it lies flat in the base of the wash cabinet.
-
Page 51: Cleaning The Spray Arms
Sometimes particles of food get stuck in the spray arm jets. The spray arms should be inspected and cleaned every 4 - 6 months. ^ Turn off the dishwasher before cleaning. Removing the spray arms ^ Remove the cutlery tray (if present). -
Page 52: Cleaning The Drain Pump And Non-Return Valve
If the dishwasher is not completely drained at the end of a program, the drain pump or non-return valve may be blocked. ^ Turn off the dishwasher and pull the plug. ^ Remove the triple filter (see "Triple filter system"). -
Page 53: Installation Instructions
Installation Instructions Please refer to the Installation Diagram supplied with these instructions. To comply with IEC sound testing protocols, please contact Miele for additional instructions. Information is subject to change. Please refer to our website to obtain the most current product specification, technical & warranty information. -
Page 54: Help To Protect The Environment
Help to protect the environment Disposal of the packing material The cardboard box and packaging protect the appliance during shipping. These materials are biodegradable and recyclable. Please recycle. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of children. -
Page 55: Electrical Connection
Danger of overheating! See data plate on the right side of the door. A damaged power cord must only be replaced with a genuine Miele cord by a Miele service technician. GROUNDING INSTRUCTIONS THIS APPLIANCE MUST BE GROUNDED. - Page 56 Electrical connection Hardwired electrical connection It is possible to hardwire this appliance to an existing power cable. CAUTION: Before servicing, disconnect the power supply by either removing the fuse, shutting off the power main or manually "tripping" the circuit breaker. Installation work and repairs should only be performed by a qualified technician in accordance with all...
-
Page 57: Plumbing
Do not drink water from the dishwasher! – The dishwasher can heat its own water to the temperature required by the wash program. This allows for connection of the machine to either a hot (max. -
Page 58: Drainage
5 ft (1.5 m) flexible drain hose with an internal diameter of 7/8" (22 mm). – Drain hose extensions and adapters can be ordered from Miele. The maximum drain hose length is 13 ft. (4 m), max. drain height: 39"... - Page 60 Alteration rights reserved / 4711 M.-Nr. 09 016 320 / 03 G5170/G5175 / INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
