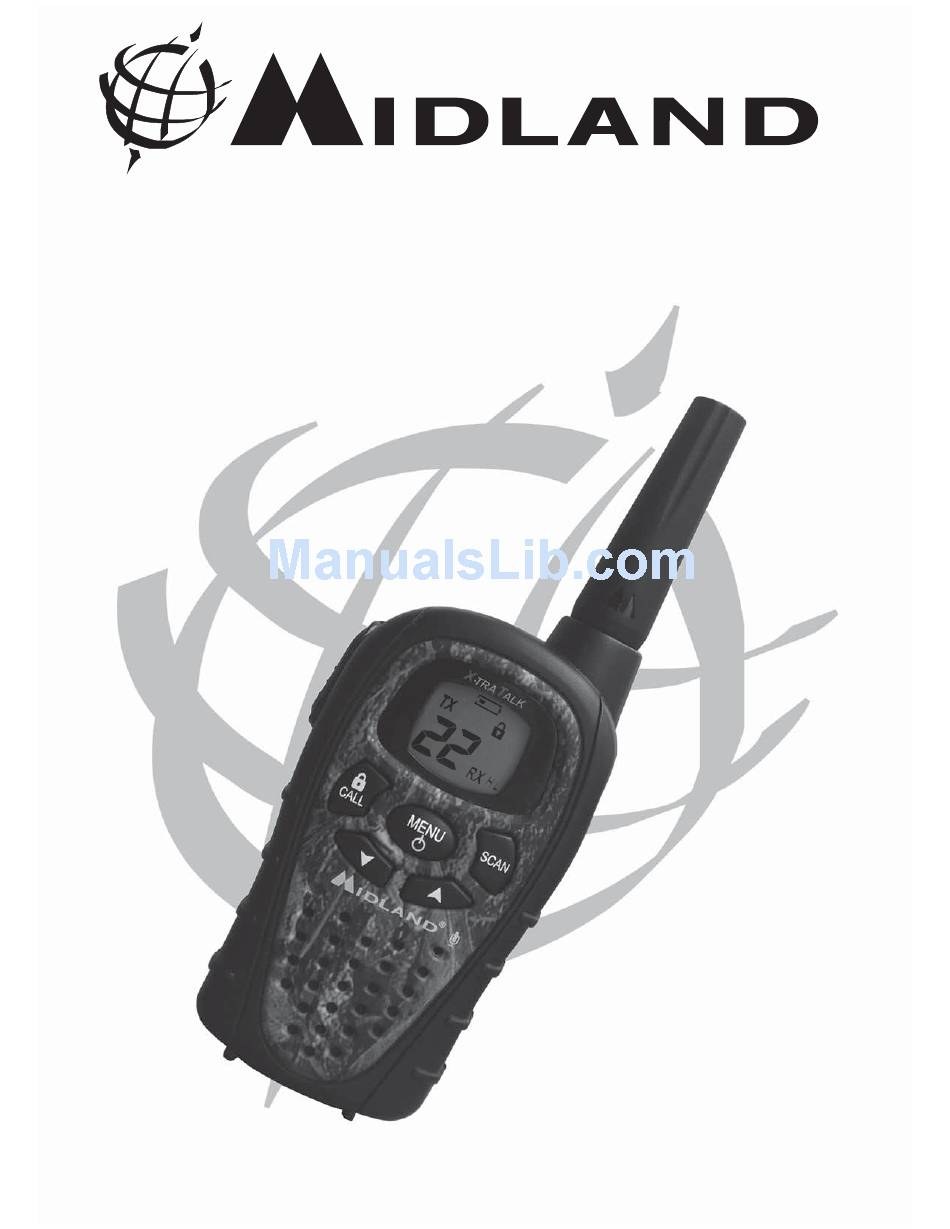

- Page 1 ® LXT276/330/335 Series GMRS/FRS Radio OWNER'S MANUAL www.midlandradio.com...
-
Page 2: Table Of Contents
Model LXT276/330/335 Series TABLE OF CONTENTS Introduction Important Notice, FCC Licensing LCD Display Controls Battery Installation Installing the Belt Clip Charging the Optional Battery Pack Low Battery Level Indicator Operating Your Radio Troubleshooting Guide Use and Care Specifications and Frequency Charts Warranty Information MIDLAND Family Products Accessories... -
Page 3: Introduction
To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. -
Page 4: Important Notice, Fcc Licensing
IMPORTANT: Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. -
Page 5: Lcd Display
Model LXT276/330/335 Series LCD DISPLAY CONTROLS MENU SCAN Page 5 1. LOW BATTERY ICON – Indicates the battery level is low. 2. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal. 3. CHANNEL NUMBER – Changes from 1~22 on GMRS/FRS band (1~10 on WX band). -
Page 6: Battery Installation
Model LXT276/330/335 Series BATTERY INSTALLATION Your LXT276/330/335 Series radio operates with either 4 AAA alkaline batteries or an optional NiMH battery pack. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries: 1. -
Page 7: Charging The Optional Battery Pack
Model LXT276/330/335 Series CHARGING THE OPTIONAL BATTERY PACK Your LXT276/330/335 Series is equipped for using an rechargeable NiMH battery pack which can be recharged by inserting the AC adapter into the radio charge jack, or with optional desktop charger (as described below). Initial charge time is 24 hours. Charge time is about 12 hours thereafter. -
Page 8: Operating Your Radio
Model LXT276/330/335 Series OPERATING YOUR RADIO POWER ON/OFF AND VOLUME Press the POWER/MENU button for at least 3 seconds to turn the radio on/off. During Power On, the radio will beep 3 times with different tones, the LCD will display all icons for 1 second and the LCD display will indicate the last channel selected. - Page 9 Model LXT276/330/335 Series LXT276/330/335 SERIES QUICK REFERENCE CHART MENU Channel 1~22 SCAN Your LXT276/330/335 Series can scan all 22 channels for activity. To enter, quickly press the SCAN button. Repeat the same procedure to exit. Your radio will rapidly scan each of the 22 channels and stop on any active channel for 4 seconds before resuming scan.
- Page 10 Model LXT276/330/335 Series TRANSMIT (TX) POWER LEVEL SELECTION Your LXT276/330/335 Series has 2 power level settings. To select the power level on channels 1~7 and 15~22, press the MENU button until a “Pr” icon will appear blinking on the display. Then press the buttons to select TRANSMIT POWER LEVEL icon (H: Hi/L: Lo).
- Page 11 Model LXT276/330/335 Series EXTERNAL SPEAKER/MICROPHONE JACK Your LXT276/330/335 Series can be used with an optional external speaker/microphone or headset, freeing your hands for other tasks. To use an optional speaker / microphone or headset: Insert the plug(s) into the SPK/MIC jacks Place the earbud into your ear, and adjust the mic into your desired position.
-
Page 12: Troubleshooting Guide
Model LXT276/330/335 Series TROUBLESHOOTING GUIDE PROBLEM No Power Cannot Receive Messages Radio is not responding to button presses Display is dim Charger not functioning USE AND CARE 1. Use a soft damp cloth to clean the radio 2. Do not use alcohol or cleaning solutions to clean the radio. 3. -
Page 13: Specifications And Frequency Charts
Model LXT276/330/335 Series SPECIFICATIONS Channels 22 GMRS/FRS Channels Operating Frequency UHF 462.5500 ~ 467.7125 MHz Power Source 4 AAA Alkaline or 4.8V Rechargeable Ni-MH battery pack GMRS/FRS FREQUENCY CHART (MHz) CH. No CH. Freq. 462.5625 462.5875 462.6125 462.6375 462.6625 462.6875 462.7125 467.5625 * Channels 8~14 are low-power FRS license free channels... -
Page 14: Warranty Information
Model LXT276/330/335 Series ® LIMITED WARRANTY Midland Radio Corporation will repair or replace, at its option without charge, any Midland FRS/GMRS transceiver which fails due to a defect in material or workmanship within Three Years following the initial consumer purchase. This warranty does not apply to water damage, battery leak or abuse. -
Page 15: Midland Family Products
Model LXT276/330/335 Series ACCESSORIES Accessories can be purchased at www.midlandradio.com or fill in the form on the following page and mail it to our address. A A V V P P -6 6 Page 15 - 1 Dual Desk Charger - 2 Rechargeable battery packs - 1 AC Adapter - 1 DC Cigarette lighter adapter... - Page 16 Model LXT276/330/335 Series A A V V P P -1 1 A A V V P P -H H 1 1 A A V V P P -H H 2 2 Page 16 - 2 Over the Ear Mic. Headsets w/ PTT - $19.99 - 1 Open Face Helmet Microphone Kit...
