LBS-0808
L
B
U
TM
INK
RIDGE
NIVERSAL
8
8 O
/DVI/HDMI
X
PTICAL
M
S
ATRIX
WITCH
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2013 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata LBS-0808
Summary of Contents for Broadata LBS-0808
- Page 1 /DVI/HDMI PTICAL ATRIX WITCH BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 3: Table Of Contents
WEB GUI CONTROL ............ 12 4.0 SPECIFICATIONS ............14 5.0 SERVICE PROCEDURE ..........16 5.1 REPLACEMENT POLICY ..........16 5.2 RETURN AND REPAIR SERVICE ......... 16 6.0 LIMITED WARRANTY ............ 17 7.0 APPENDIX ..............18 Broadata Technical Support, (800) 214-0222... -
Page 4: Product Description

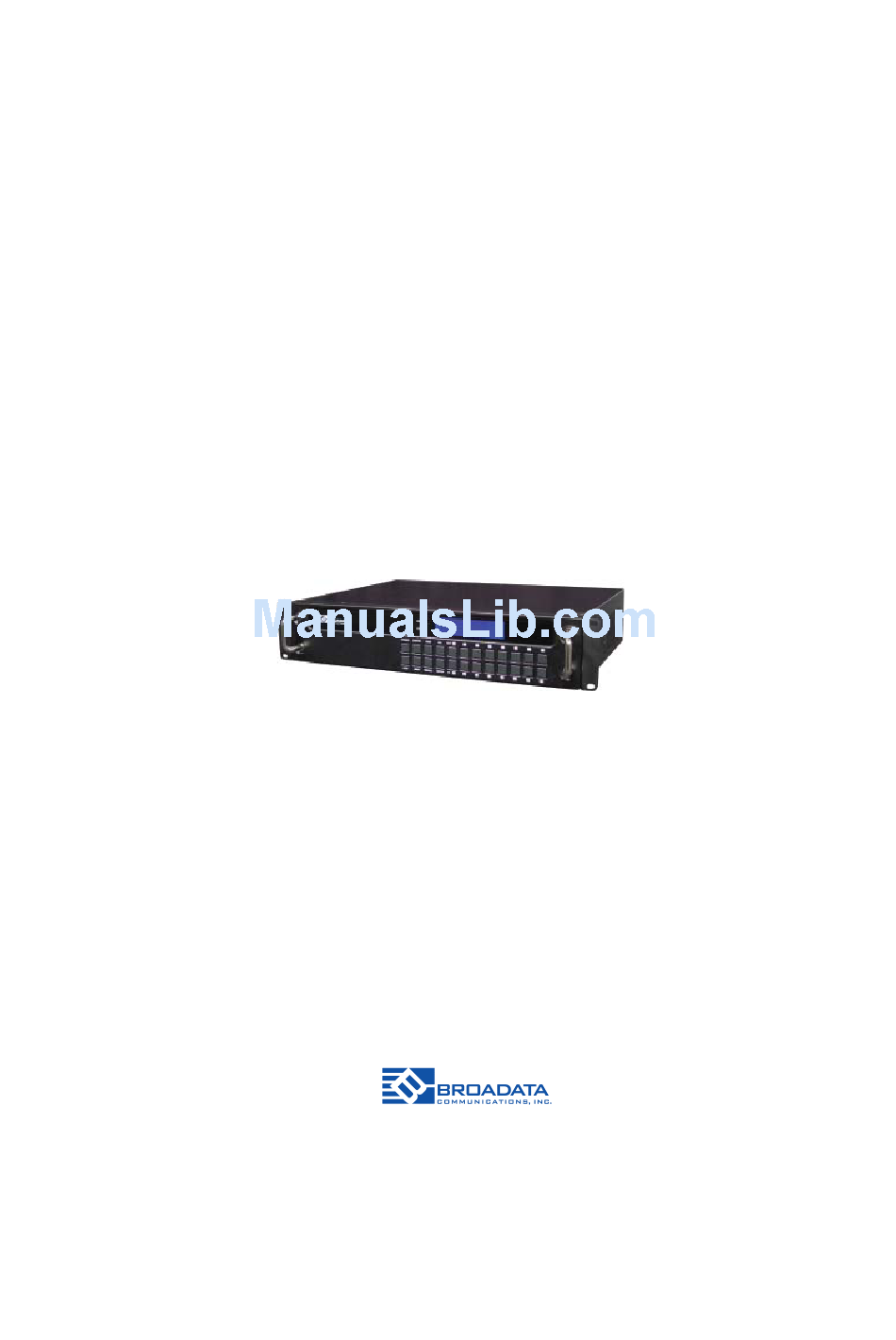

The LBS comes in a 2-RU packaging design. The LBS supports jitter-free, high-quality HDMI/DVI Display with several EDID functions for independent display resolution at per-port basis. Types of switching control available: manual control panel, standard RS-232, or Ethernet Web GUI and Telnet control. Broadata Technical Support, Sales@Broadatacom.com... -
Page 5: Operation Controls And Functions
D. LCD Contrast Range from 1~4 SAVE: Press this button to save the present setting of the I/O. There are 10 pre-sets available for saving. ALL: Press this button to select all outputs to one input. Broadata Technical Support, (800) 214-0222... -
Page 6: Rear Panel
ETHERNET: Connect to an active network line for LAN and Telnet/Web GUI control. d. RS-232: Connect with D-Sub 9-pin cable from the PC/Control device for RS-232 control over the LBS-0808. INPUT 1~8: Connect source equipment such as Blu-ray/PS3 players up to 16 devices with HDMI/optical cable. -
Page 7: Switch Control
Please allow adequate space around the unit for air circulation. 3.0 SWITCH CONTROL 3.1 RS-232 Pin Assignment LBS-3232 Remote Controller Definition Definition Default Port Settings Baud Rate: 19.2K Data Bits: Parity Bits: None Stop Bits: Flow Control: None Broadata Technical Support, (800) 214-0222... -
Page 8: Rs-232 And Telnet Commands
BCI LBS-08x08 User’s Manual Link Bridge Universal 8x8 Optical/DVI/HDMI Matrix Switch 3.2 RS-232 and Telnet Commands Refer to Appendix A for full list of commands. Broadata Technical Support, Sales@Broadatacom.com... -
Page 9: Telnet Control
“cmd” in the Search field then press enter. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” with then press enter. Under Mac OS X, go to Go-Applications-Utilities-Terminal. See below for reference. Broadata Technical Support, (800) 214-0222... - Page 10 “HELP” to list the available commands. Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a set static IP, type “SETIP” (For a full list of commands, see Appendix A). Broadata Technical Support, Sales@Broadatacom.com...
-
Page 11: Web Gui Control
On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device’s IP address on the web address entry bar. The browser will display the device’s status, control and User setting pages. Broadata Technical Support, (800) 214-0222... - Page 12 The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 13: Specifications
Connector Protocol EDID/DDC and HDCP Capable Control Manual Panel Button RS-232 DB-9, 19.2 kb/s Ethernet 10/100Base-T for Web Browser, Telnet Physical Dimension (H x W x D) 3.5” x 19.0” x 13”, Including chassis handle Broadata Technical Support, (800) 214-0222... - Page 14 BCI LBS-08x08 User’s Manual Link Bridge Universal 8x8 Optical/DVI/HDMI Matrix Switch Power Level 110 VAC~240VAC, 50/60Hz 450W (max.) with all optical ports 250W (max.) without optical ports Operating Temperature 0 to +40 Humidity 0 to 90% RH, non-condensing Broadata Technical Support, Sales@Broadatacom.com...
-
Page 15: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 5.2 Return/Repair Service The LBS-0808 System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. -
Page 16: Limited Warranty
Universal 8x8 Optical/DVI/HDMI Matrix Switch 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s... -
Page 17: Appendix
BCI LBS-08x08 User’s Manual Link Bridge Universal 8x8 Optical/DVI/HDMI Matrix Switch 7.0 APPENDIX A Broadata Technical Support, (800) 214-0222... - Page 18 BCI LBS-08x08 User’s Manual Link Bridge Universal 8x8 Optical/DVI/HDMI Matrix Switch Broadata Technical Support, Sales@Broadatacom.com...
- Page 19 BCI LBS-08x08 User’s Manual Link Bridge Universal 8x8 Optical/DVI/HDMI Matrix Switch Broadata Technical Support, (800) 214-0222...
- Page 20 BCI LBS-08x08 User’s Manual Link Bridge Universal 8x8 Optical/DVI/HDMI Matrix Switch Broadata Technical Support, Sales@Broadatacom.com...
- Page 21 BCI LBS-08x08 User’s Manual Link Bridge Universal 8x8 Optical/DVI/HDMI Matrix Switch Broadata Technical Support, (800) 214-0222...
- Page 22 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: Sales@Broadatacom.com Website: www.broadatacom.com 60000-LBS-0808...
